Powering the Future of Flight: FR4PCB’s Comprehensive UAV Chipset Solutions

Rapidly evolving landscape of Unmanned Aerial Vehicle (UAV) technology, high-performance hardware architecture is the cornerstone of stable flight, precision obstacle avoidance, and extended endurance. As a leading provider of UAV components, FR4PCB is dedicated to delivering full-stack chipset solutions—from flight control and inertial navigation to communication links.

1. FR4PCB: Your Trusted Partner in UAV Core Hardware

FR4PCB is more than just a component distributor; we are deep technical participants in the UAV industry. We understand the rigorous demands for stability in extreme environments. Therefore, we have established a strict screening system to ensure that every chip leaving our facility—such as the FG-120H and FG-30—possesses exceptional reliability and environmental adaptability.

With a robust supply chain and a dedicated technical support team, we provide closed-loop services ranging from PCB design consultation to critical component selection.

1. Core Solutions and Product Portfolio
2. High-Performance Flight Control Centers (MCU)

The flight control system is the "brain" of the drone. We provide top-tier processors based on ARM® Cortex®-M4/M7 cores to meet varying computational complexities:

• The Industry Standard: The STM32F405RET6 remains the "Golden Standard" for racing and industrial drones.
• Extreme Computing Power: For missions requiring real-time image processing or complex trajectory planning, the STM32F722RET6 and AT32F435RGT7 offer superior calculation efficiency and ultra-low task latency.

2. Precision Inertial Navigation (IMU & Sensors)

Stable attitude control relies on accurate sensor data. FR4PCB offers a full range of Inertial Measurement Units (IMU) from consumer to industrial grades:

• Classic Stability: Time-tested models like the MPU6000, ICM-20689, and ICM-20690 are still the top choices for classic airframes due to their low quadrature error and excellent vibration rejection.

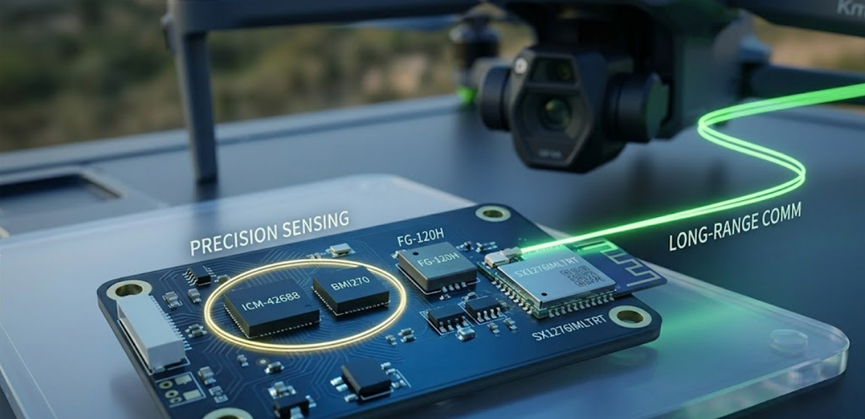

• Next-Gen Precision: We highlight the ICM-42688 series (including ICM-42688-P, ICM-42688-A, and ICM-42688-V), alongside the ICM-42605 and ICM-42607. These chips feature ultra-low noise density and, when paired with the BMI270, achieve the ultimate in motion sensing.
• Altitude & Pressure Control: Integrated with the BMP280 barometer and the TDKZSSC3123 signal conditioning chip, drones can achieve centimeter-level hovering precision.
• Specialized Applications: For diverse mission requirements, we also stock the ICM-42638, ICM-42670-P, ICM-40627, and ITG-3050 sensor solutions.

3. Robust Power and Energy Management

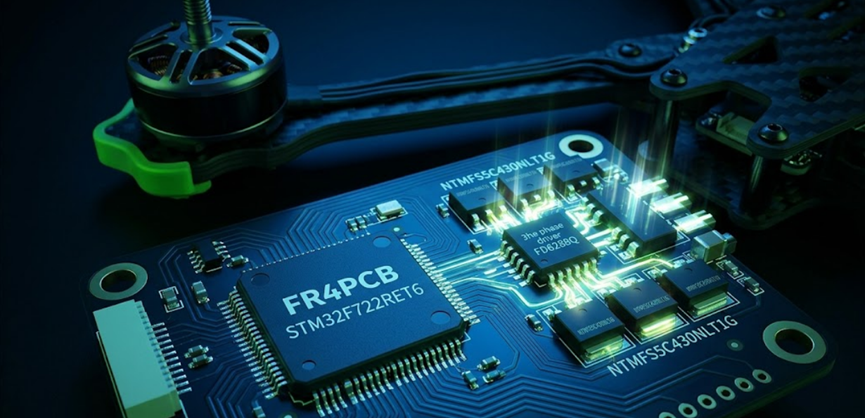

• Drive Management: The FD6288Q 3-phase gate driver, combined with the high-performance NTMFS5C430NLT1G power MOSFET, ensures precise motor output and power redundancy in high-wind conditions.
• Sensor Fusion: The MUG22-1S and IM-20670 excel in complex energy monitoring and modular data acquisition.

4. Long-Range Communication & RF Links

In Beyond Visual Line of Sight (BVLOS) operations, signal integrity is paramount:

• LoRa Technology: Utilizing SX1276IMLTRT, SX1278IMLTRT, and the latest LR1121IMLTRT solutions, we significantly extend data transmission distances in complex urban or remote mountainous areas.
• Signal Enhancement: The SE5004L-R front-end amplifier ensures signal penetration even in high-interference environments.

1. Target Application Scenarios

FR4PCB’s chipset solutions are widely deployed across various sectors:

• Agricultural Protection: Leveraging the reliability of the FG-120H module to support 24/7 high-intensity operations in crop spraying and monitoring.
• Cinematography: Relying on the stability of the ICM-42688-P to provide ultra-smooth gimbal stabilization for 4K/8K video capture.
• Power Line Inspection: Utilizing the high-performance computing of the AT32F435RGT7 for automated obstacle avoidance and precision inspection.
• Logistics & Delivery: Combining the cost-effective FG-30 and MUG22-1S solutions with SX1276 long-range communication to lower the deployment costs of urban delivery fleets.


1. Why Choose FR4PCB?

In the UAV industry, the quality of a single chip can determine the safety of the entire aircraft. FR4PCB is committed to:

1. Guaranteed Original Components: All models (e.g., MPU6000, ICM-20690) are sourced from original manufacturers or authorized channels.
2. Deep Technical Customization: We don't just sell chips; we understand how to maximize their performance on your PCB.
3. Rapid Supply Chain Response: We maintain strong global sourcing capabilities for high-demand or hard-to-find components.

Contact Us: If you are looking for high-performance UAV hardware cores or seeking optimization for your circuit designs, visit us at https://www. fr4pcb.com
