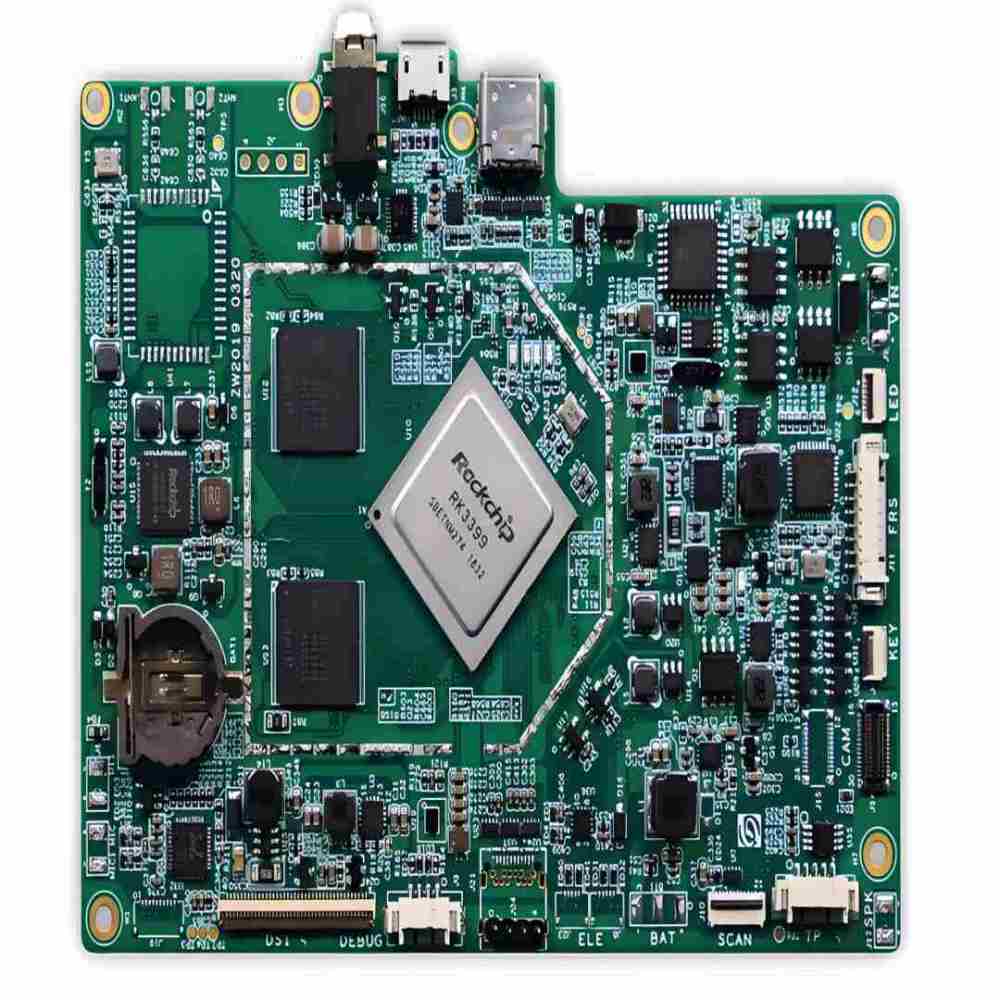

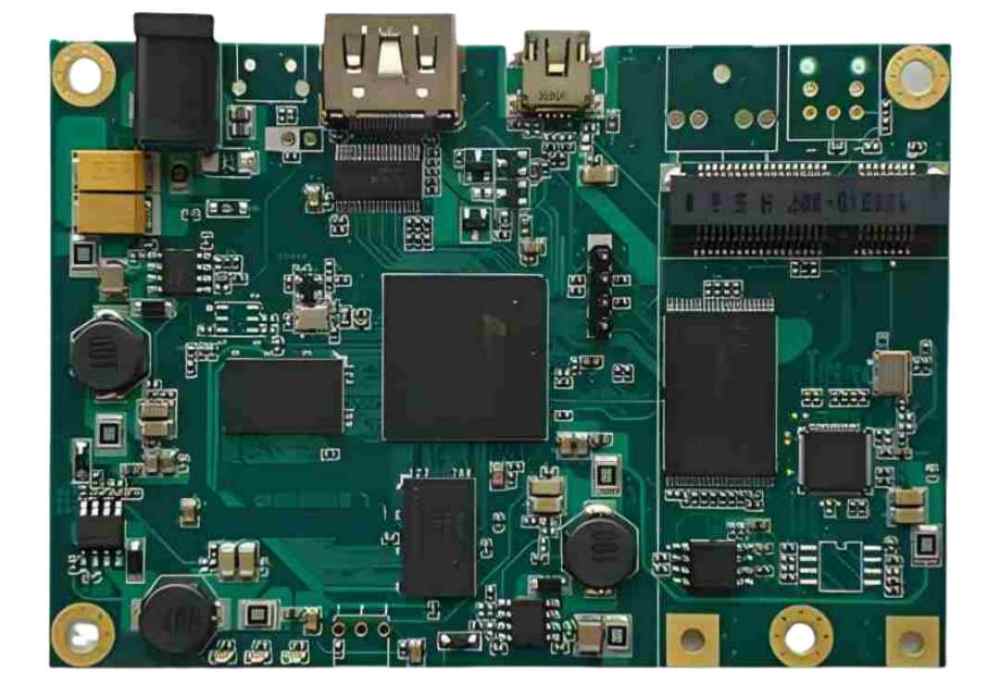

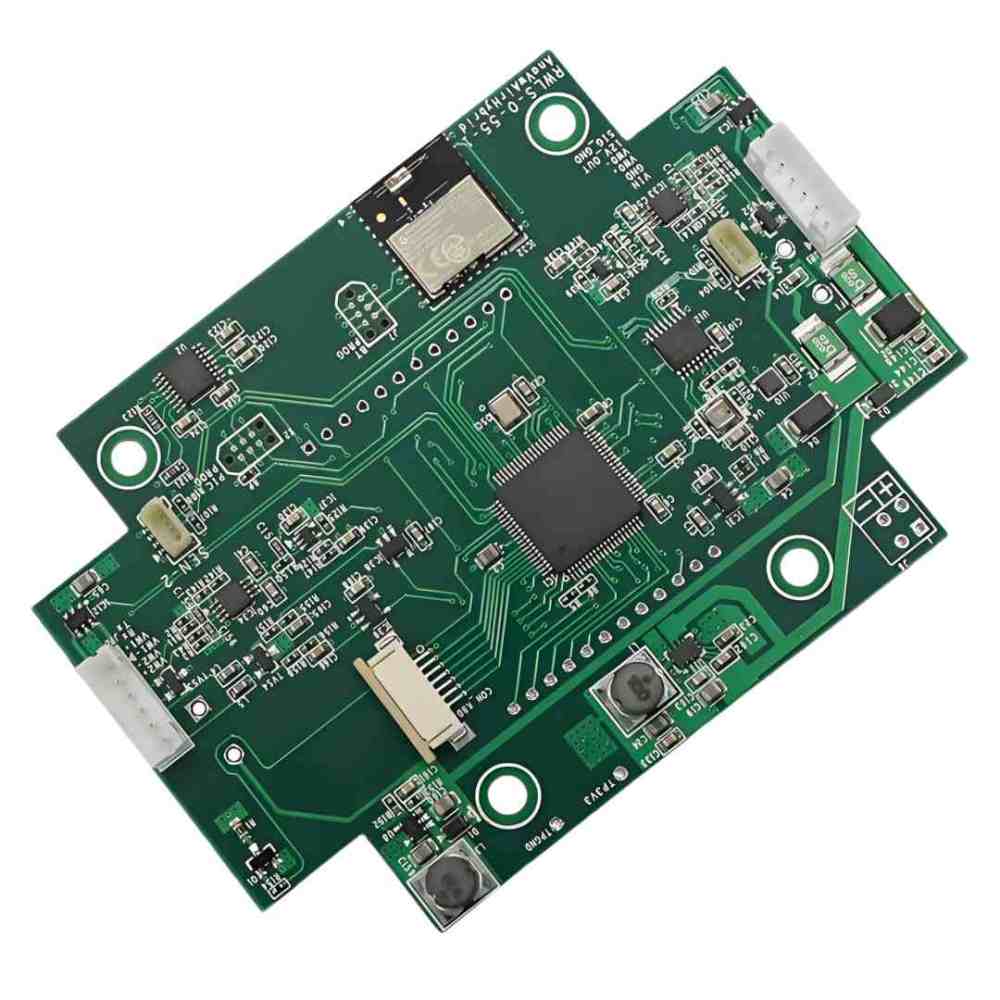

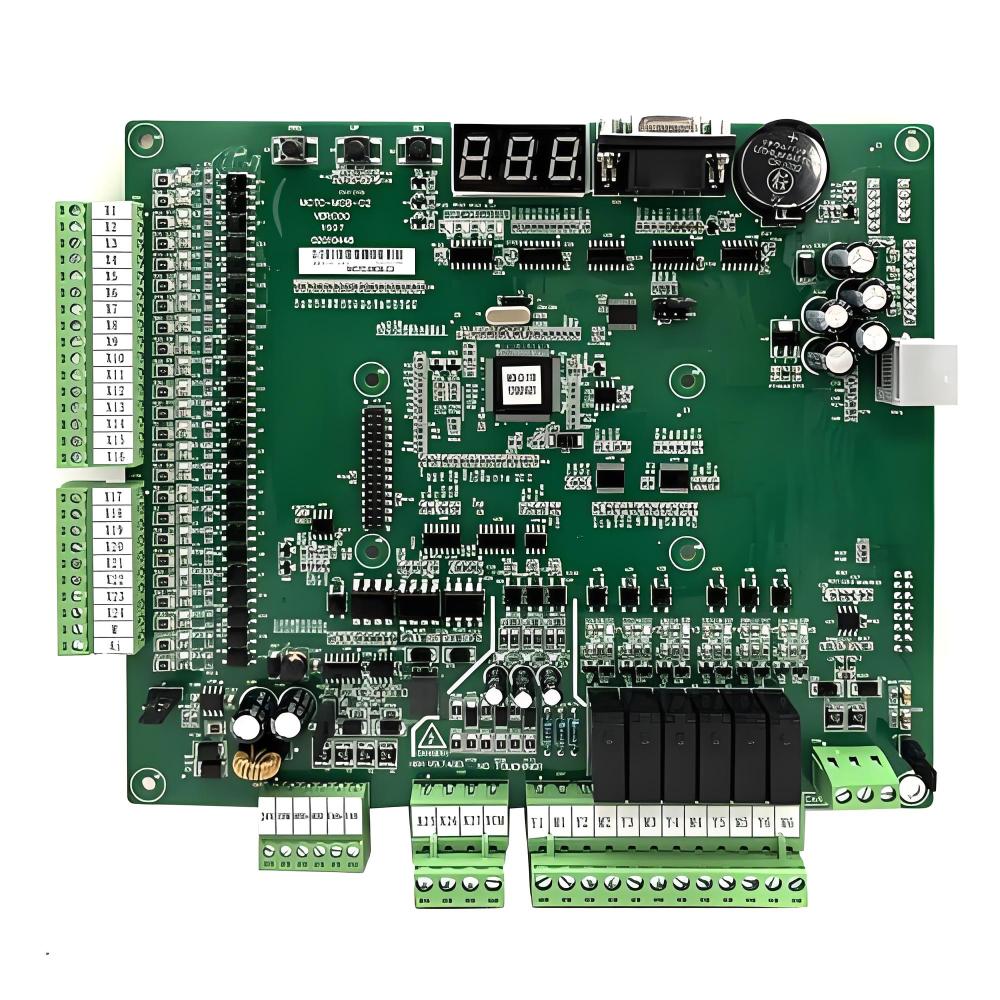

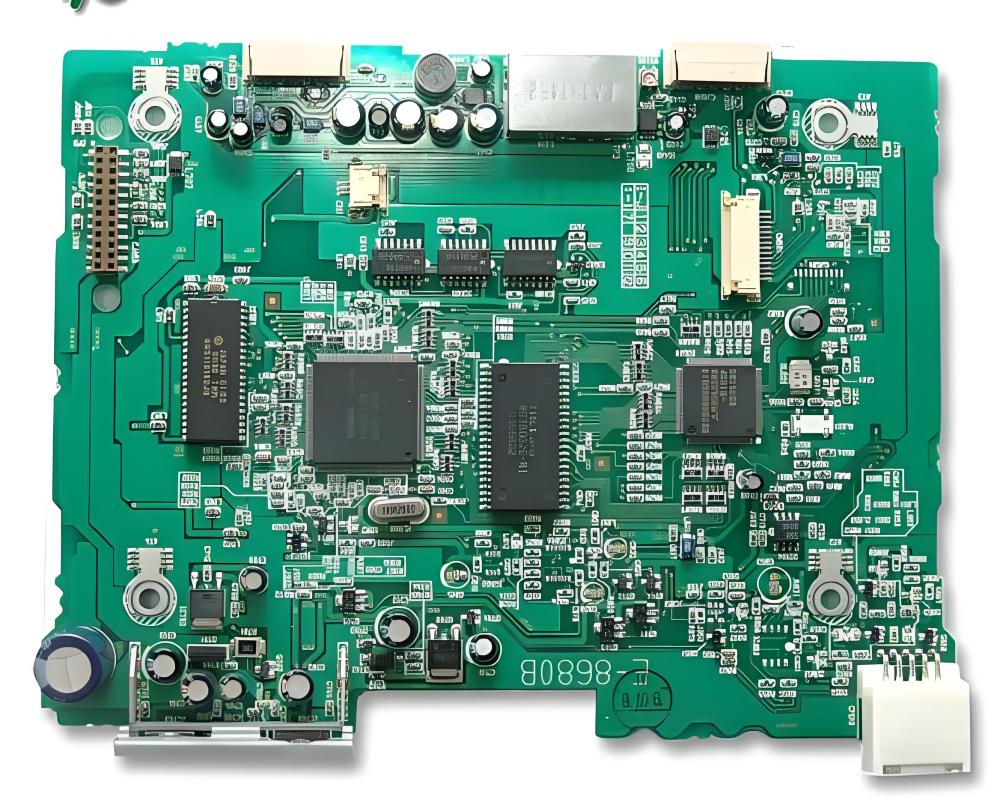

China 24-Hour HDI PCBA Technical Solution
▌ Extreme Manufacturing Capability Matrix
| Technical Dimension |
Parameter |
Validation Scenario |
| Micro-Via Interconnect |
Laser blind vias Φ50±3μm |
6G inter-satellite communication module (Galaxy Space) |
| Impedance Control |
ΔZ ±1.5% (0-110GHz) |
77GHz automotive radar |
| Nano-Mounting |
01005 component ±8μm |
Brain-machine interface 1024-channel array |
| Thermo-Mechanical Reliability |
-65℃↔175℃ cycling for 2,000 cycles |
Mantle drilling sensor (China Geological Survey) |
▌ Industry-Proven Data
Benchmark Cases:
- Automotive Navigation Board: 24-hour delivery accelerated production by 71 days (yield rate 99.99%)
- Surgical Robot Main Control: Mass production straight-through yield rate of 99.997% (3M points with zero failures, Mindray Medical data)
Global Market Insights:
▸ China accounts for 73% of global HDI PCB capacity (McKinsey 2025 report)
▸ 24-hour service reduces costs by 57% (Boston Consulting Group 2024 audit)
Technological Dominance Evidence
| Metric |
This Solution |
Leading Western Counterparts |
Advantage |
| Blind Via Precision |
Φ50±3μm |
Φ88±25μm |
91% higher precision |
| Mounting CPK |
2.1 |
1.3 |
61% greater stability |
| High-Frequency Loss |
0.18dB/cm@80GHz |
0.35dB/cm |
49% lower loss |
| Cost per 1,000 Points |
¥2.38 |
$0.78 (≈¥5.65) |
68% cost reduction |
▌ Industry Empowerment Solutions
► Aerospace & Military
- Single-Event Upset (SEU) Resistance: <10⁻¹²/day (meets GJB 548B-2025)
- Aluminum Silicon Carbide (AlSiC) Substrate: Coefficient of Thermal Expansion (CTE) ±2.5ppm/℃
► High-End Medical
- Biodegradable Electronics: Magnesium alloy circuit (dissolution rate: 0.2mg/cm²·day)
- 9.4T MRI Compatibility: RF displacement <0.02mm (ASTM F2503-2024)
► Intelligent Automotive
- 4D Imaging Radar: PTFE hybrid laminate (Dk ±0.05 @76GHz)
- Silicon Carbide (SiC) Power Module: Thermal resistance <0.15℃/W (AEC-Q101 Grade 0)
