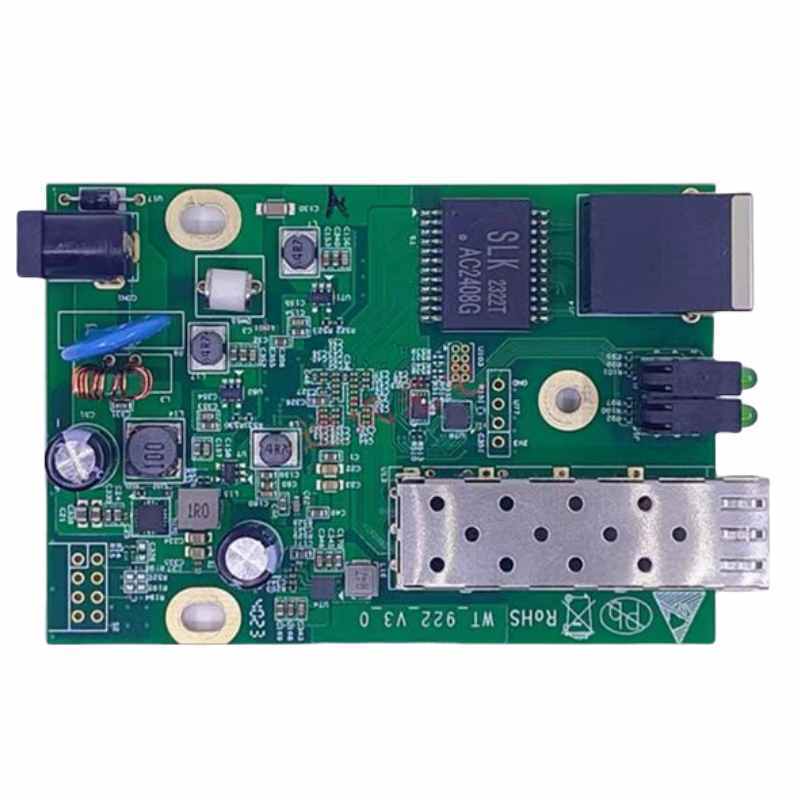

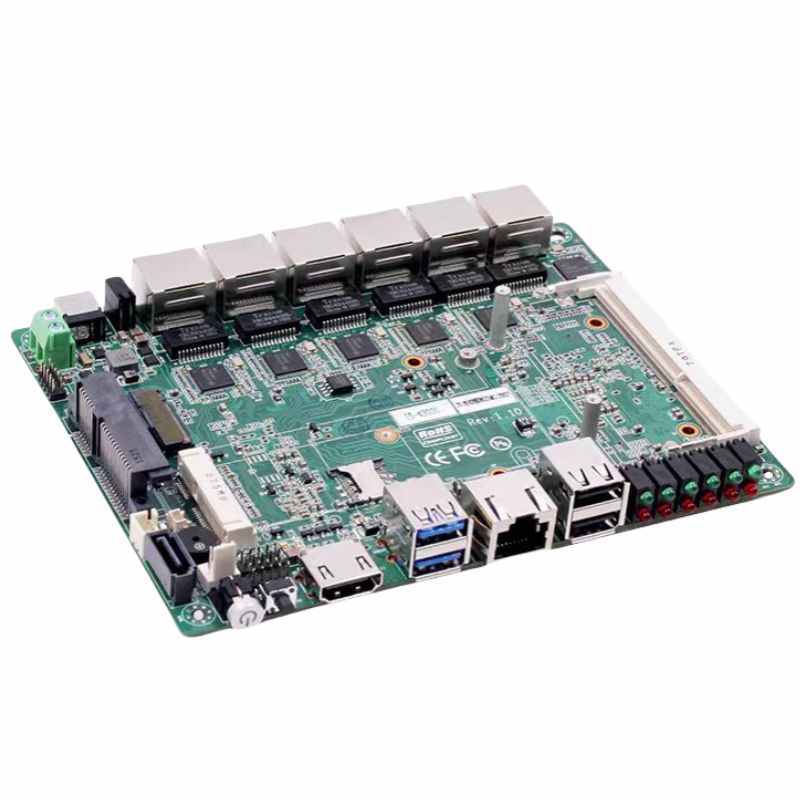

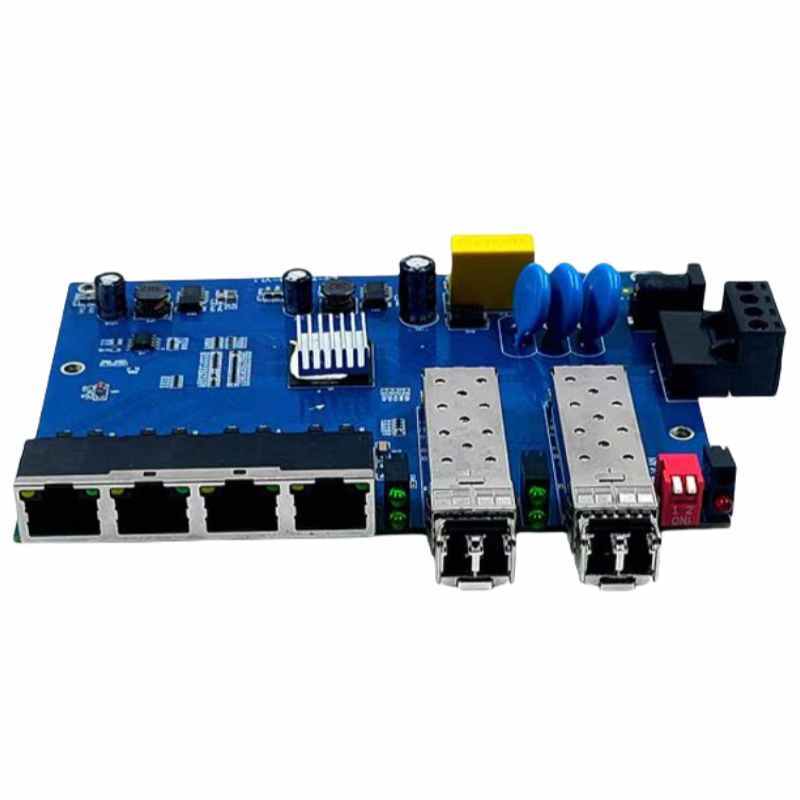

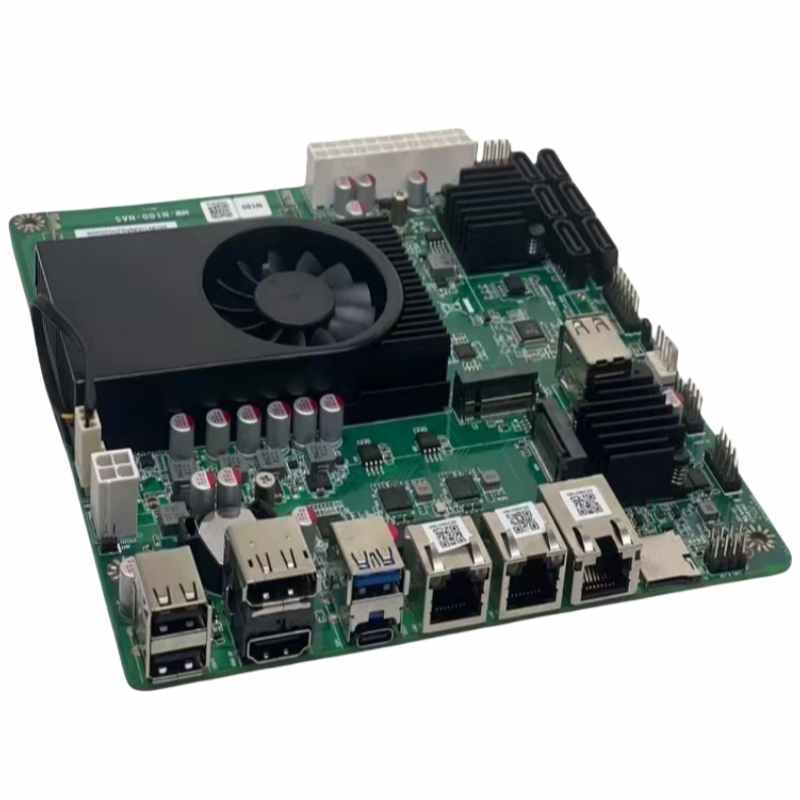

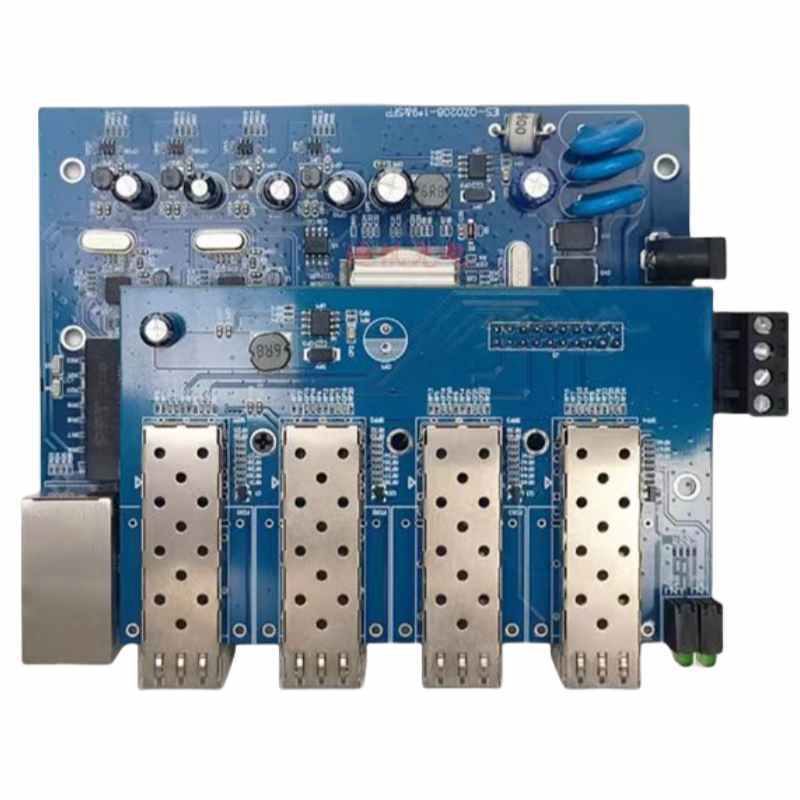

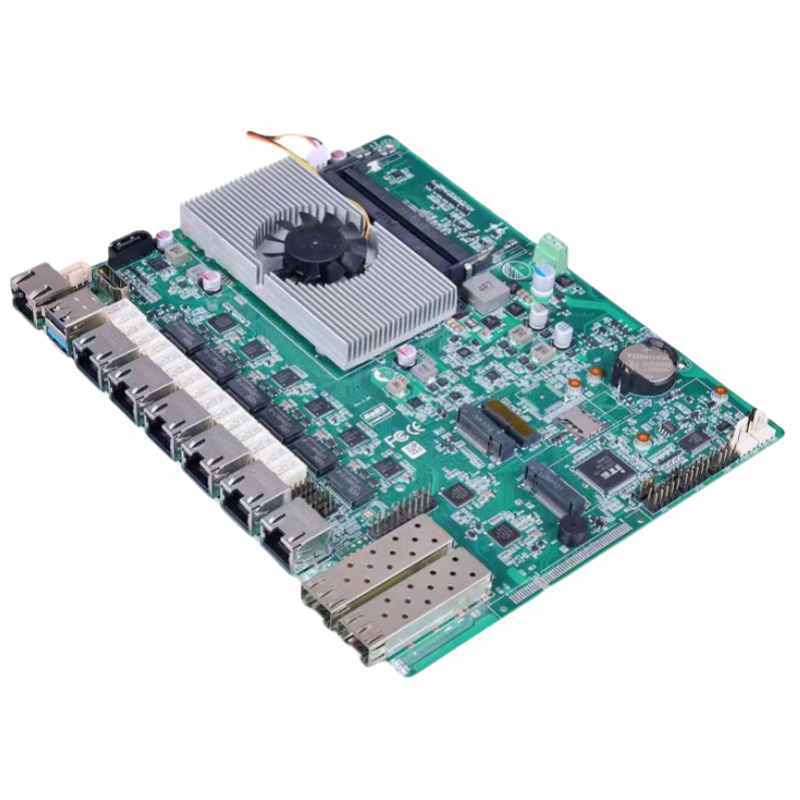

10 gigabit switch pcb assembly

Detailed Technical Description

1. High-Density PCB Architecture

• 8-Layer HDI Stack-Up: Built with Isola I-Tera MT40 (Dk=3.85, Df=0.003 @10GHz) and 0.4mm BGA pitch (0.2mm pad diameter) for Broadcom Tomahawk 4 (51.2Tbps ASIC) or Marvell Prestera DX1000 (25.6Tbps) integration.
• Microvia Interconnects: Laser-drilled 0.08mm microvias (aspect ratio 1:1.2) in 6+2 stack-up enable 25.6Tbps backplane bandwidth (512 lanes x 50G PAM4) with <8ps skew (validated by ANSYS SIwave).
• Thermal Management: Embedded copper coin (1.5mm thickness) beneath the ASIC reduces junction-to-board (ΘJB) resistance to 1.2°C/W. Supports forced-air cooling (400CFM @50kPa) or passive heatsink (TTP=15°C/W) for 85W TDP dissipation.

2. Advanced SMT Assembly Process

• 0201 Component Placement: Fuji NXT III (0.02mm placement accuracy) handles 0201 passives (0.6mm x 0.3mm) and 0.4mm pitch QFN packages with <1% void rate (validated by Nordson YESTech BX-12 X-ray).
• High-Speed Soldering: Sn95.5Ag3.8Cu0.7 (SAC387) solder paste (melting point: 219°C) with 6-zone reflow (peak 255°C) ensures IPC-A-610 Class 3 compliance for -40°C to +125°C operation.
• 5D AOI Inspection: Orbotech AOI Symphony (0201 detection) checks solder paste thickness (±3μm), component alignment (±0.03mm), and coplanarity (<0.08mm) at 15,000 points/min.

3. Signal Integrity & Power Delivery

• 10G SFP+ Routing: NRZ signaling (6.25Gbaud PAM4) with 0.12mm trace width/spacing and pre-emphasis tuning (4dB de-emphasis) achieves <15ps jitter over 0.5m length (validated by Tektronix MSO64 8GHz oscilloscope).
• 8-Phase VRM Design: Infineon TDA21472 controllers drive Wolfspeed C3M0075120K MOSFETs (RDS(on)=1.2mΩ) for 93% efficiency at 12V/50A per phase. Decoupling capacitors (0402 X7R, 22μF/25V) reduce PDN impedance to <2mΩ @100MHz.
• Backplane Connector: Amphenol LSHM series (100Gbps/lane) with 0.6mm pitch and phosphor bronze contacts supports 5,000 mating cycles (MIL-STD-810G Method 2019).

4. Reliability & Compliance

• HALT Testing: -40°C to +85°C thermal cycling (500 cycles), 50G shock (MIL-STD-883K Method 2002), and 95% RH @65°C humidity (IPC-TM-650 2.6.3.2) ensure MTBF >300,000 hours (Telcordia SR-332 Issue 5).
• Failure Analysis: SEM/EDS cross-sectioning identifies intermetallic compound (IMC) growth (<1.5μm after 1000h aging) and HALT-induced cracks (CTE mismatch <4ppm/°C).
• Certifications: ISO 9001:2015 (quality), IPC-6012E Class 3 (PCB), and IEC 61850-3 (substation automation) for enterprise data centers, 5G fronthaul, and industrial Ethernet deployments.
