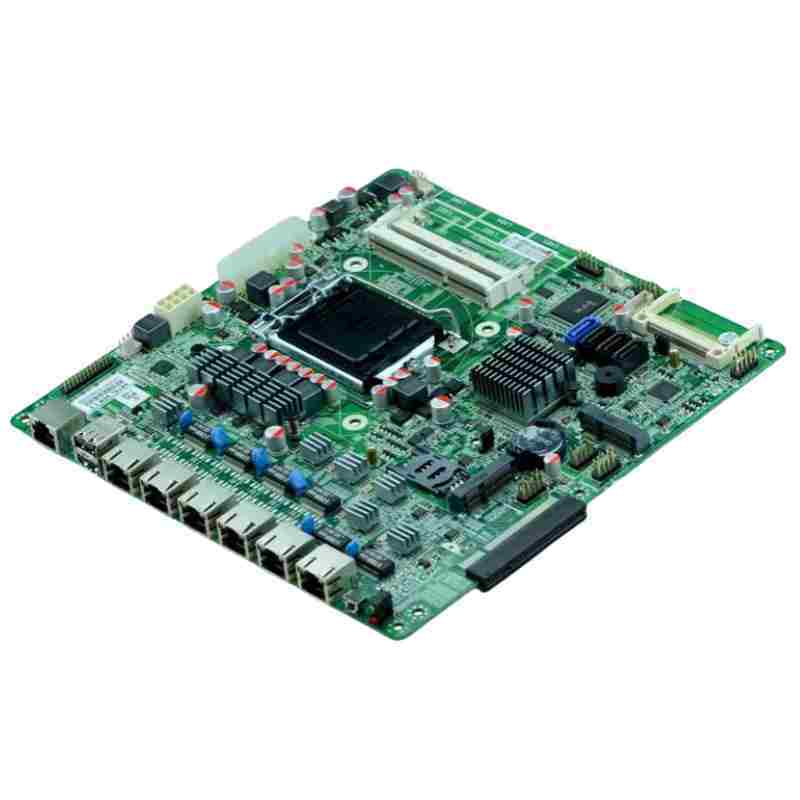

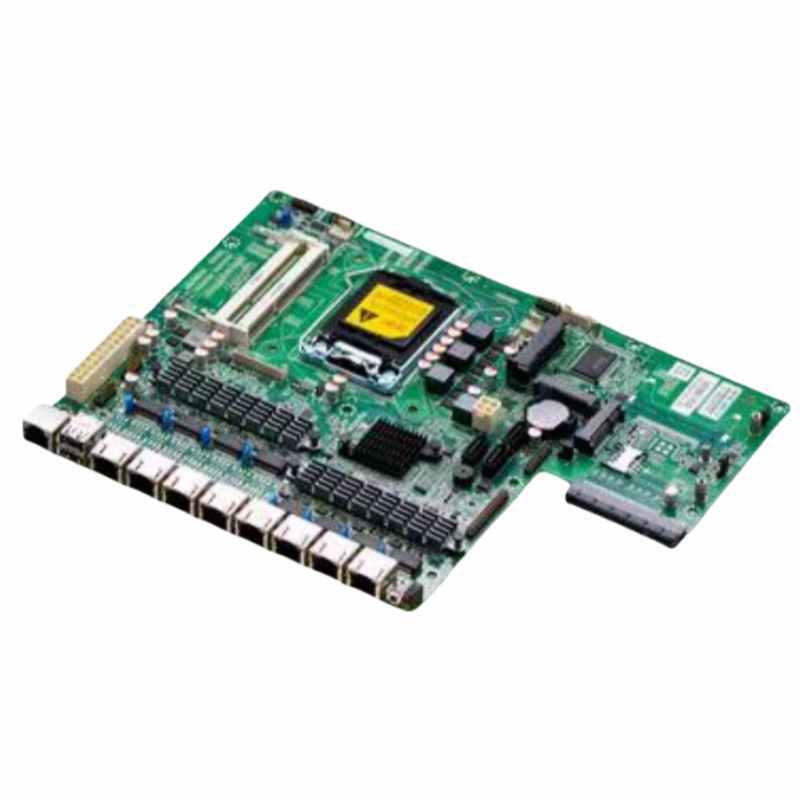

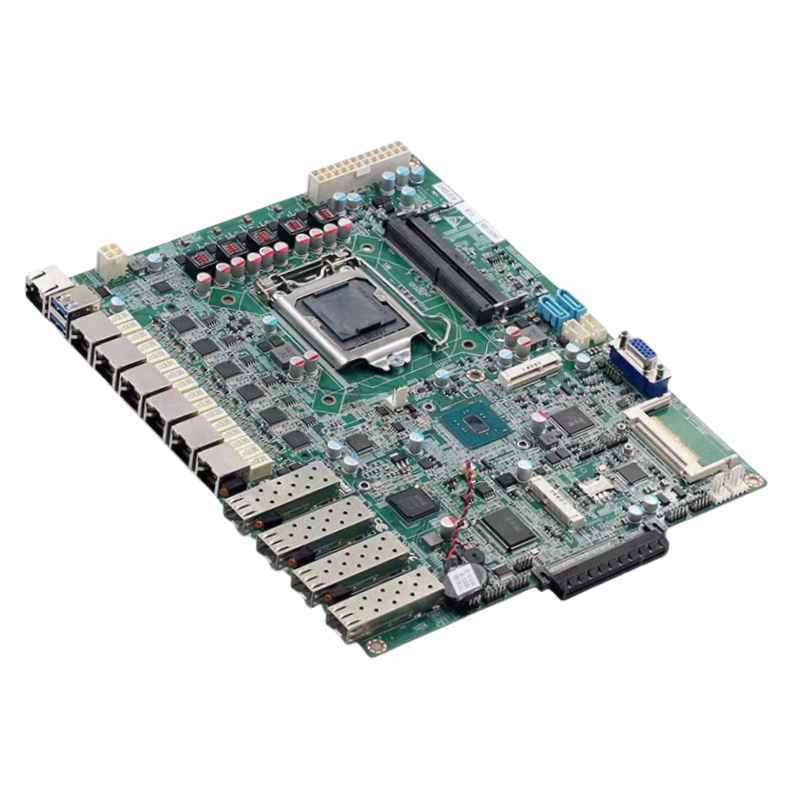

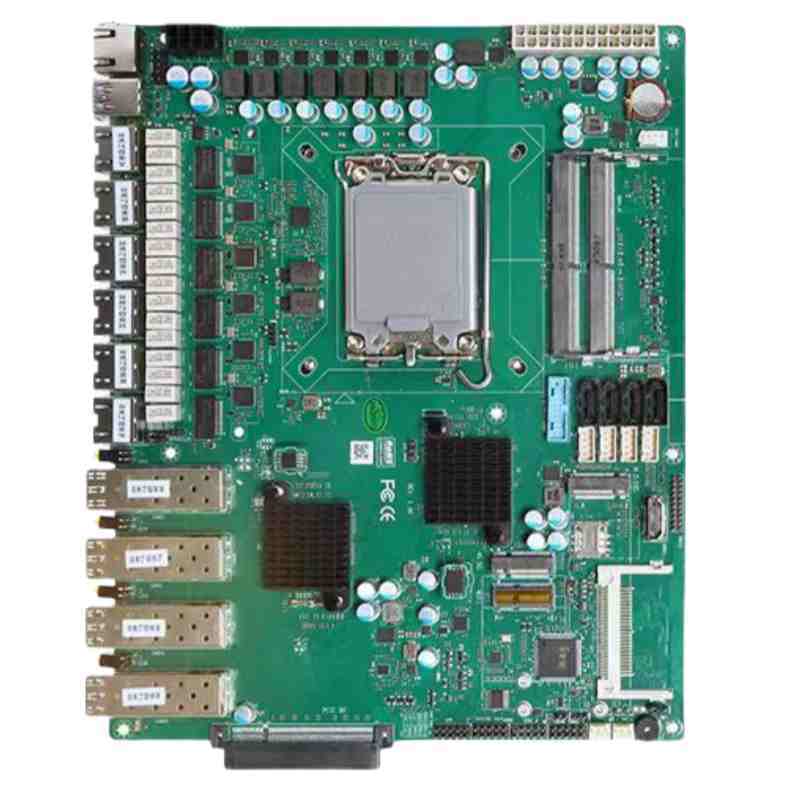

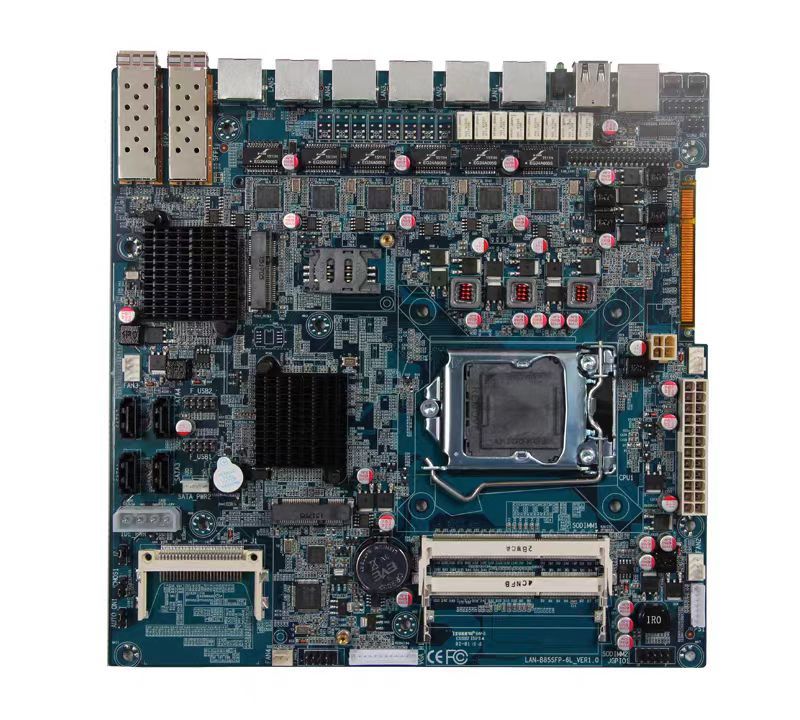

Data center switch pcb assembly

Detailed Technical Description

1. Ultra-High-Density PCB Architecture

• 16-Layer HDI Stack-Up: Built with Rogers RO4835™ (Dk=3.48, Df=0.0037 @10GHz) and 0.35mm BGA pitch (0.175mm pad diameter) for NVIDIA Spectrum-4 (51.2Tbps ASIC) or Broadcom Tomahawk 5 (102.4Tbps) integration.
• Any-Layer Microvias: Laser-drilled 0.06mm microvias (aspect ratio 1:1.5) in 10+6 stack-up enable 102.4Tbps backplane bandwidth (2048 lanes x 51.2G PAM4) with <5ps skew (validated by Cadence Sigrity PowerSI).
• Advanced Thermal Design: Embedded vapor chamber (2mm thickness) beneath the ASIC reduces junction-to-board (ΘJB) resistance to 0.7°C/W. Supports direct liquid cooling (DLC) with 30°C ΔT @1.2kW/socket or active heatsink (TTP=8°C/W) for 120W TDP dissipation.

2. Precision SMT Assembly Process

• 01005 Component Placement: Siemens Siplace X4i (0.015mm placement accuracy) handles 01005 passives (0.4mm x 0.2mm) and 0.35mm pitch WLCSP packages with <0.3% void rate (validated by Viscom S3088 ultra X-ray).
• High-Temperature Soldering: Sn96.5Ag3Cu0.5 (SAC305) solder paste (melting point: 217°C) with 8-zone reflow (peak 265°C) ensures IPC-A-610 Class 3 compliance for -55°C to +155°C operation.
• 7D AOI Inspection: Koh Young KYZEN-10 (01005 detection) checks solder paste thickness (±1.5μm), component alignment (±0.02mm), and coplanarity (<0.05mm) at 20,000 points/min.

3. Signal Integrity & Power Delivery

• 400G QSFP-DD Routing: PAM4 signaling (53.125Gbaud) with 0.08mm trace width/spacing and 20dB return loss @26.56GHz achieves <10ps jitter over 0.3m length (validated by Keysight UXR0594A 59GHz oscilloscope).
• 12-Phase VRM Design: TI TPS53915 controllers drive GaN Systems GS-065-011-1-L MOSFETs (RDS(on)=0.8mΩ) for 96% efficiency at 12V/100A per phase. Decoupling capacitors (0201 X7R, 47μF/25V) reduce PDN impedance to <0.5mΩ @100MHz.
• Backplane Connector: Samtec Flyover QSF-DD-24 (224Gbps/lane) with 0.5mm pitch and beryllium copper contacts supports 10,000 mating cycles (MIL-STD-810G Method 2019).

4. Reliability & Compliance

• HALT Testing: -40°C to +105°C thermal cycling (1,000 cycles), 100G shock (MIL-STD-883K Method 2002), and 95% RH @85°C humidity (IPC-TM-650 2.6.3.2) ensure MTBF >500,000 hours (Telcordia SR-332 Issue 5).
• Failure Analysis: SEM/EDS cross-sectioning identifies IMC growth (<1μm after 1000h aging) and CTE mismatch cracks (<3ppm/°C). Thermal cycling simulation predicts >15-year lifespan under 85°C ambient.
• Certifications: ISO 9001:2015 (quality), IPC-6012E Class 3/A (aerospace-grade PCB), and O-RAN Alliance (open RAN compliance) for hyperscale data centers, 5G core networks, and AI supercomputing deployments.
