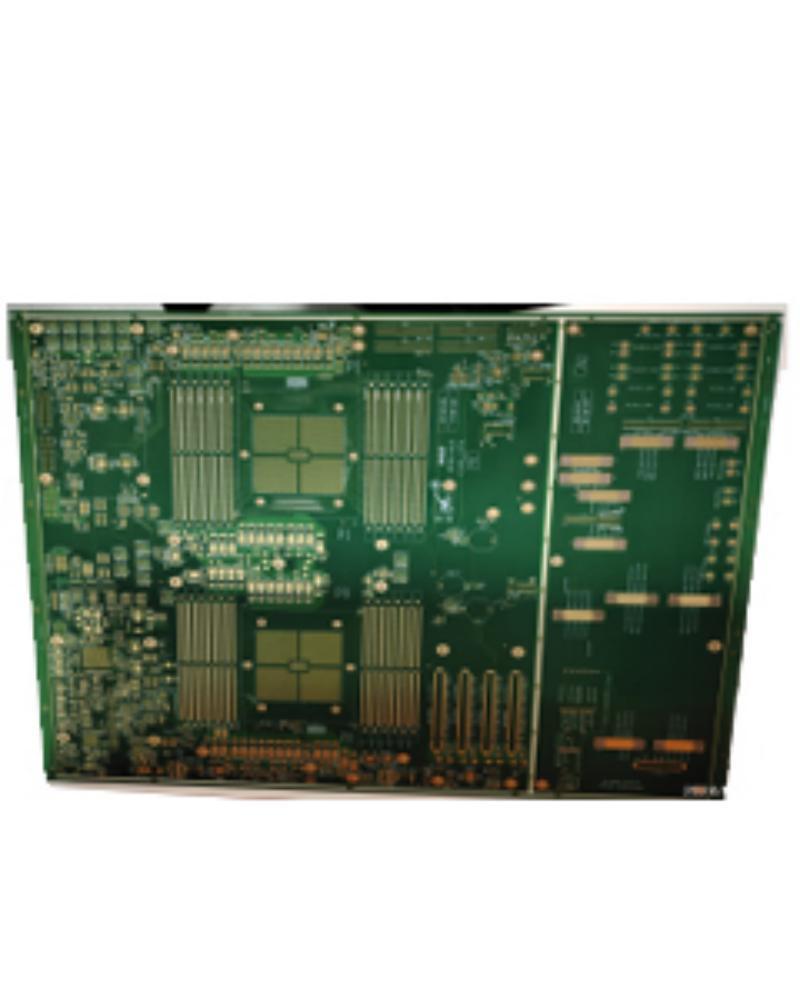

14 layer PCB manufacturing for servers

When it comes to server applications, the quality and performance of PCBs are crucial. Our company specializes in the manufacturing of 14-layer server PCBs, designed to meet the most demanding requirements of modern server systems. These PCBs have precise dimensions of 570.4*487.7mm and a board thickness of 2.0mm, with a notable thickness ratio of 9.6:1, ensuring structural integrity and reliable signal transmission.

We use TU-883C, a high-speed material specified for its excellent electrical properties and low signal loss characteristics. This makes it ideal for high-frequency server applications where data integrity and speed are paramount. The PCBs incorporate advanced features such as POFV (Via-in-Pad Plated Over Fill) technology, which enhances the connection between vias and pads, and back-drilling to minimize signal reflections and improve signal quality.

Our manufacturing processes are optimized for precision, with a minimum aperture of 0.2mm and a minimum trace width/spacing of 90/100μm, enabling high-density circuit designs. The surface treatment is an Immersion Gold (ENIG) finish, which provides excellent solderability and corrosion resistance, extending the service life of the PCBs.

For inquiries or orders, please contact us at info@fr4pcb.tech. We are committed to delivering high-quality, reliable PCBs for your server needs.
