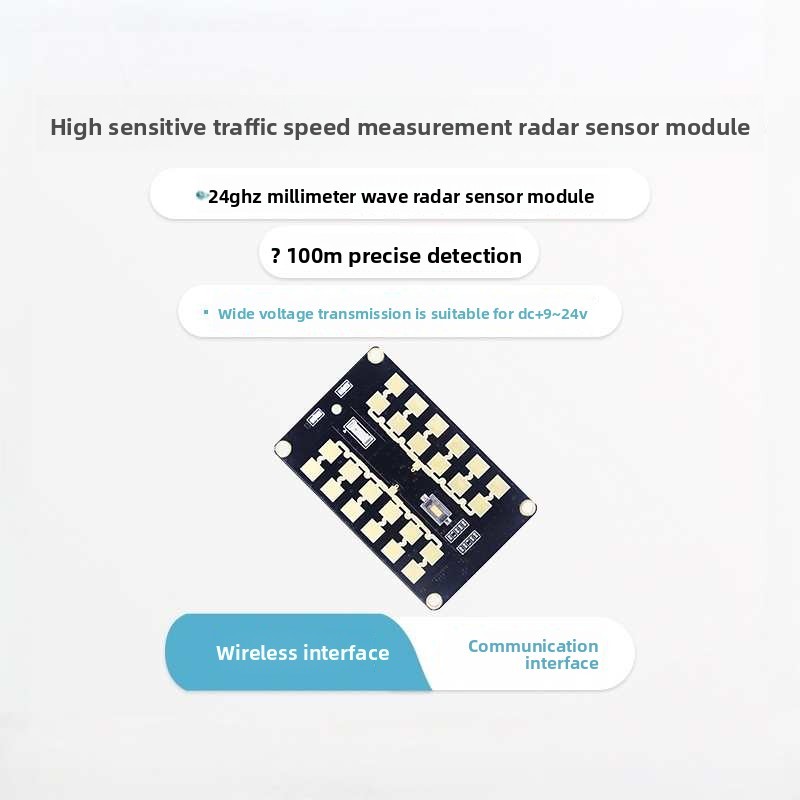

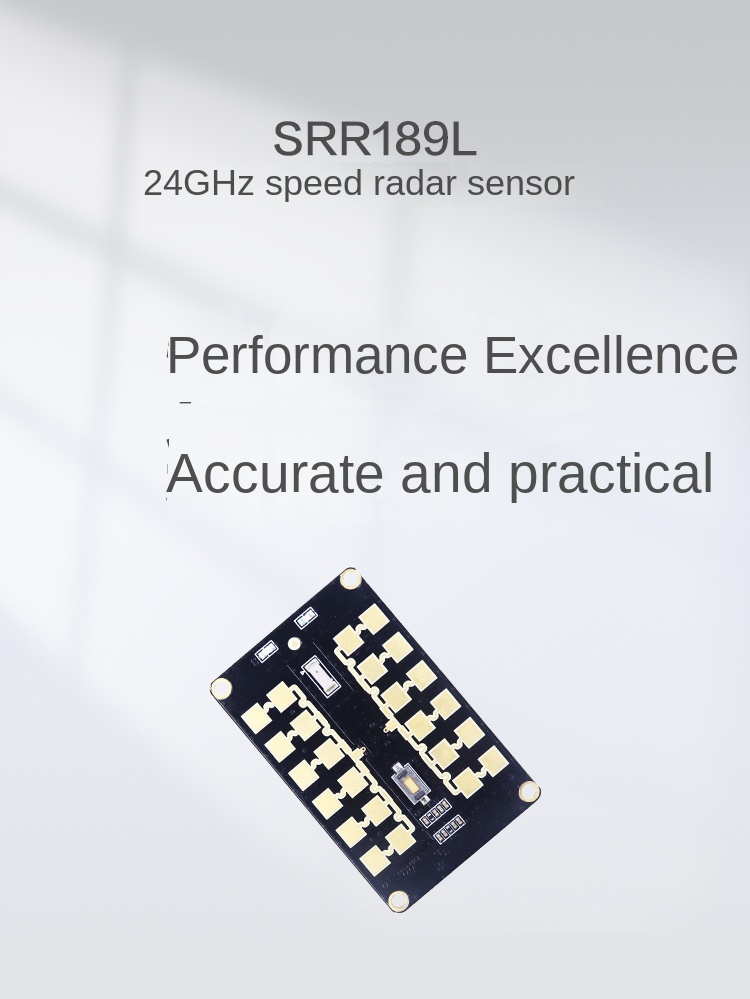

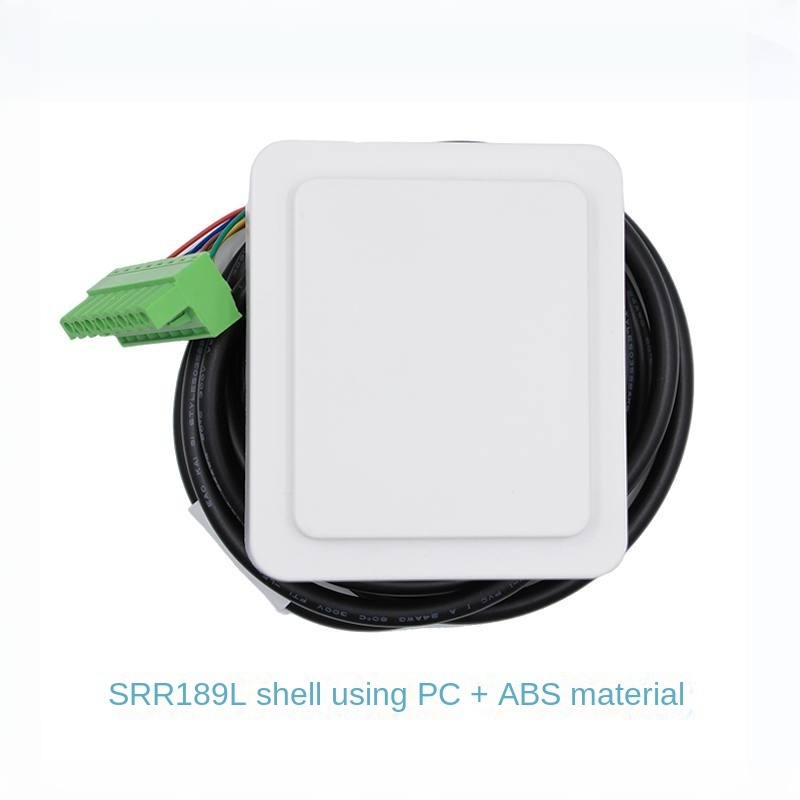

24GHz Millimeter-Wave Radar Sensing Module SRR189L: Vehicle Speed Feedback Sensor Module with 100-Meter Precision Detection

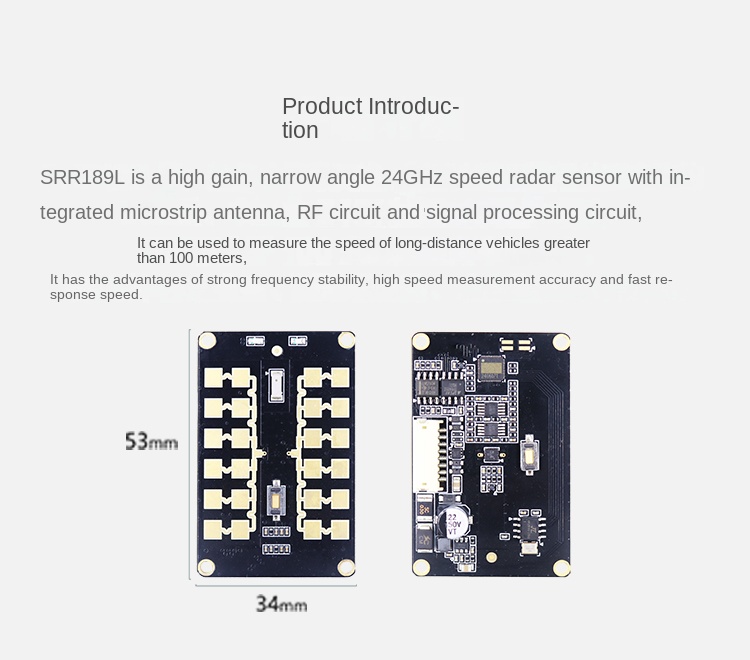

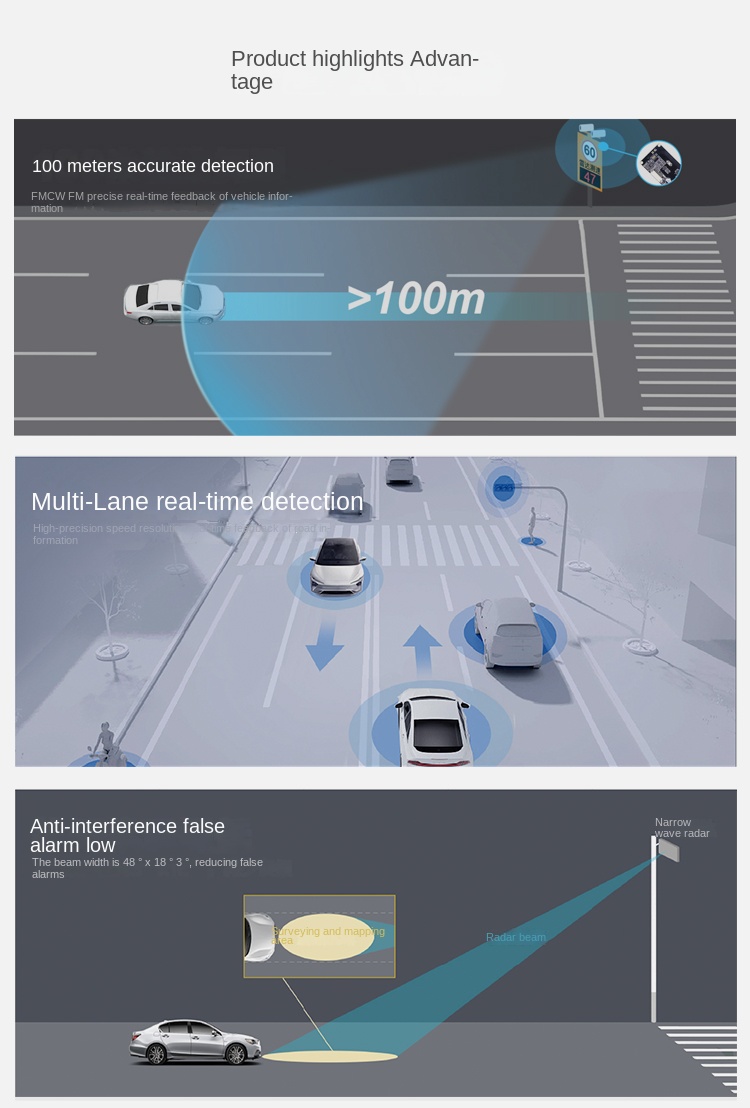

The SRR189L is a dedicated 24GHz millimeter-wave radar sensing module designed for vehicle speed measurement, utilizing Frequency-Modulated Continuous Wave (FMCW) technology to achieve high-precision distance and velocity detection within a 100-meter range. Its key advantage lies in all-weather reliability, ensuring uninterrupted operation in rain, fog, snow, and other harsh conditions for 24/7 dependability.

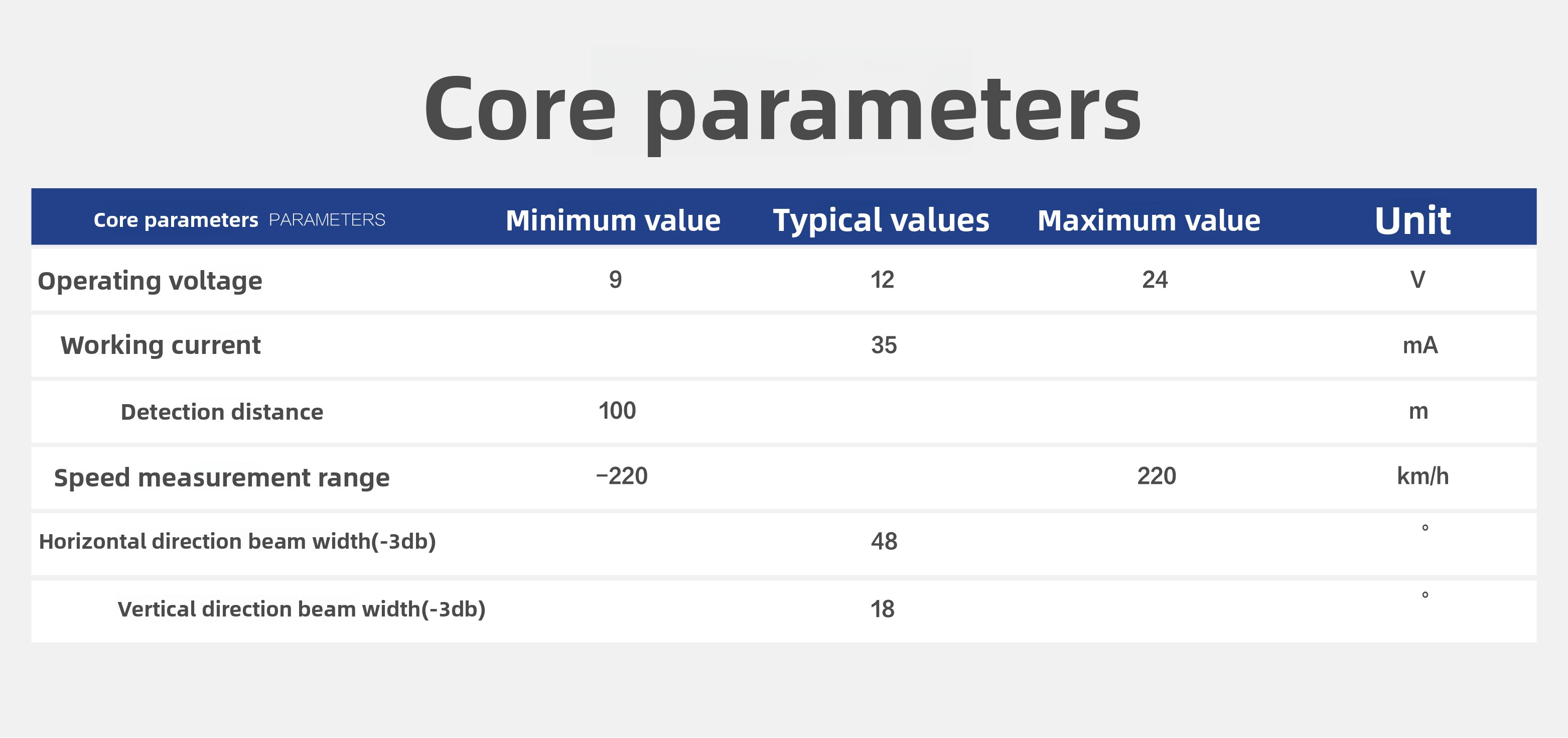

Technical Parameter Comparison
| Parameter |
SRR189L 24GHz |
Traditional Ultrasonic Sensors |

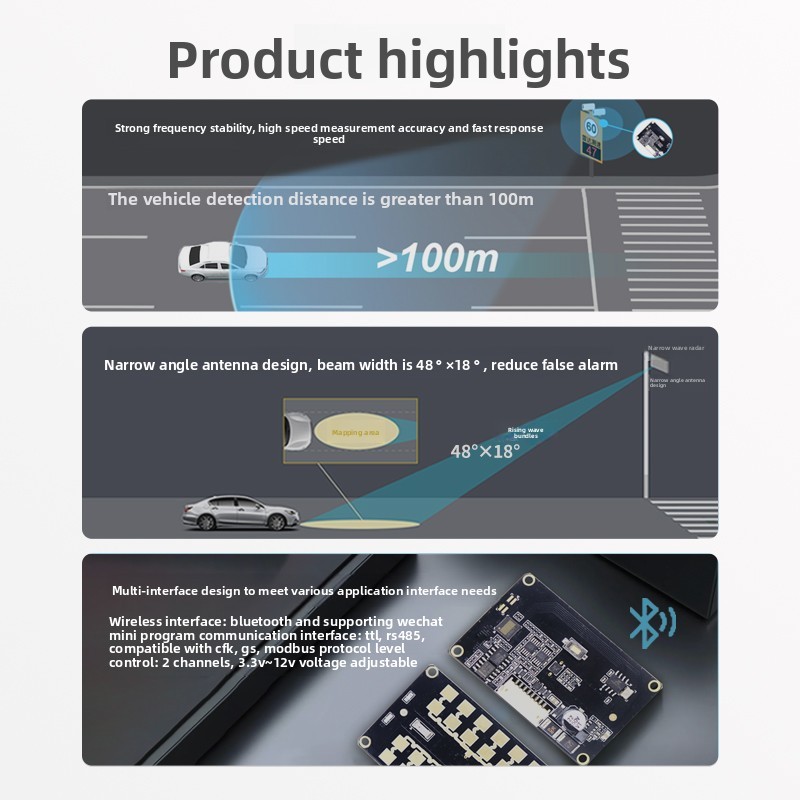

| Detection Range |
1–100m (adjustable) |
≤10m (highly susceptible to environmental interference) |
| Speed Measurement Accuracy |
±0.5m/s |
Incapable of speed detection |
| Range Resolution |
0.5m |
≥1m |

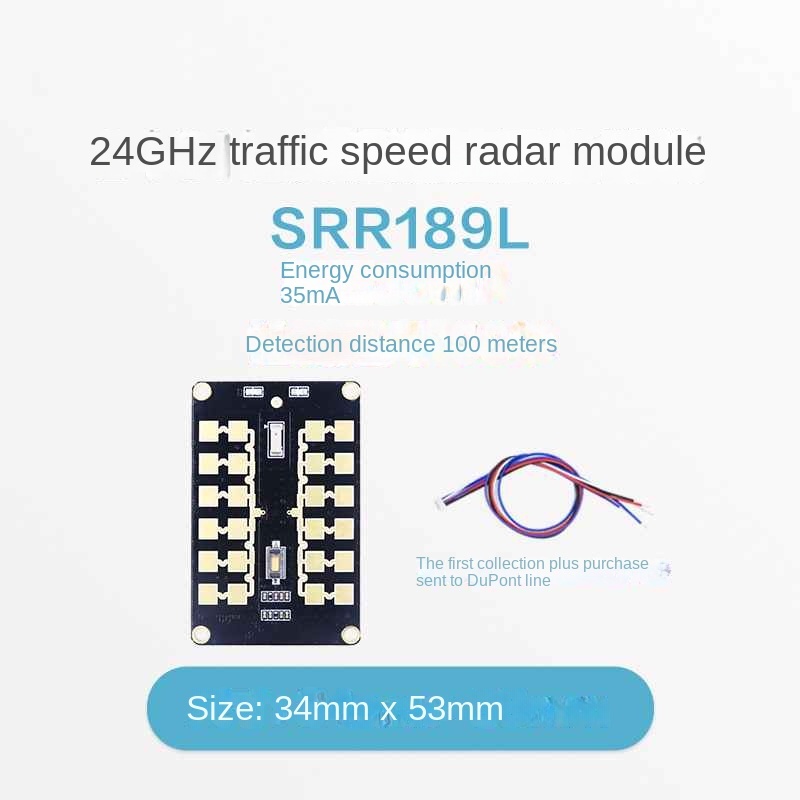

| Power Consumption |
15mA (average) |
≥30mA (continuous operation) |

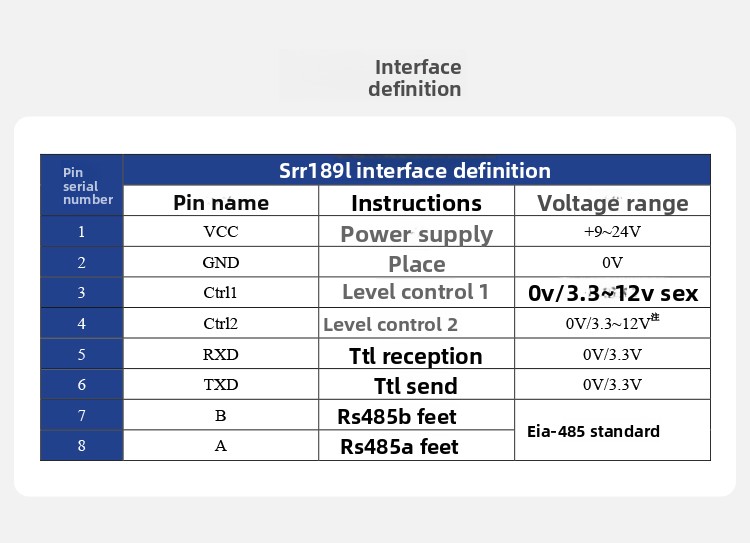

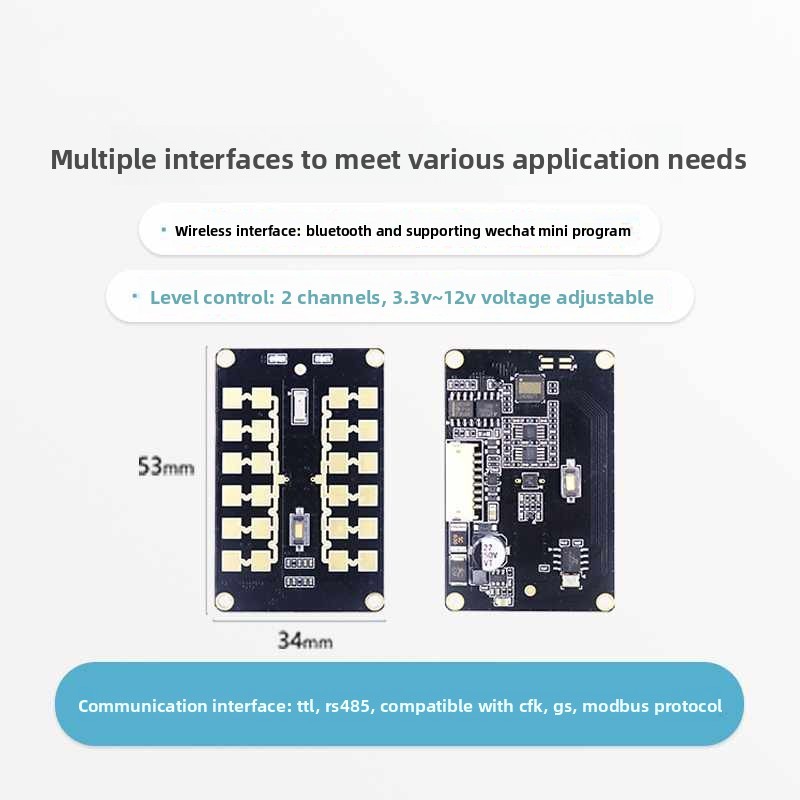

| Interface Types |
RS485/TTL multi-interface |
Single analog signal output |

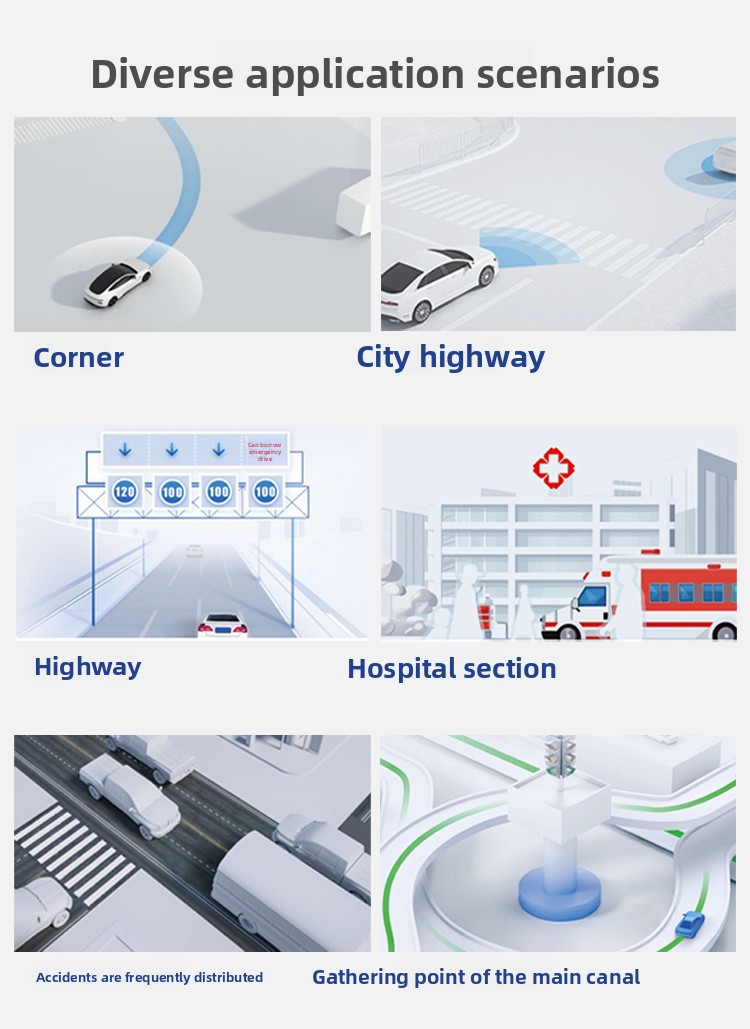

Application Scenarios
- Intelligent Transportation: Real-time vehicle speed monitoring for overspeed capture and traffic flow statistics.
- Autonomous Driving Assistance: Provides precise data for ACC (Adaptive Cruise Control) and BSD (Blind Spot Detection) systems.
- Security Surveillance: Triggers camera alerts for targets with abnormal speeds.
By leveraging the penetration and interference resistance of millimeter-wave radar, the SRR189L overcomes the limitations of conventional sensors, delivering a cost-effective, highly reliable speed sensing solution for smart traffic management, autonomous driving, and security applications, driving the upgrade of urban intelligent transportation systems.
