24W AC-DC Power Supply Module | 85-264VAC Input, 5V/12V/24V/48V Output, 3000VAC Isolation

Name: 24W AC-DC Power Supply Module | 85-264VAC Input, 5V/12V/24V/48V Output, 3000VAC Isolation
Brand: FR4PCB.TECH
SKU: 09280041
Price: 2.95 USD
Availability: InStock

SKU: 09280041

0.0 (0)

0 Sold

$2.95

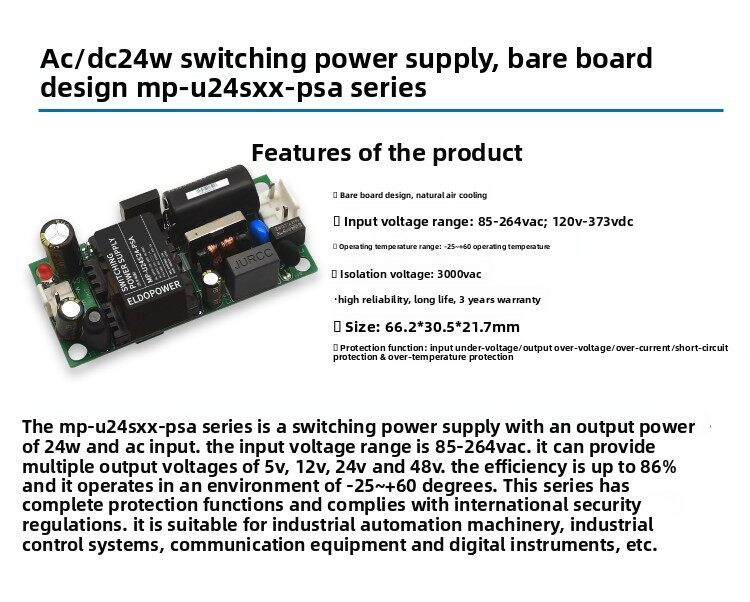

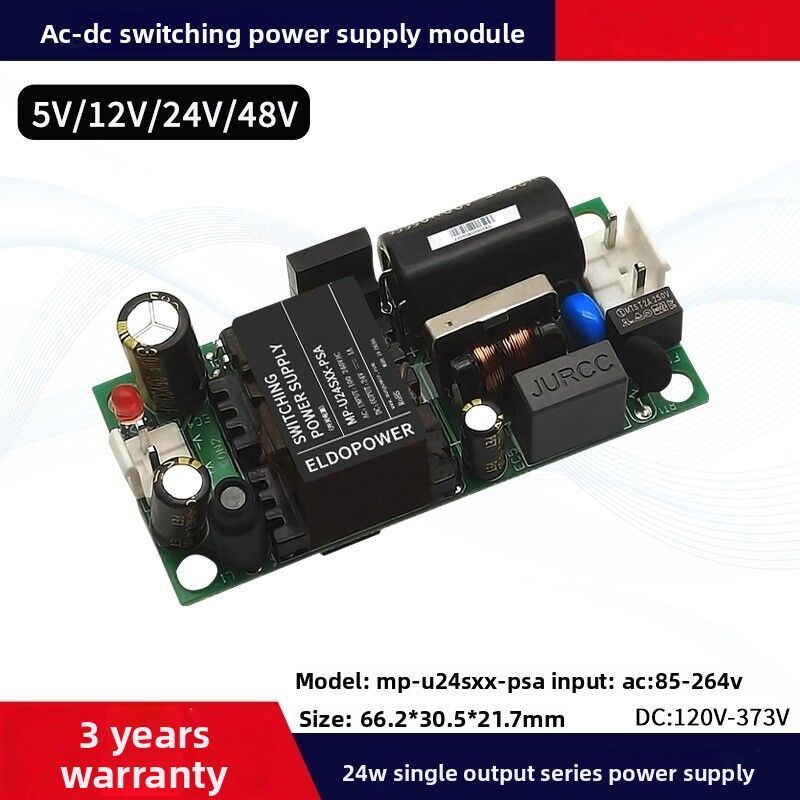

MP-U24SXX-PSA Series 24W AC-DC Power Module
This compact switching power supply converts 85-264VAC or 120-373VDC input to adjustable 5V/12V/24V/48V DC outputs, featuring 3000VAC isolation and natural air cooling. Designed for harsh environments (-25℃ to +60℃ operation), it includes comprehensive protections (UVLO/OVP/OCP/SCP/OTP) and a 3-year warranty. The bare-board design (66.2×30.5×21.7mm) supports DIN rail mounting, making it ideal for industrial automation, telecom equipment, and low-power IoT devices.

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Type:

MP-U24S05-PSA(5V4A)

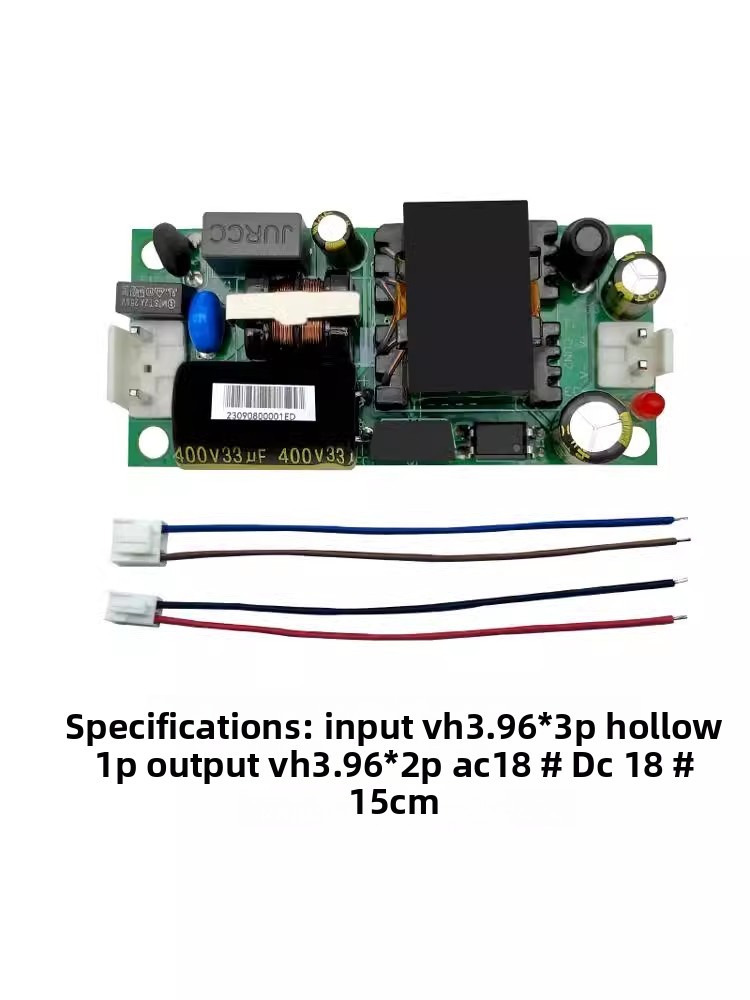

MP-U24S05-PSA(wiring material)

MP-U24S12-PSA(12V2A)

MP-U24S12-PSA(Wiring Material)

MP-U24S24-PSA(24V1A)

MP-U24S24-PSA (Wiring Material)

MP-U24S48-PSA(48V0.5A)

MP-U24S48-PSA(wring material)

Quantity:

Add to Favorites (0)

1/1

Description

24W Industrial Power Board | Bare Design, Natural Cooling, DIN Rail Compatible for Automation

Product Advantages and Features Summary

Ultra-Wide Input and Multi-Voltage Output

Supports 85-264VAC AC input or 120-373VDC DC input, compatible with global power grid fluctuations and DC power supply scenarios.
Offers four adjustable output voltages (5V/12V/24V/48V), switchable via DIP switches or external signals, to meet diverse device requirements.

High Efficiency and Compact Design

Achieves a conversion efficiency of 86%, reducing energy consumption and heat generation, suitable for low-power precision instruments.

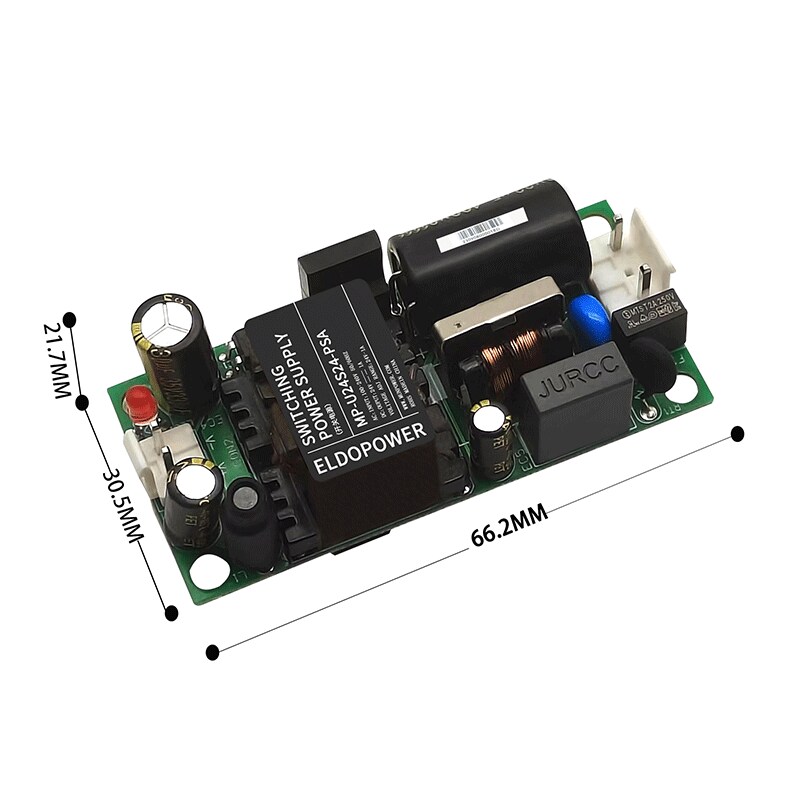

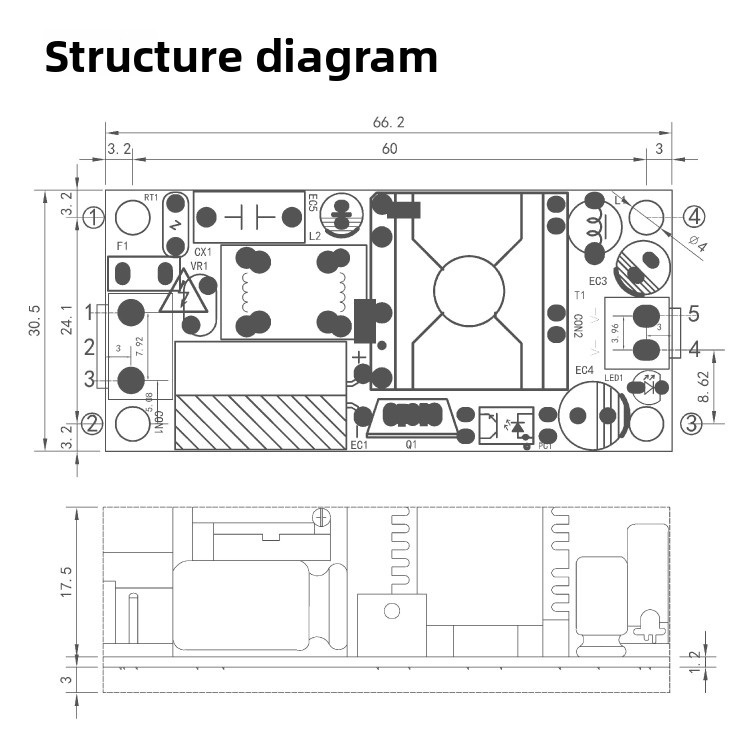

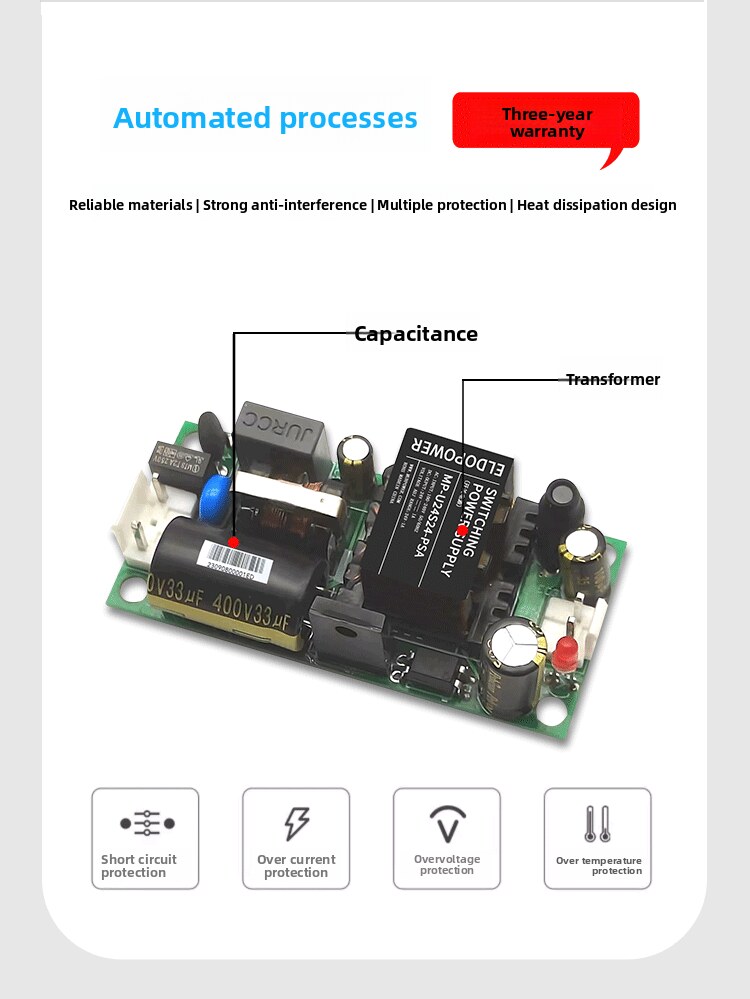

Features a bare-board design (66.2 × 30.5 × 21.7mm) combined with natural air cooling, eliminating the need for additional heat dissipation devices and saving space and cost.

High Isolation and Safety Certifications

Provides a 3000VAC isolation voltage to ensure electrical safety and complies with industrial-grade EMC standards.
Has obtained CE, RoHS, and UL62368 certifications, meeting international safety regulations.

Wide Temperature Environmental Adaptability

Operates within a temperature range of -25℃ to +60℃ (storage temperature: -40℃ to +85℃), suitable for extreme environments such as industrial workshops and outdoor equipment.
Has an MTBF (Mean Time Between Failures) exceeding 100,000 hours and offers a 3-year warranty, reducing long-term maintenance costs.

Comprehensive Protection Functions

Offers input under-voltage protection (UVLO), output over-voltage/over-current/short-circuit protection (OVP/OCP/SCP), and over-temperature protection (OTP).
Features a self-recovery function after faults, automatically restoring output upon restart to enhance system stability.

Industrial-Grade Integration Convenience

Supports DIN rail or panel mounting, suitable for narrow spaces.
Has a lightweight bare-board structure (weight < 80g), facilitating integration into equipment interiors.

Application Scenarios Description

Industrial Automation Machinery: Provides stable power for PLCs, sensors, and servo drives, with strong resistance to power grid interference.
Industrial Control Systems: Powers HMI (Human-Machine Interface) systems and data acquisition modules, supporting 12V/24V low-voltage output.
Communication Equipment: Supplies power to 4G/5G base stations and switches, compatible with 12V/24V/48V DC input.
Electronic Instruments and Meters: Offers high-precision 5V/12V power for oscilloscopes, spectrum analyzers, and medical devices.
Internet of Things (IoT) Devices: Powers smart sensors, industrial routers, and security monitoring systems, supporting compact integration.
