| Product Model |
LX-SWF301 |
| Fixed Ports |

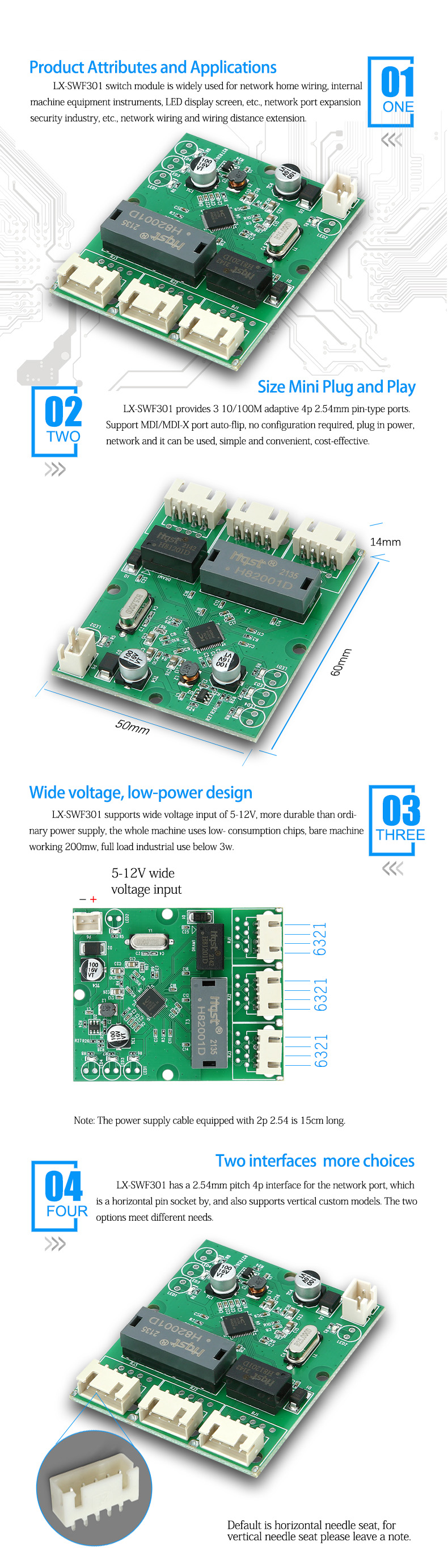

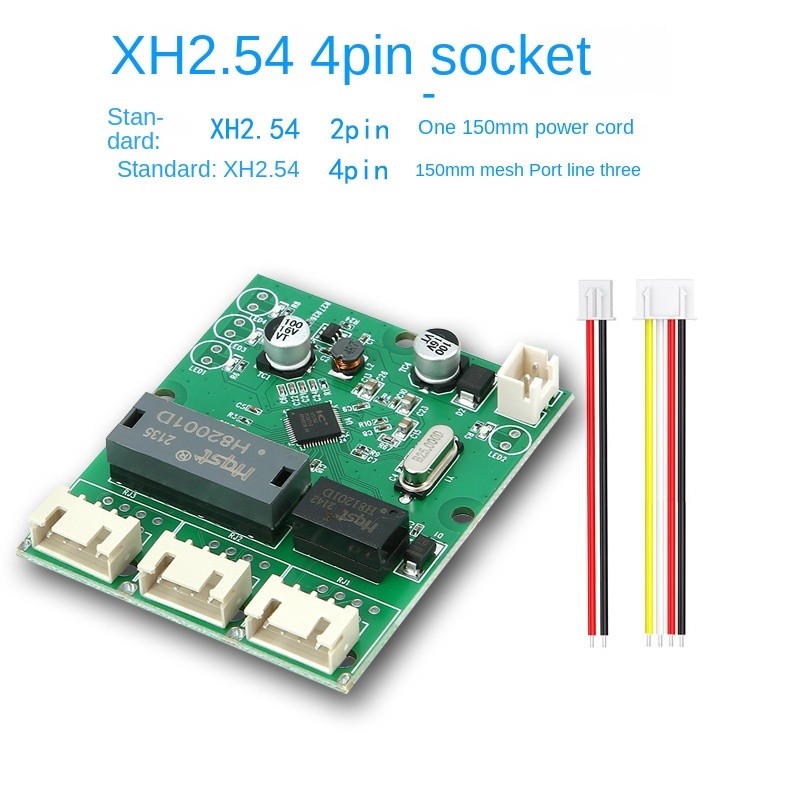

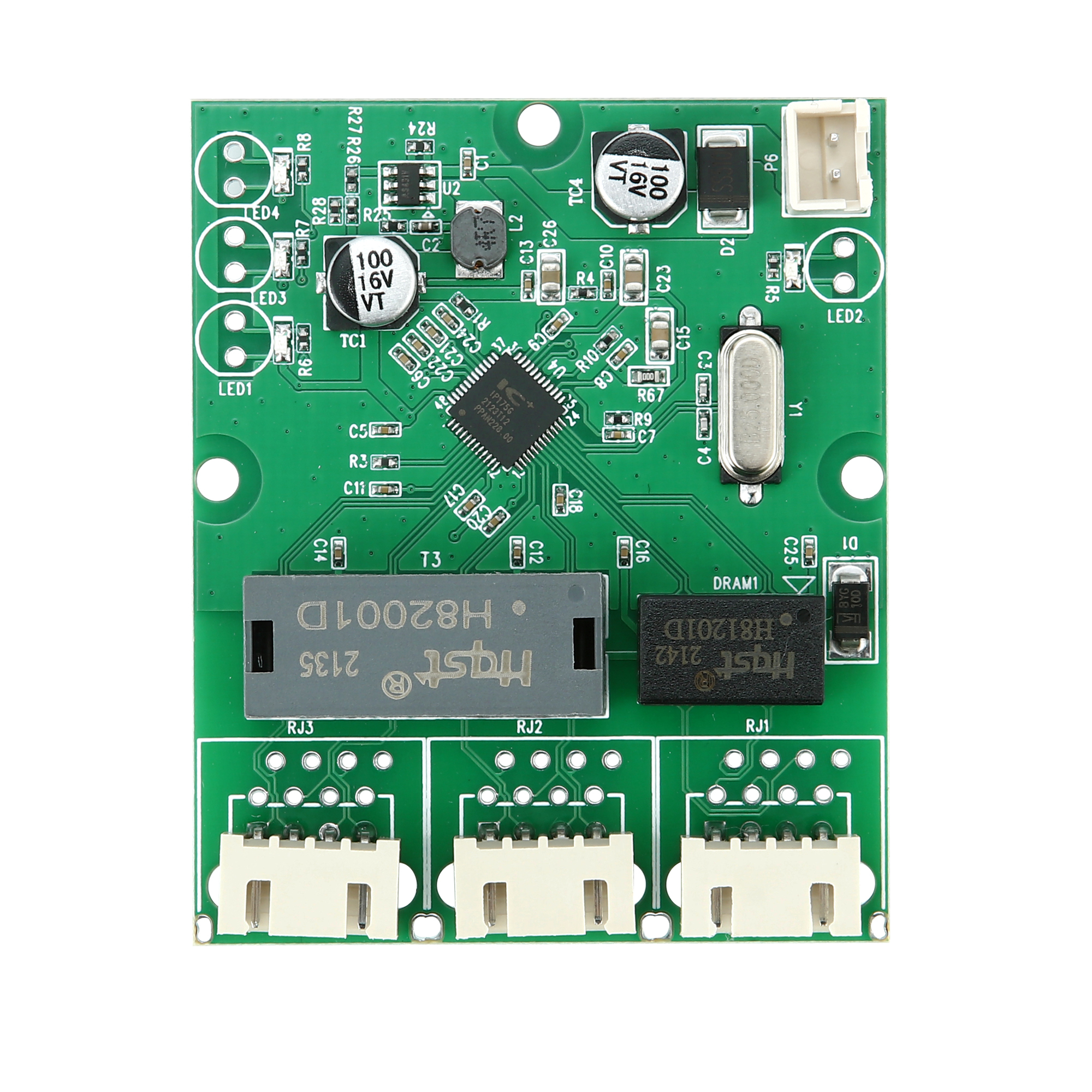

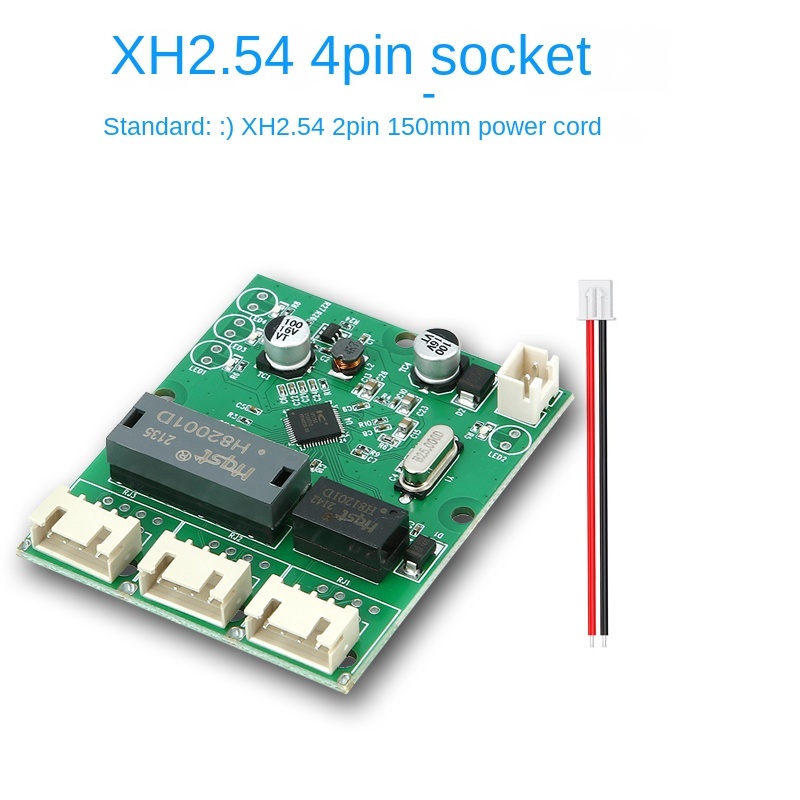

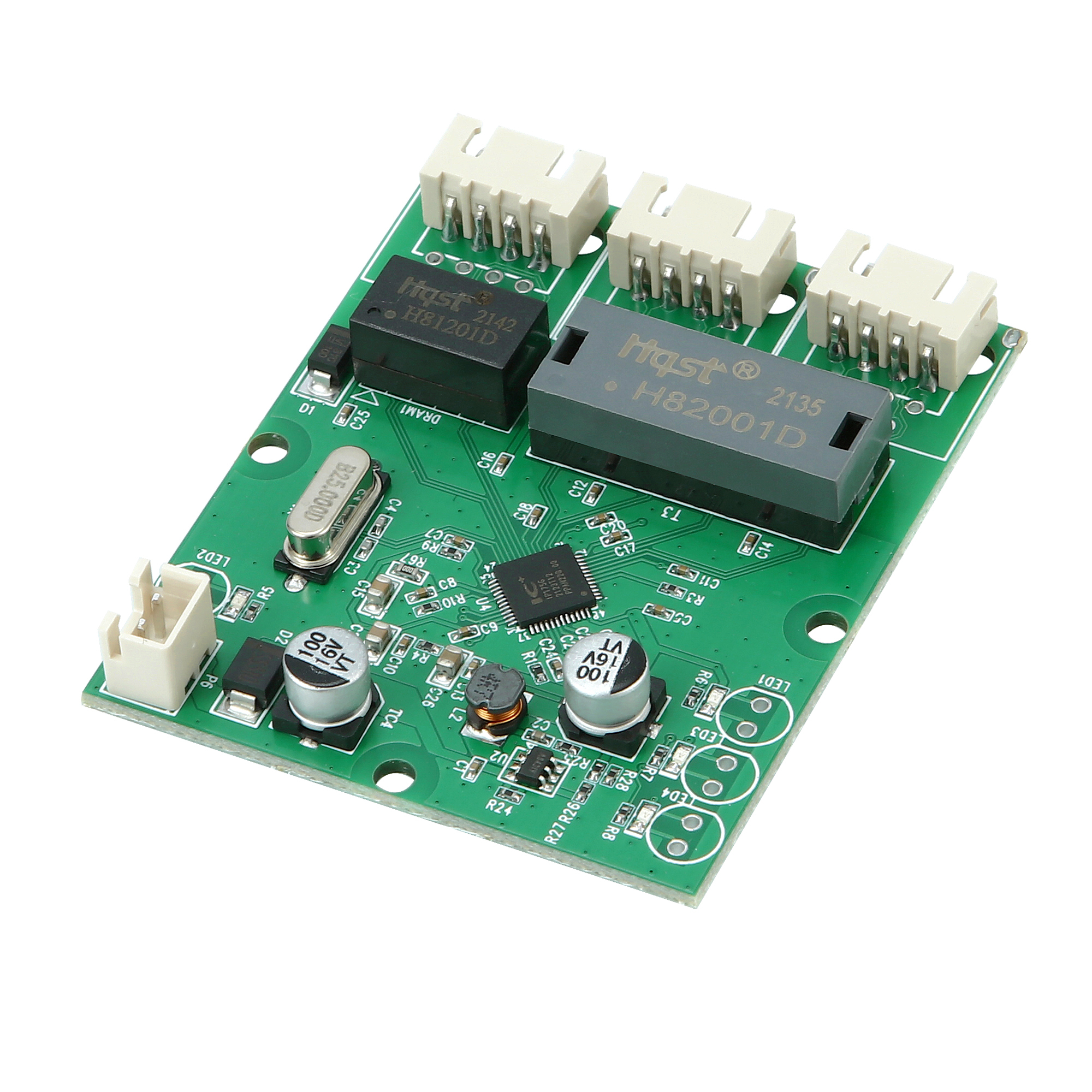

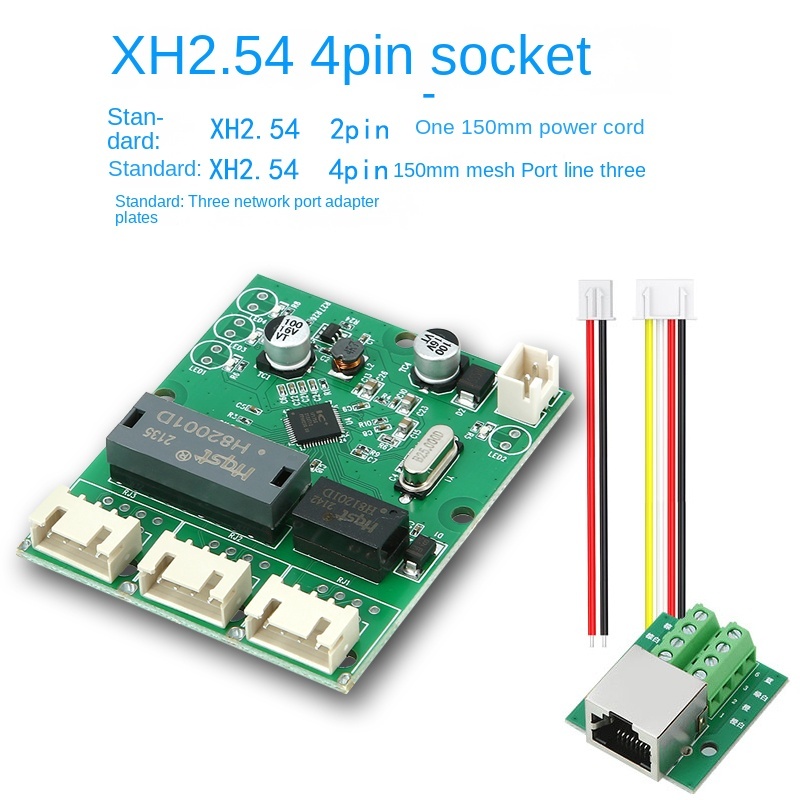

3 10/100M Base-T XH2.54mm 4pin socket ports (Data/Power) |
| Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x |
| Port Characteristics |
10/100M Base-T auto-detection, full/half-duplex MDI/MDI-X auto-adaptation |
| Forwarding Mode |
Store-and-forward (full-wire-speed) |
| Backplane Bandwidth |
1Gbps (unblocked) |
| Forwarding Rate |
Ethernet 10Mbps (half-duplex) 20Mbps (full-duplex), 10Mbps: 14,880pps
Fast Ethernet 100Mbps (half-duplex), 200Mbps (full-duplex), 100Mbps: 148,800pps |
| Cascading |
All ports can be used as UP-LINK ports |
| Packet Forwarding Rate @64byte |
2Mpps |
| MAC Address Table |
1K |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter) |
| Whole Machine Power Consumption |
Standby power consumption: <3W; Full load power consumption: <5W |
| LED Indicators |
Power indicator: PWR (green); Network indicators: Link, Link/Act (green) |
| Appearance Dimensions (L×W×H) |
50×60×14mm |
| Net/Gross Weight |
<18g / <20g |
Working Environment
|
|
| Working Humidity |
10%-90%RH (non-condensing) |
| Working Temperature |
-30°C-70°C |
| Storage Humidity |
10%-90%RH (non-condensing) |
| Storage Temperature |
-40°C-85°C |
Military-Grade Architecture and Performance Breakthroughs
Vibration-Resistant and Corrosion-Proof Interface Design
| Feature |
Technical Parameters |
Industrial Value |
| Connector Type |
MX1.25 5PIN gold-plated interface |
Salt spray resistance ≥1000h (ISO 9227) |
| Vibration Resistance |
8Grms (IEC 60068-2-64) |
Adaptable to heavy machinery vibration environments |
| Plugging Lifespan |
≥5,000 times (tested) |
Reduces maintenance costs by 60% |
Zero-Conflict Network Engine
✅ Store-and-Forward Mode:
- Packet Error Rate ≤10⁻¹⁰ (RFC 2544 test)
- Broadcast storm suppression 98.7% (64-node full-load impact)
✅ Extreme Environment Tolerance:
- Cold start at -40°C (GB/T 2423.22-2025) to full-load operation at 85°C
- Protection grade IP67 (dust and waterproof, suitable for humid/dusty environments)
💧 Solutions for Three Harsh Scenarios
-
Smart Water Management Remote Monitoring
▶️ IP67 protection resists high-pressure water mist erosion in pumping stations (tested in the South-to-North Water Diversion Project)
▶️ Store-and-forward mode eliminates data congestion from 32 sensors (packet error rate reduced by 95%)
-
Cold Chain Logistics Temperature Control Networks
▶️ -40°C cold start ensures real-time communication for forklifts in cold storage (JD Logistics case study)
▶️ MX1.25 interface improves plugging lifespan by 300% at -30°C
-
Smart Grid Distribution Stations
▶️ 8Grms vibration resistance adapts to transformer vibration environments (State Grid tender technical specifications)
▶️ Non-blocking architecture achieves relay protection signal latency <5μs
