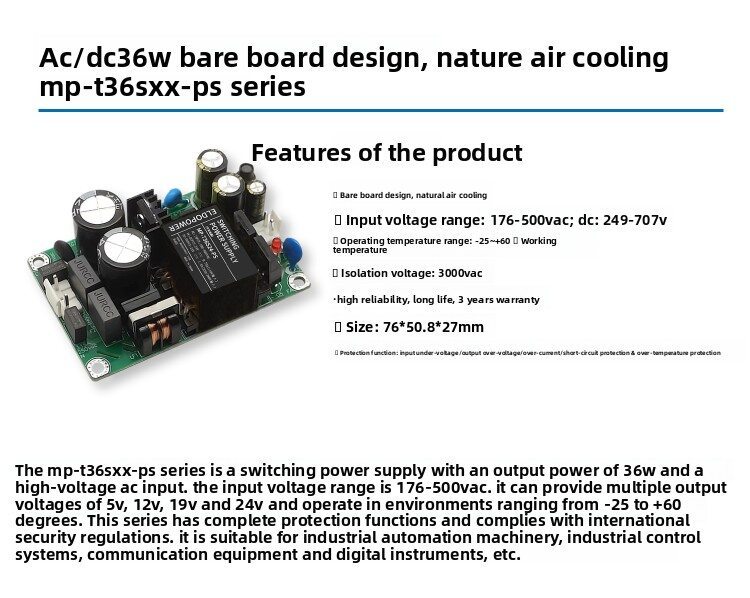

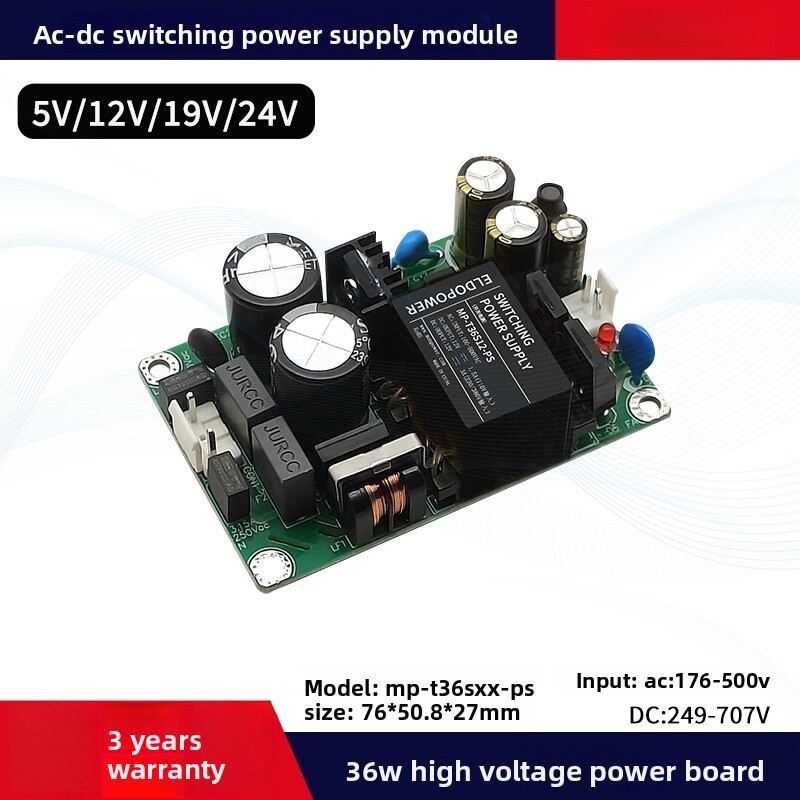

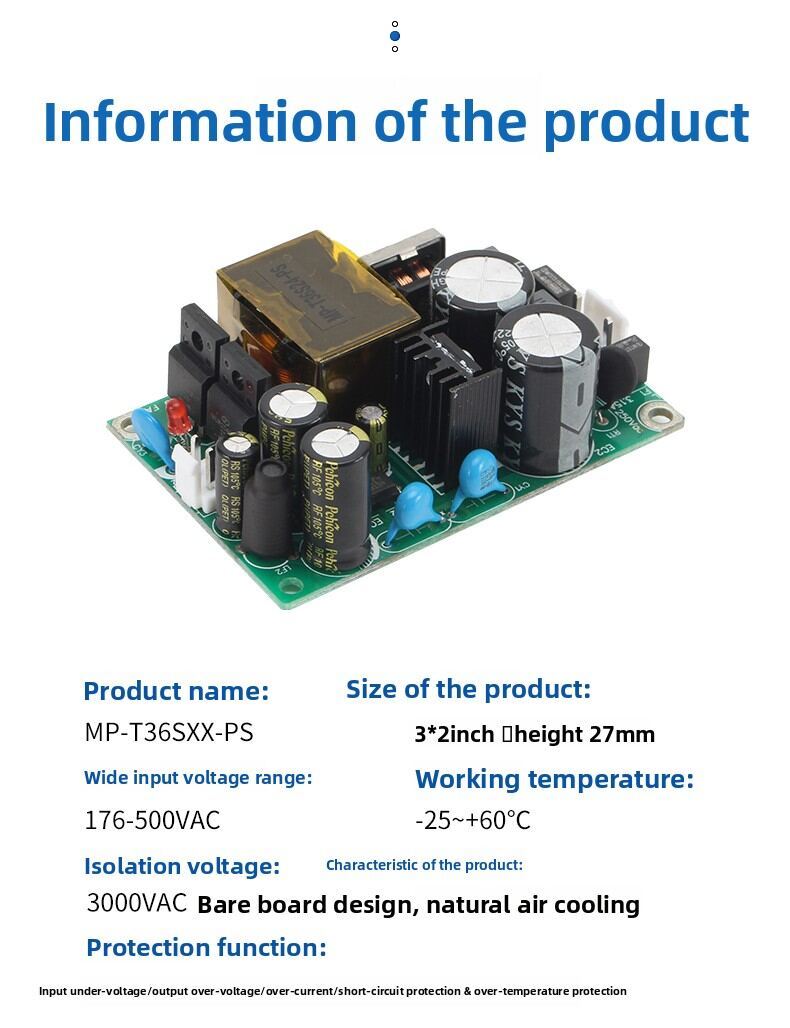

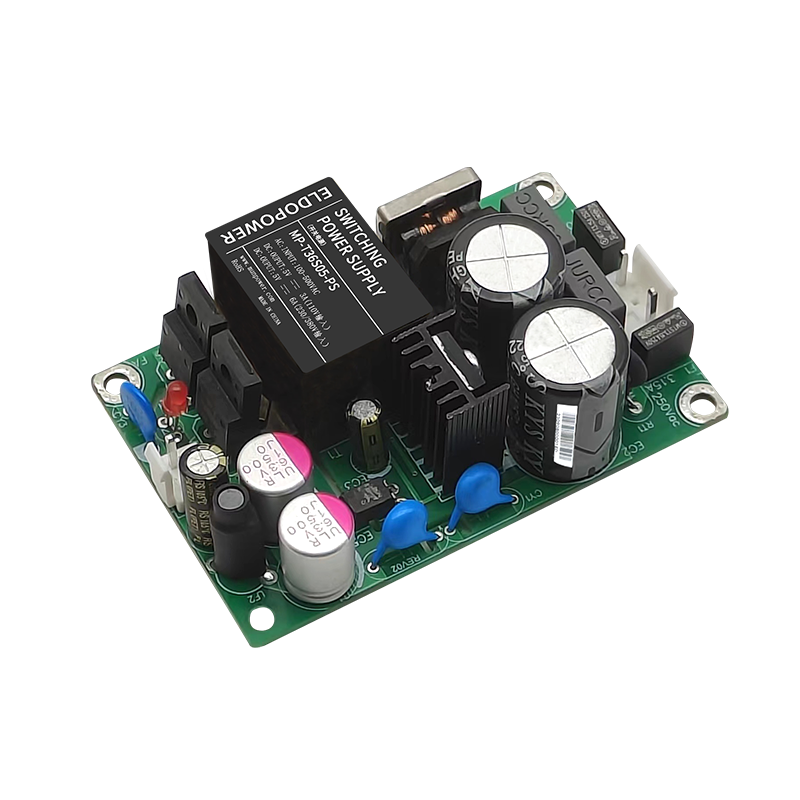

36W High Voltage AC-DC Power Supply | 176-500VAC Input, 5V/12V/19V/24V Output, 3000VAC Isolation

Product Advantages and Features Summary

Ultra-Wide High-Voltage Input and Multi-Voltage Output

• Supports 176-500VAC AC input or 249-707VDC DC input, compatible with global high-voltage power grid fluctuations and DC power supply scenarios.

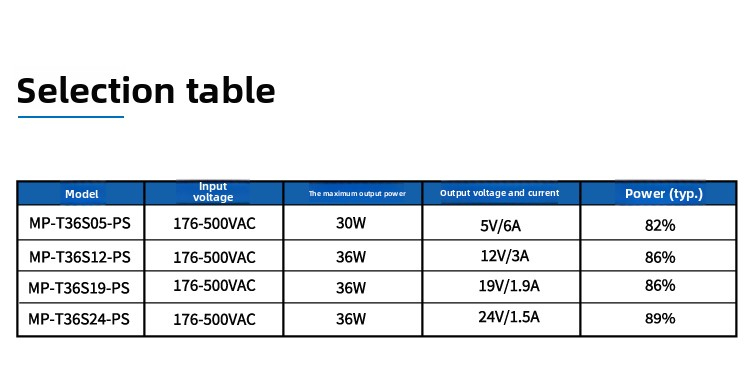

• Offers four adjustable output voltages (5V/12V/19V/24V), switchable via DIP switches or external signals, to meet diverse device requirements.

High Efficiency and Compact Design

• Achieves a conversion efficiency of 88%, reducing energy consumption and heat generation, suitable for low-power precision instruments.

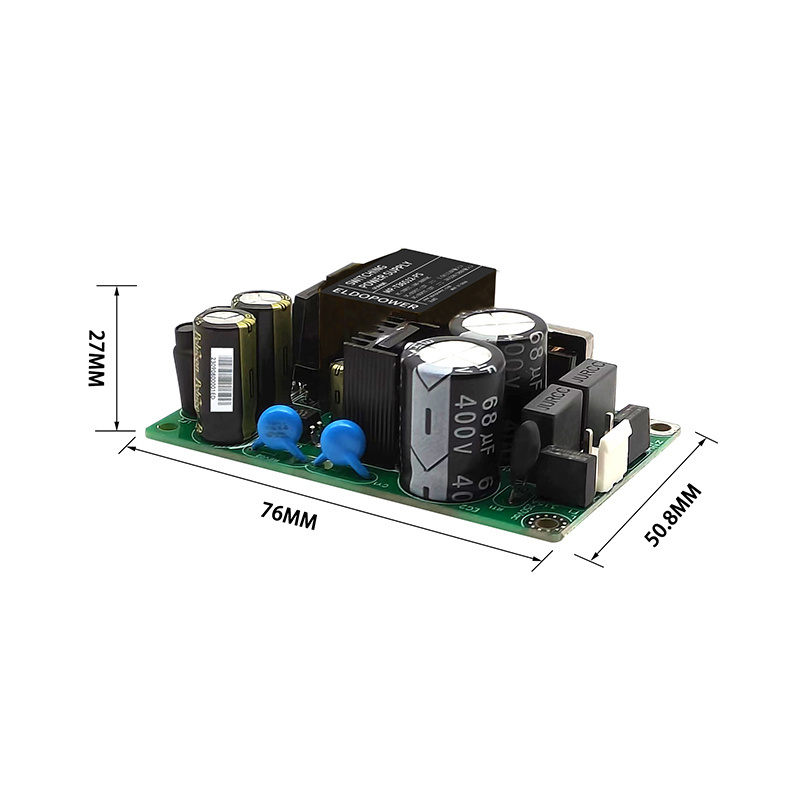

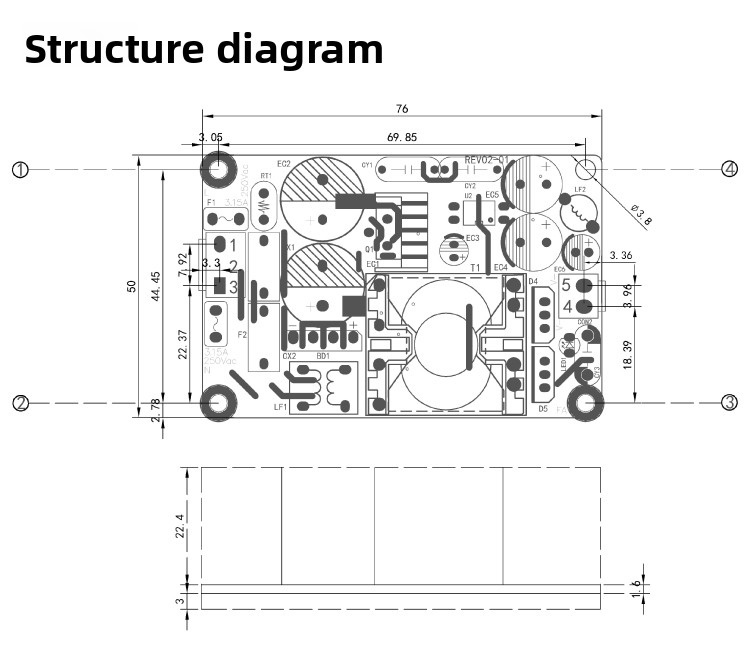

• Features a bare-board design (76 × 50.8 × 27mm) combined with natural air cooling, eliminating the need for additional heat dissipation devices and saving space and cost.

High Isolation and Safety Certifications

• Provides a 3000VAC isolation voltage to ensure electrical safety and complies with industrial-grade EMC standards.
• Has obtained CE, RoHS, and UL62368 certifications, meeting international safety regulations.

Wide Temperature Environmental Adaptability

• Operates within a temperature range of -25℃ to +60℃ (storage temperature: -40℃ to +85℃), suitable for extreme environments such as industrial workshops and outdoor equipment.
• Has an MTBF (Mean Time Between Failures) exceeding 120,000 hours and offers a 3-year warranty, reducing long-term maintenance costs.

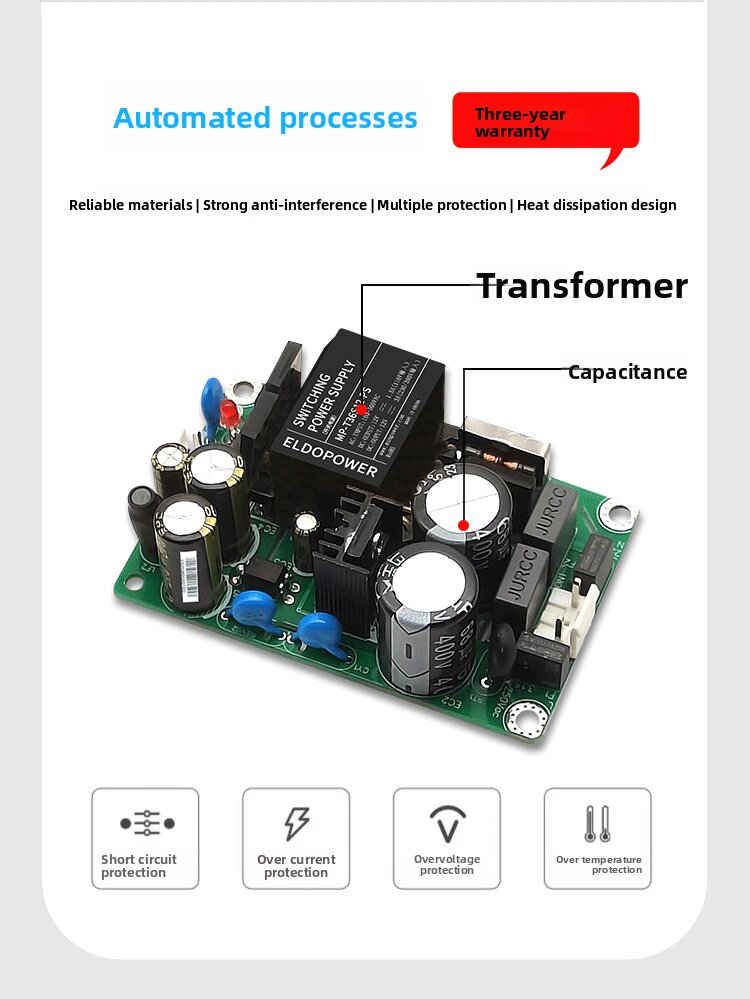

Comprehensive Protection Functions

• Offers input under-voltage protection (UVLO), output over-voltage/over-current/short-circuit protection (OVP/OCP/SCP), and over-temperature protection (OTP).
• Features a self-recovery function after faults, automatically restoring output upon restart to enhance system stability.

Industrial-Grade Integration Convenience

• Supports DIN rail or panel mounting, suitable for narrow spaces.
• Has a lightweight bare-board structure (weight < 120g), facilitating integration into equipment interiors.

Application Scenarios Description

• Industrial Automation Machinery: Provides stable power for high-voltage servo drives, industrial robots, and CNC machine tools, with strong resistance to power grid interference.
• Industrial Control Systems: Powers PLCs, HMI (Human-Machine Interface) systems, and data acquisition modules, supporting 12V/24V low-voltage output.
• Communication Equipment: Supplies 5V/12V/19V power for base stations, switches, and industrial routers with high-voltage DC power supplies.
• Electronic Instruments and Meters: Offers high-precision 5V/12V power for oscilloscopes, spectrum analyzers, and medical devices.
• New Energy and Rail Transit: Provides high-voltage-to-low-voltage conversion solutions for photovoltaic inverters, charging stations, and train control systems.
