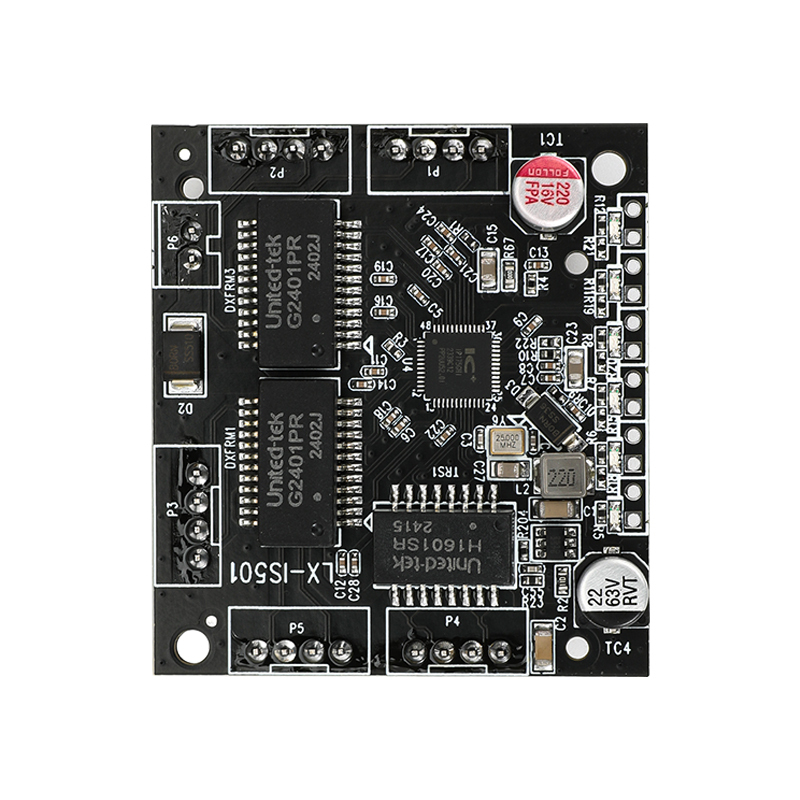

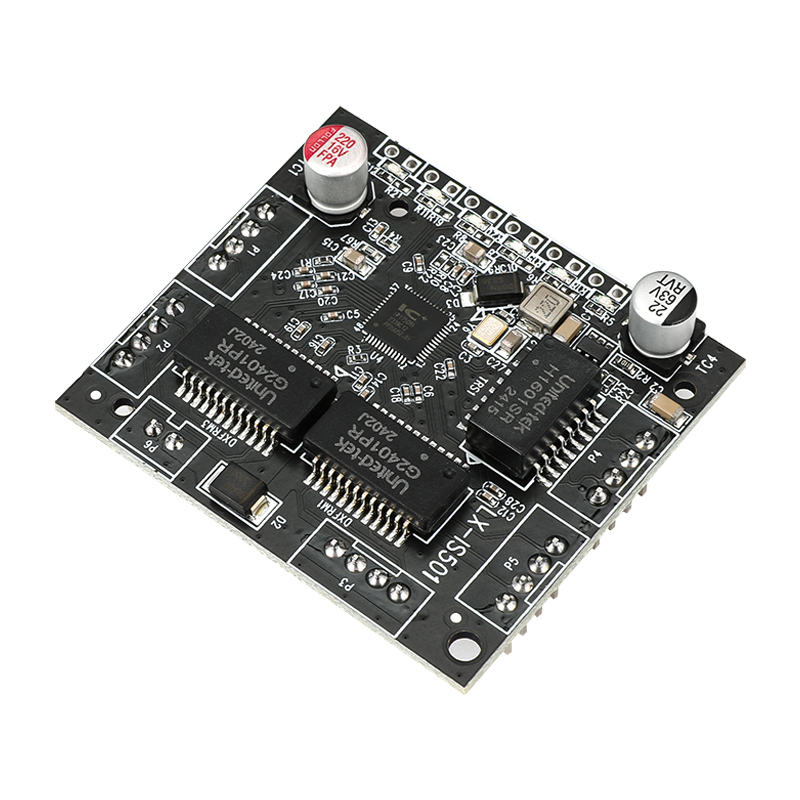

LX-IS501-2 series comprises 5-port 100Mbps industrial switch modules, available in two versions: one with an XH2.54mm 4-pin interface and the other with onboard 4-pin pins. These modules support wide-temperature operation from -40°C to 85°C and TSN (Time-Sensitive Networking). With an embedded design that allows for customizable PCB baseplates, they are well-suited for demanding environments such as smart factories and photovoltaic monitoring systems.

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Type:

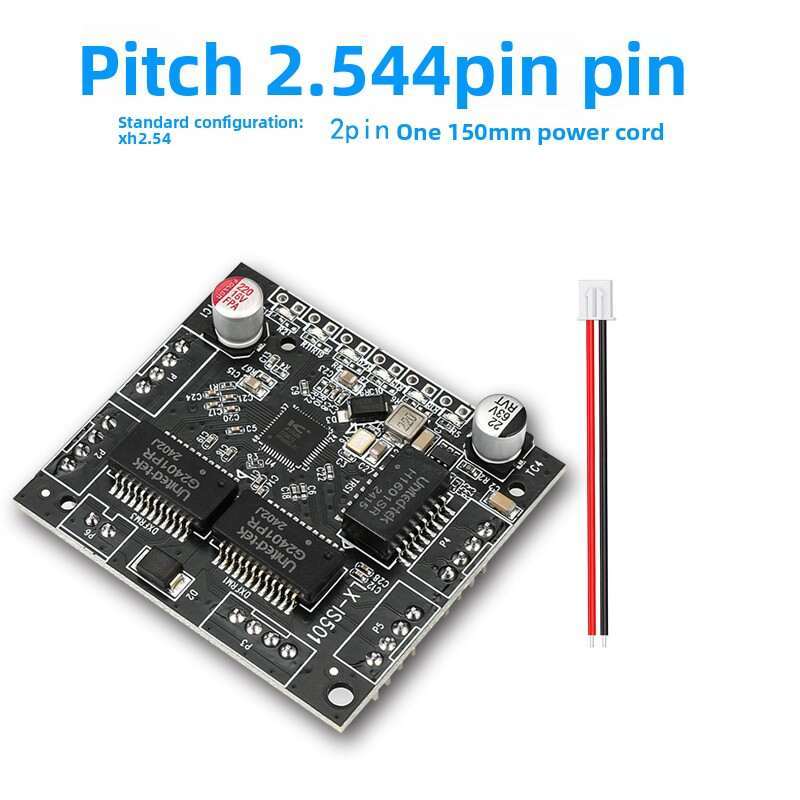

Pin type with power cord

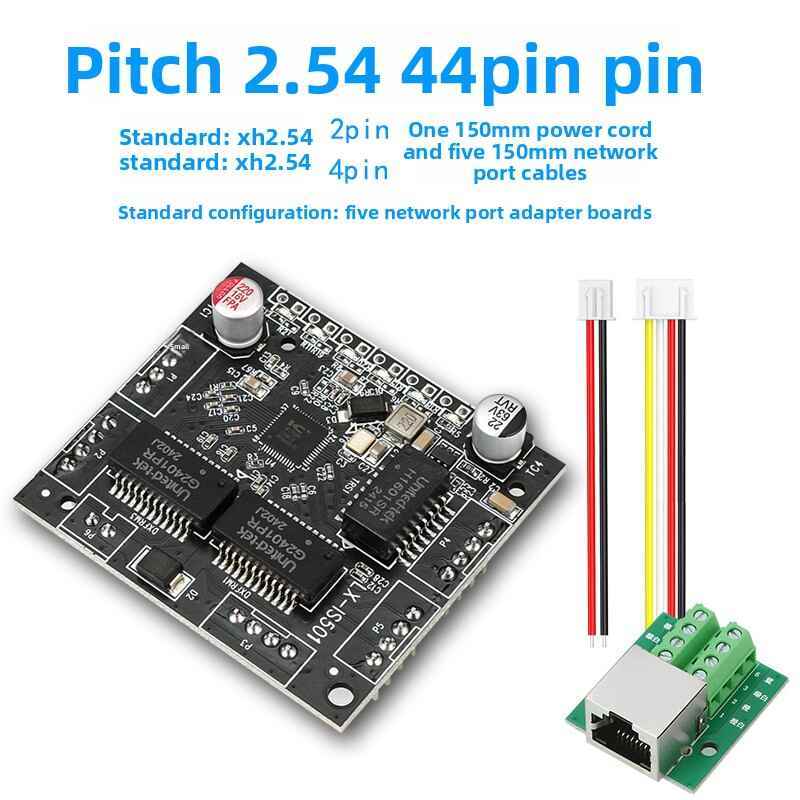

Pin type with complete set of wires

Pin type with complete set of wires and adapters

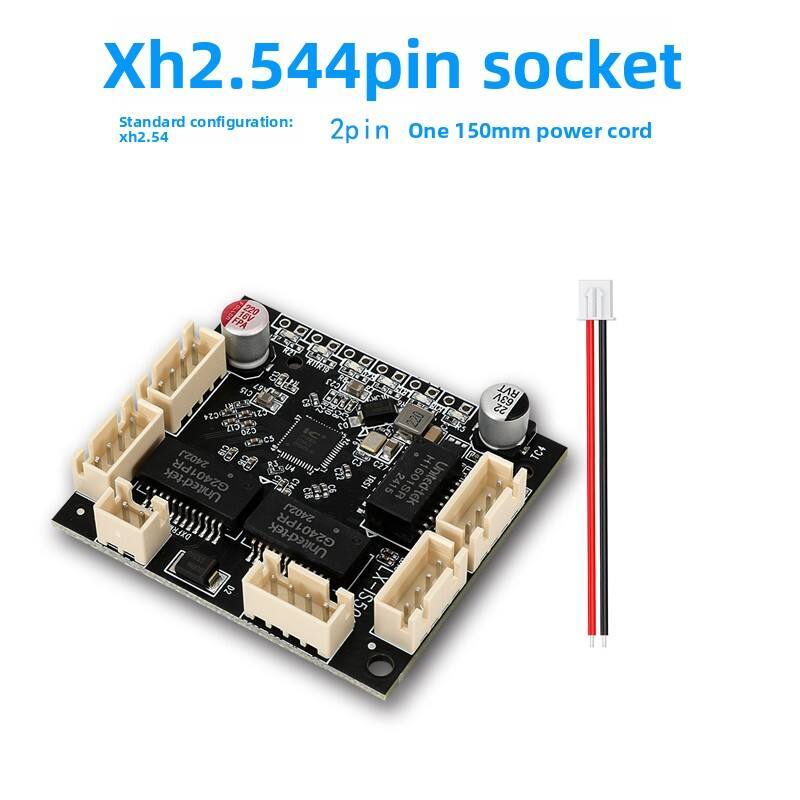

Socket style with power cord

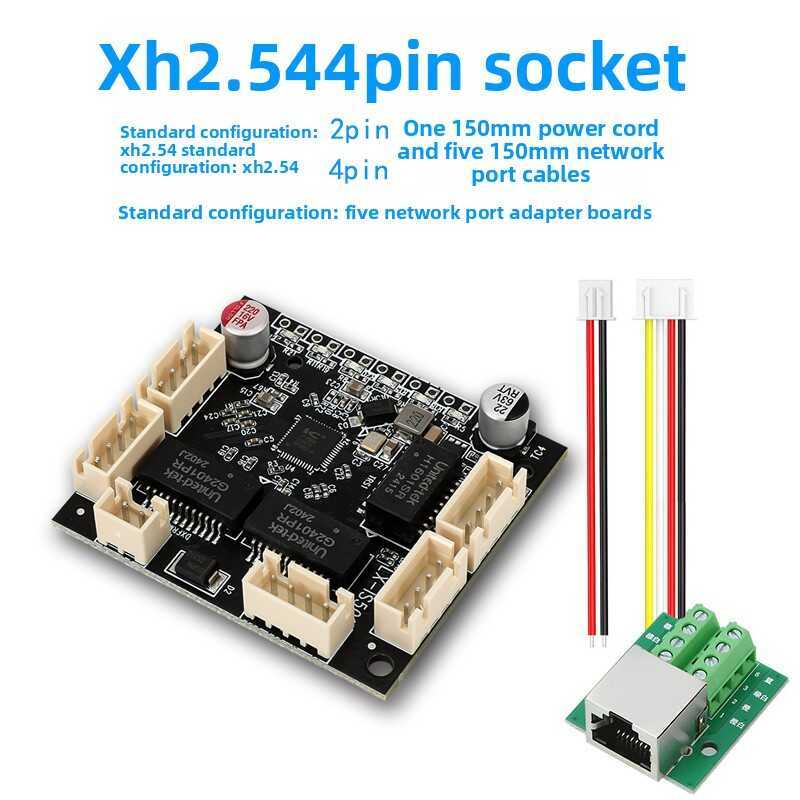

Socket style with complete set of wires

Socket style with complete set of wires and adapters

Quantity:

Add to Favorites (0)

1/1

Description

Name	5-Port Industrial Grade Switch Module
Model	LX-IS501-2
Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3x Flow Control
Protocol	CSMA/CD
Filtering and Forwarding Rate	Ethernet 10Mbps (Half-duplex) 20Mbps (Full-duplex). 10Mbps: 14,880pps Fast Ethernet 100Mbps (Half-duplex) 200Mbps (Full-duplex). 100Mbps: 148,800pps
Power Consumption	No Load: 300mw @ 12VDC Load: 800mw @ 12VDC
Network Media	10Base-T: Category 3 or higher UTP (<=100m) 100Base-TX: Category 5 UTP (<=100m)
Number of Ports	5 x 10/100M 4PIN 2.54MM onboard pin header ports
Cascading	All ports can be used as UP-LINK ports
Forwarding Mode	Store and Forward
Temperature	Operating Temperature: -40°C ~ 85°C Storage Temperature: -40°C ~ 85°C
Humidity	Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Backplane Bandwidth	1G
LED Indicators	1 x Power LED (Green) 4 x Data LEDs (Link/Act: Green) Reserved plug-in holes
Product Dimensions (WxHxD)	504510mm
Power Supply	Voltage Input: DC5-60V Input Method: Pin header 2P terminal block, pitch 2.54mm

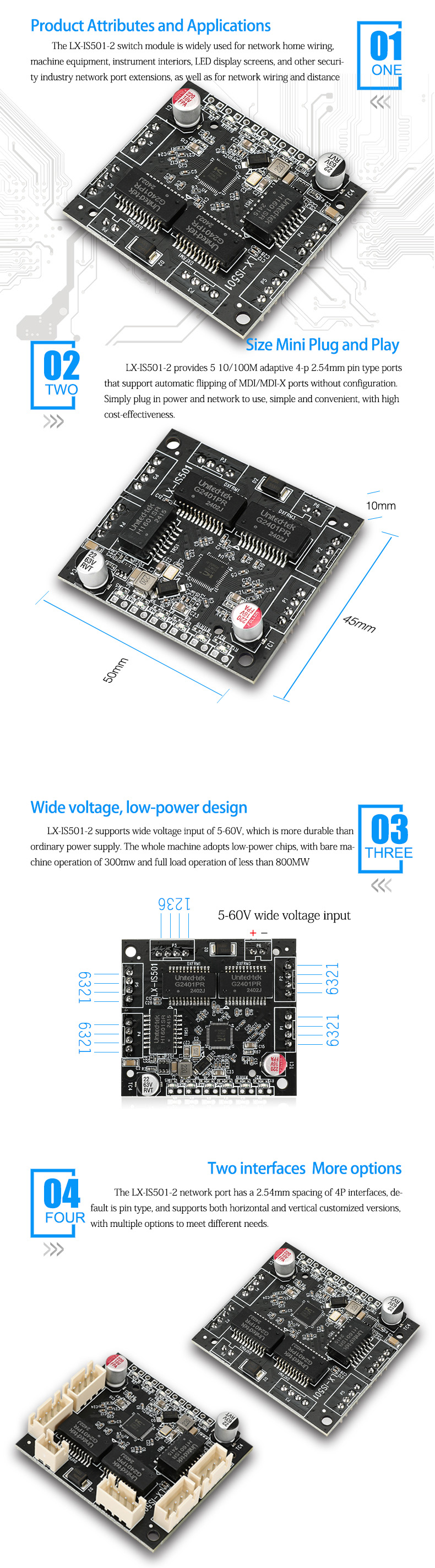

I. Product Architecture & Core Features

Dual-Form Flexible Deployment
Interface Options:

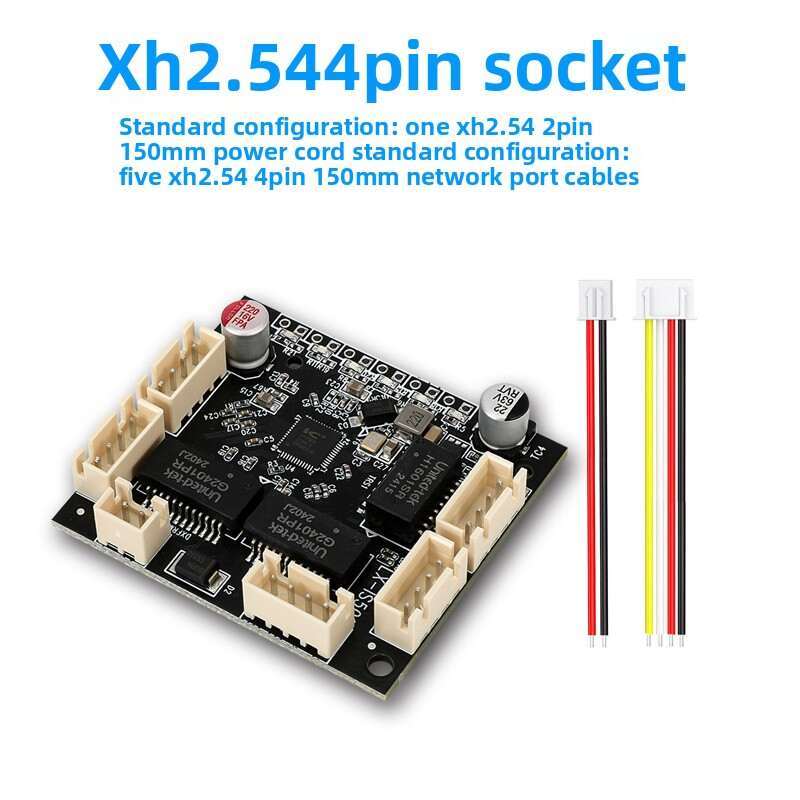

▶️ XH2.54mm 4-Pin Connector Version:

Quick-plug connection, ideal for device-level expansion.

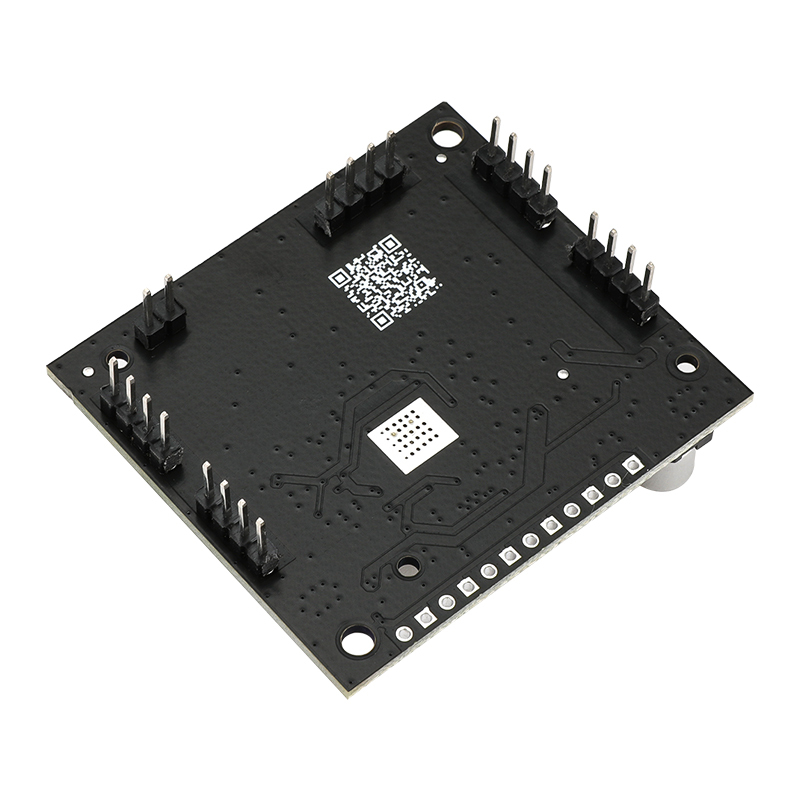

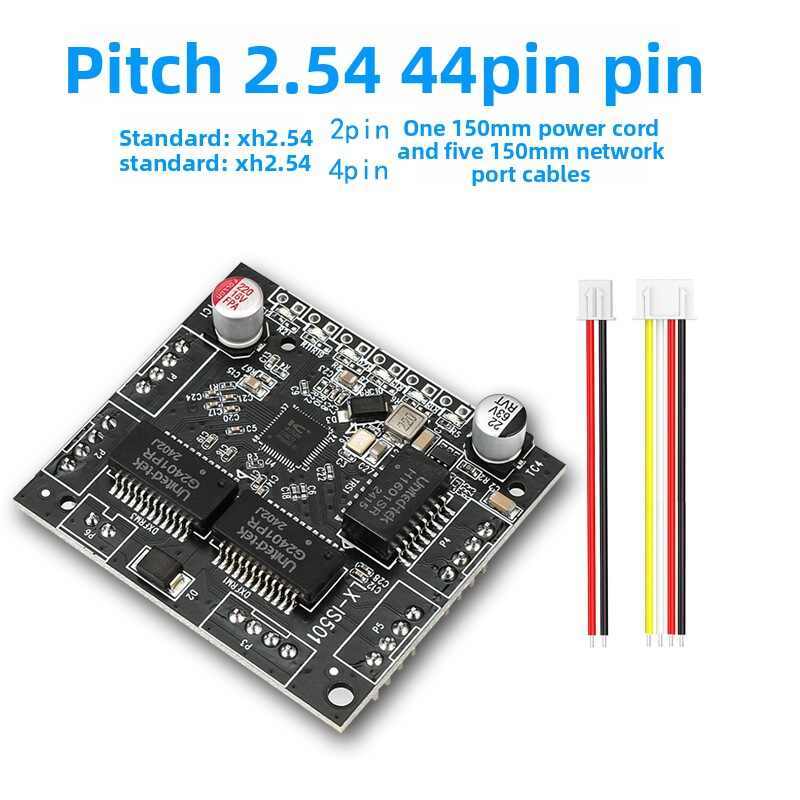

▶️ Onboard 4-Pin Pin Header Version:
Direct PCB soldering, reducing connector failure points.

Size Optimization:

Module dimensions: 50×45×10mm (industry-leading compact design), saving 67% installation space.

Embedded Programmable Design
Customizable Backplane:

Open pin definition diagram (compliant with IPC-7351 standard), allowing users to configure RJ45/fiber optic terminal types.

Protocol Extension:

Reserved SPI interface for loading TSN protocol stack (IEEE 802.1AS-Rev), achieving ±1μs clock synchronization accuracy.

II. Industrial-Grade Performance Assurance

Capability Dimension	Technical Specifications	Certification Standards
Environmental Resilience	-40°C cold-start capable / 85°C continuous operation	IEC 60068-2-14/-2-27
Electrical Protection	8kV surge protection + 20kV ESD immunity	IEC 61000-4-5/4-2
Network Reliability	ERPSv2 ring network redundancy (200,000-hour MTBF)	IEC 62439-2
