LX-SG5015-Port Gigabit Switch Module / PoE switch moduleLX-SG501 5-Port Gigabit Switch Module - An Expert in High-Power Non-Standard PoE Power Supply and Intelligent Network Deployment

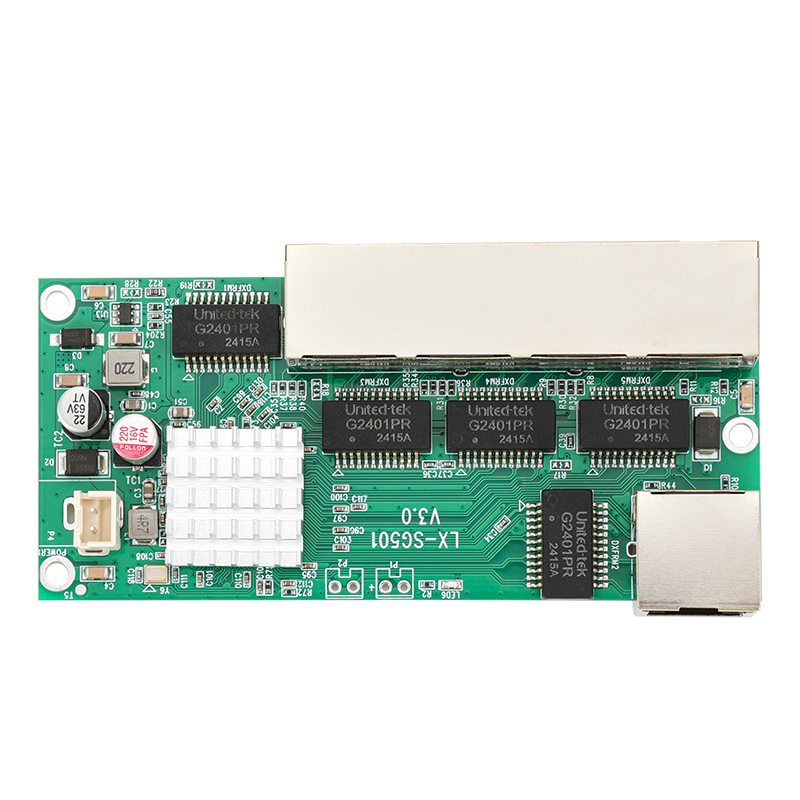

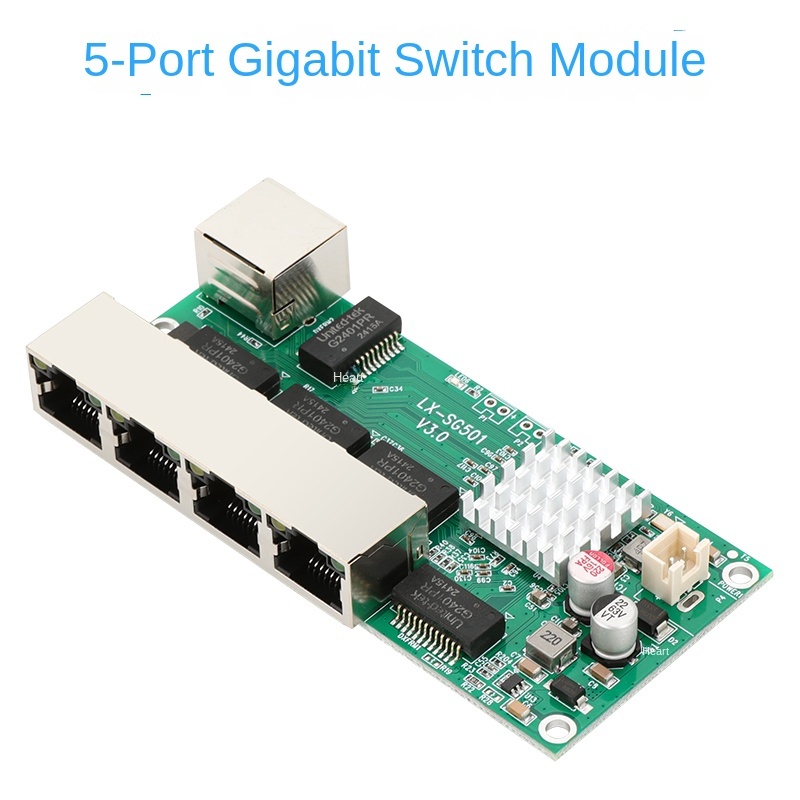

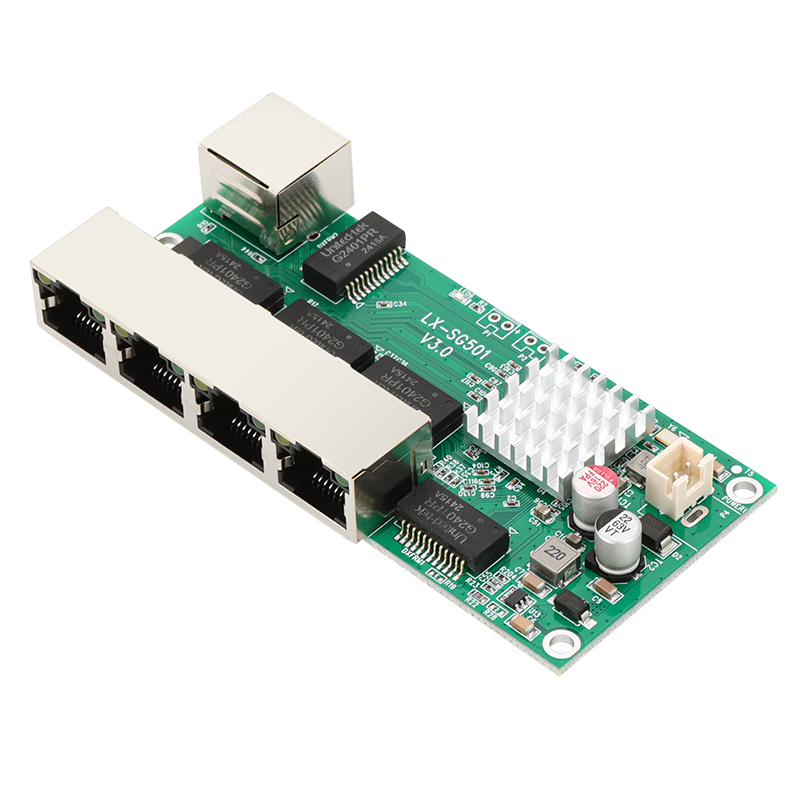

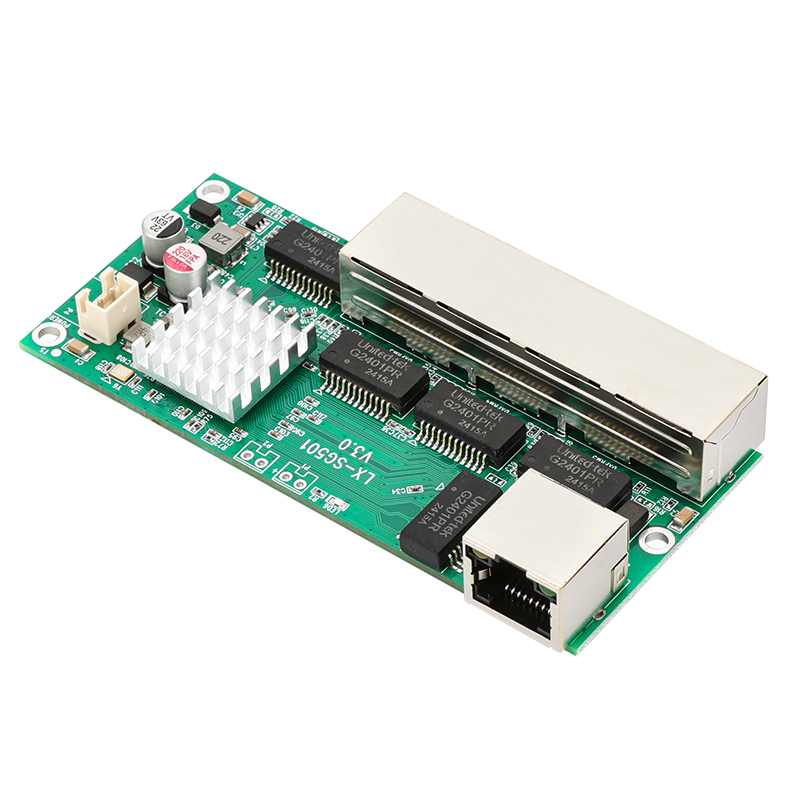

The LX-SG501 is an unmanaged full Gigabit switch module specifically designed for complex scenarios. It offers 5 full Gigabit auto-negotiation electrical ports (10/100/1000M), with ports 1-4 supporting optional non-standard 5-52V PoE power supply and a single-port output power of up to 30W. The total maximum PoE power of the entire device is 130W. Its core advantages lie in high-power non-standard power supply and flexible networking capabilities, meeting the special needs of scenarios such as building intercom systems, conference calls, and visual indoor units, while reducing engineering costs through a 45+78- wire sequence power supply solution.
Technical Specifications and Core Features
Guaranteed Full Gigabit Transmission
- All 5 electrical ports support 10/100/1000M auto-negotiation speeds, ensuring stable operation in high-bandwidth scenarios such as high-definition video and large file transfers.
- Unmanaged design, plug-and-play, simplifying the deployment process.
High-Power Non-Standard PoE Power Supply
- Ports 1-4 support a wide voltage range of 5-52V power supply, compatible with non-standard PoE devices (such as customized building intercom hosts and conference system terminals), with a single-port 30W output meeting high-power consumption needs.
- A total power of 130W for the entire device supports simultaneous power supply to multiple devices, suitable for multi-terminal联动 (linked) scenarios.
Wire Sequence Optimization and Cost Savings

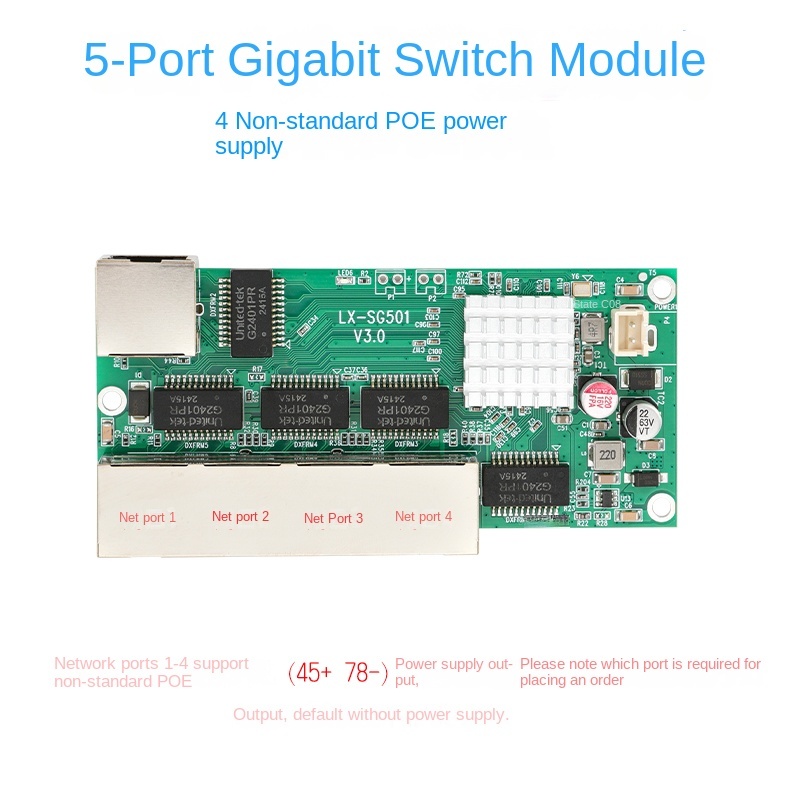

- Adopts a 45+78- wire sequence power supply solution, achieving power and data transmission through a specific combination of network cable cores, reducing additional wiring costs, especially suitable for retrofitting projects of traditionally deployed networks.
Application Scenarios and User Value
- Intelligent Building Management: Powers non-standard devices such as visual intercom hosts and indoor extensions, enhancing building automation.
- Corporate Conference Systems: Supports high-power conference call terminals and video conferencing equipment, ensuring audio and video transmission quality.
- Customized Network Deployment: Adapts to special industry devices (such as industrial sensors and intelligent access control), with strong scalability.
Advantages and Highlights
- High Compatibility: Specifically designed for non-standard PoE devices, filling the gap in standard PoE power supply.
- Flexible Expansion: 5-port full Gigabit design supports cascading multiple devices or connecting different terminals.
- Safety and Reliability: Built-in overload protection, temperature monitoring, and lightning protection, extending device lifespan.
Summary
The LX-SG501, centered around full Gigabit transmission, high-power non-standard PoE power supply, and wire sequence optimization for cost reduction, provides an efficient solution for scenarios such as building intercom systems, conference systems, and industrial IoT. Its "one-cable-for-all" feature and flexible power supply capabilities help users reduce engineering complexity and improve network deployment efficiency. For further information on product parameters or customized services, please contact our technical support team for professional solutions.
