1. Technical Architecture and Performance Parameters

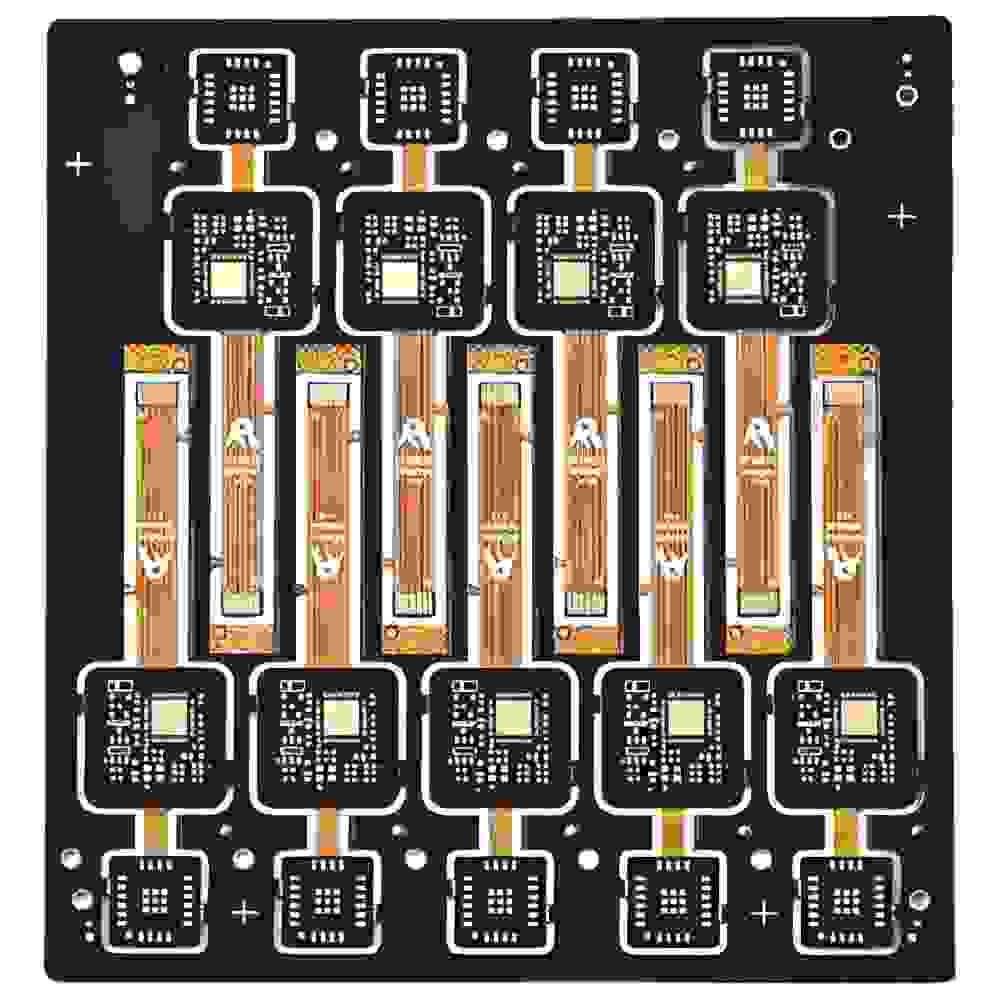

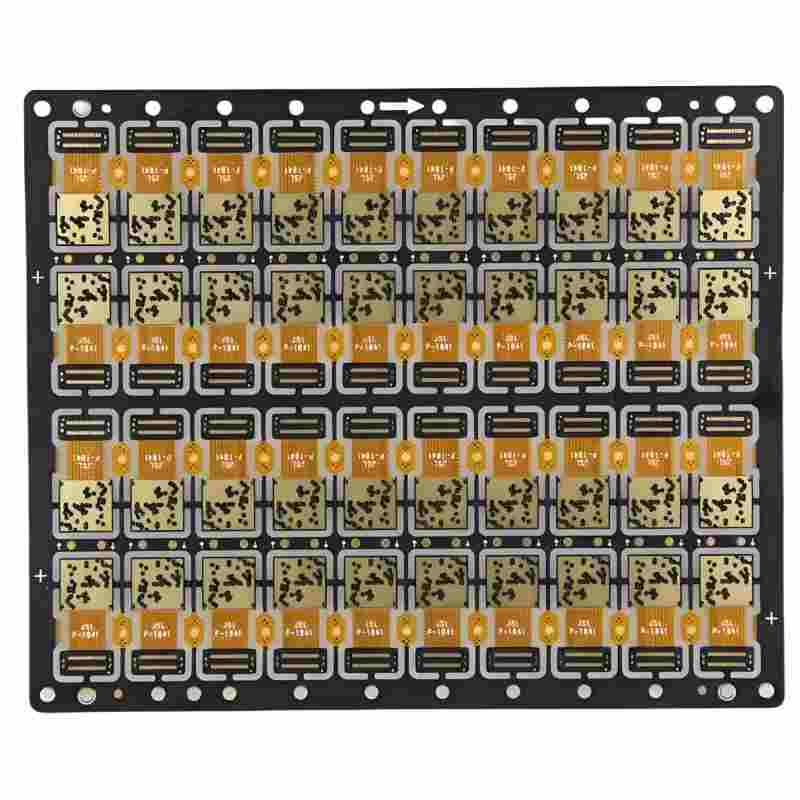

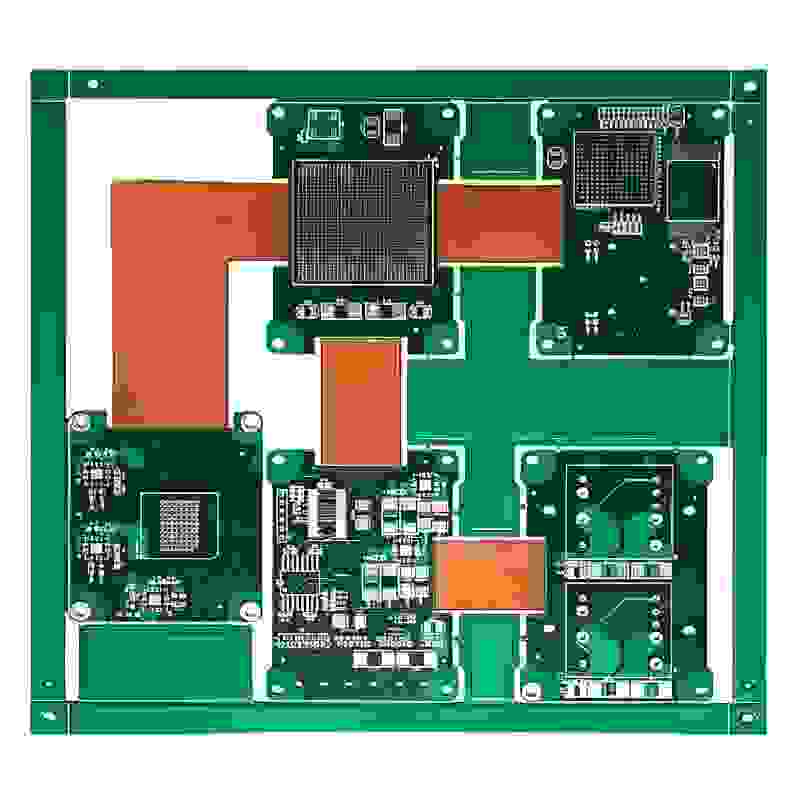

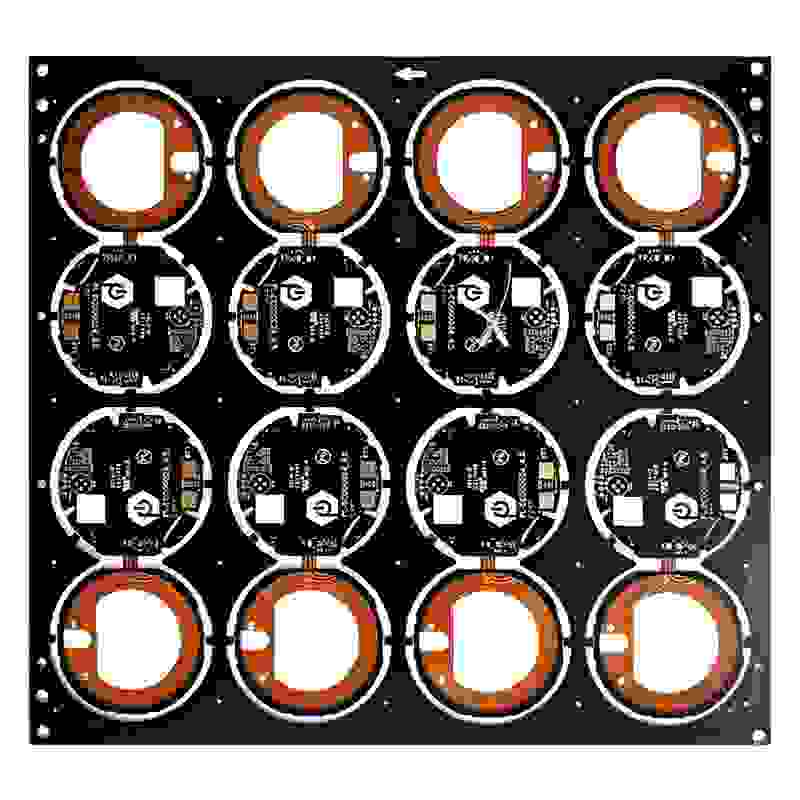

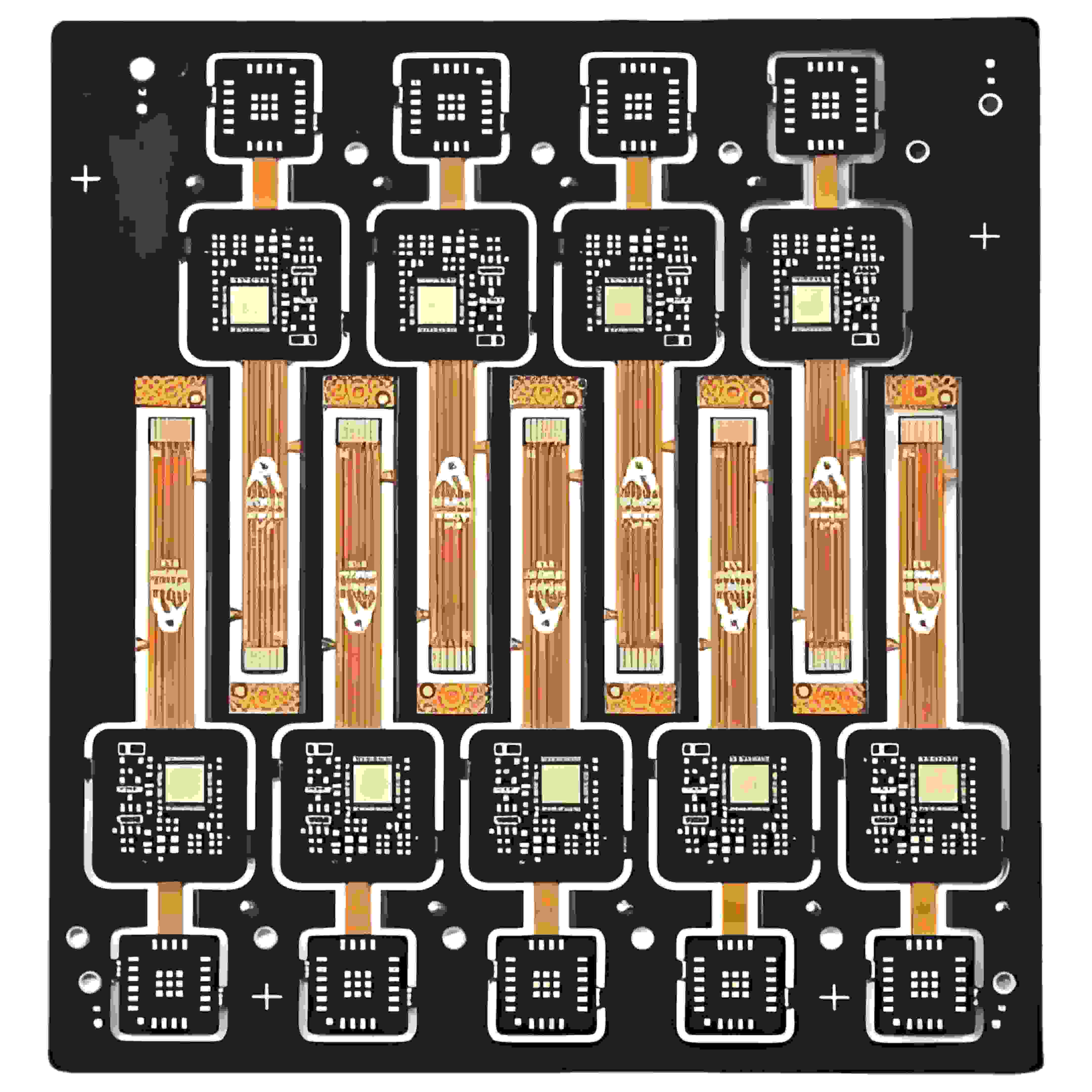

The 6-layer Rigid-Flex PCB adopts a "4R+2F" structure (4 rigid layers + 2 flexible layers), utilizing laser drilling and precision etching for microvia interconnects (via diameter ≤0.1mm). It achieves minimum line/space widths of 40μm and impedance control accuracy of ±5%. The flexible zones employ 25μm polyimide films with 18μm rolled copper foil, enabling a bend radius as low as 3mm and dynamic bend lifespan exceeding 100,000 cycles (IPC-6013D Class 3 standard). Its temperature resistance spans -55℃ to 150℃, suitable for extreme-environment devices.
2. High-Frequency and High-Speed Signal Support
Leveraging low-loss materials (e.g., Rogers 4350B) with a dielectric constant of 3.4 and differential pair designs, the PCB enables 40GHz high-frequency signal transmission with insertion loss <0.2dB/inch @10GHz. It supports high-speed protocols like PCIe 5.0 and USB4, achieving ≥98% compliance in signal integrity (SI) and power integrity (PI) simulations. Applications include 5G millimeter-wave modules and autonomous driving LiDAR systems.
3. Industry Applications and Market Data
- Medical Electronics: Achieves 90% volume reduction and 30% lower failure rates in endoscopes and implantable devices.
- Automotive Electronics: ADAS systems reduce wire harness weight by 60%, with automotive PCB demand growing 12% in 2024.
- Consumer Electronics: Foldable smartphone hinge PCB yield rates reach 95%, driving global flexible PCB shipments to exceed 2.5 billion units by 2025 (IDC).
4. Manufacturing Process Innovations
Semi-additive process (mSAP) enhances line precision, while plasma cleaning and vacuum lamination ensure interlayer adhesion >1.5N/mm. Eco-friendly processes comply with RoHS 2.0 and IPC-6013 standards, boosting material utilization to 92%.
5. Technological Trends and Competitive Barriers
Current R&D focuses on embedded passive components (e.g., buried capacitors), 3D-MID laser shaping, and copper paste-filled microvia processes. Leading firms (e.g., TTM, Unimicron) have mass-produced 0.3mm ultra-thin Rigid-Flex PCBs, holding over 65% of technology patents (WIPO 2024).
Why choose us？
I. Superior Tech, Quality Assured
We lead in PCB manufacturing with advanced processes like high-precision drilling, fine-line fabrication (min. 50μm line width/spacing), and multi-layer lamination, meeting high-end routing density needs for stable signal transmission. A strict quality system ensures over 99.5% yield via flying probe and AOI tests. Our expert R&D team offers tailored solutions, from material selection to complex circuit design.
II. Diverse Products, Versatile Solutions
We provide FR-4, high-frequency, metal-core, and flexible boards, each with unique properties for various applications. Mass-produce 2 - 30 layer PCBs for efficient signal and power management. Customize board size, hole diameter, surface finish, and functions to fit specific scenarios.
III. Timely Delivery, Project Assurance
Optimized production and advanced management shorten cycles. We control delivery for double-sided PCBs within [X] days and arrange multi-layer PCBs flexibly. With large capacity and emergency response, we avoid delays. Real-time tracking keeps clients informed.
IV. Competitive Pricing, High Value
Cost-saving measures enable competitive pricing without compromising quality. Transparent quotes detail all costs. Our PCBs excel in price, quality, and delivery, enhancing clients' product competitiveness.
V. Thoughtful Service, High Satisfaction
Our sales team offers pre-sales expertise. Technical support spans design to production. We handle after-sales issues promptly
and conduct follow-ups for continuous improvement.
