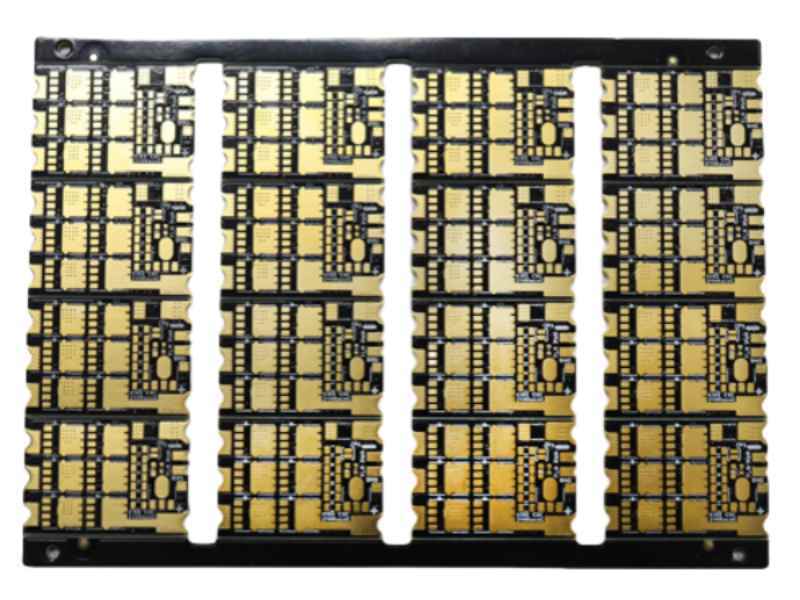

In the rapidly evolving field of unmanned aerial vehicles (UAVs), where miniaturization, high performance, and reliability are critical, our 6-layer second-order drone PCBs emerge as a top-tier solution. Constructed from FR-4 material, these PCBs offer a cost-effective yet robust foundation for the complex electronics systems found in modern drones.
The 6-layer design provides ample space for routing high-speed signals, power, and ground planes, ensuring optimal electrical performance and minimal interference. With a copper thickness of 2oz, the PCBs exhibit excellent thermal conductivity and current-carrying capacity, which are essential for managing the power demands of drone motors, sensors, and communication modules.
A key feature of these PCBs is their second-order manufacturing process, which enables the creation of ultra-fine circuit elements. With a minimum aperture, trace width, and trace spacing of just 0.1mm, the boards support high-density component placement and intricate circuit designs. This level of precision is crucial for integrating advanced functionalities such as high-resolution imaging, real-time data processing, and long-range communication into compact drone form factors.
Industry Applications:
- Consumer Drones: Enhance flight stability, camera quality, and battery life in recreational and professional-grade drones.
- Commercial Drones: Support applications in agriculture (precision farming), logistics (package delivery), and infrastructure inspection (bridges, power lines).
- Military Drones: Provide reliable performance in surveillance, reconnaissance, and target acquisition missions under challenging conditions.
For high-quality 6-layer second-order drone PCBs, contact us at
info@fr4pcb.tech.
