77GHz Radar Module Millimeter-Wave SRR201M High-Precision Road Blind Spot Obstacle Avoidance and Collision Avoidance Sensor: Technical Analysis and Performance Highlights
Core Advantages

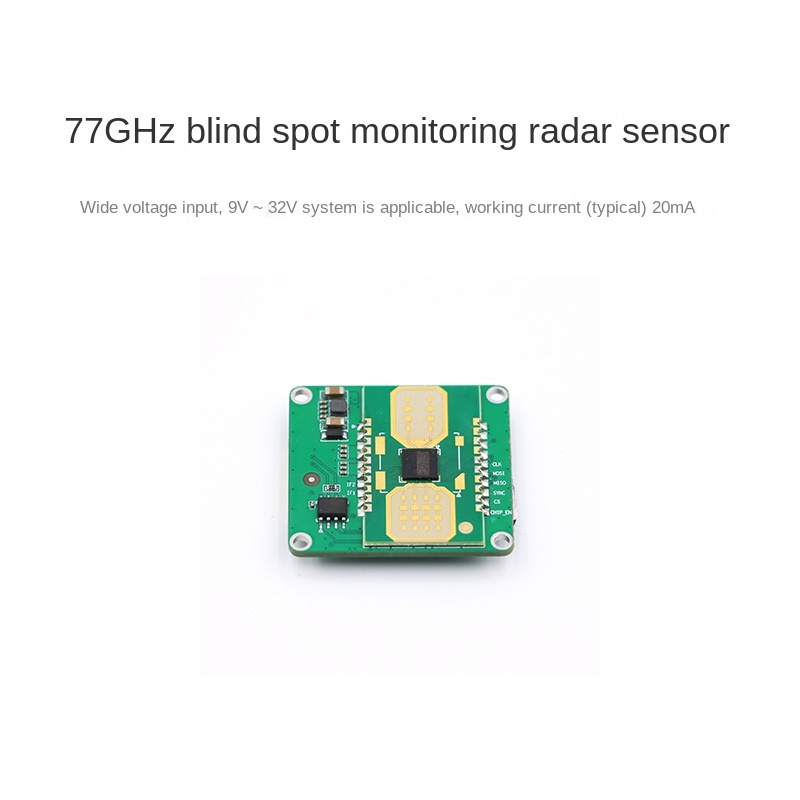

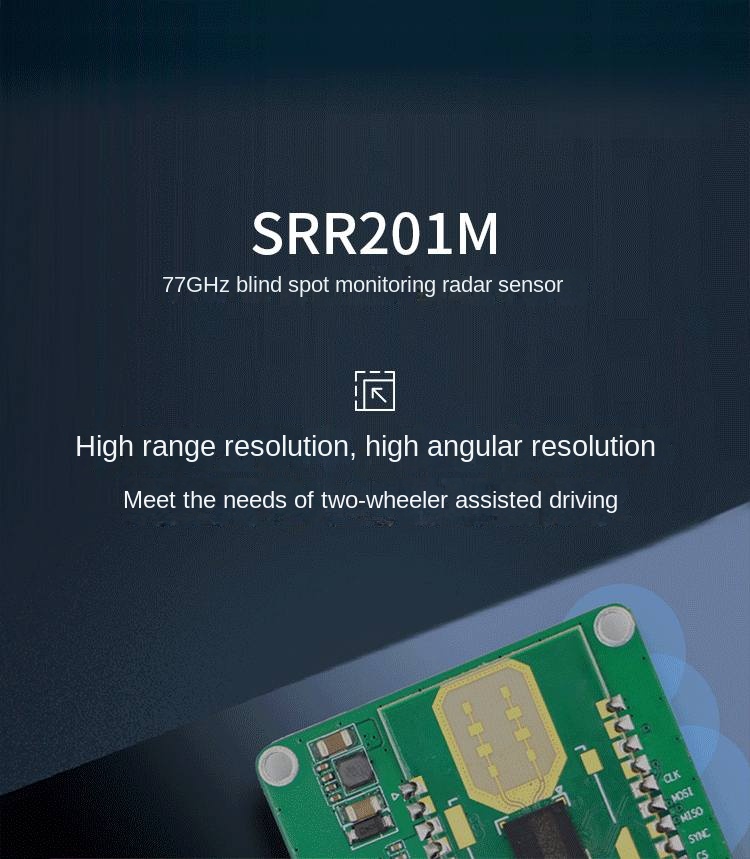

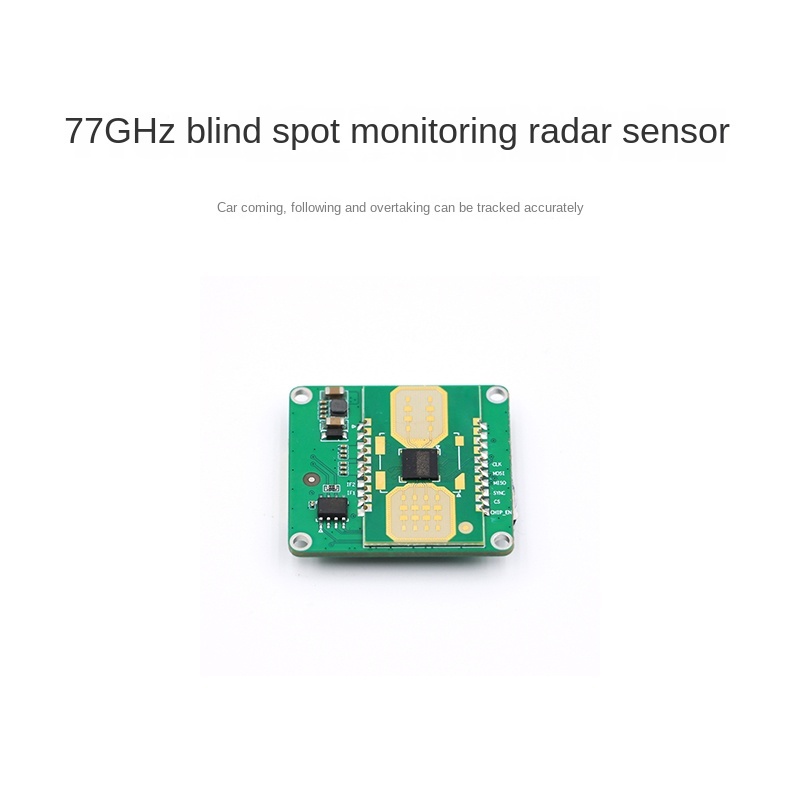

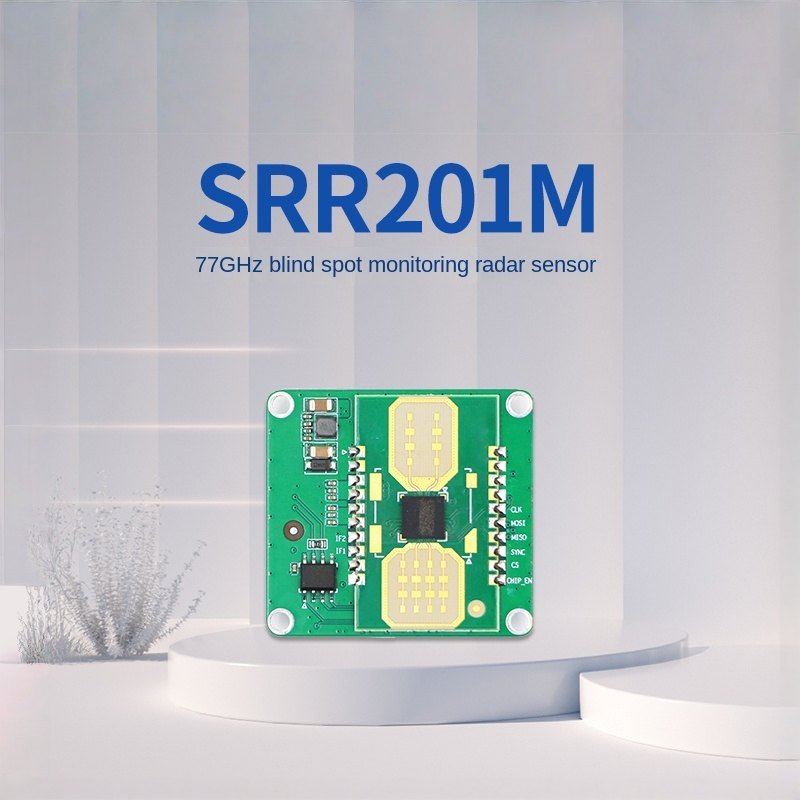

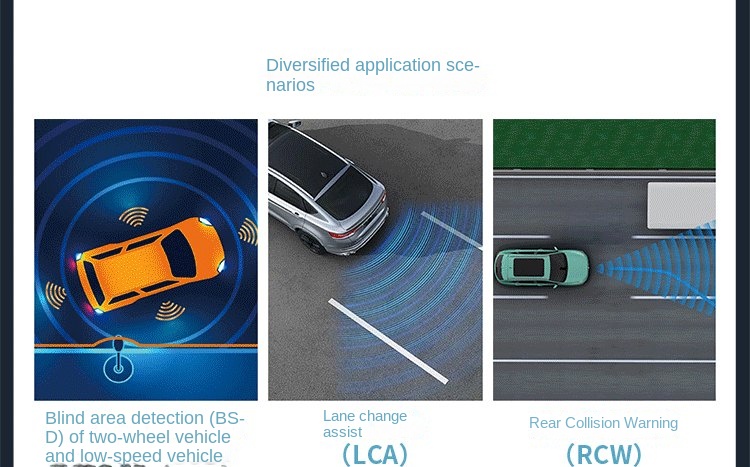

The SRR201M is a 77GHz short-range millimeter-wave radar sensor designed specifically for road blind spot monitoring and collision warning. Leveraging Frequency-Modulated Continuous Wave (FMCW) modulation and advanced Multiple Input Multiple Output (MIMO) technology, it achieves high-precision target detection and tracking. With a maximum detection range of 60 meters, a distance resolution of 0.18 meters, and an angular resolution of 4°, it accurately identifies moving objects (e.g., vehicles, pedestrians) in vehicle blind spots. It supports three core functions: BSD (Blind Spot Detection), LCA (Lane Change Assist), and RCW (Rear Collision Warning), catering to the needs of two-wheeled and four-wheeled vehicles for advanced driver-assistance systems (ADAS).

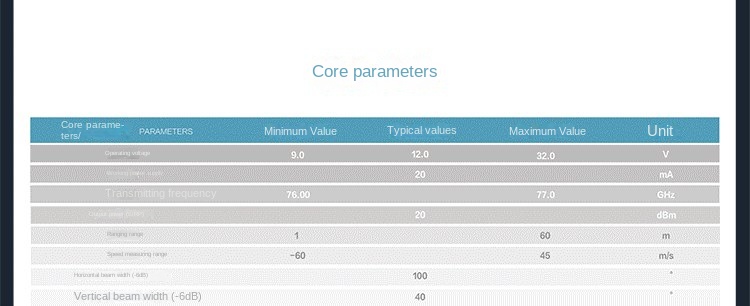

Technical Parameter Comparison
| Parameter |
SRR201M 77GHz |
Traditional 24GHz Radar |
| Frequency Range |
76GHz–77GHz |
24GHz |
| Detection Range |
Up to 60 meters |
Typically ≤30 meters |
| Distance Resolution |
0.18 meters |
≥0.6 meters |
| Angular Resolution |
4° |
≥8° |

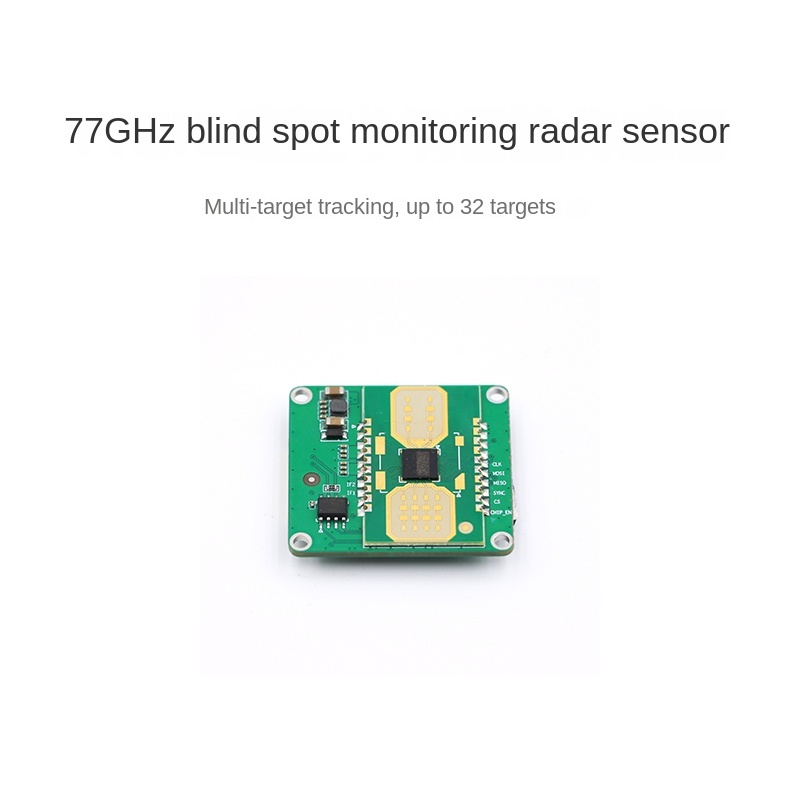

| Multi-Target Tracking Capacity |
32 targets |
≤16 targets |
| Operating Temperature |
-40°C to +85°C |
-30°C to +70°C |
Application Scenarios and Value
- All-Weather Reliability: Unaffected by adverse weather conditions such as rain, snow, or fog, the 77GHz high-frequency band ensures stable 24/7 operation with strong penetration capabilities.

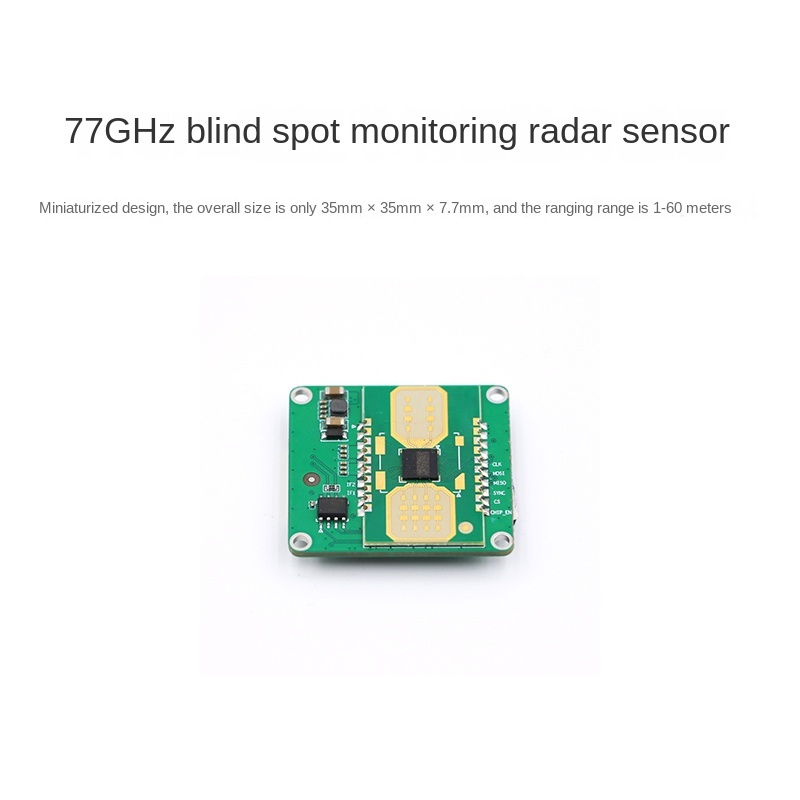

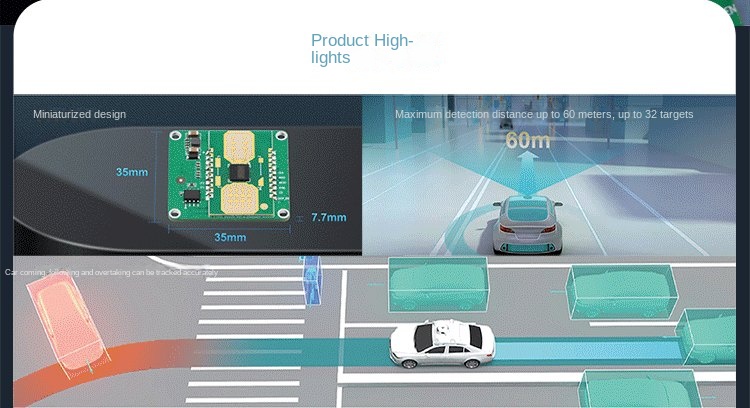

- Compact Design: Measuring just 35mm × 35mm × 7.7mm, it is easily integrated into rearview mirrors, rear bumpers, and other locations, suitable for both two-wheeled vehicles and passenger cars.
- Cost-Effectiveness: Compared to 79GHz solutions, the 77GHz variant strikes an optimal balance between performance and cost, making it a mainstream choice for L2/L3 autonomous driving systems.
Technological Trends
With the widespread adoption of CMOS processes, the cost of 77GHz radar continues to decline. The SRR201M has achieved mass production at a sub-$100 price point, driving the proliferation of blind spot monitoring from premium vehicles to mid-range and entry-level markets. Supporting CAN interface communication (500kbps data rate), it seamlessly integrates with vehicle ECUs, providing real-time data for lane-change decisions and significantly reducing lane-change accident rates.
