| Hardware Information |
Product Model |
LX - SG1008W |
LX - SG1008 - POE |
|
Fixed Ports |
8 x 10/100/1000Base - T electrical ports (Data/Power) |
8 x 10/100/1000Base - T POE ports (Data/Power) |
|
POE Ports |
- |
Ports 1 - 8 support IEEE 802.3af/at standard PoE power supply |
|
Network Protocols |
IEEE802.3 10BASE - T; IEEE802.3i 10Base - T;
IEEE802.3u 100Base - TX;
IEEE802.3ab 1000Base - T;
IEEE802.3z 1000Base - X;
IEEE802.3x |
|
|
Power Supply Standards |
Compliant with IEEE802.3af/at international standard |
|
|
Port Characteristics |
10/100/1000Base - T auto - detection, full/half - duplex MDI/MDI - X auto - adaptation |
|
|
Forwarding Mode |
Store - and - forward (full wire - speed) |
|
|
Backplane Bandwidth |
20Gbps (unobstructed) |
|
|
Packet Forwarding Rate@64byte |
9.42Mpps |
|
|
MAC Address Table |
4K |
|
|
Power Supply Pin |
- |
Supports 1/2(+), 3/6(-), 4 - core power supply |
|
Max Port/Average Power |
(DC5 - 52V) |
15.4W - 30W (DC48 - 52V) |
|
Whole Machine Power Consumption |
Standby power consumption: < 3W; Full - load power consumption: < 8W |
Standby power consumption: < 10W; Full - load power consumption: < 120W |
|
LED Indicators |
Power indicator: PWR(green); Network indicator: Link, Link/Act (yellow); POE indicator: PoE (green) |
|
|
Appearance Dimensions (L×W×H) |
76×85×16mm |
|
|
Net Weight/Gross Weight |
< 40g / < 42g |
< 43g / < 45g |
| Software Information |
Port Configuration |
Port mode; Port list; Bandwidth control; Port mirroring; Loop detection |
|
|
VLAN Management |
VLAN port; VLAN list |
|
|
Link Aggregation |
Port aggregation |
|
|
DHCP Filtering |
DHCP filtering; IGMP |
|
|
System Tools |
User management; Network configuration; Firmware upgrade; Configuration management; Device restart |
|
| Working Environment |
Working Humidity |
10% - 90%RH (non - condensing) |
10% - 90%RH (non - condensing) |
|
Working Temperature |
-40°C - 85°C |
-40°C - 85°C |
|
Storage Humidity |
10% - 90%RH (non - condensing) |
10% - 90%RH (non - condensing) |
|
Storage Temperature |
-40°C - 85°C |

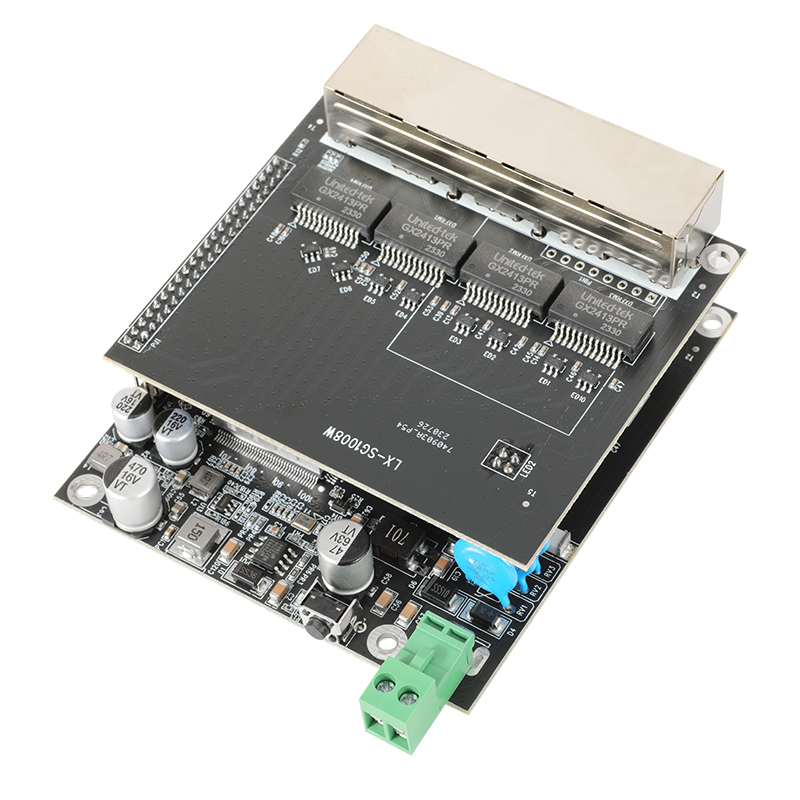

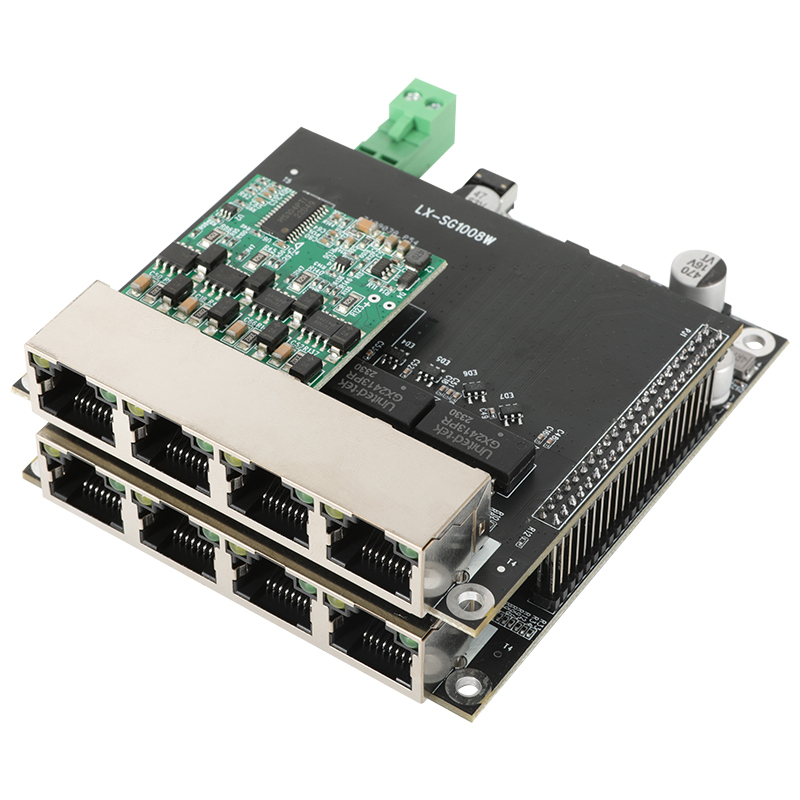

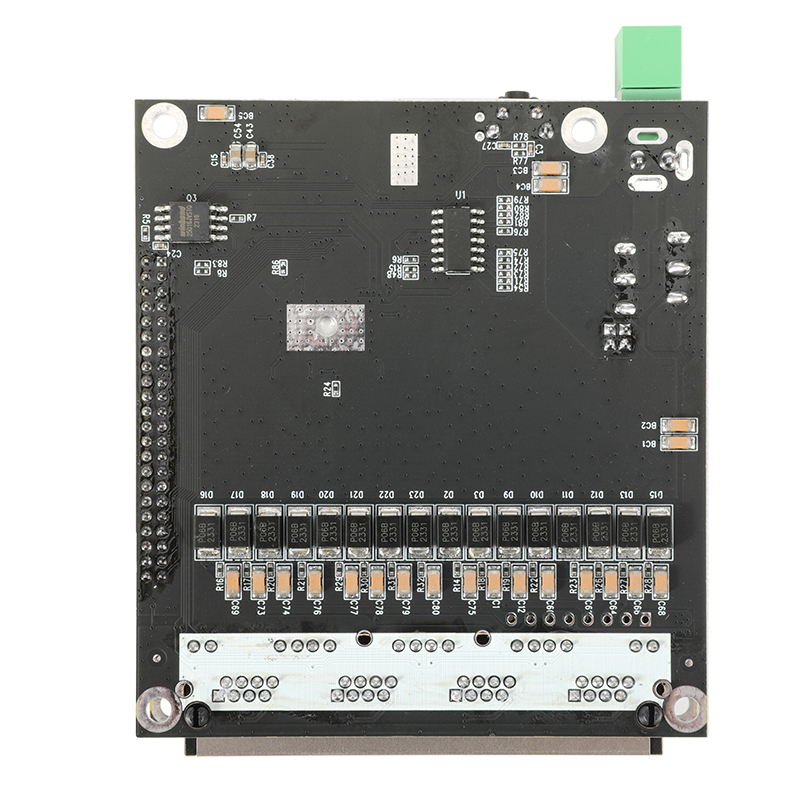

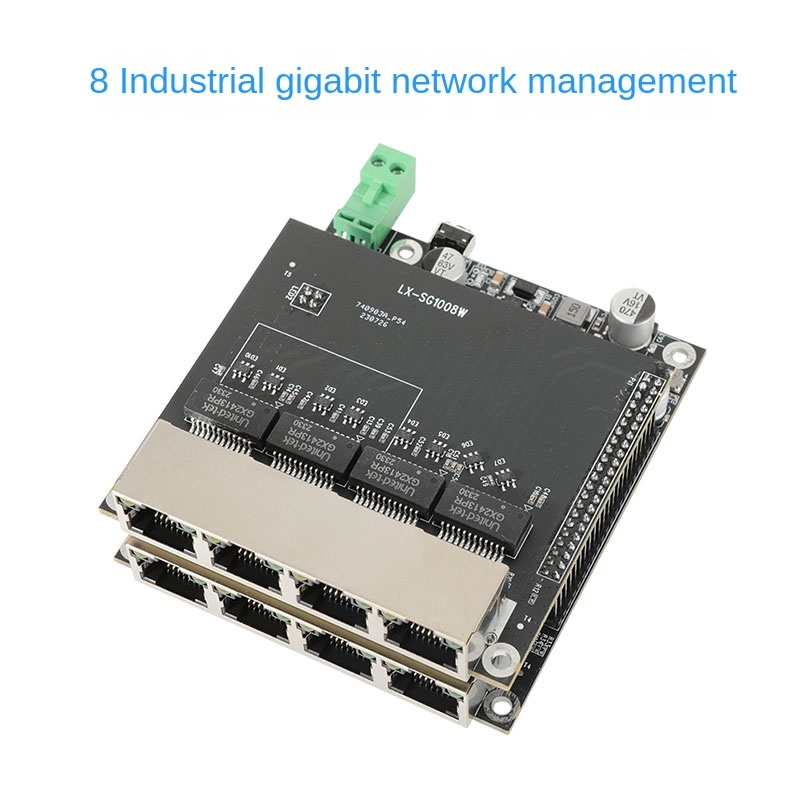

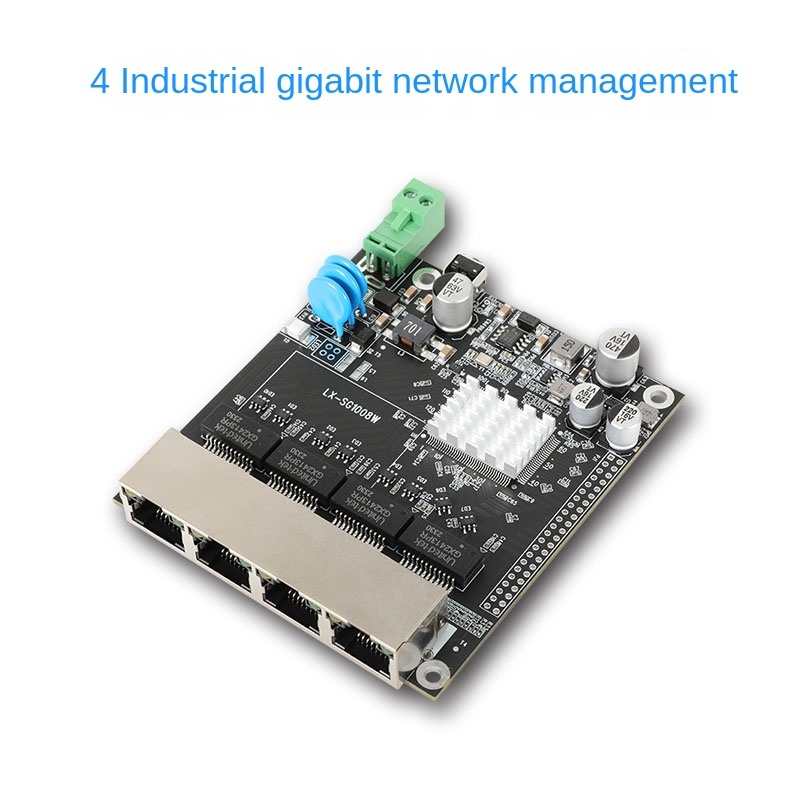

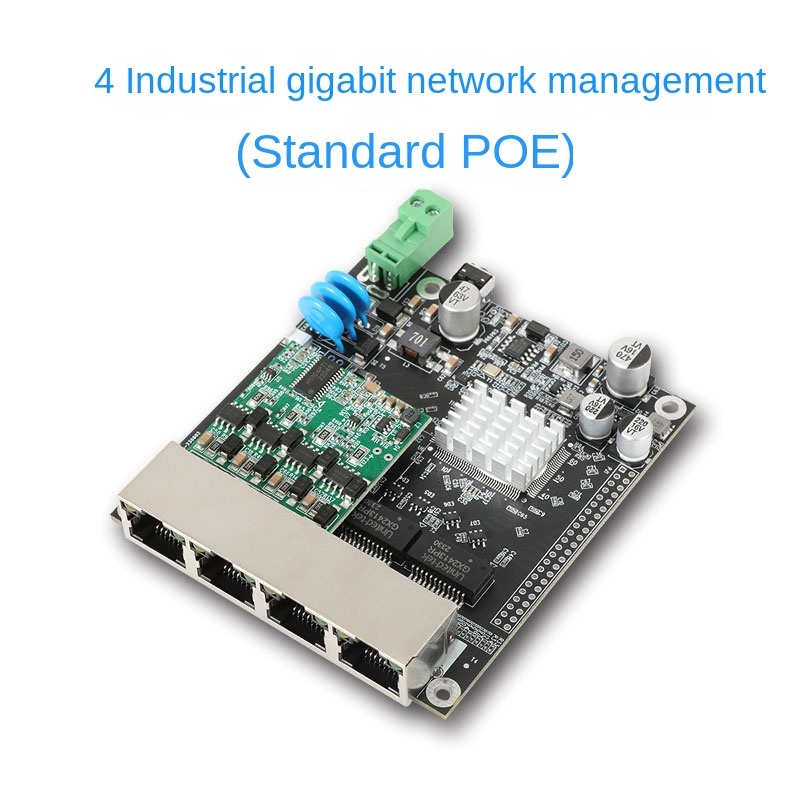

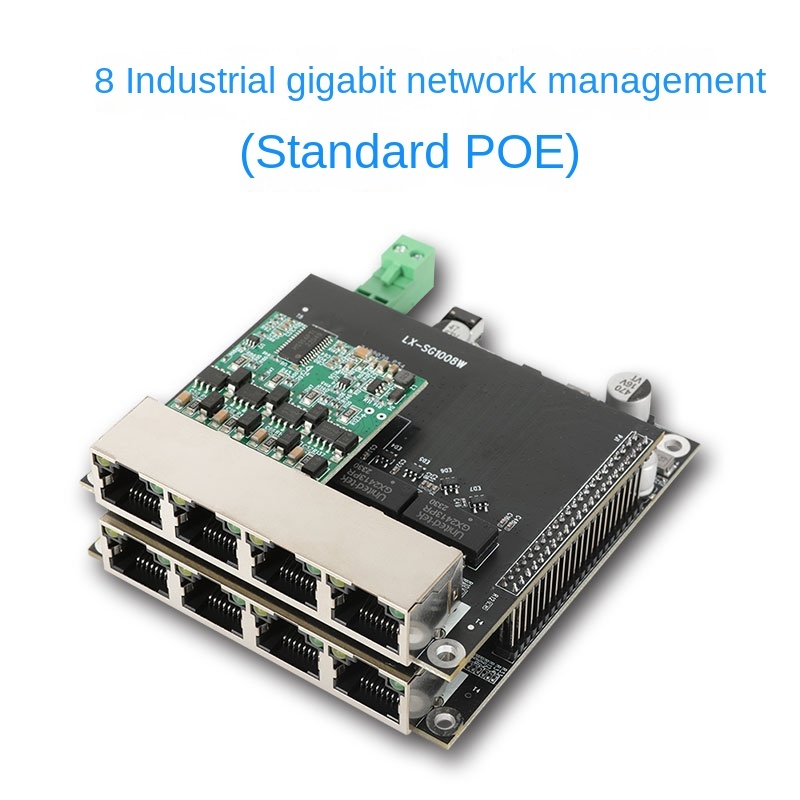

LX-SG1008W Industrial Managed Gigabit PoE Switch Module
The LX-SG1008W is a ruggedized managed Gigabit Ethernet switch designed for industrial automation and harsh environments. It features 4×Gigabit adaptive RJ45 ports with IEEE 802.3af/at PoE+ support, delivering up to 30W per port (total 120W) to power IP cameras, wireless access points, and IoT devices. Two optional SFP slots enable fiber uplink expansion for long-distance networks.
Key Features:
- Intelligent Management: Web/SNMP/CLI interfaces for VLAN segmentation (802.1Q), QoS prioritization, and port mirroring.
- Redundancy: Supports STP/RSTP/ERPS ring protocols (<20ms recovery) and dual-power input (24-48V DC).
- Security: 802.1X authentication, DHCP snooping, and ACL access control.
- Reliability: -40°C to 75°C operating range, IP40-rated metal housing, and ESD/surge protection.
Technical Specifications:
- Switching Capacity: 12Gbps (non-blocking)
- Latency: <10μs
- PoE Budget: 120W (max)
- Certifications: CE, FCC, RoHS, and IEC 61850-3 compliant
Applications:
- Factory Floor: Connects PLCs, HMIs, and robotic arms in CNC machining lines.
- Intelligent Transportation: Manages traffic cameras and V2X communication nodes.
- Energy Sector: Deploys in wind farms and solar plants for SCADA system networking.
With its compact DIN-rail design and enterprise-grade features, the LX-SG1008W ensures reliable, secure data transmission in mission-critical industrial IoT deployments.
