Advertising machine motherboard PCB assembly service

Name: Advertising machine motherboard PCB assembly service
Brand: FR4PCB.TECH
SKU: PCB Assembly Service for Advertising Machine Motherboards: Industrial-Grade 4K Display Control, Multi-Screen Synchronization, and High-Stability Manufacturing Solutions
Price: 0.02 USD
Availability: InStock

0.0 (0)

0 Sold

$0.02

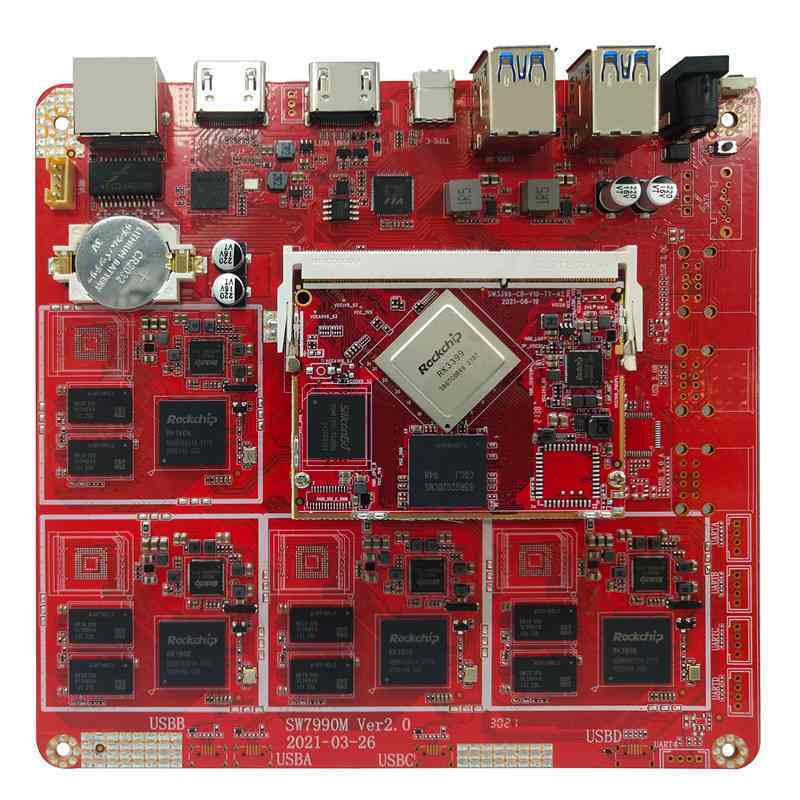

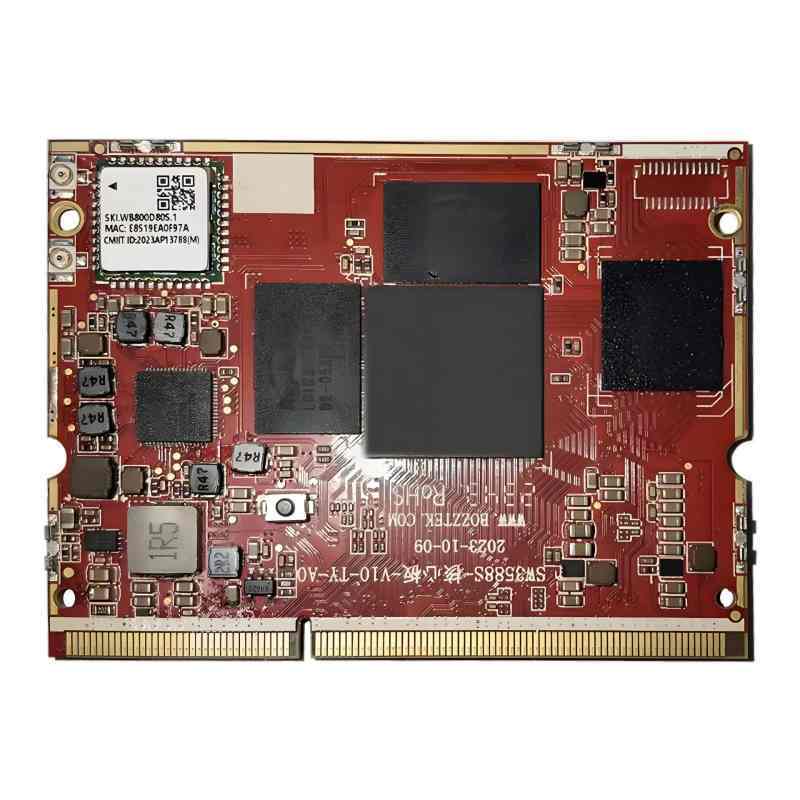

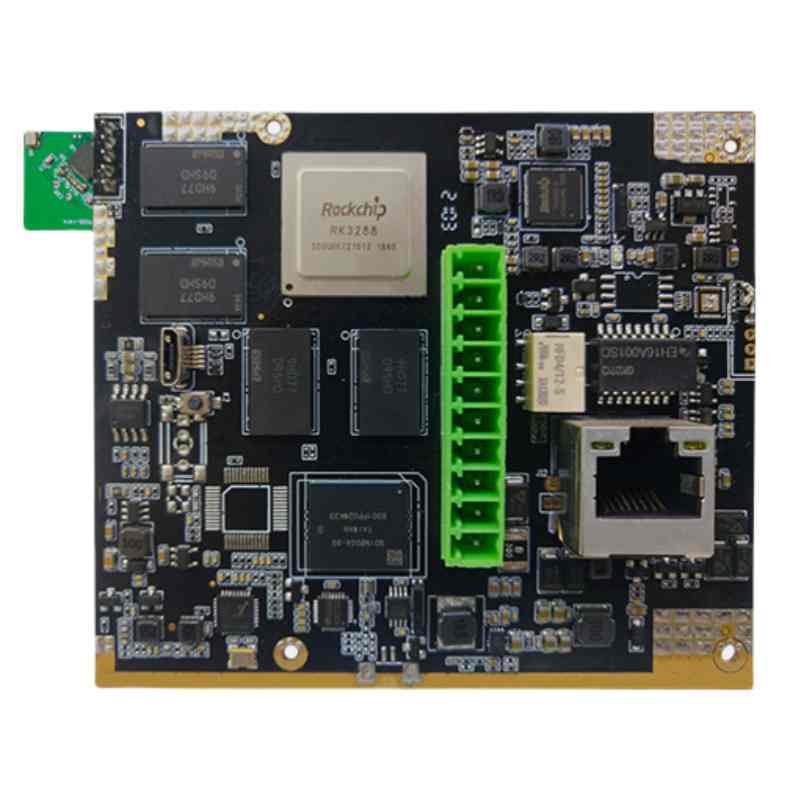

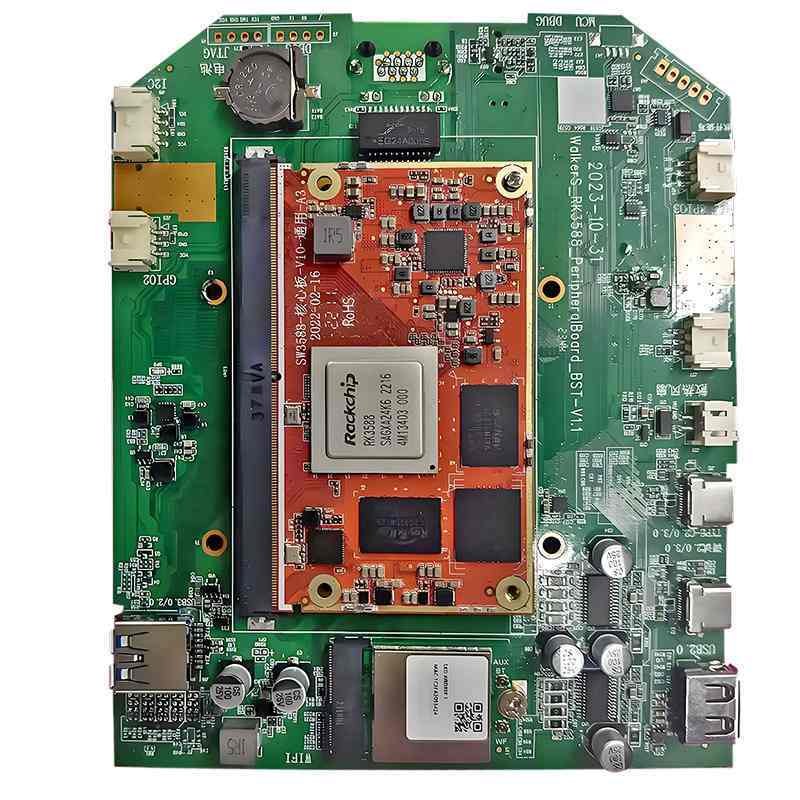

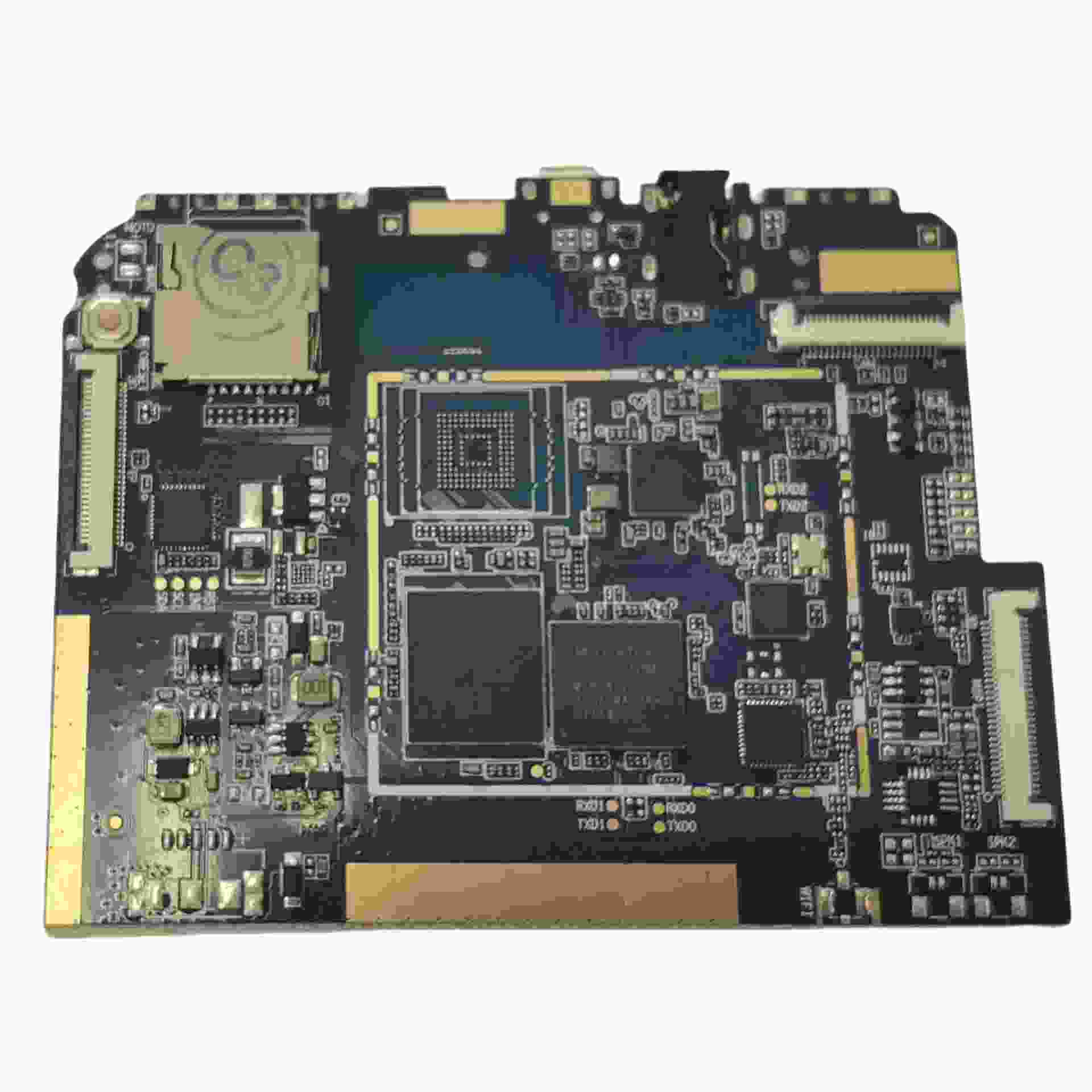

Professional PCB assembly services for advertising machine motherboards, supporting Rockchip RK3588S (8K decoding) and Intel Elkhart Lake for multi-screen output. Utilizing 10-layer HDI boards with a wide temperature range of -40~85℃. Passed 96-hour salt spray tests and 1 million-hour MTBF certification, featuring HDMI 2.1/USB4.0 interfaces. Monthly production capacity exceeds 200K+, with a first-pass yield rate ≥99.3%.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Detailed Explanation of Advertising Machine Motherboard PCB Assembly Technology:

1. Core Hardware Architecture

Main Control Chip Solutions

Chip Model	Performance Parameters	Application Scenarios
Rockchip RK3588S	8nm process, 6TOPS NPU, 8K@60fps decoding	High-end digital signage
Intel Elkhart Lake	4-core x86, supports 3 independent 4K screens (DP1.4/HDMI2.1)	Industrial-grade multi-screen advertising machines
Allwinner H700	4-core A53, H.265 hardware decoding, power consumption 94% (Note: The original description seems incomplete; this is an inferred interpretation based on context)	(Not fully specified in original, likely for cost-effective or lower-power applications)

Intelligent Maintenance:
• Remote firmware upgrades (FOTA)
• Component lifespan prediction (using ML algorithms)

5. Service Data Indicators

Production Capacity: 200,000 units/month (72-hour rapid prototyping)
Quality Control:
• 3D SPI inspection (solder paste thickness ±10μm)
• AOI false alarm rate <0.1%
Certification System:
• ISO 13485 medical-grade clean production line
• IPC-A-610G Class 3 standard compliance
