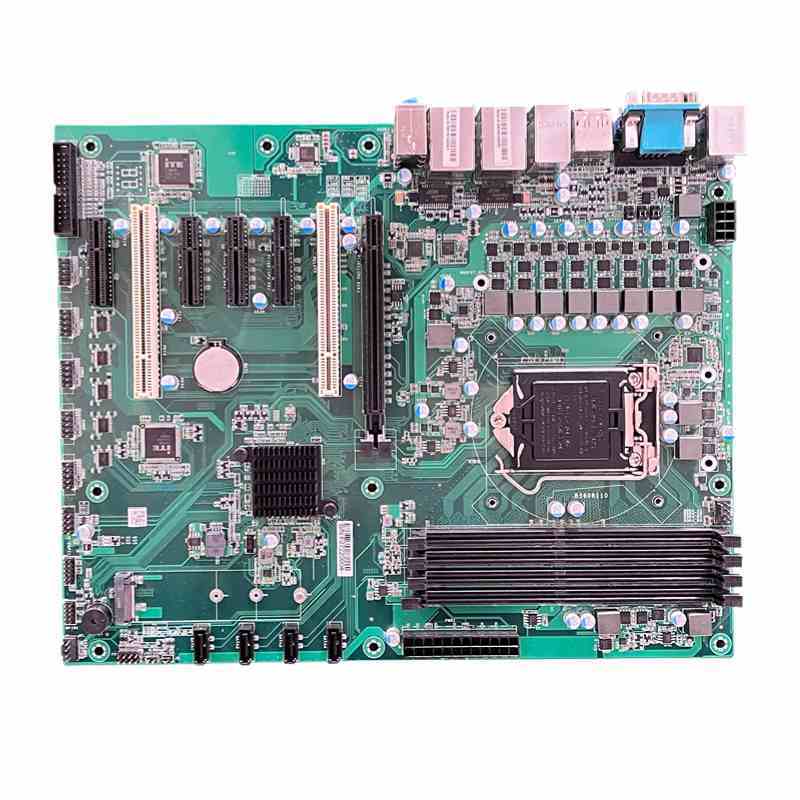

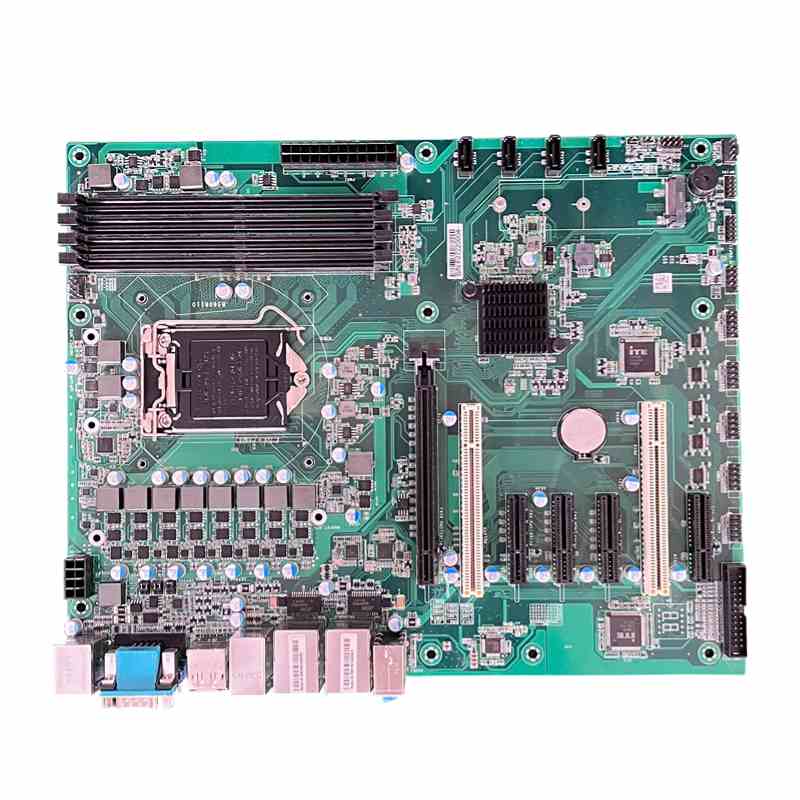

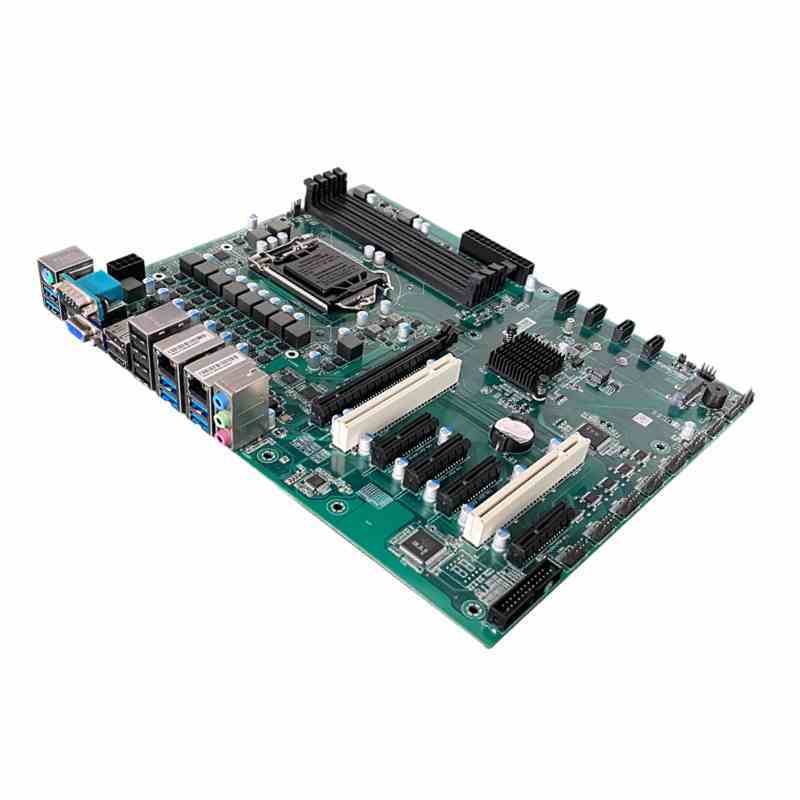

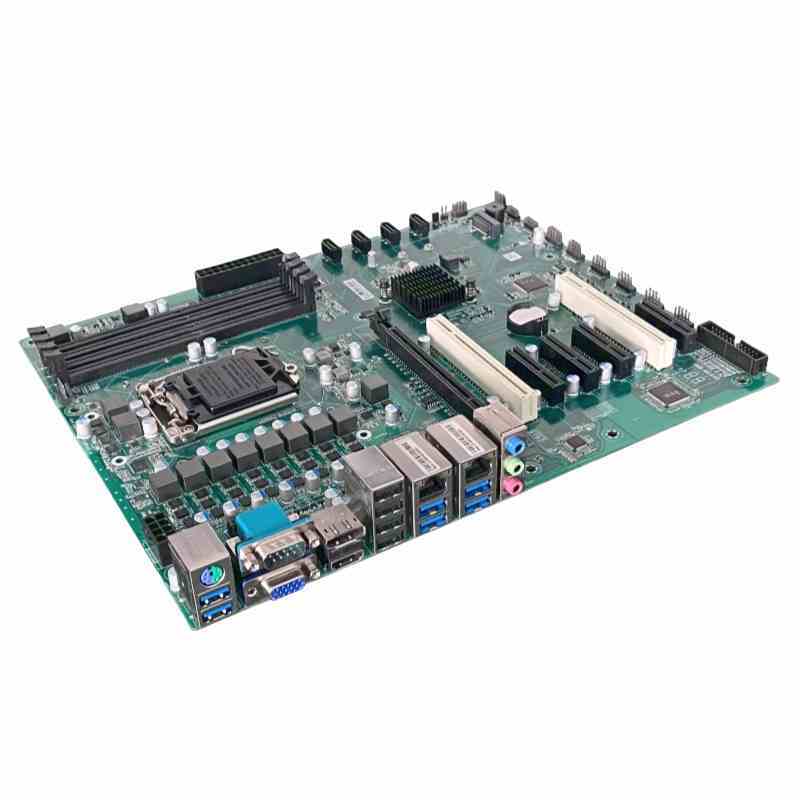

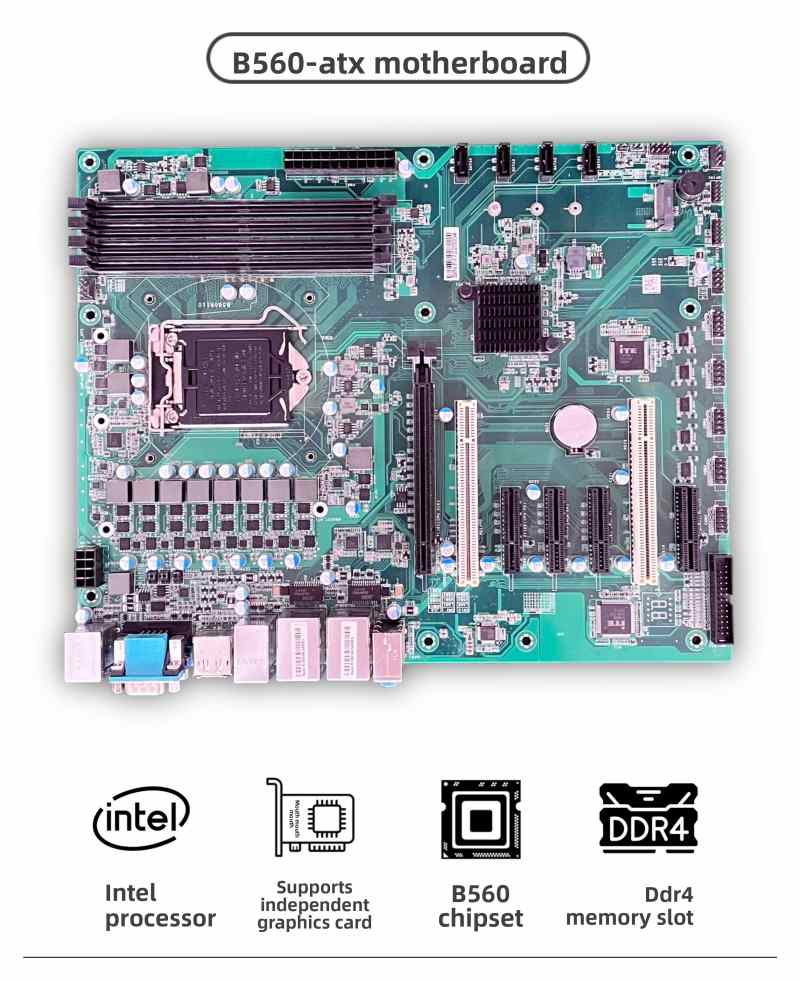

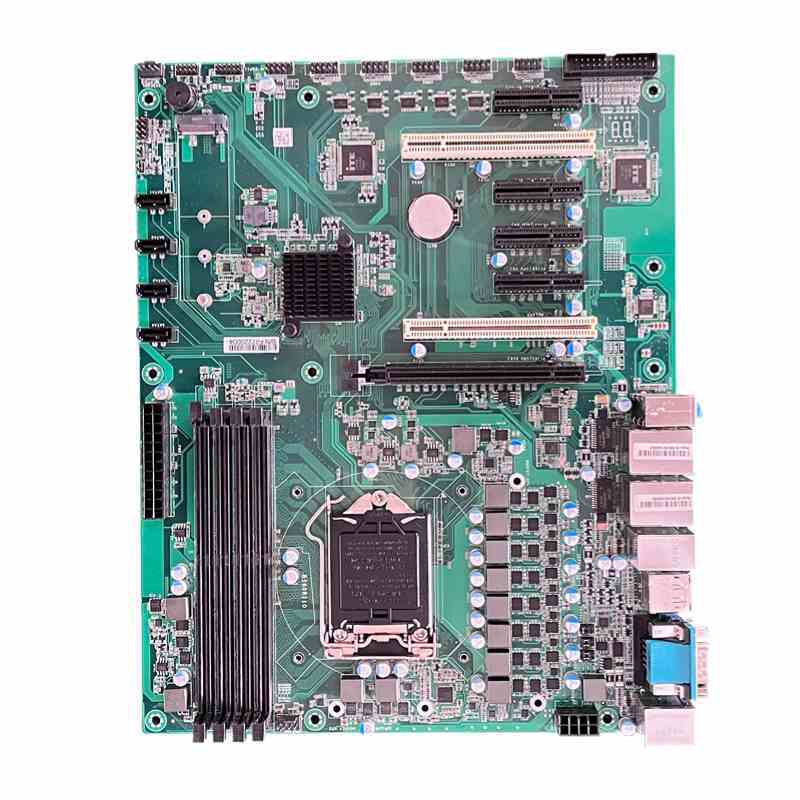

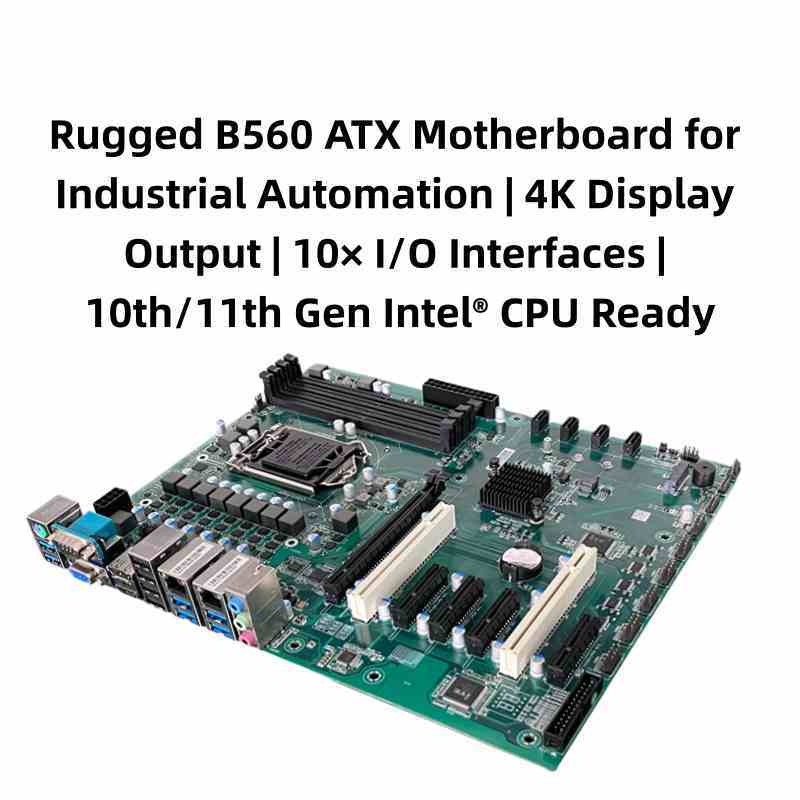

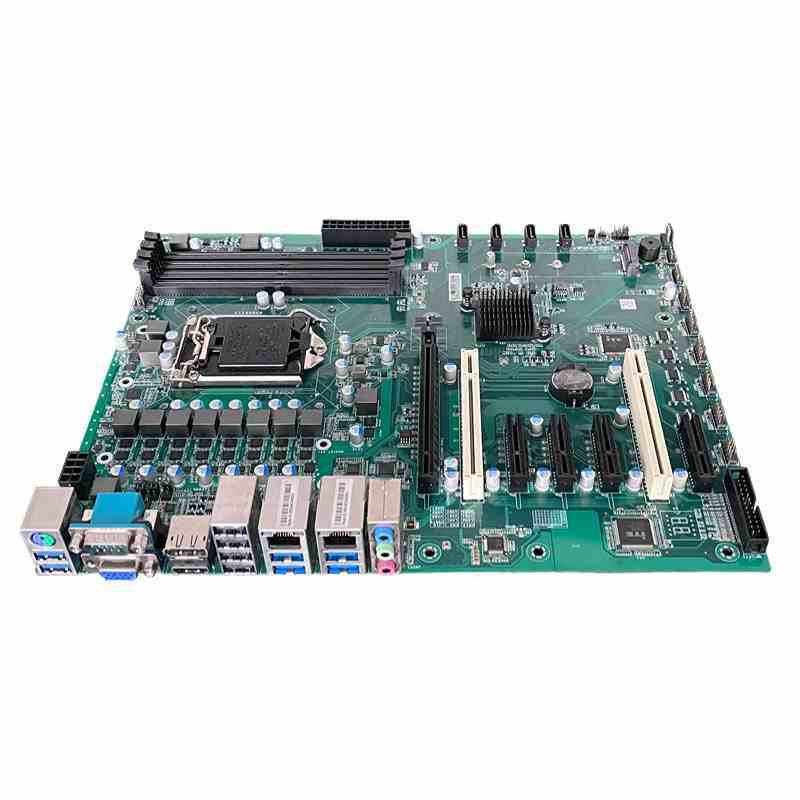

B560 ATX Industrial Motherboard: 10th/11th Gen Core Powerhouse, 5 PCIe + 4U Industrial Control Computer Solution
| Product Parameters |
Details |
| CPU |
Supports Intel LGA1200 packaged 10th/11th generation i3/i5/i7/i9/Pentium™/Celeron™ |
| Memory |
4×288PIN DDR4 UDIMM memory slots, single slot 32GB, max support 128GB |
| Display Interface |
1×DP, 1×VGA, 1×HDMI, supports independent dual display output |
| Audio |
Adopts HDA standard, supports rear panel, Mic-in, Line-in, Line-out |
| Network |
2×10/100/1000Mbps network interfaces |
| Storage |
4×SATA interfaces (support SATA3.0 standard, default support 3, max transmission rate 6Gb/s), 1×M.2 (SATA3.0) interface (supports M-key 2110, 2280, 2260, 2242) |

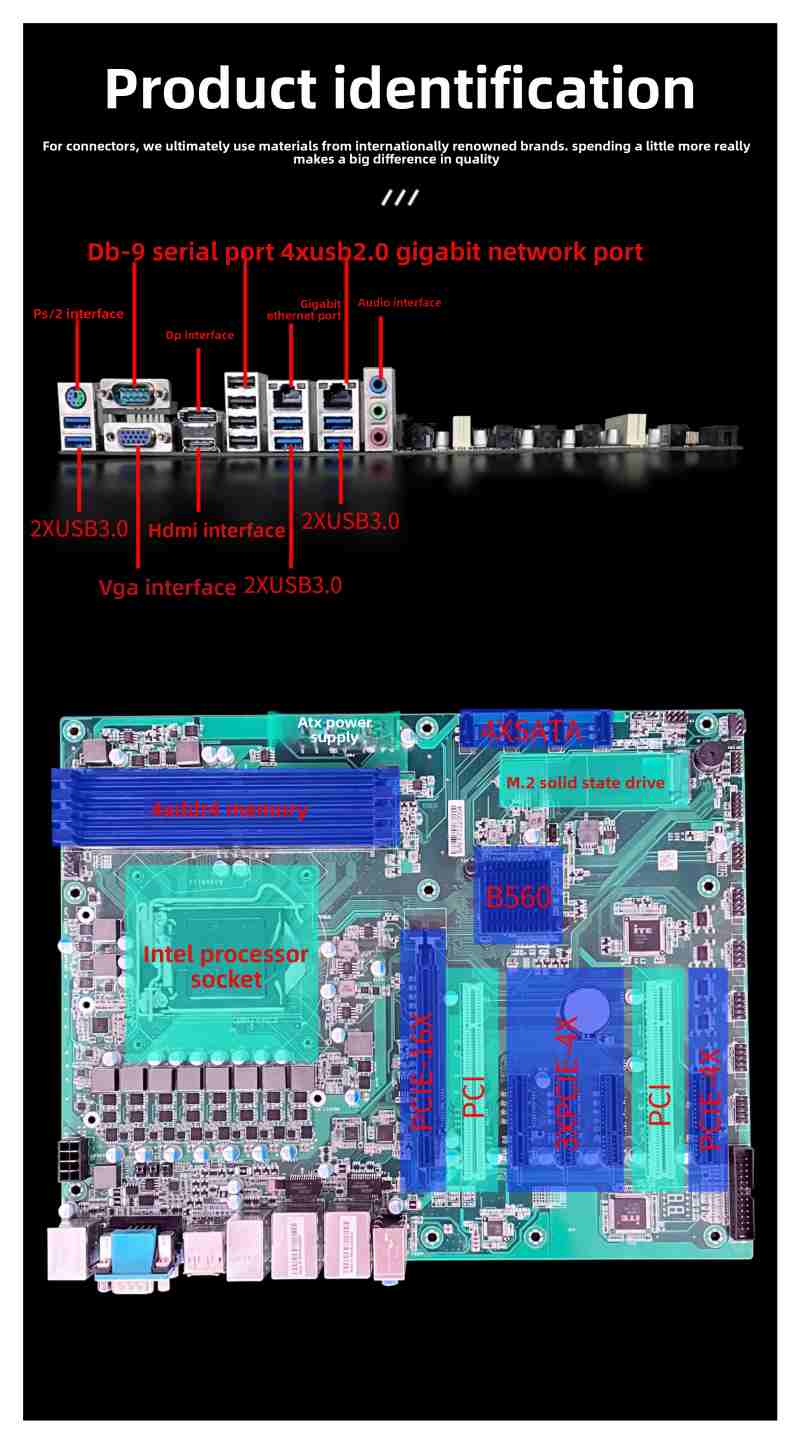

| I/O Interfaces |
6×COM, expandable to 10 RS232 ports, where COM1 supports RS-232/RS422/RS485 mode selection, 8×USB2.0 interfaces, rear panel provides 6×USB3.0 interfaces, 1×PS/2 keyboard/mouse interface, 1×8-way digital I/O interface, 1×LPT interface |
| Expansion Slots |
Provides 1×PCIe x16 slot, supports PCIe4.0 specification, 4×PCIe x4 slots (among which 1 PCS is PCIe x1 signal), supports PCIe3.0 specification, 2×32-bit PCI slots, supports PCI Rev2.3 standard (for 10th generation CPUs, PCIe 2 X4 is non-functional) |
| Working Environment |
-10°C ~ 60°C, 5% ~ 95% (non-condensing) |
| Storage Environment |
-20°C ~ 80°C, 5% ~ 95% (non-condensing) |
| Watchdog |
255-level programmable seconds/minute, supports timeout interrupt or system reset |
| Power Supply |
Adopts ATX power supply, supports S0, S1, S4, S5 |

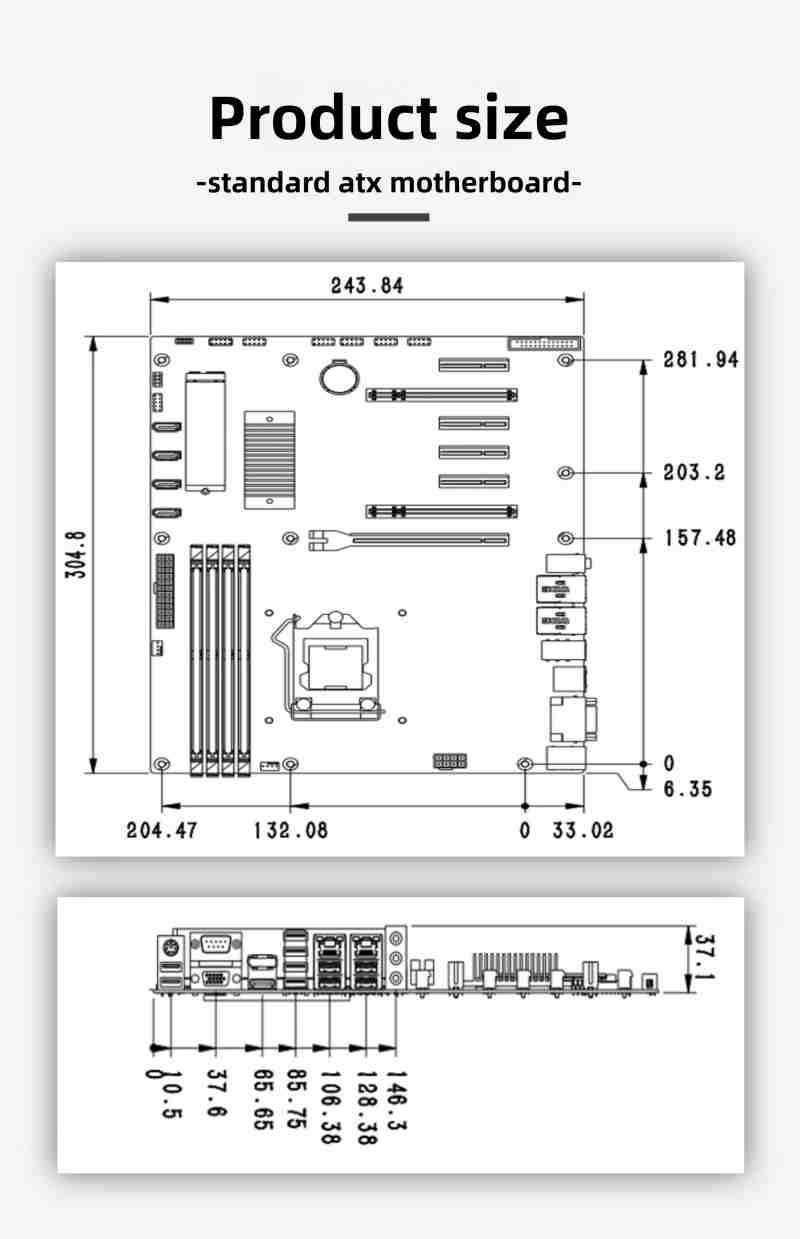

| Dimensions |
305mmX244mm |
| Electrostatic Level |
Level 3 |
Key Advantages
- High-Performance Computing
- 10th/11th Gen Intel Core i3/i5/i7/i9 Processors: Supports LGA1200 socket with 4-core to 8-core multithreading, ideal for real-time data processing and machine vision in industrial automation.
- Up to 128GB DDR4 Memory: 4 DIMM slots with support for high-speed memory (e.g., 3200MHz) for seamless multitasking.
- Extensive Expansion Capabilities
- 5× PCIe Slots: 1× PCIe x16 (supports PCIe 4.0/3.0) + 4× PCIe x4, enabling simultaneous connection of multiple motion control cards, GPUs, or high-speed NICs for complex industrial applications.
- 6× COM Ports (expandable to 10): Compatible with RS-232/RS-422/RS-485 modes for long-distance communication with PLCs and sensors.
- Industrial-Grade Reliability
- Wide Temperature Range: Operates continuously from -10°C to 60°C and stores from -20°C to 80°C, suitable for extreme environments like steel mills and petrochemical plants.
- EMI/EMC Compliance: Meets IEC 61000 standards for robust resistance to industrial electromagnetic interference, ensuring system stability.
- Flexible Deployment & Maintenance
- 4U Chassis Compatibility: Standard ATX form factor (305mm×245mm) fits 4U industrial PCs and supports wall mounting for space efficiency.
- Watchdog Timer: Configurable 1-255-second system auto-restart to prevent downtime caused by software failures.
Typical Applications
- Industrial Automation Production Lines
- Multi-Axis Motion Control: Connect 4 motion control cards via PCIe x16 for synchronous control of 100+ axes, ideal for automotive welding and 3C assembly.
- PLC & HMI Integration: 6× COM ports link PLC modules, while dual Gigabit Ethernet enables data isolation between PLC and HMI for enhanced redundancy.
- Machine Vision Inspection
- High-Speed Image Processing: PCIe x16 supports NVIDIA Tesla/Quadro GPUs for accelerated image recognition and analysis, boosting quality inspection efficiency.
- Multi-Camera Synchronization: PCIe x4 slots expand high-speed NICs for real-time data transmission and processing from multiple cameras.
- Energy & Transportation Monitoring
- Power Grid Automation: Deployed in 4U cabinets at substations, the board connects power meters via multiple COM ports and uses dual Ethernet for data backup and remote management.
- Intelligent Traffic Systems: Withstands outdoor conditions with anti-interference design for traffic signal control and license plate recognition.
- Military & Scientific Equipment
- Extreme Environment Adaptability: Operates from -20°C to 70°C for field research, aerospace testing, and other harsh conditions.
- Long-Term Availability: 5+ year lifecycle support avoids system reconstruction risks due to motherboard discontinuation.
Technical Specifications at a Glance
| Parameter |
Details |
| Processor Support |
10th/11th Gen Intel Core i3/i5/i7/i9, LGA1200 socket |
| Memory |
4× DDR4 DIMM, up to 128GB, supports 3200MHz (OC) |
| Expansion Slots |
1× PCIe x16 + 4× PCIe x4 + 2× PCI |
| Storage |
4× SATA III + 1× M.2 SATA |
| Networking |
2× Intel I210-AT Gigabit Ethernet |
| Display Output |
VGA + HDMI + DP, supports triple independent displays |
| Operating Temp |
-10°C ~ 60°C (operation), -20°C ~ 80°C (storage) |
Why Choose the B560 ATX Industrial Motherboard?
- Performance & Scalability Balance: 10th/11th Gen Core processors deliver sufficient power, while 5× PCIe slots accommodate future upgrades.
- Industrial-Grade Durability: Wide-temperature and anti-interference designs reduce failure rates and maintenance costs.
- Long-Term Cost Efficiency: 5-year availability minimizes risks of discontinuation, making it ideal for stability-critical industrial projects.
Target Industries: Smart manufacturing, energy management, traffic control, military research, medical equipment, and more.
