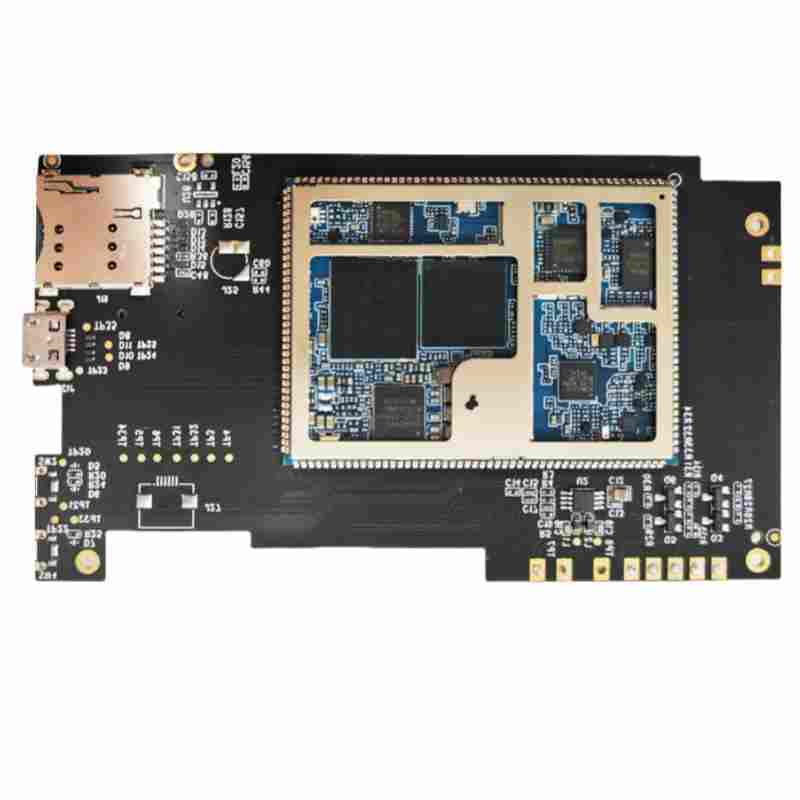

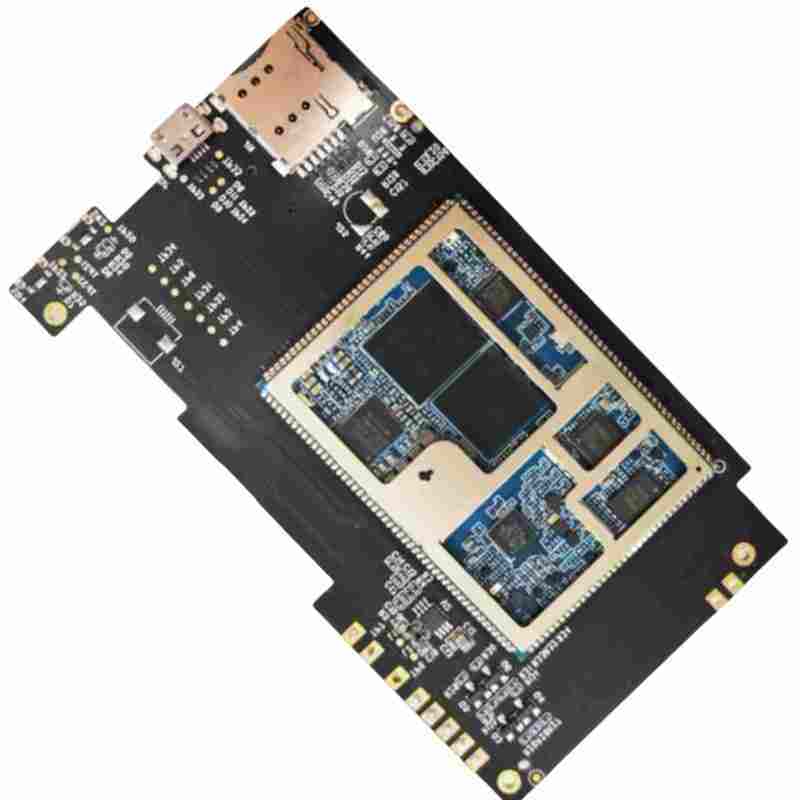

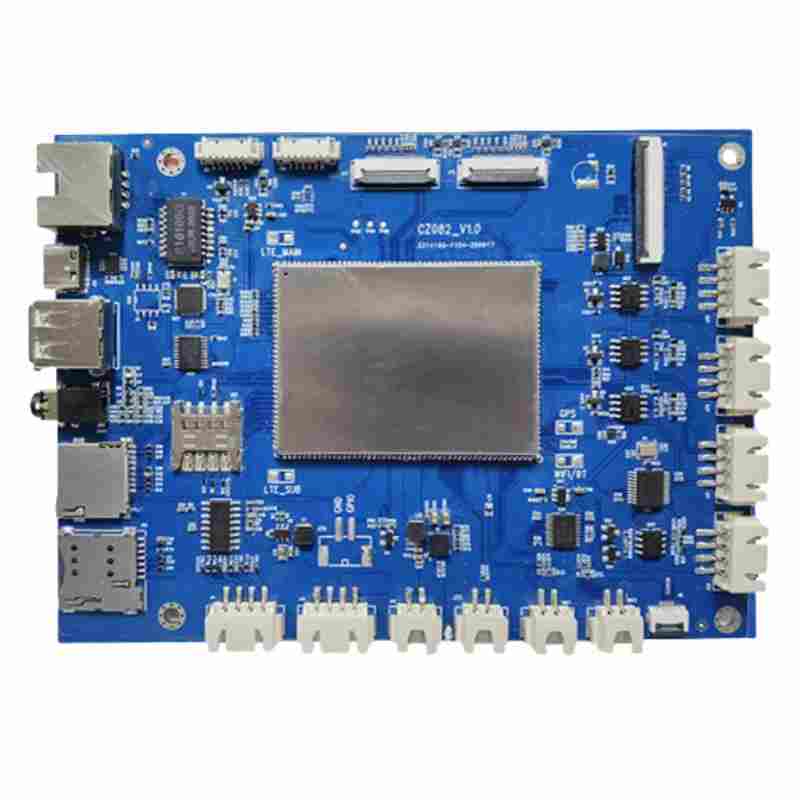

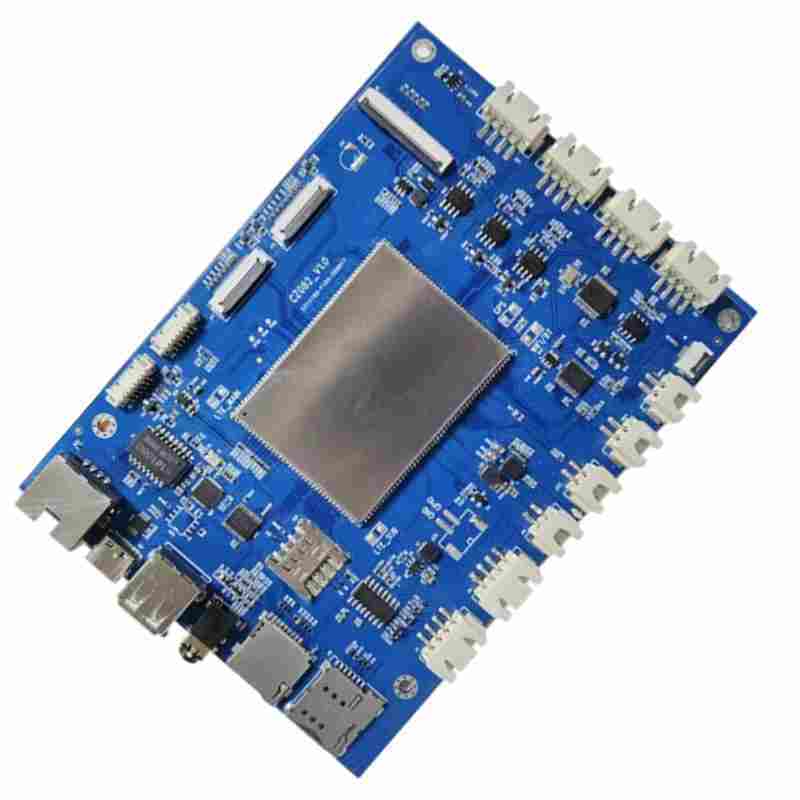

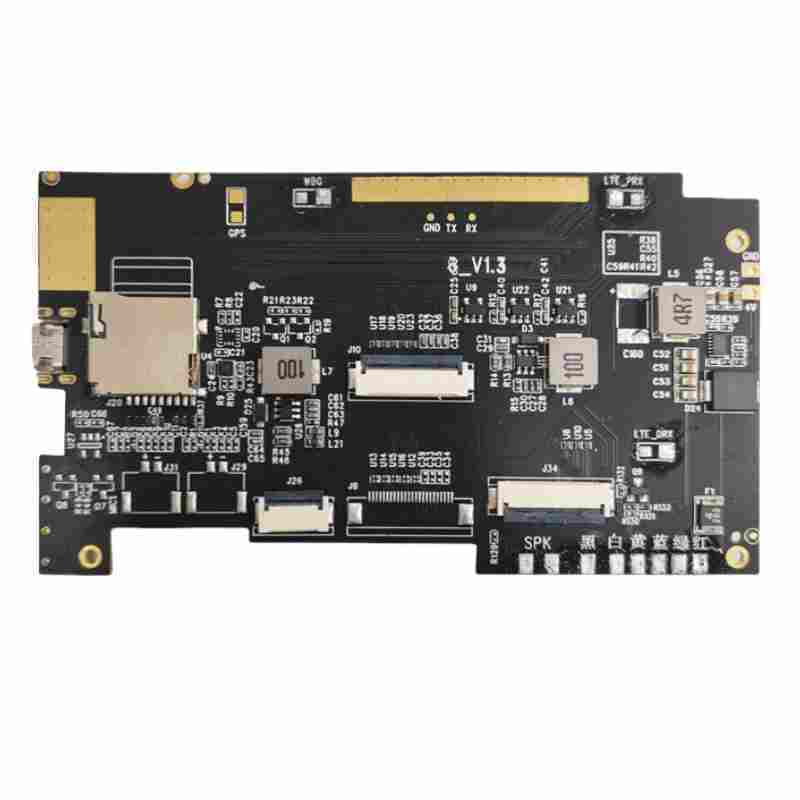

Car navigation PCB assembly service

🔧 Detailed Technical Description

1. Navigation & Connectivity Performance

• Multi-Constellation GNSS: Features u-blox NEO-M9N GNSS receiver (L1/L5 dual-band, GPS/GLONASS/Galileo/BeiDou) with -167dBm tracking sensitivity and <0.5m CEP accuracy (RTK correction via 4G/5G). Integrates MEMS-based inertial navigation (3-axis accelerometer ±8g, 3-axis gyro ±2000dps) for tunnel/parking garage dead reckoning.
• High-Speed Communication: Qualcomm QCM6490 5G modem (Sub-6GHz, 3.5Gbps DL/1.5Gbps UL) with Wi-Fi 6 (802.11ax) (MU-MIMO 4x4, 1024-QAM) and Bluetooth 5.3 LE Audio (LC3 codec, 2Mbps throughput). Supports eSIM/SIM dual-standby and CAN FD interface (5Mbps bitrate, ISO 11898-1 compliance).
• Antenna Integration: 4-element patch antenna array (2.4/5GHz dual-band, 6dBi peak gain) with LCP substrate (Dk=3.2, Df=0.002) and PIFA structure (SAR <1.6W/kg @10g). Reduces radiation pattern distortion to <3dB (3D far-field simulation).

2. Environmental & Reliability

• Automotive-Grade Protection: IP67-rated enclosure (IK09 impact resistance) with salt-fog corrosion resistance (ASTM B117, 1,000+ hours) and UV-stabilized polycarbonate housing (QUV testing, 5,000+ hours). Passes ISO 16750-3 vibration tests (5–500Hz @5g RMS) and ISO 16750-4 thermal shock (-40°C to +85°C, 500 cycles).
• Power Management: Dual-phase buck-boost converter (96% efficiency @9–36V input) with 47μF polymer aluminum capacitors (ESR<10mΩ) and TVS diode array (30kW peak pulse power). Supports reverse polarity protection (60V surge tolerance) and <10mVpp output ripple (EN 55032 Class A compliant).
• EMC Compliance: Six-layer π-filter (L=10μH, C=100nF) with ferrite bead common-mode chokes (impedance: 500Ω@1MHz), reducing conducted emissions to <8dBμV (CISPR 25 Class 5) and radiated noise to <2dBμV/m (3m distance).

3. Manufacturing & Quality Control

• PCB Design: 10-layer HDI stack-up (2μm line/space, microvias) with ENEPIG surface finish (0.05–0.1μm Pd thickness). Impedance-controlled traces (±10% tolerance) for 100Ω differential pairs (USB 3.2 Gen 2 signaling).
• SMT Assembly: 0201 component placement (±0.015mm accuracy, IPC Class 3) with 5-zone reflow oven (peak temperature: 245°C±3°C). 100% AOI inspection (0201 component detection) and 3D X-ray solder joint analysis (<0.3% voiding rate for BGA packages).
• Testing & Validation: HALT testing (-55°C to +125°C thermal cycling, 500 cycles) and HTRB (2,000 hours @85°C). Achieves >99.95% first-pass yield and 10-year MTBF (calculated via MIL-HDBK-217F).
