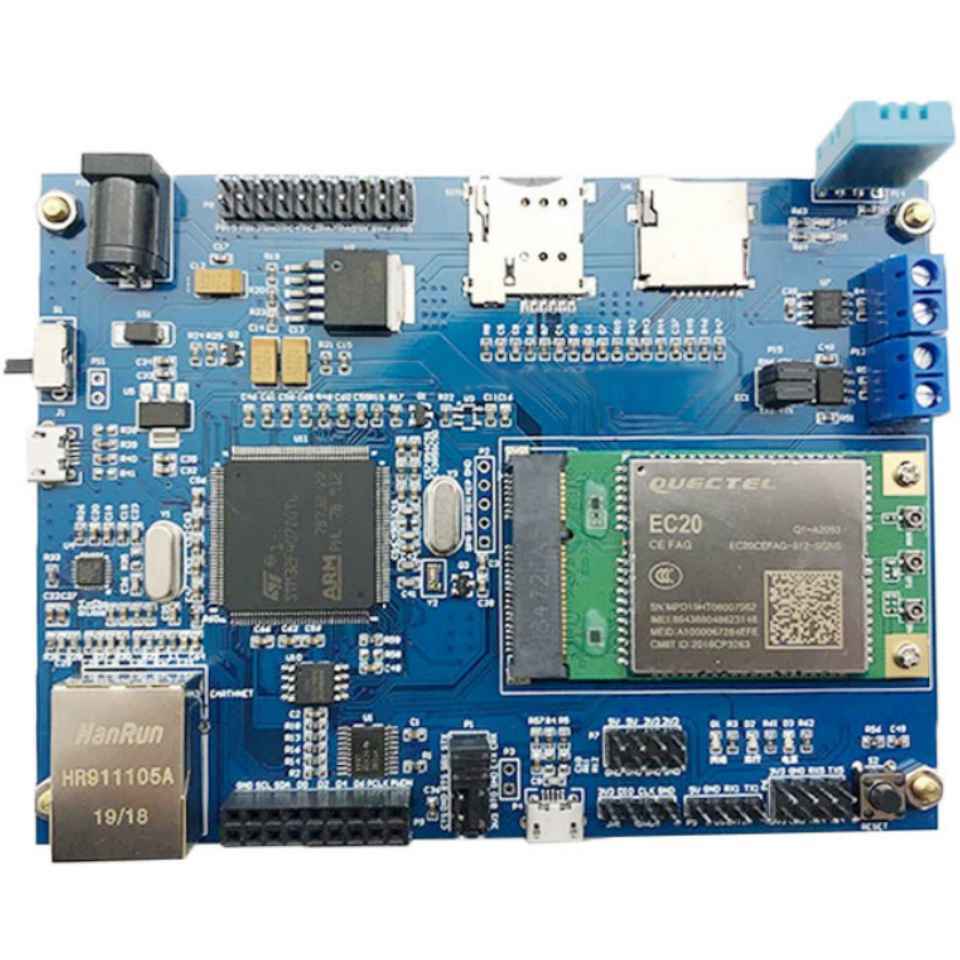

Key Technical Analysis of PCB Manufacturing and Assembly (PCBA) for Collaborative Robot Controllers
(Based on the Background of Industrial Intelligence and Functional Safety Standard Upgrades in 2025)
I. Core Design Challenges and Solutions
- Real-Time Multi-Axis Collaborative Control
- High-Speed Bus Architecture: Hardware implementation of TSN (Time-Sensitive Networking) protocol, achieving nanosecond-level synchronization (jitter ≤ 50ns) between the EtherCAT master station and 6-axis servo drive circuits via a 16-layer HDI board.
- Heterogeneous Computing Layout: 2.5D packaging of CPU (real-time core) + FPGA (motion planning acceleration), with signal paths ≤ 15mm, reducing transmission latency by 30%.
- Enhanced Safety for Human-Robot Collaboration
- Safe Torque Sensor Interface: Dual-channel isolated ADC circuit (CTI ≥ 600V), with optical isolation barrier creepage distance > 8mm, compliant with ISO 10218-1 functional safety requirements.
- Emergency Stop Circuit Redundancy: Dual MCU monitoring + mechanical relay hard-wired loop, with a response time < 2ms (SIL 3 level).
II. High-Density Manufacturing Processes and Material Innovations
| Technical Dimension |
Implementation Solution |
| Every Layer Interconnect (ELIC) |
Laser blind vias with 50μm diameter, micro-via copper filling (void ratio < 5%), routing density > 200cm/cm². |
| Hybrid Dielectric Substrates |
Composite stacking of high-frequency layers (Rogers RO4835™, Df=0.003) with FR-4, optimizing costs by 30%. |
| Nanoscale Surface Finishes |
ENEPIG plating (Ni 3μm/Pd 0.1μm/Au 0.03μm), withstanding > 1000 mating cycles and contact resistance < 10mΩ. |
| Embedded Thermal Management |
Local embedding of aluminum nitride ceramic substrates (thermal conductivity 170W/mK), reducing junction temperature of main chips by 25℃. |
III. Industrial-Grade Reliability Assurance System
- Extreme Environment Adaptability
- Wide-Temperature Component Selection: Main control chips supporting -40℃ to 125℃ operation (e.g., TI AM6xA series), AEC-Q100 certified.
- Enhanced Conformal Coating Process: Plasma cleaning followed by polyurea coating (thickness 50μm), passing 1000h mixed gas corrosion testing.
- Mechanical Stress Protection
- BGA Underfill Adhesive: Nano-silica-modified epoxy resin (CTE 28ppm/℃), withstanding drop shocks > 1000G (0.5ms).
- Connector Shock-Resistant Design: M12 interfaces with angled self-locking structures, tolerating 20Grms random vibrations in vibration testing (IEC 60068-2-64).
IV. Intelligent Features and Safety Verification
- AI-Driven Predictive Maintenance
- Embedded Temperature/Current Sensor Networks (I2C bus), uploading solder joint fatigue prediction data analyzed by edge computing via OPC UA protocol.
- Deep Learning Models (LSTM) for real-time monitoring of power supply ripple,预警 capacitor aging (accuracy > 95%).
- Protocol-Level Functional Verification
- TSN Time Synchronization Testing: IEEE 802.1AS-Rev clock accuracy ≤ ±10ns (PTP Grandmaster level).
- Safe Torque Loop Verification: Dual-channel ADC differential nonlinearity < 0.001%, passing ISO 13849 PL e certification.
V. Cutting-Edge Technology Integration Directions
- Photonic Interconnect Integration: Silicon photonics engines replacing SerDes copper wires, reducing 6-axis control signal transmission power consumption to 0.1pJ/bit.
- Self-Healing Circuits: Microencapsulated conductive polymer materials for automatic repair after short circuits/open circuits (recovery rate > 85%).
- Digital Twin Quality Inspection: Generating 3D virtual models based on PCB design files, with AI comparing X-ray inspection images (defect recognition rate 99.5%).
Conclusion
In 2025, collaborative robot controller PCBAs are evolving towards "ultra-low latency, ultra-high reliability, and self-awareness." By achieving zero-interference transmission of multi-axis control signals through ELIC every layer interconnect, balancing performance and cost with hybrid dielectric substrates, and resisting extreme industrial environments with polyurea coatings, they meet the ISO/TS 15066 collaborative safety standards and 10-year maintenance-free operation requirements. With the integration of silicon carbide power devices and neuromorphic computing chips, the next generation of PCBAs will achieve a 5-fold improvement in energy efficiency ratio and hardware implementation of autonomous learning obstacle avoidance algorithms, propelling collaborative robots into the era of autonomous cognition.
