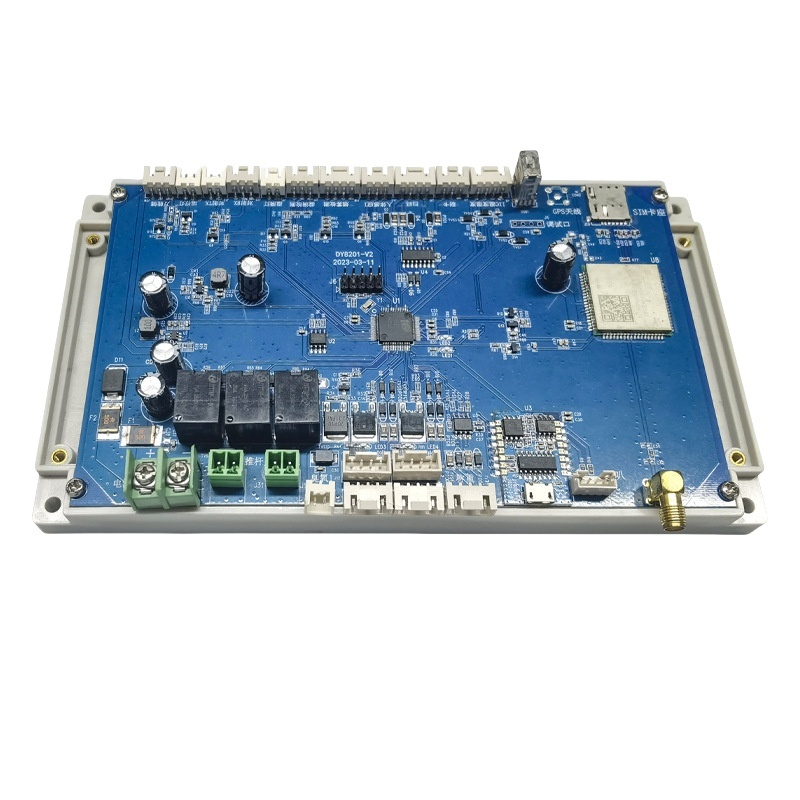

Energy-aware motor drives PCB manufacturing and assembly

SKU:
0.0 (0)
0 Sold
$2.35 $0.00
In the manufacturing and assembly of energy-aware motor drive PCBs, meticulous planning is dedicated to low-loss circuit layouts to minimize energy transmission losses. Efficient thermal designs, such as heat pipes and heat sinks, are employed to reduce component temperature rise. Intelligent energy management modules are integrated to monitor and regulate power in real-time, optimizing motor drive efficiency and aligning with the trend of green energy conservation.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Type:
    PCB manufacturing: 80,000 m²/month
    SMT PCB assembly: 20 million points/day
Quantity:
  • Energy-aware motor drives PCB manufacturing and assembly
  • Energy-aware motor drives PCB manufacturing and assembly
1/1
  • Energy-aware motor drives PCB manufacturing and assembly
  • Description

Professional Analysis of Energy-Aware Motor Drive PCB Manufacturing and Assembly (PCBA), Combining High-Efficiency Design and Industrial Reliability Requirements


I. Core of High-Efficiency Power Circuit Design

  1. Integrated Intelligent Power Modules
    • SiC/GaN Device Layout:
      • Gallium nitride (GaN) switches (650V/100A) utilize Kelvin connection layouts, with drive loop inductance < 1nH, reducing switching losses by 40%.
      • Silicon carbide (SiC) MOSFET heat dissipation zones incorporate direct bonded copper (DBC) ceramic substrates, with thermal resistance ≤ 0.3℃/W.
    • Multi-Level Gate Drives:
      • Adaptive dead-time control circuits (accuracy ±5ns) employ photolithography impedance control (55Ω ± 2%) to prevent crosstalk.
  2. Regenerative Energy Recovery Architecture
    • Bi-Directional DC-DC Circuits: Synchronous buck-boost topologies (efficiency > 98%) utilize 4OZ thick copper layers on PCBs to handle 50A currents, with temperature rise < 15℃.
    • Supercapacitor Interfaces: Low-ESR routing (< 5mΩ) integrates coulomb counting chips (error ± 0.5%).

II. Breakthroughs in Key Manufacturing Processes and Materials

Technical Direction Implementation Solution
Hybrid Substrate Stacking Power layers: aluminum substrates (thermal conductivity 8W/mK); signal layers: high-frequency FR-4 (Tg ≥ 180℃)
3D Thermal Structures Copper bumps heat sinks (height 1.5mm) on top of power devices, with phase-change materials (melting point 58℃) filled at the bottom
High-Precision Impedance Control Current-sensing trace length matching ≤ 5mm, Kelvin four-wire layout (voltage drop error < 0.1%)
Enhanced Surface Finishes Selective silver plating (thickness 8μm) on power terminals, with contact resistance < 0.5mΩ and arc resistance > 100A

III. Industrial-Grade Reliability Assurance System

  1. Thermo-Mechanical Stress Management
    • CTE Matching Design:
      • Copper pillar arrays (CTE 7ppm/℃) at the bottom of SiC modules match ceramic substrates, achieving a thermal cycle life > 50,000 cycles.
    • Vibration Protection:
      • Large capacitors are fixed with annular dispensing (epoxy resin CTE 45ppm/℃), passing 20Grms random vibration testing.
  2. Enhanced Environmental Adaptability
    • Nano-Coating Protection:
      • Poly-p-xylylene N-type coatings (temperature resistance 450℃) are sprayed after plasma activation, passing 2000h humidity and heat tests (85℃/85%RH).
    • Sealed Structures:
      • IP67-rated potting compounds fill seams (flowability < 15cps), with pressure testing > 30kPa.

IV. Energy Efficiency Optimization and Intelligent Diagnostics

  1. Real-Time Energy Efficiency Monitoring
    • Integrated Σ-Δ current sensors (bandwidth 2MHz) achieve sampling accuracy ± 0.05%.
    • AI chips run efficiency optimization algorithms, dynamically adjusting PWM strategies (energy savings > 15%).
  2. Predictive Maintenance
    • Onboard acoustic emission sensors detect solder joint cracks, with ML models predicting failures (F1-score > 92%).

V. Cutting-Edge Technology Integration Directions

  • Embedded Passive Components: Inner-layer integrated thin-film capacitors (capacitance 100nF/cm²) reduce surface-mount components by 50%.
  • Magnetic Integration Technology: PCB-wound planar transformers (frequency 1MHz) achieve power density > 5kW/L.
  • Photonic Temperature Sensing: Silicon nitride waveguides integrated into substrates monitor hotspots in real-time (accuracy ± 0.1℃).

Conclusion

Energy-aware motor drive PCBAs serve as the "energy efficiency hub" for industrial electrification, requiring breakthroughs in three key pillars: wide-bandgap semiconductor integration, 3D thermal architectures, and regenerative energy recovery. The adoption of DBC-aluminum substrate hybrid stacking addresses thermal bottlenecks, four-wire current sensing enhances measurement accuracy, and poly-p-xylylene N-type coatings resist oily environments, meeting ISO 50001 energy efficiency standards and UL 61800-5-1 safety certifications. With the maturation of ultra-wide-bandgap semiconductors (gallium oxide) and embedded AI diagnostic technologies, the next generation of PCBAs will achieve 98.5% system efficiency and zero-planned downtime goals.
