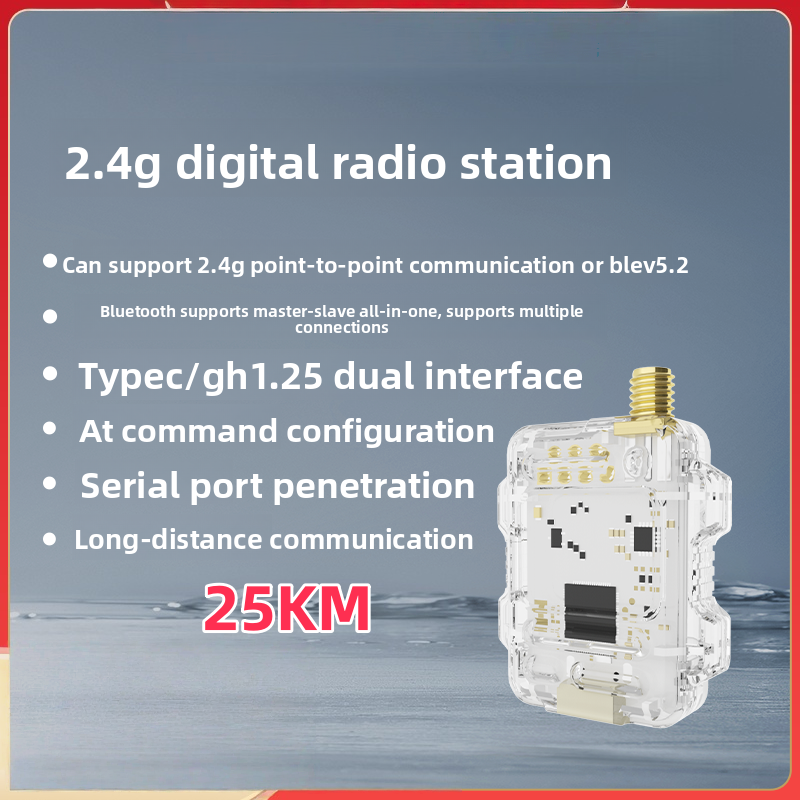

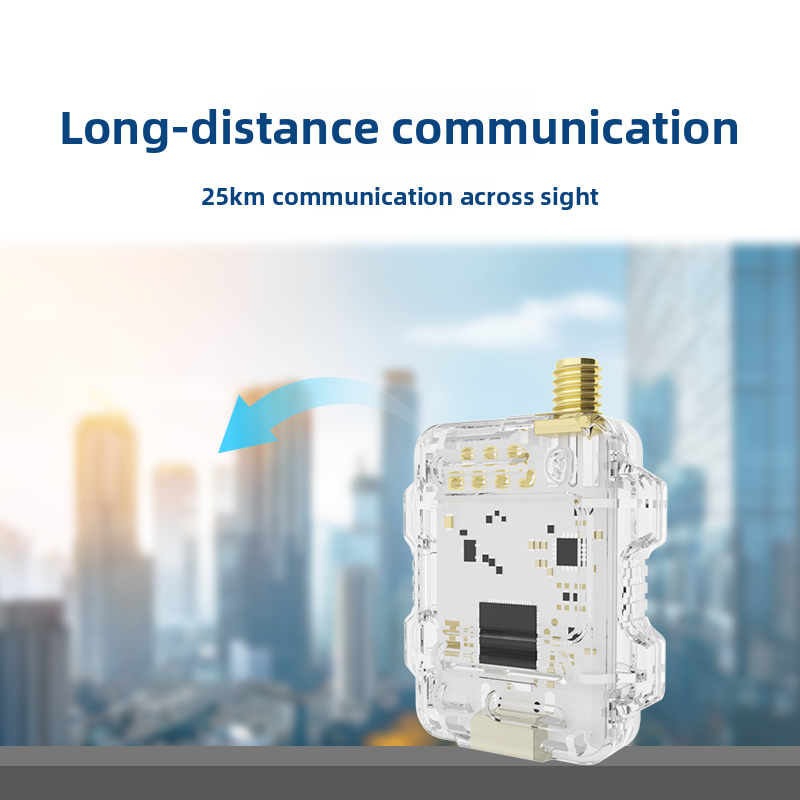

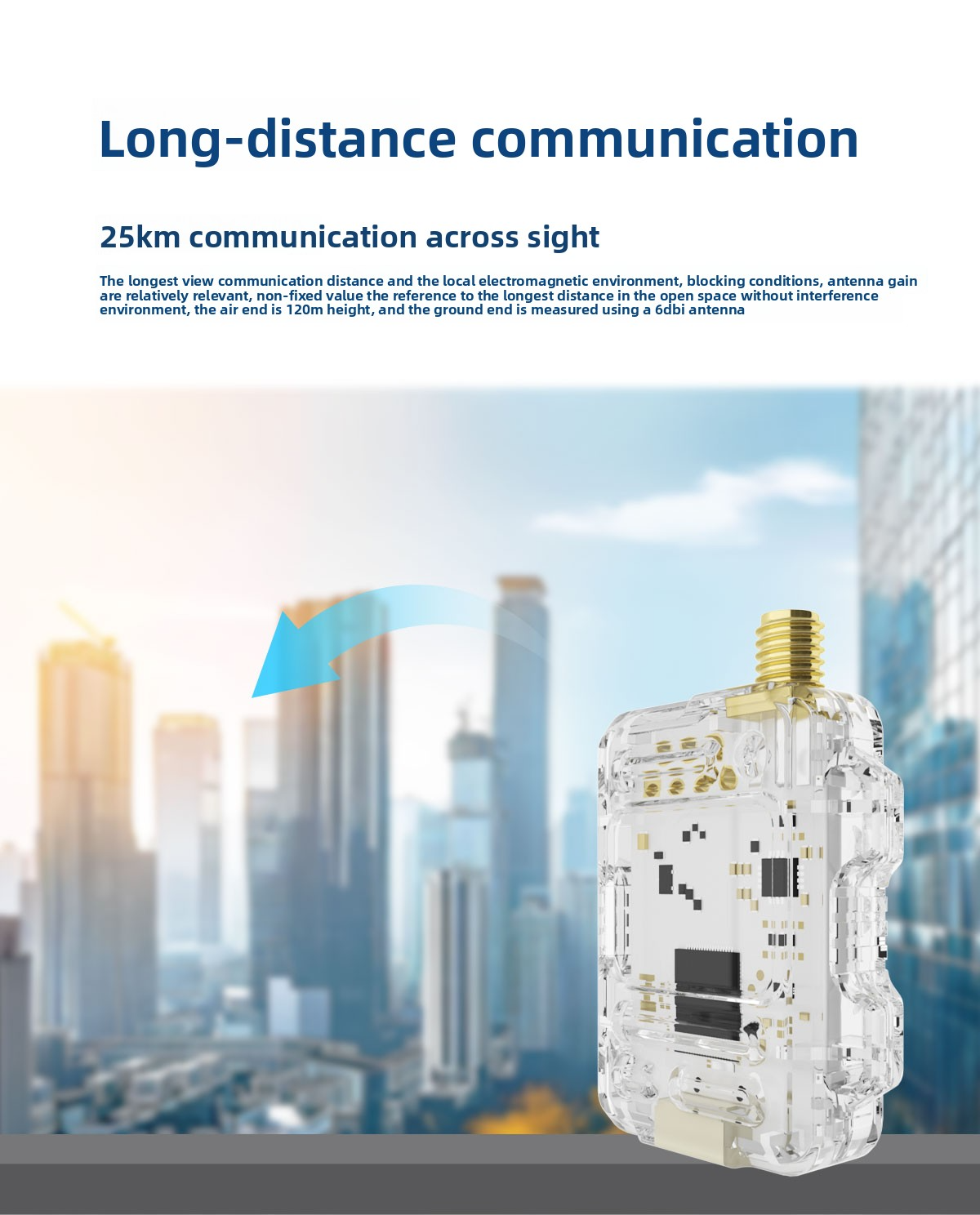

In the field of UAV (Unmanned Aerial Vehicle) technology, the domestic LoRa UAV flight control module and data transceiver TP5607 - ND12L20 is a remarkable innovation. It boasts an impressive 25 - kilometer long - range communication capability with spread - spectrum and anti - interference features, making it an ideal choice for various UAV applications.

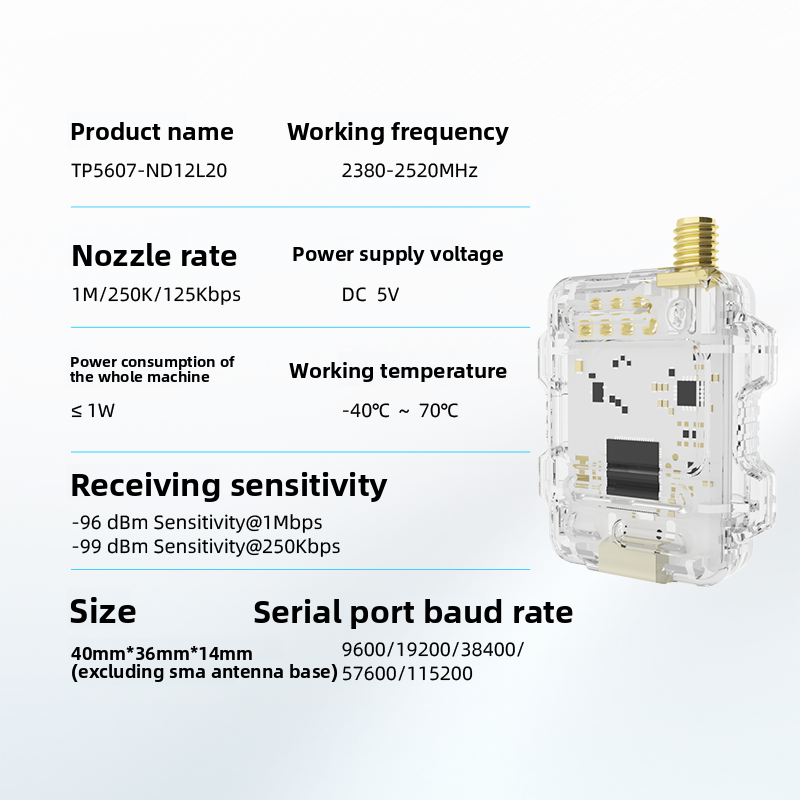

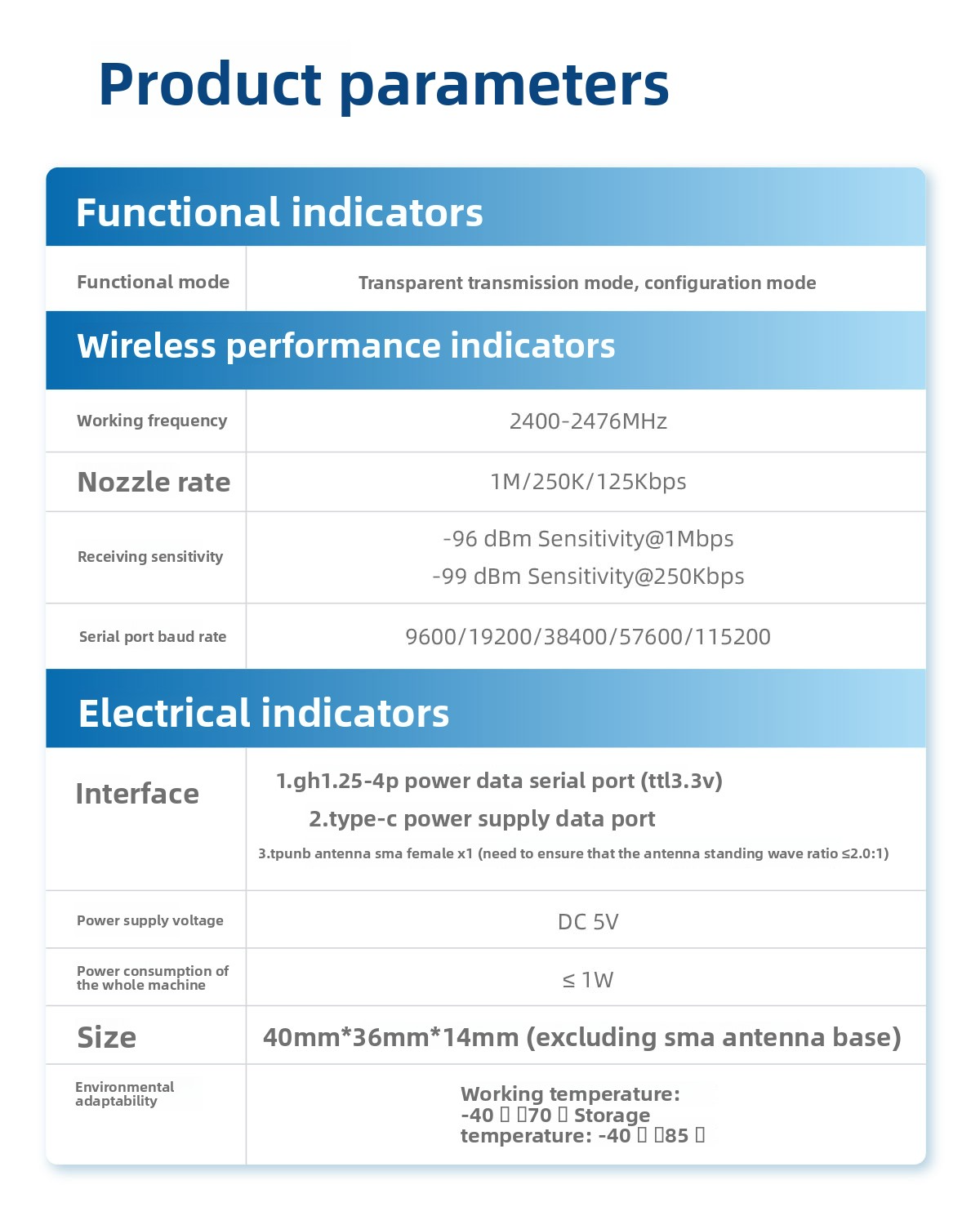

Technical Parameter Table
| Parameter |
Specification |
Details |
| Product Name |
TP5607 - ND12L20 |
A domestically - developed LoRa - based module designed specifically for UAV flight control and data transmission, integrating advanced communication technology. |
| Nozzle Rate (Data Rate) |
1M/250K/125Kbps |
Offers multiple data rate options to adapt to different communication requirements and bandwidth conditions. |
| Power Consumption of the Whole Machine |
≤1W |
Low power consumption design helps extend the UAV's flight time and reduces energy consumption, which is crucial for long - endurance UAV missions. |
| Working Frequency |
2380 - 2520MHz |
Operates in this specific frequency band, which provides good propagation characteristics and is suitable for long - distance communication in UAV applications. |

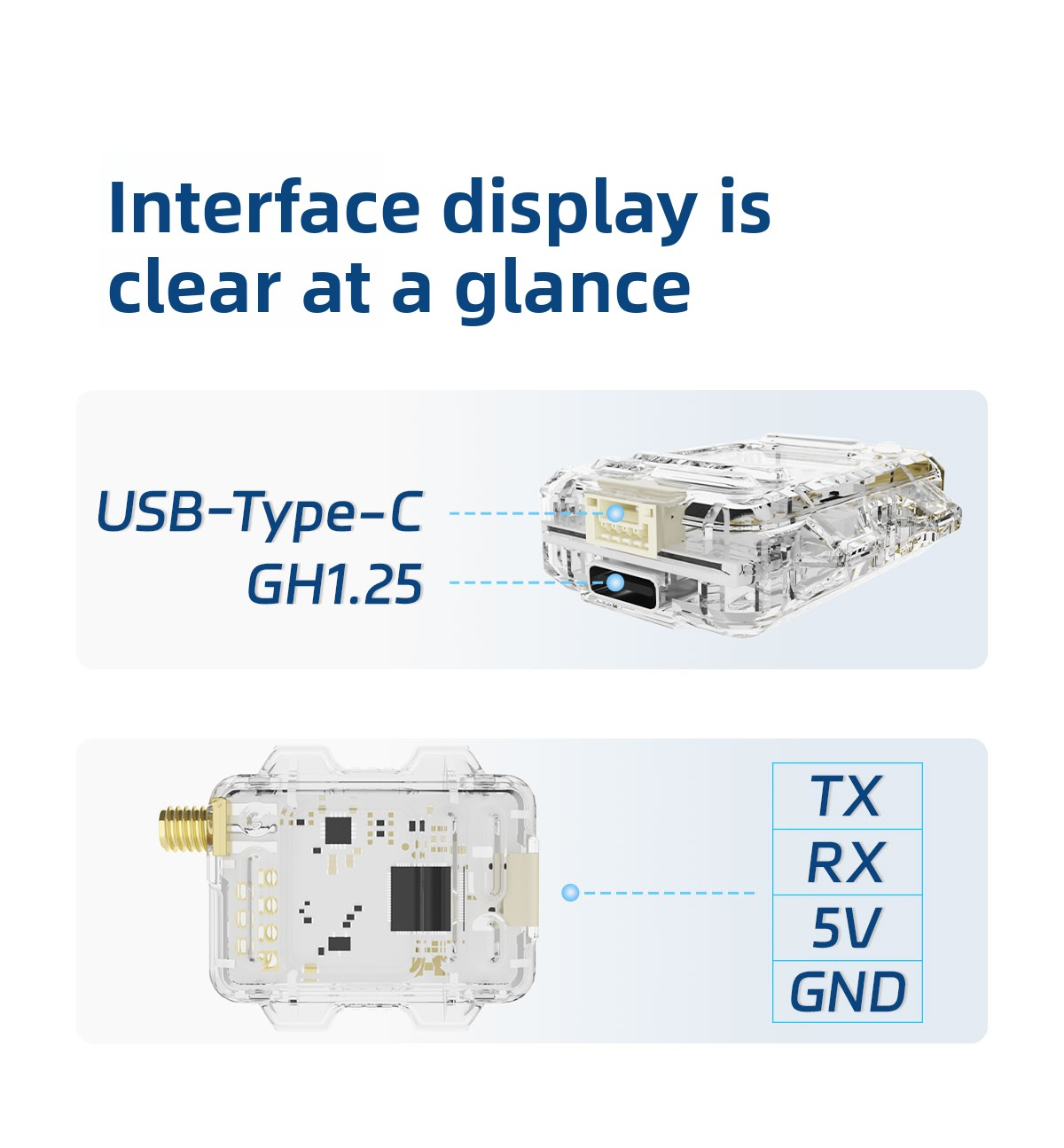

| Power Supply Voltage |
DC 5V |
A common and easily - accessible power supply voltage, facilitating integration with UAV power systems. |
| Working Temperature |
-40℃~70℃ |
Can operate normally in a wide temperature range, making it suitable for UAV operations in various harsh environments, such as extreme cold or hot conditions. |
| Receiving Sensitivity |
-96 dBm Sensitivity@1Mbps, -99 dBm Sensitivity@250Kbps |
High receiving sensitivity ensures reliable data reception even in weak signal environments, enhancing the stability of UAV communication. |
| Size |
40mm * 36mm * 14mm (excluding SMA antenna base) |
Compact size allows for easy installation and integration into UAVs with limited space. |

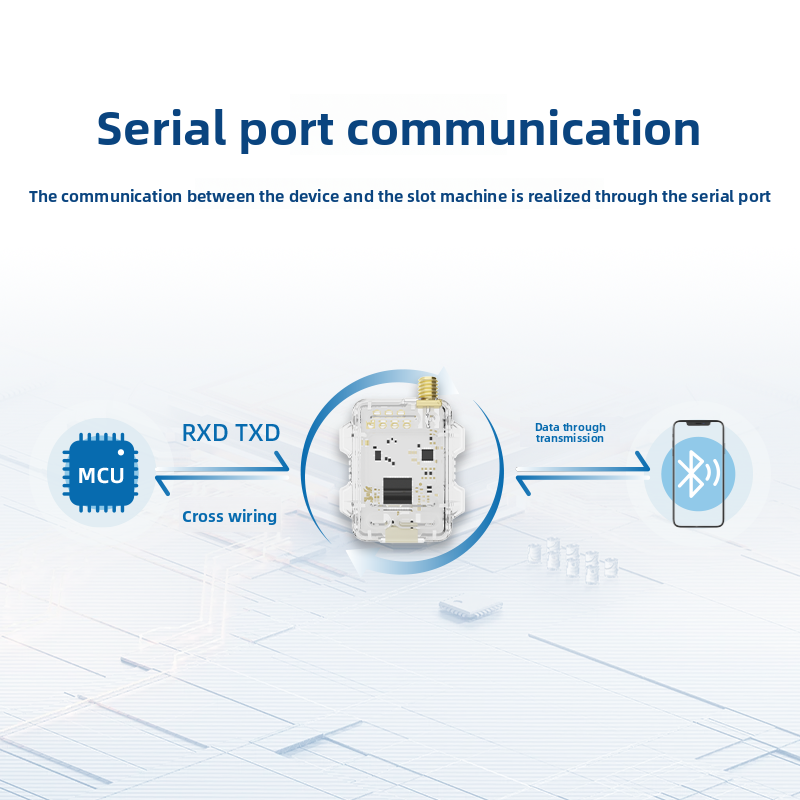

| Serial Port Baud Rate |
9600/19200/38400/57600/115200 |
Supports multiple serial port baud rates, providing flexibility in data communication with different UAV flight control systems. |
Application Scenarios
- Long - Range UAV Inspection: In industries such as oil and gas pipelines inspection and power grid inspection, UAVs equipped with this module can transmit inspection data over a long distance of up to 25 kilometers. Ground control stations can receive real - time video and sensor data, enabling timely detection of potential problems.
- Agricultural UAV Monitoring: For large - scale agricultural areas, UAVs can use this module to transmit soil moisture, crop growth status, and other data to the control center. Farmers can make informed decisions on irrigation, fertilization, and pest control based on the received data.
- Search and Rescue UAV Operations: In search and rescue missions in remote or disaster - stricken areas, UAVs with this module can transmit on - site images and information to the rescue command center over long distances, helping to locate survivors and plan rescue strategies.
This domestic LoRa UAV flight control module and data transceiver combines advanced technology, excellent performance, and practical features, providing a reliable and efficient communication solution for UAV applications.
