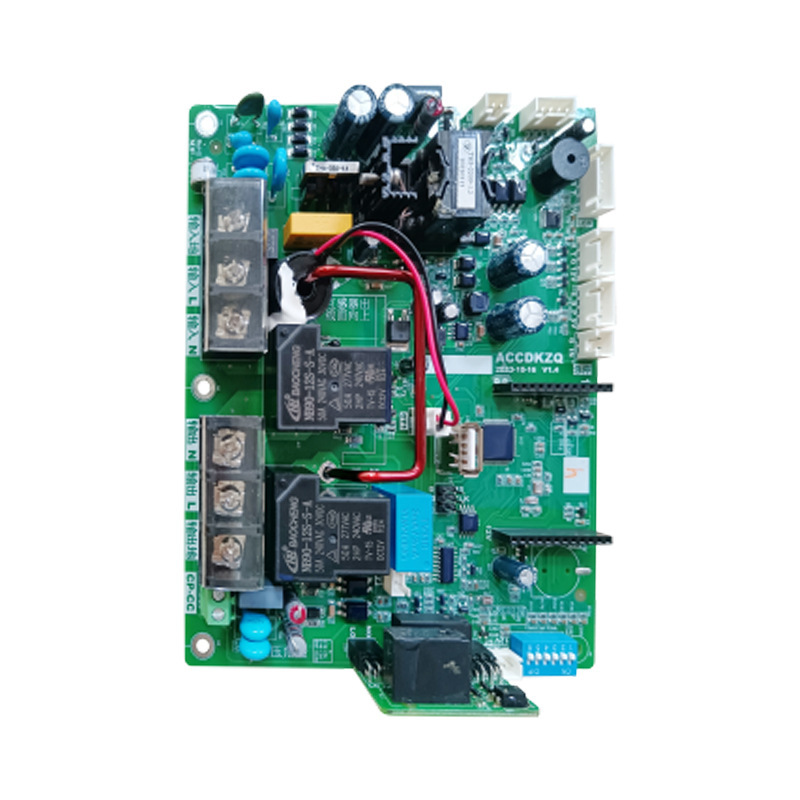

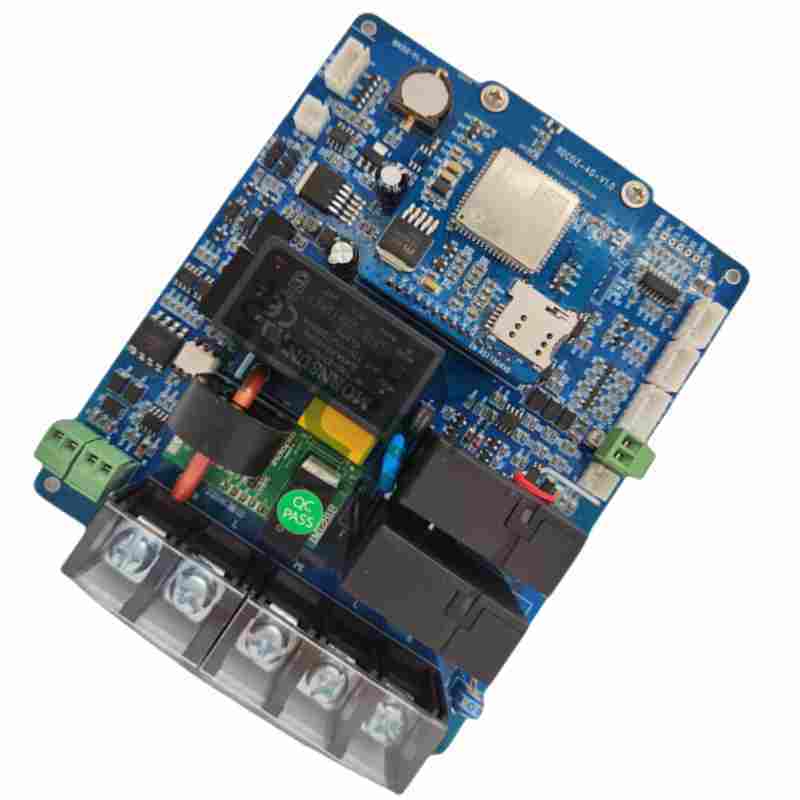

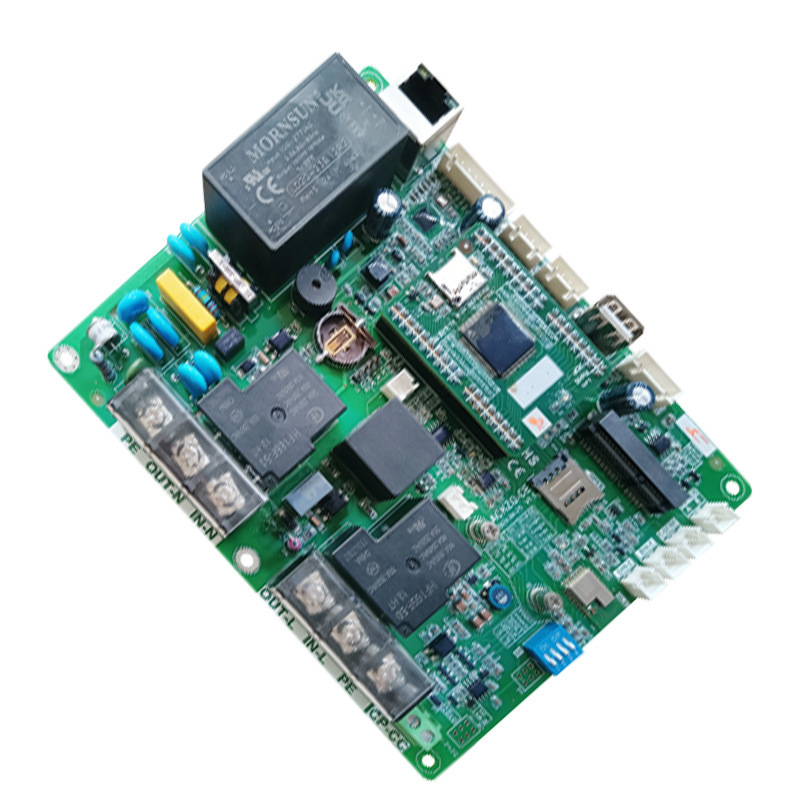

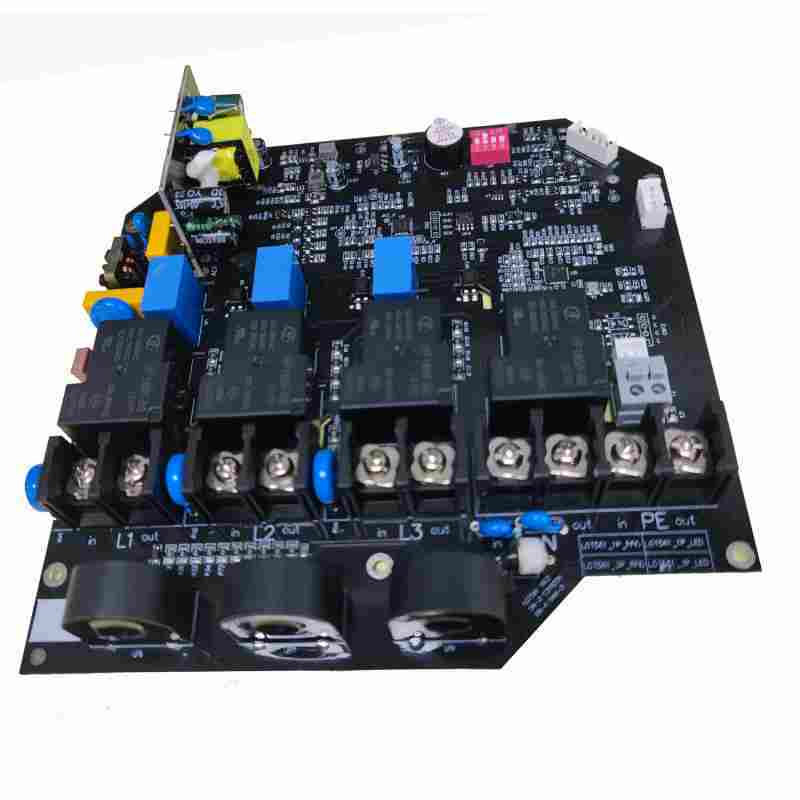

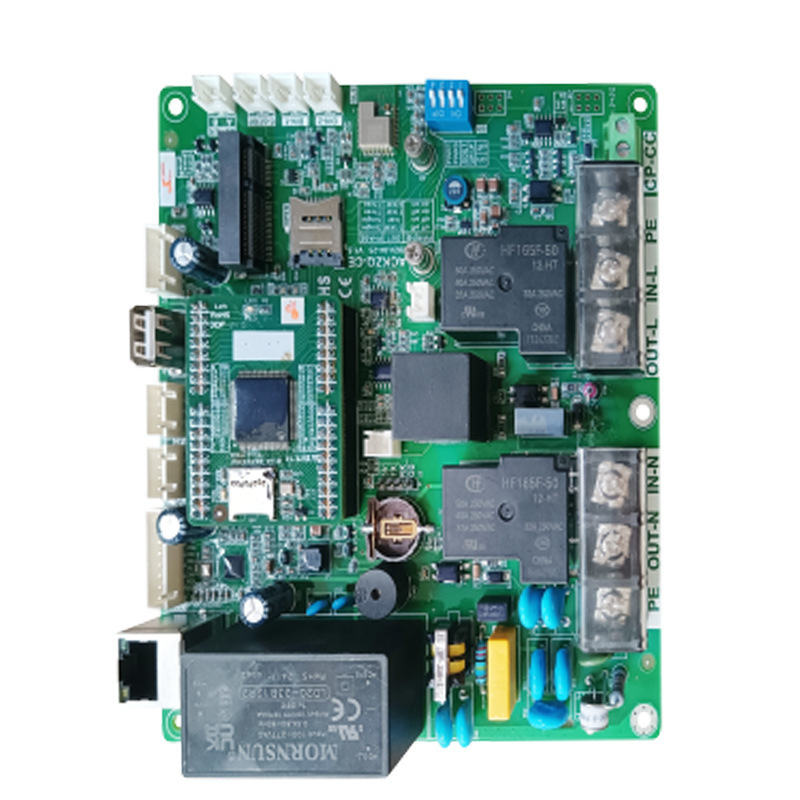

EN 61851-22 Compliant Liquid Cooled EV Charger PCB Assembly OEM Manufacturing

🔧 Detailed Technical Description

1. Thermal & Power Architecture

• Liquid Cooling System: Dual-loop glycol-water coolant (flow rate: 15L/min, ΔT≤5°C) with 3D-stacked cold plates (thermal conductivity: 4.5W/m·K) and turbulence-enhanced microchannels (hydraulic diameter: 0.8mm). Enables continuous 300kW operation at 45°C ambient with SiC MOSFET (C3M0075120K) junction temperatures ≤95°C (AEC-Q101 Grade 0).
• Power Topology: Dual-active-bridge (DAB) DC/DC converter with 1200V SiC MOSFETs (Rds(on)=7.5mΩ@25°C) and nanocrystalline core transformers (μr=50,000@100kHz). Achieves 99.2% peak efficiency (98.7% at 50% load) and 98.5% CEC-weighted efficiency, reducing energy loss by 42% vs. air-cooled designs.
• EMI Filtering: Three-stage LCL filter (L=120μH, C=10μF) with ferrite bead dampening (impedance: 500Ω@1MHz), suppressing conducted noise to <20dBμV (CISPR 32 Class B) and radiated emissions to <10dBμV/m (10m distance).

2. Performance & Reliability

• Voltage/Current Control: Output range 200–1000V DC (±0.1% accuracy), peak current 600A (ripple <0.2%). Supports CC-CV-CP triple-mode switching with <10μs transition time and <5μs overvoltage protection response (IEC 61851-22 Class A++).
• Mechanical Robustness: IP69K-rated enclosure (IK10 impact resistance) with salt-fog corrosion protection (ASTM B117, 1000+ hours) and vibration isolation mounts (ISO 16750-3, 5–500Hz @5g). Passes HALT testing (-40°C to +85°C thermal shock, 1,000 cycles) and HTRB (1,500 hours @125°C).
• Lifetime Prediction: MTBF >100,000 hours (calculated via MIL-HDBK-217F) with 50,000+ charge cycles (DOD 80%) at 95% capacity retention. Coolant system maintains <5% pressure drop after 10,000 hours of continuous operation.

3. Compliance & Scalability

• Standard Certification: Fully compliant with EN 61851-22 (electric vehicle conductive charging system), IEC 62196-3 (CCS Type 2 connector), and UL 2202 (EV supply equipment). Supports ISO 15118-20 (PLC/Ethernet communication) and OCPP 2.0.1 (cloud-based load management).
• Manufacturing Precision: 6-layer HDI PCB (4μm line/space, buried vias) with ENIG surface finish (2–6μm gold thickness). SMT assembly achieves ±0.01mm placement accuracy (IPC Class 3) and <0.1% solder joint voiding (X-ray inspection).
• Production Capacity: Annual output 50,000+ units (scalable to 200,000 units/year), with 72-hour prototyping and 14-day mass production lead time. Supports custom coolant loop designs and branding integration (laser etching/RGB lighting).
