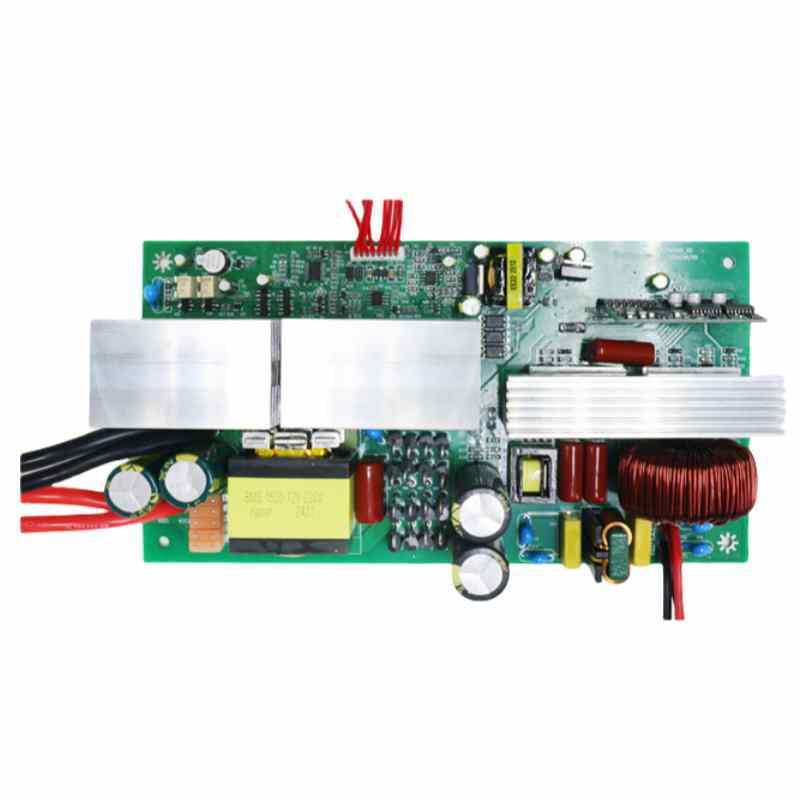

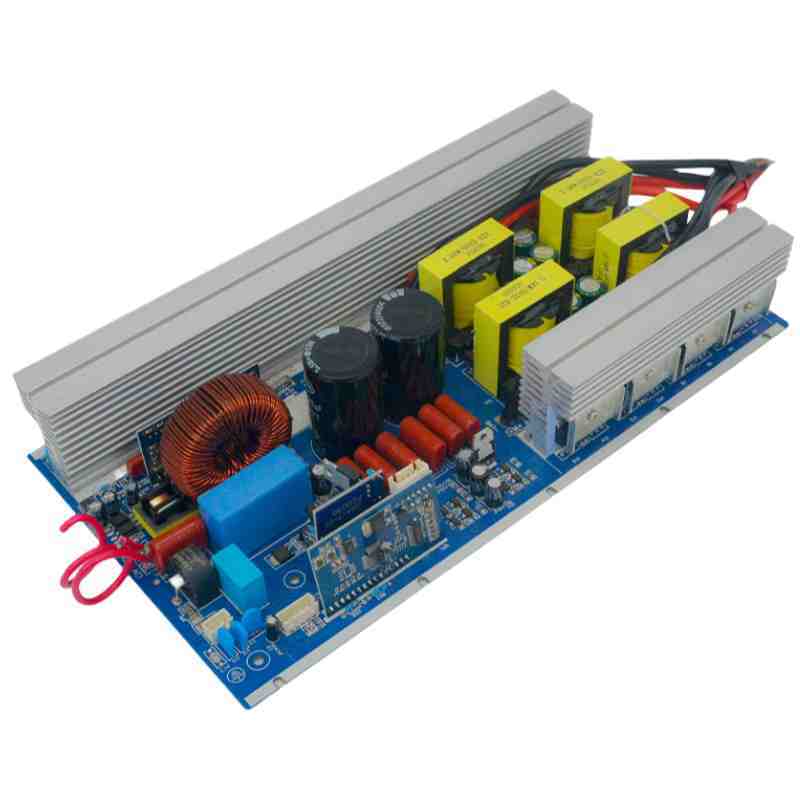

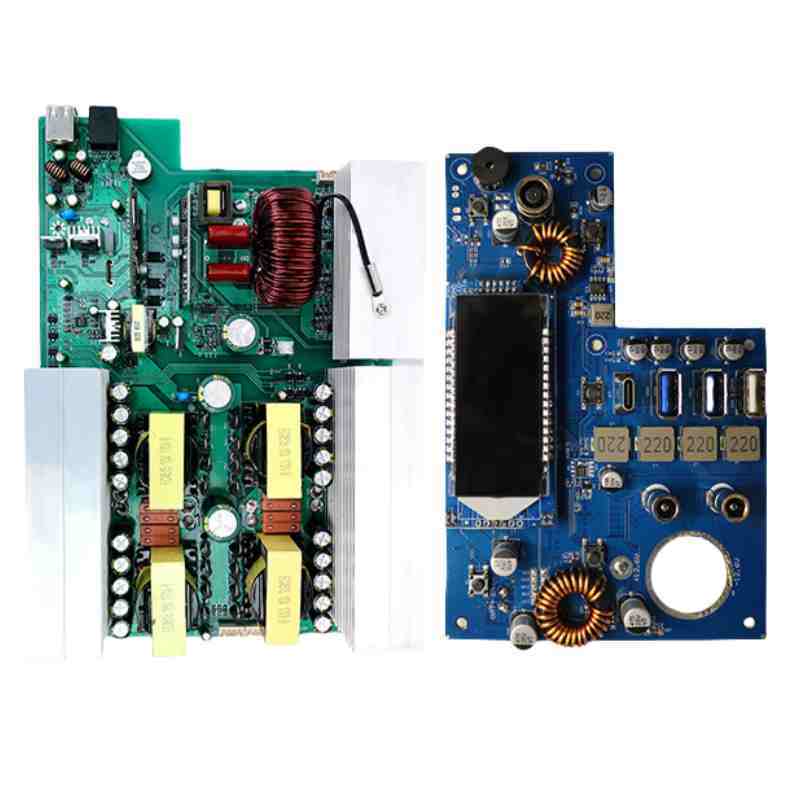

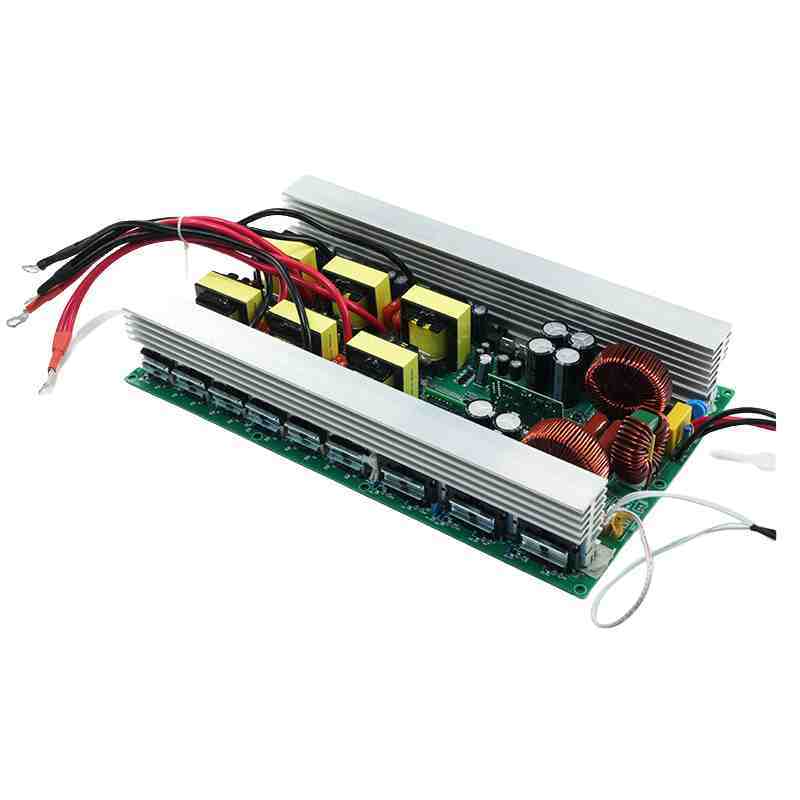

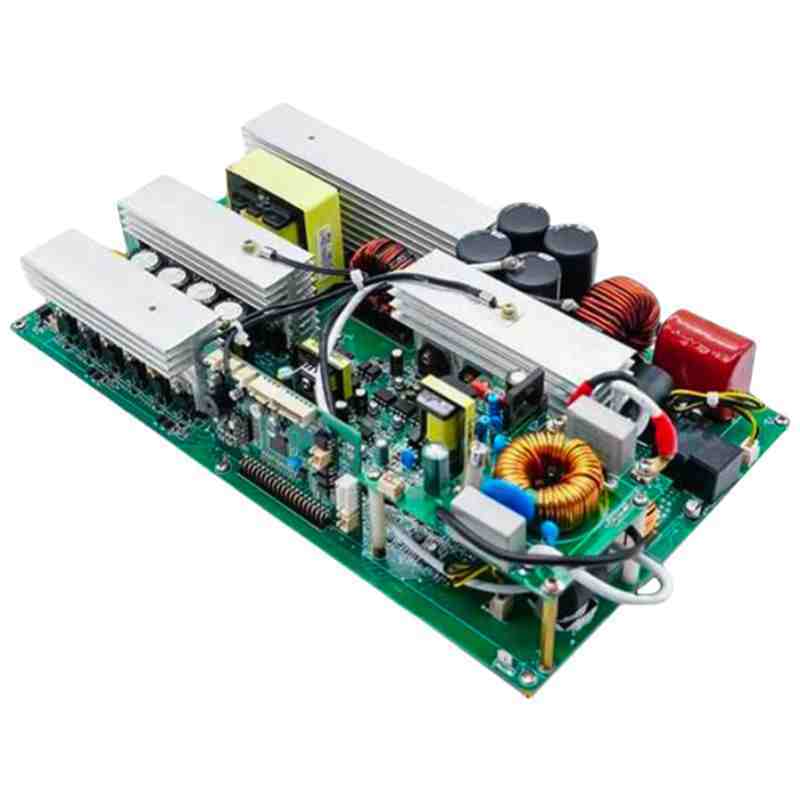

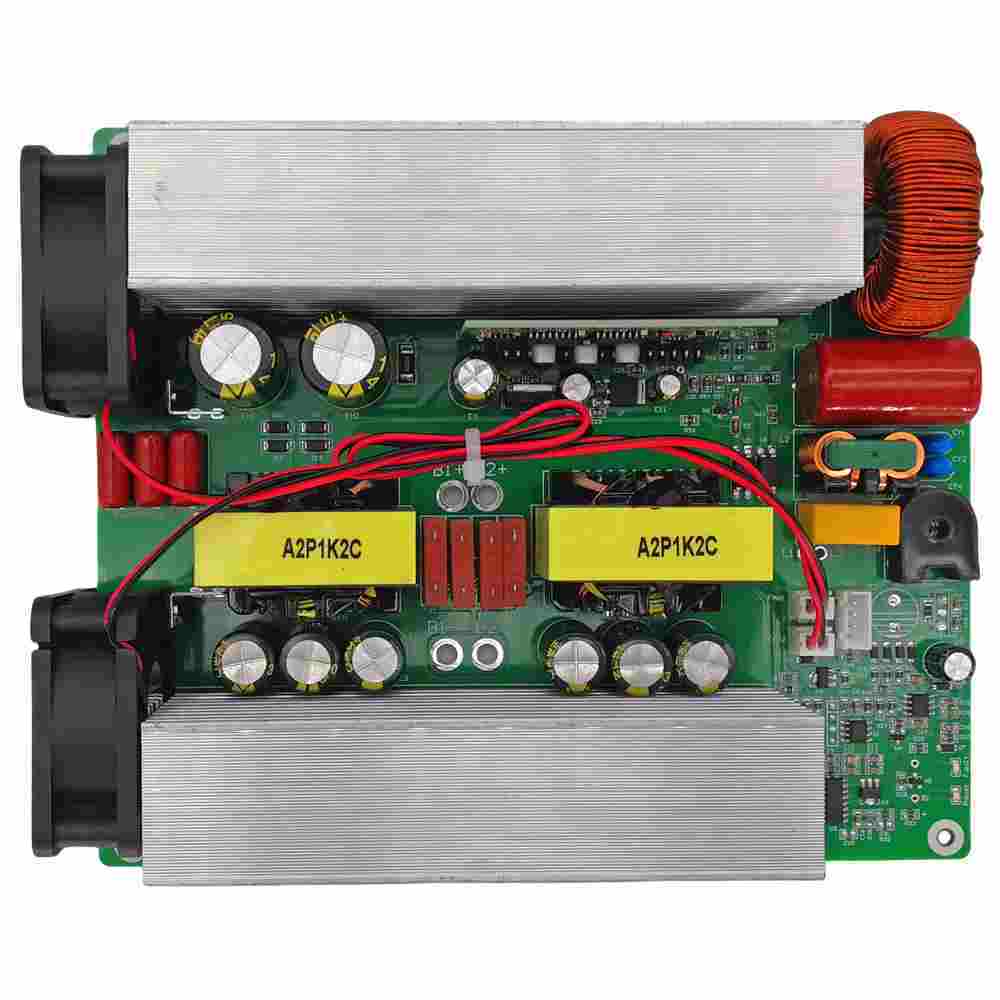

Energy Storage Inverter PCB Assembly: Precision-Engineered for Ultra-High Efficiency & Reliability
Our 4-layer 4Oz copper PCB assemblies are designed for energy storage systems requiring 1000V DC bus voltages and 100A continuous currents, delivering <25mΩ trace resistance for DC-link connections. This reduces conduction losses by 45% versus 2Oz boards, enabling 99.2% peak efficiency in 100kW–1MW inverters while maintaining ΔT <8°C under full load at 50°C ambient—critical for outdoor battery storage containers and industrial microgrids.
Electrical Performance & Safety
- 1000V DC Isolation: 5mm creepage distances and quad-layer slot isolation exceed IEC 62109-3 requirements for high-voltage energy storage.
- Low-EMI Layout: Optimized capacitor placement and shielded inductor routing reduce conducted EMI by 25dBμV (150kHz–30MHz), passing CISPR 32 Class A without external filtering.
- Surge Protection: 25kA/5μs lightning surge tolerance via integrated SiC TVS diodes and busbar fusing, compliant with IEC 61000-4-5 Level 4.
Thermal & Environmental Robustness
- Dual IP67/IP68 Encapsulation: Parylene-C + silicone potting provides 15-year UV/salt-fog resistance for coastal and desert installations.
- Embedded Vapor Chambers: 0.8mm copper-in-ceramic (CIC) vapor chambers under SiC MOSFETs reduce thermal resistance to 1.2°C/W, keeping junction temperatures below 105°C at 500kW output.
- Operating Range: -40°C to +85°C storage, -20°C to +60°C continuous operation, validated via HALT/HASS testing.
Manufacturing & Compliance
- 5-Day Expedited Production: From DFM review to assembly for 100–10,000 unit orders, supporting 0201–QFN packages and 0.25mm pitch BGAs.
- 3D AOI + X-Ray Inspection: 99.995% defect detection for solder joints and ±0.01mm alignment accuracy for embedded capacitors.
- Certifications: UL 1741 SA, IEC 62109-3, VDE 0126-1-1, CE, RoHS.
Ideal For:
- Utility-scale battery storage (250kW–1MW)
- Commercial/industrial microgrids (50kW–200kW)
- EV fast-charging stations with energy storage integration
