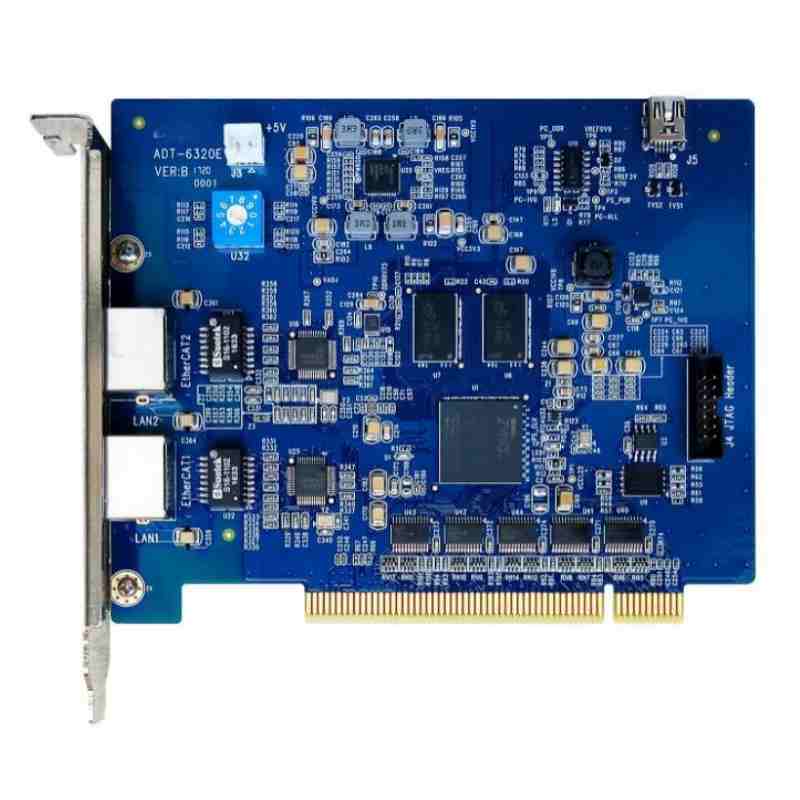

Key Technical System for PCB Manufacturing and Assembly of EtherCAT Motion Control Cards (2025 Technology Roadmap)
Against the backdrop of the deep integration of Industry 4.0 and edge computing, the PCB manufacturing and assembly of EtherCAT motion control cards need to overcome three core challenges: high-frequency signal integrity, high-density interconnection, and reliability in extreme environments. The following is a systematic analysis of key processes and material innovations, aligned with the 2025 industry technology trends :
I. High-Frequency Hybrid Materials and Precision Lamination Processes
Ultra-low-loss substrate combination schemes
Adopt PTFE/ceramic-filled laminates (such as Rogers RO4835T™) as signal layers, featuring a temperature coefficient of dielectric constant (TCDk) as low as -3ppm/°C. Combine them with high-Tg FR-4 core boards (Tg ≥ 180°C) to construct hybrid stacks, balancing high-frequency performance and mechanical strength.
3D laser drilling technology
For HDI blind/buried via structures (via diameter ≤ 50μm), use picosecond ultraviolet lasers to achieve via wall roughness (Ra) < 5μm. Combine with pulse electroplating via filling processes (copper thickness uniformity ±8%) to ensure micro-via conduction resistance ≤ 2mΩ.
Copper foil surface optimization treatment
Employ a combination scheme of Reverse Treated Foil (RTF) and Low Profile Copper (HVLP). RTF is used for high-speed signal layers (Rz = 3μm to enhance adhesion), while HVLP is used for power layers (Rz = 1.2μm to reduce skin effect losses), resulting in an overall insertion loss reduction of 15% compared to traditional processes.
II. Nanoscale Precision Circuit Manufacturing Technology
LDI direct imaging processes
Use 405nm wavelength laser direct writing equipment (resolution ≤ 10μm), paired with high-sensitivity dry film resists (such as Asahi Kasei Aqvia™ AD-310), to achieve impedance control of differential pairs with line width/spacing ≤ 40μm (tolerance ±5%).
Pulse electroplating copper additive technology
Utilize horizontal pulse electroplating lines (peak current density 15ASF), combined with dynamic control of organic additives (SPS/PEG), to refine copper crystal size to the 30nm level, enhancing high-frequency signal transmission efficiency.
Nano-silver sintered solder mask layer
Add nano-silver particles (particle size 50nm) to LPI solder mask inks. Through laser-activated local sintering, form embedded heat dissipation channels with a thermal conductivity ≥ 5W/mK, reducing temperature rise in critical chip areas by 8-12°C.
III. Heterogeneous Integration Assembly and Reliability Enhancement
Multi-stage reflow profile optimization
For scenarios with coexistence of 01005-package components and BGA chips, adopt nitrogen-protected ten-zone reflow soldering with a peak temperature of 245°C ± 3°C and a liquidus time of 45-60 seconds to reduce the micro-void rate in the IMC layer (<5%).
Micron-level placement accuracy control
Use high-precision placement machines (CPH ≥ 45,000, repeatability ±15μm), paired with 3D SPI solder paste inspection (thickness tolerance ±10μm), to achieve coplanarity error ≤ 25μm for QFN package leads.
Extreme environment reinforcement processes
Apply conformal coating (thickness 8-12μm, compliant with IPC-CC-830B) and conduct 1000 thermal cycle tests (-40°C to 125°C) and 96-hour HAST tests (130°C/85%RH) to ensure PCB lifespan ≥ 10 years in industrial settings.
IV. Intelligent Inspection and Data Traceability Systems
AOI + AI defect analysis
Deploy an online optical inspection system with deep learning algorithms (such as YOLOv7 architecture) to achieve a defect recognition rate ≥ 99.5% for micro-shorts/open circuits, with a false positive rate < 0.1%.
Full-process digital twin traceability
Build a digital twin of PCB manufacturing based on the Industrial Internet of Things (IIoT), collecting 500+ process parameters (plating current, lamination pressure, etc.) in real time to enable batch-level quality traceability and SPC process control.
5G edge computing collaborative testing
Integrate 5G MEC edge computing modules into EtherCAT communication interface testing to analyze eye diagram jitter (UI@10-12 BER) and protocol conformance (ETG.10 standard) in real time, improving testing efficiency by 70%.
Summary of Technological Evolution
By 2025, PCB manufacturing for EtherCAT motion control cards has entered a phase of integrating nanoscale precision engineering with intelligent manufacturing. Through collaborative upgrades in high-frequency material innovation, heterogeneous integration processes, and AI-based quality inspection systems, it drives industrial control equipment towards breakthroughs in ultra-low latency (<1μs), ultra-high density (line width/spacing ≤ 30/30μm), and zero-defect rates (DPPM < 50), meeting the demands of cutting-edge fields such as humanoid robots and space manipulators.
