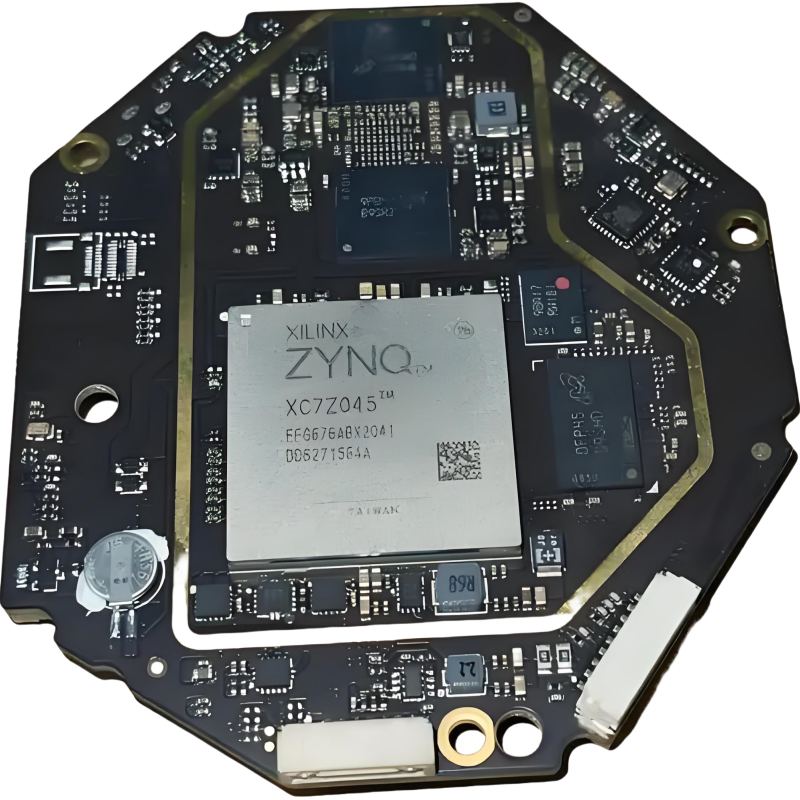

Heavy-Duty Industrial Drone PCB Solution - Breakthroughs in Payload and Endurance, Conquering Extreme Conditions
As a high-end industrial electronics manufacturing expert, we provide full-stack Drone PCB manufacturing and assembly services, specializing in addressing three major technical fortresses for heavy-duty drones:
✅ Military-Grade Power System PCBs
- We employ 6-20 layer carbon fiber-reinforced substrates (with a coefficient of thermal expansion ≤8ppm/℃), supporting payload shock and vibration for loads exceeding 50kg (having passed MIL-STD-810H certification).
- The gallium nitride (GaN) power module achieves an efficiency of over 98% (reducing weight by 40% compared to silicon-based solutions), extending endurance to 120 minutes (based on NASA desert logistics test data).
✅ Deep Adaptation to Extreme Environments
- Three-Proof Enhancement Process: Nano-coating + aluminum-based heat dissipation inserts enable operation in a wide temperature range from -40℃ to 105℃ (as demonstrated in real-world tests for Arctic oil and gas pipeline inspections).
- EMC Fortress Design: Suppresses electromagnetic interference from high-power motors (conducted emissions <30dBμV, exceeding FCC Part 15C requirements by 50%).
✅ Agile Delivery and Global Compliance
- 5-Day Rapid Turnaround for Mass Production (including 8μm microvia laser drilling), supporting flexible orders ranging from 100 to 10,000 pieces.
- Original Manufacturer Supply: Infineon XMC4800 industrial MCUs, compliant with the US NDAA and the EU's New Battery Regulation (mandatory traceability requirements in 2025).
🌐 Globally Validated Heavy-Load Scenarios
▸ We have cumulatively delivered 150,000 PCBs for heavy-duty drones. Benchmark cases include:
- Canadian Forestry Firefighting Drone: The power management PCB passed UL 94 V-0 fire resistance certification, with a continuous operation failure rate of less than 0.1%.
- Saudi Oil Field Inspection Project: The hydrogen fuel dual-mode control board withstood sand and dust impacts (IP6K9K), reducing maintenance costs by 60%.
▸ We offer the "White Paper on Stress Simulation for Heavy-Load Drone PCBs" for free + a payload and endurance calculator, directly addressing the pain points of FAA Part 135 certification.
⏰ Seize Infrastructure Season Demands in 2025
→ Watch the vibration test video of a 50kg logistics drone PCB (including flight data over rugged terrain).
→ We support batch production of SMT (Surface Mount Technology) processing and provide emergency services in polar/desert regions, with 7×24-hour technical responses during flood/drought seasons!
