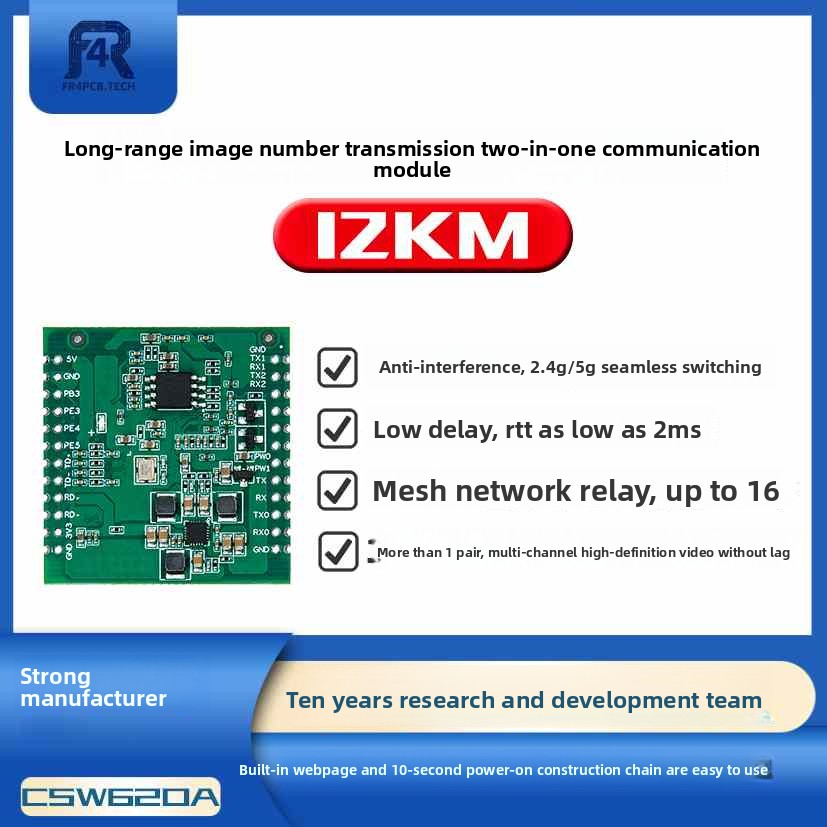

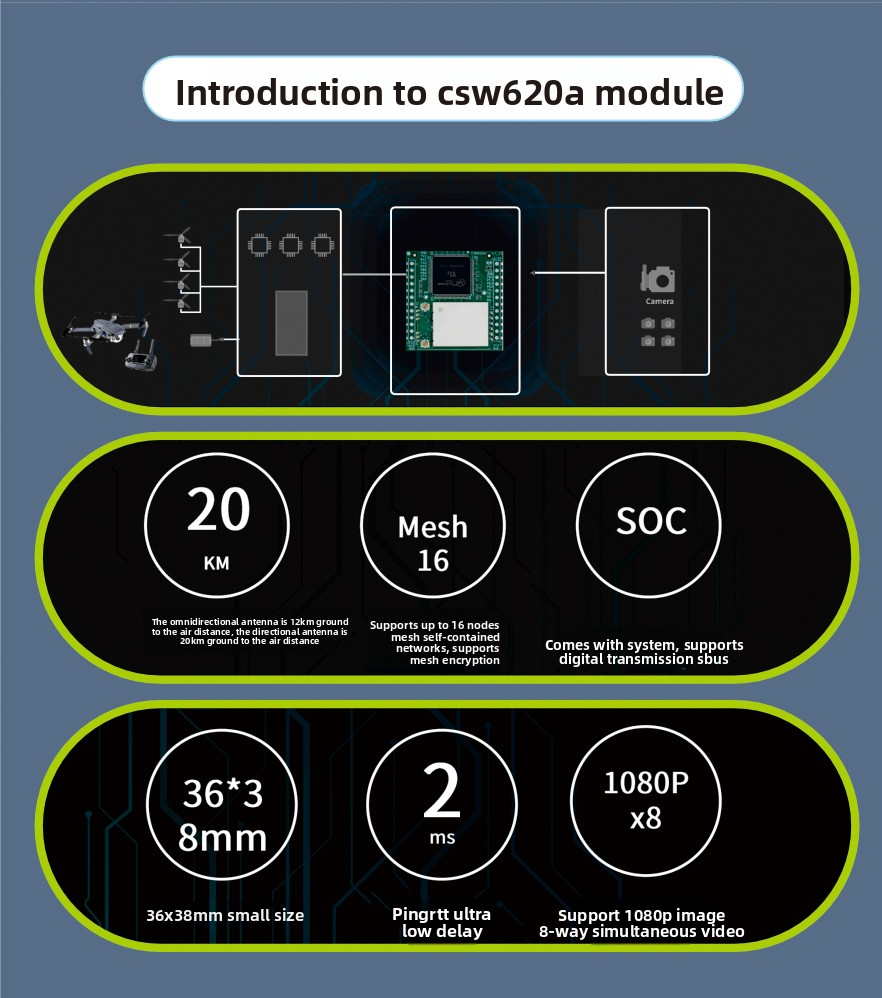

In the field of HD video wireless transmission, the CSW620A remote WiFi digital video transmission integrated module is an excellent choice. It boasts an ultra-long transmission distance, with the omnidirectional wireless transmission reaching up to 12KM, breaking through spatial limitations. Its compact size, only 36*38mm, makes it easy to integrate and install.

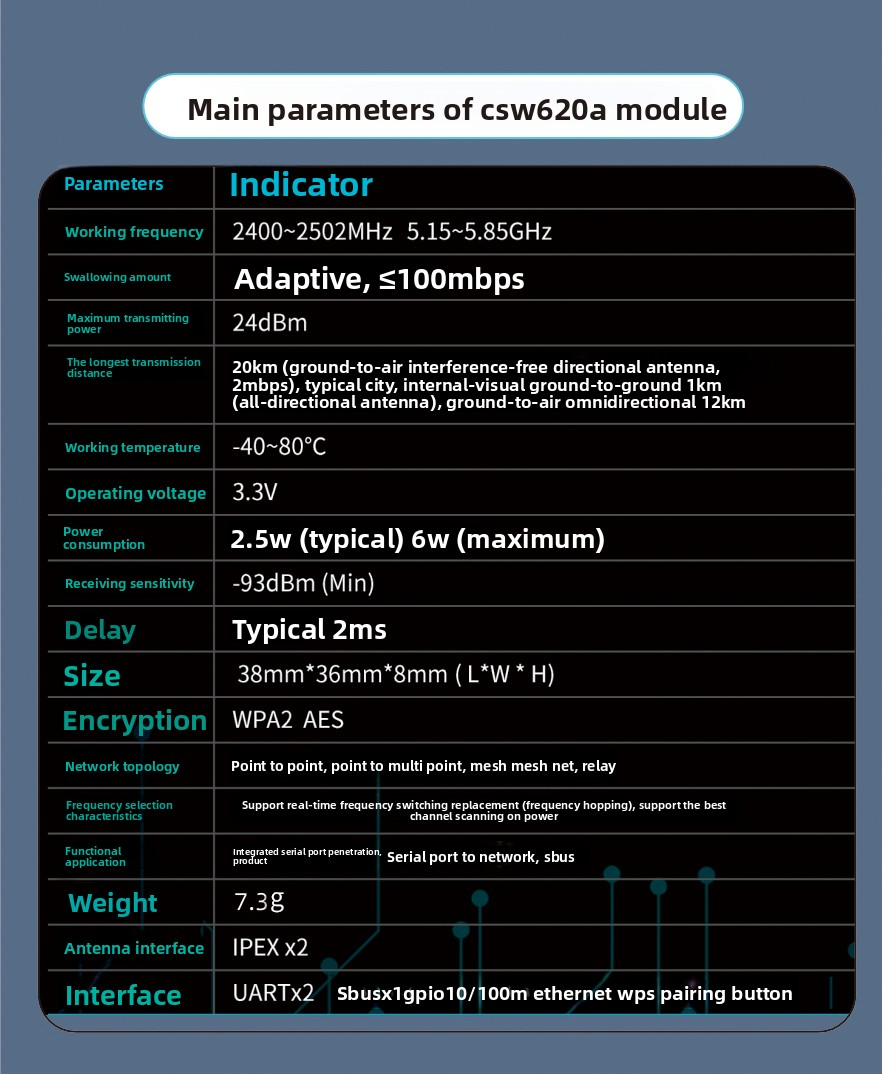

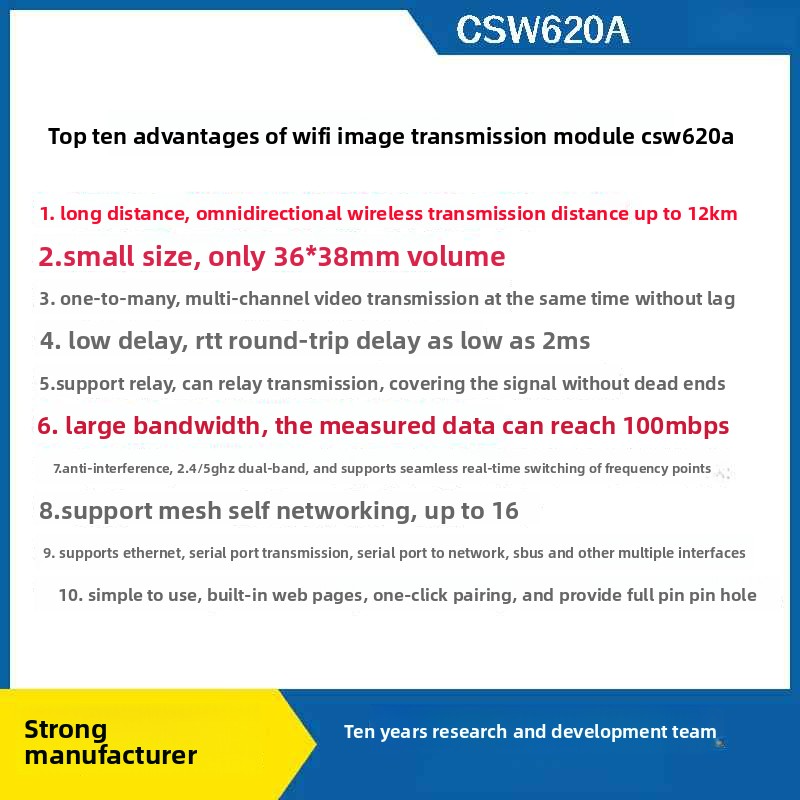

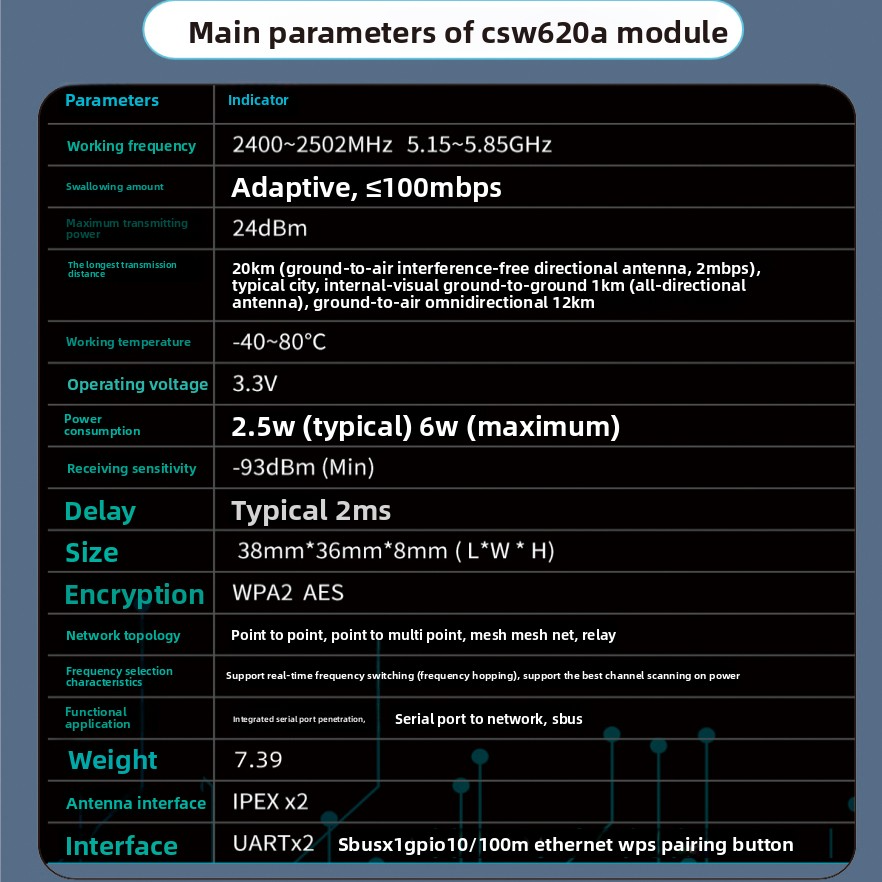

Technical Parameter Table:
| Parameter |
Specification |
Detailed Description |
| Transmission Distance |
Omnidirectional wireless transmission up to 12KM |

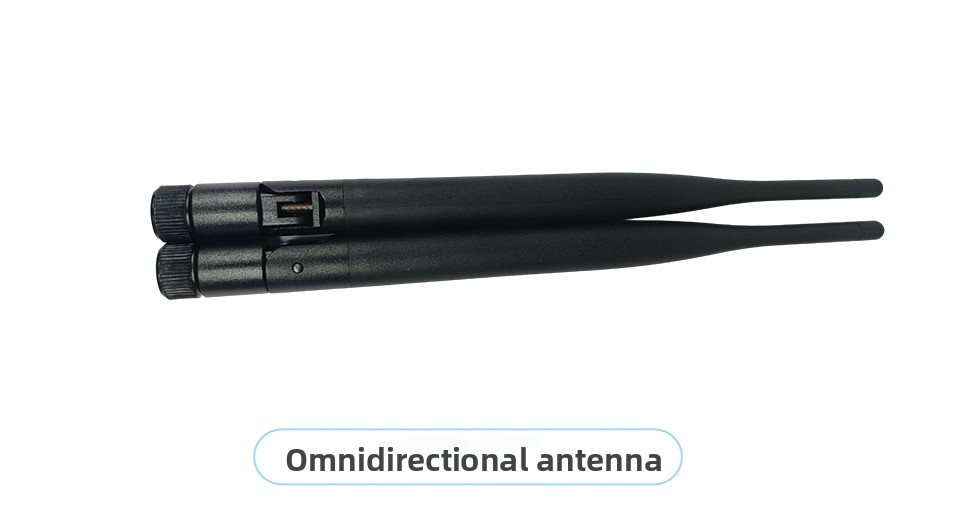

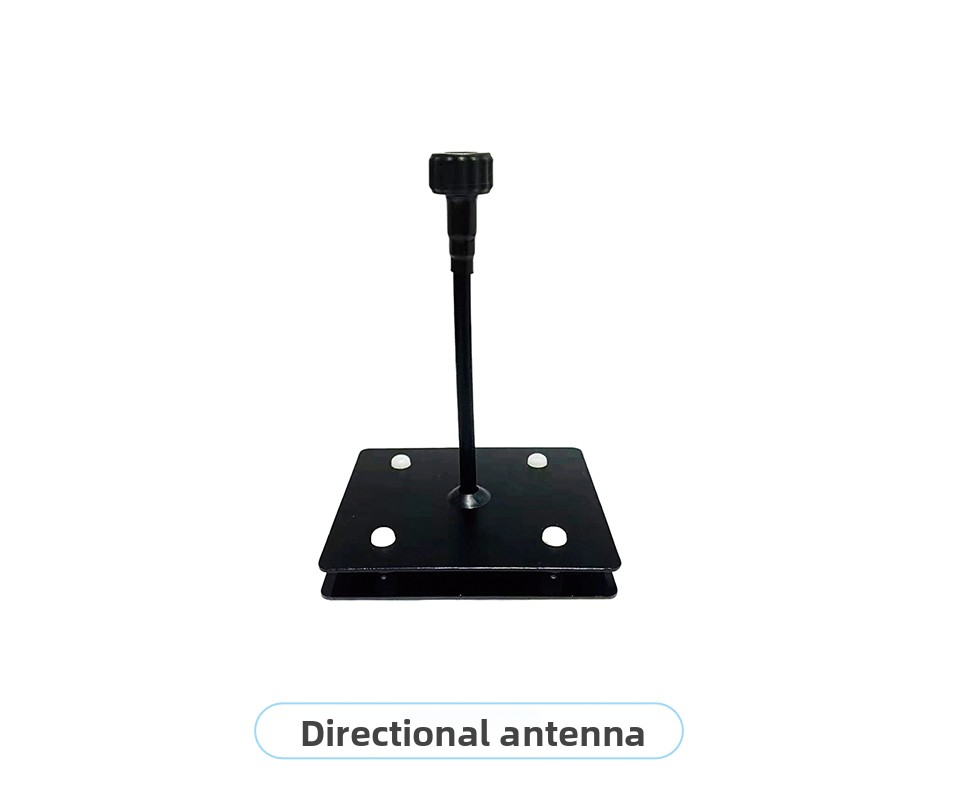

It can achieve stable communication over long distances even in complex environments, meeting the needs of scenarios such as large outdoor area monitoring. With a ground-to-air interference-free directional antenna, transmission can reach 20KM (2Mbps). In typical urban line-of-sight ground-to-ground scenarios, it's 1KM (omnidirectional antenna), and ground-to-air omnidirectional is 12KM. Different antenna and scenario combinations flexibly adapt to diverse requirements. |
| Module Size |

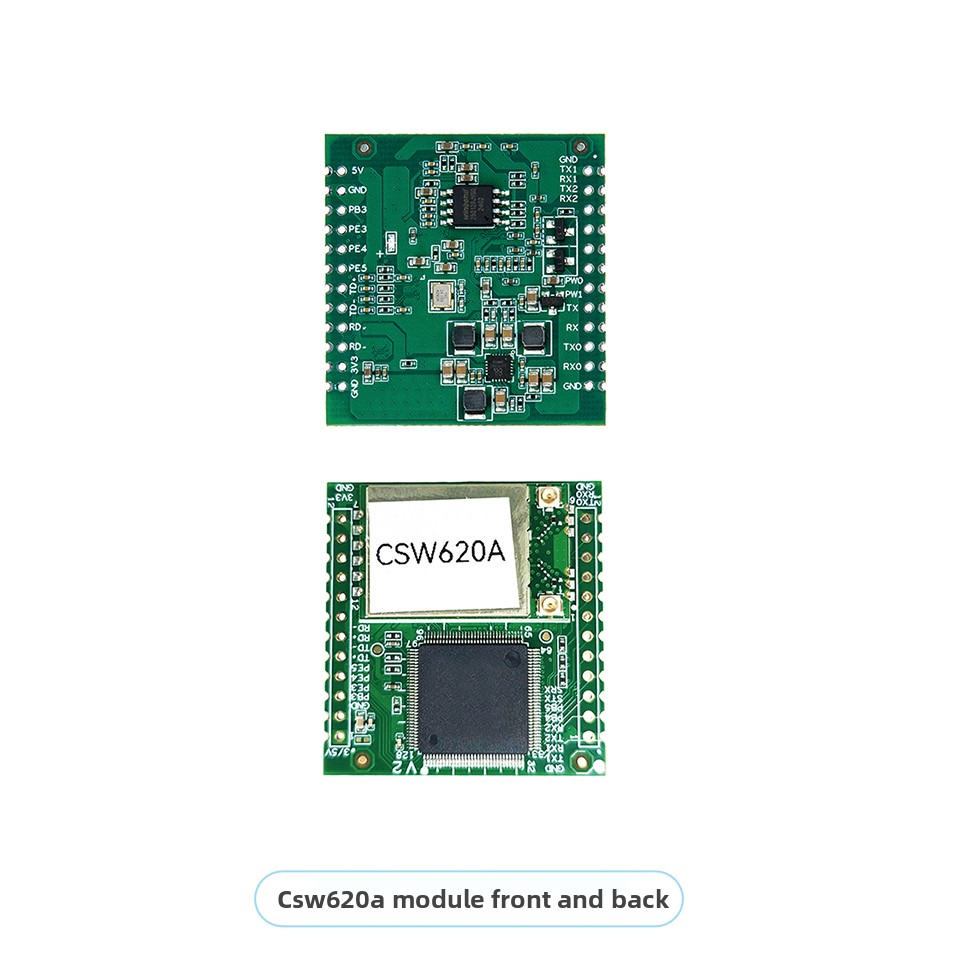

36*38mm |
The compact size design greatly saves internal device space, facilitating integration into various miniaturized devices, such as drones and portable monitoring equipment. |
| Transmission Mode |
One-to-many, simultaneous transmission of multiple video streams without lag |
It can simultaneously handle the transmission of multiple video signals, ensuring smooth transmission of each video stream in scenarios like multi-camera live broadcasting of large events, without any lag. |
| Latency Performance |
RTT round-trip latency as low as 2ms |
The extremely low latency characteristic enables the module to perform well in scenarios with high real-time requirements, such as drone real-time video transmission monitoring and remote industrial control, allowing for quick response to operation commands. |
| Repeater Function |
Supports repeater transmission |
Through the repeater function, it can effectively expand the signal coverage and eliminate signal dead zones, suitable for complex environments such as large warehouses and multi-story buildings. |
| Bandwidth Capability |
Measured data up to 100Mbps |
The large bandwidth provides strong support for HD video transmission, meeting the needs of smooth transmission of high-resolution and high-frame-rate videos. |
| Anti-Interference Ability |
2.4/5GHz dual-band, supports seamless real-time frequency point switching |
The dual-band design combined with seamless frequency point switching enables the module to effectively avoid interference bands, ensuring stable communication in complex electromagnetic environments, such as urban centers and industrial plants. |
| Networking Capability |
Supports MESH self-organizing network, up to 16 nodes |
The MESH self-organizing network function allows the module to quickly establish a flexible and stable network, suitable for scenarios such as emergency communication and field exploration. It can connect up to 16 nodes, expanding the network coverage. |
| Interface Types |
Supports Ethernet, serial port transparent transmission, serial port to network, SBUS, and other multi-interfaces |
The rich interface types facilitate the connection and data interaction between the module and different types of devices, meeting the needs in various fields such as industrial control, drone communication, and intelligent monitoring. |
| Ease of Use |

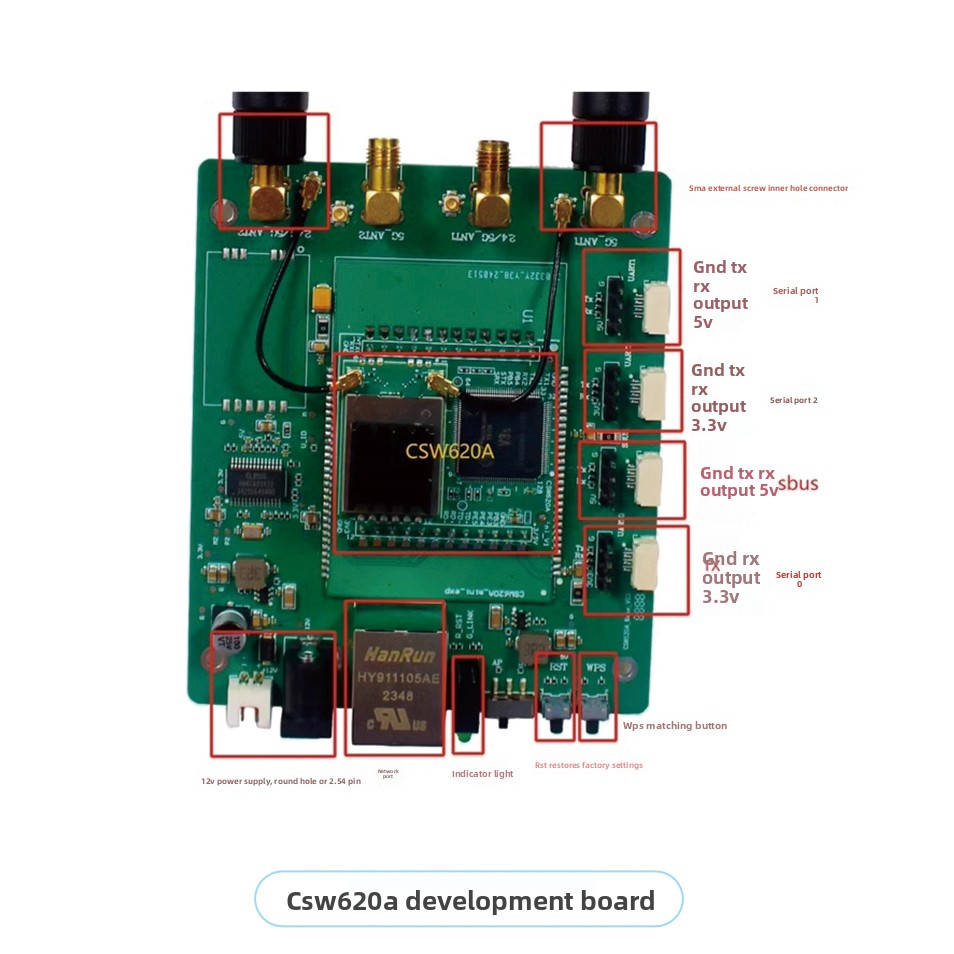

Embedded web page, one-click pairing, and provides full-pin header holes |
The embedded web page and one-click pairing function simplify the operation process and reduce the usage difficulty. The full-pin header holes provide convenience for secondary development, allowing for function expansion according to specific needs. |
Application Scenarios: Widely used in drone aerial photography video transmission, providing stable, HD, and low-latency video transmission for aerial photography. In large-scale event live broadcasting, it enables simultaneous and smooth transmission of multi-camera videos. It can also be applied in forest fire prevention monitoring, intelligent traffic management, and other fields, providing efficient and reliable wireless video transmission solutions for various industries.
