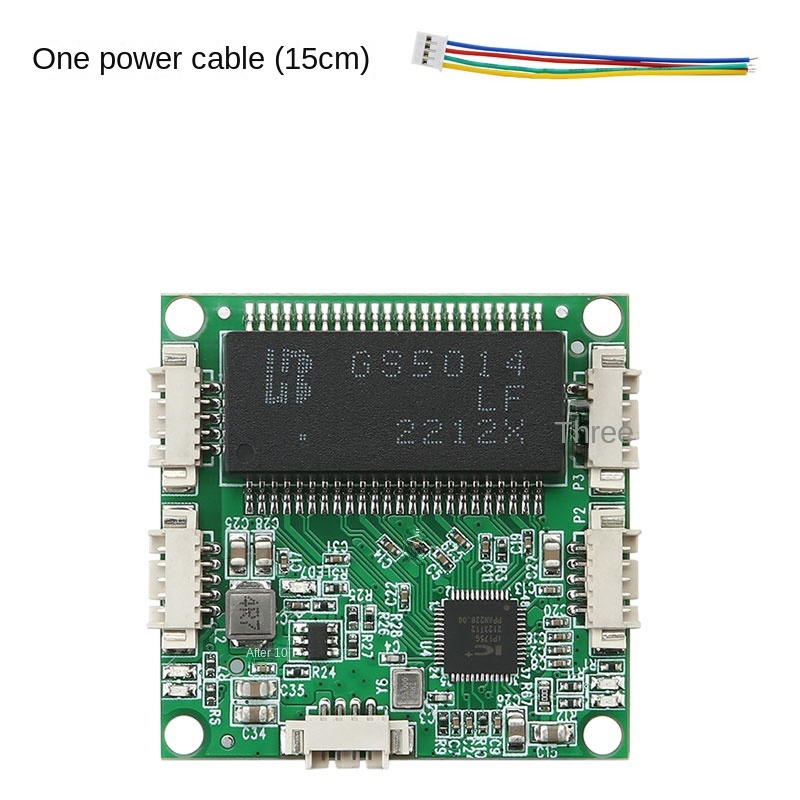

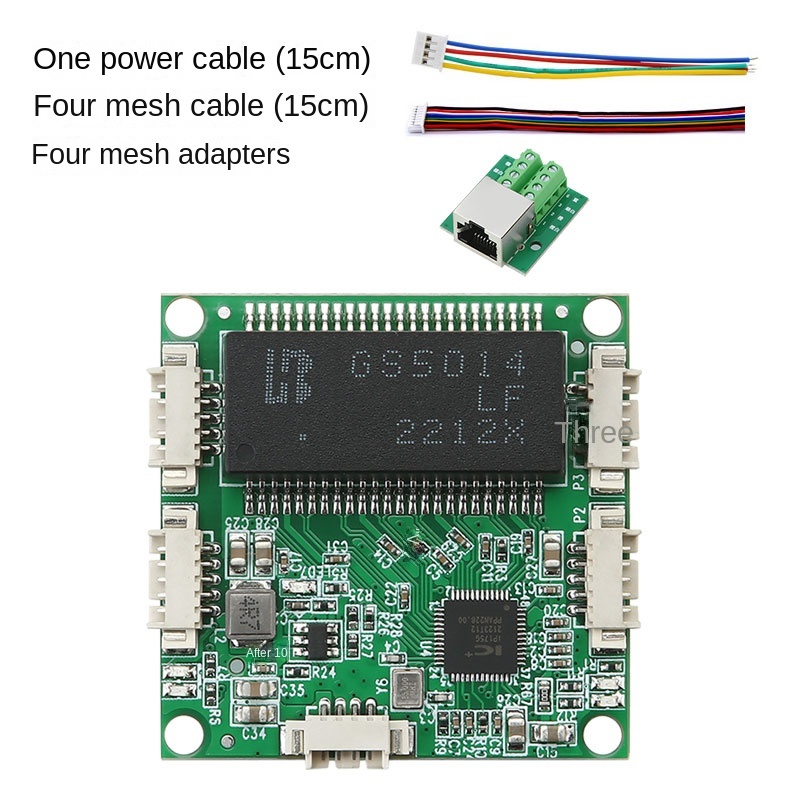

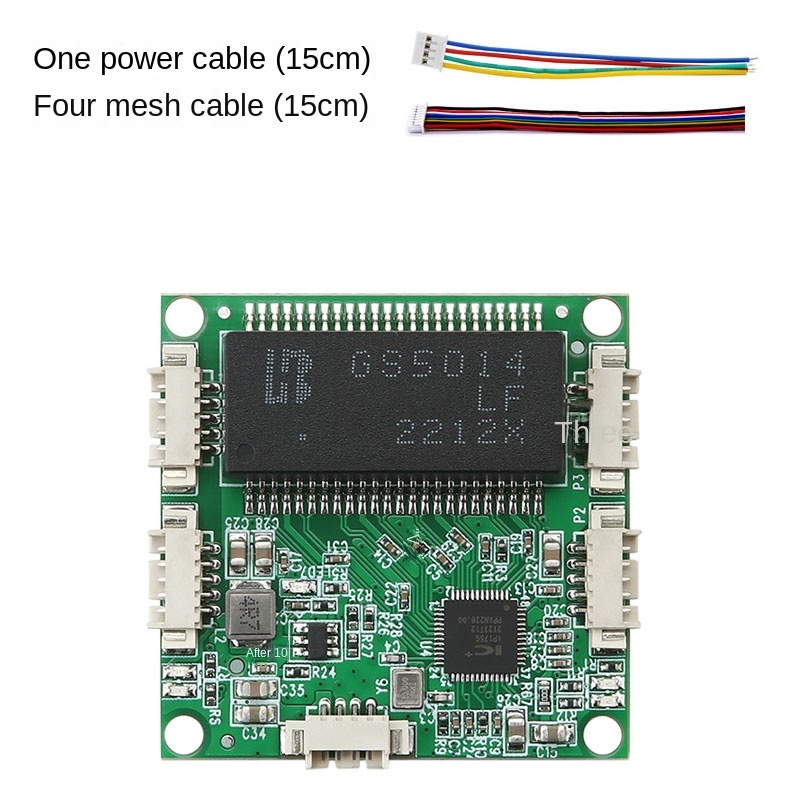

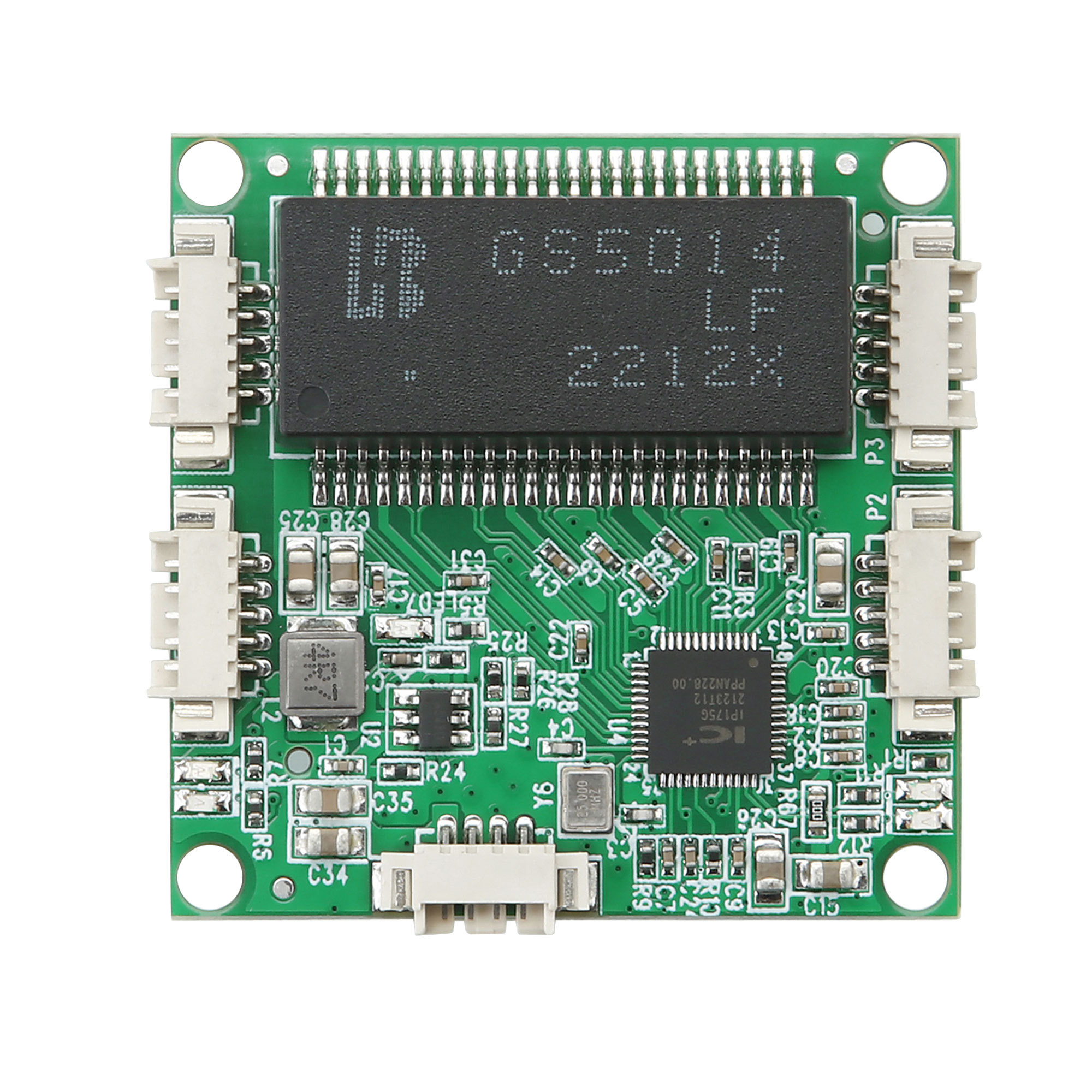

| Product Model |
LX-SWF401 |
| Fixed Ports |
4 10/100M Base-T MX1.25mm 5pin socket ports (Data/Power) |
| Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x |
| Port Characteristics |
10/100M Base-T auto-detection, full/half-duplex MDI/MDI-X auto-adaptation |
| Forwarding Mode |
Store-and-forward (full-wire-speed) |
| Backplane Bandwidth |
1Gbps (unblocked) |
| Forwarding Rate |
Ethernet 10Mbps (half-duplex) 20Mbps (full-duplex), 10Mbps: 14,880pps
Fast Ethernet 100Mbps (half-duplex), 200Mbps (full-duplex), 100Mbps: 148,800pps |
| Cascading |
All ports can be used as UP-LINK ports |
| Packet Forwarding Rate @64byte |
2Mpps |
| MAC Address Table |
1K |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter) |
| Whole Machine Power Consumption |
Standby power consumption: <3W; Full load power consumption: <5W |
| LED Indicators |
Power indicator: PWR (green); Network indicators: Link, Link/Act (green) |
| Appearance Dimensions (L×W×H) |
38×38×10mm |
| Net/Gross Weight |
<10g / <12g |
Working Environment
|
|
| Working Humidity |
10%-90%RH (non-condensing) |
| Working Temperature |
-30°C-70°C |
| Storage Humidity |
10%-90%RH (non-condensing) |
| Storage Temperature |
-40°C-85°C |
Core Architecture and Technical Advantages

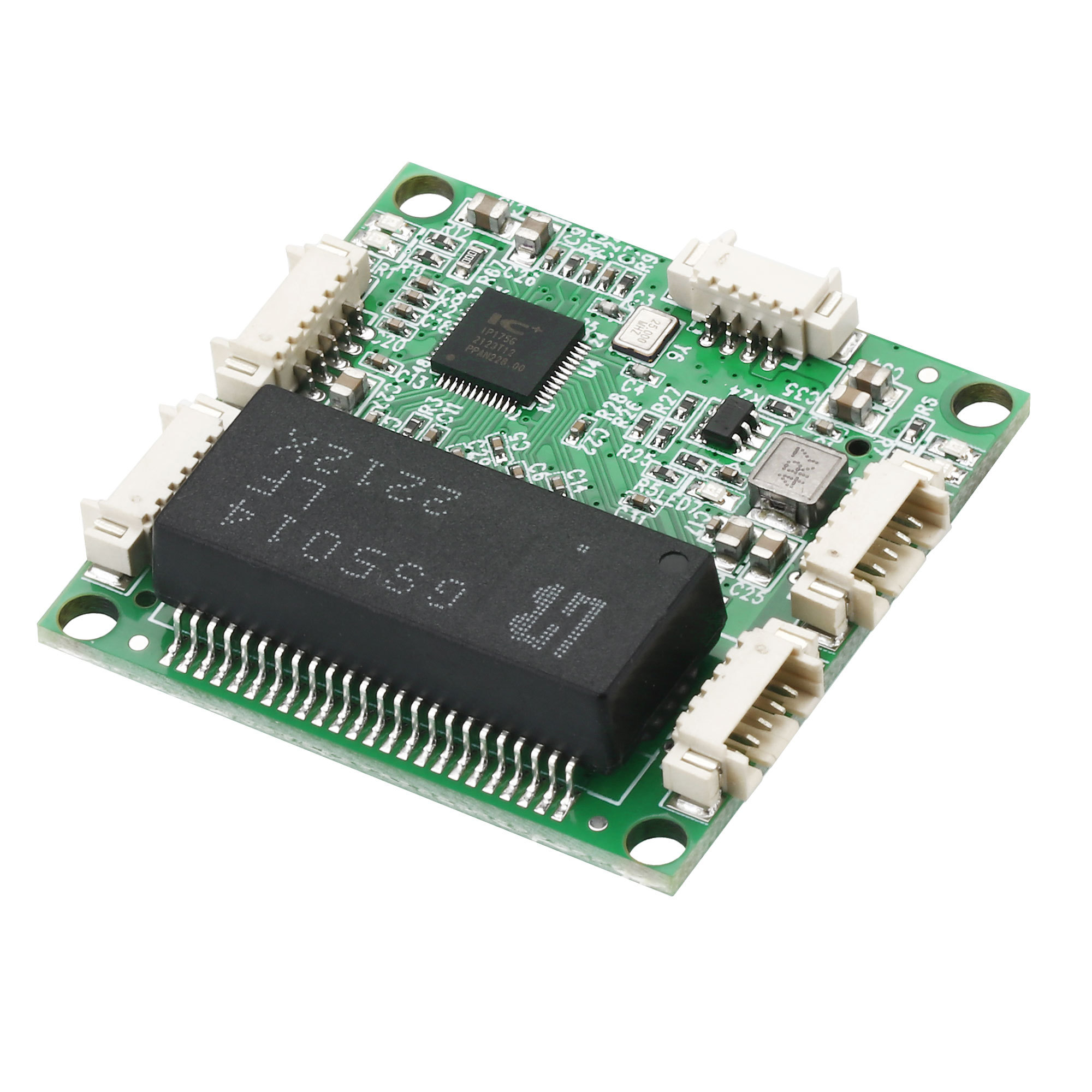

Industrial-Grade Interface Design
MX1.25 5PIN Interface:
✅ Vibration Resistance 6Grms (GB/T 2423.10-2025)
✅ Plugging Lifespan ≥5,000 times (far exceeding RJ45's 1,500 times)
✅ Protection Grade IP67 (dust and waterproof, suitable for dusty workshops)
Breakthrough in Network Performance
| Technical Indicators |
Parameter Values |
Industrial Value |
| Switching Mode |
Store-and-Forward |
Packet Error Rate ≤10⁻⁹ |
| Broadcast Storm Suppression |
Supports IEEE 802.3d Standard |
Reduces 92% Network Congestion |
| Auto-Negotiation Capability |
10/100M Full Auto-Negotiation |
Compatible with Legacy Device Upgrades |
| Transmission Latency |
<3μs (RFC 2544 Test) |
Critical for AGV Real-Time Control |
Adaptation to Extreme Environments
- Wide Temperature Operation: Cold start at -40°C to full-load operation at 85°C (EN 50155 Clause 12)
- Electromagnetic Protection: Passed IEC 61000-6-2 Industrial Level 4 EMC Certification (30V/m RF Field Immunity)
🏭 Solutions for Three High-Interference Scenarios
-
Intelligent Factory AGV Cluster Communication
▶️ Store-and-forward mode eliminates network conflicts in collaborative operations of 32 AGVs.
▶️ The vibration-resistant design of the MX1.25 interface ensures uninterrupted connectivity at high speeds of 1.5m/s.
-
Photovoltaic Power Station Monitoring Network
▶️ Broadcast storm suppression technology supports data backhaul from 64 string-type inverters.
▶️ Withstands extreme temperature differences in desert environments (-40°C to 85°C) with zero failures in Xinjiang power station tests.
-
Mining Heavy Equipment Network
▶️ IP67 protection resists coal dust and water mist erosion (18 months of continuous operation in Shanxi open-pit mines).
▶️ 6Grms vibration resistance adapts to shock loads in drilling equipment.
