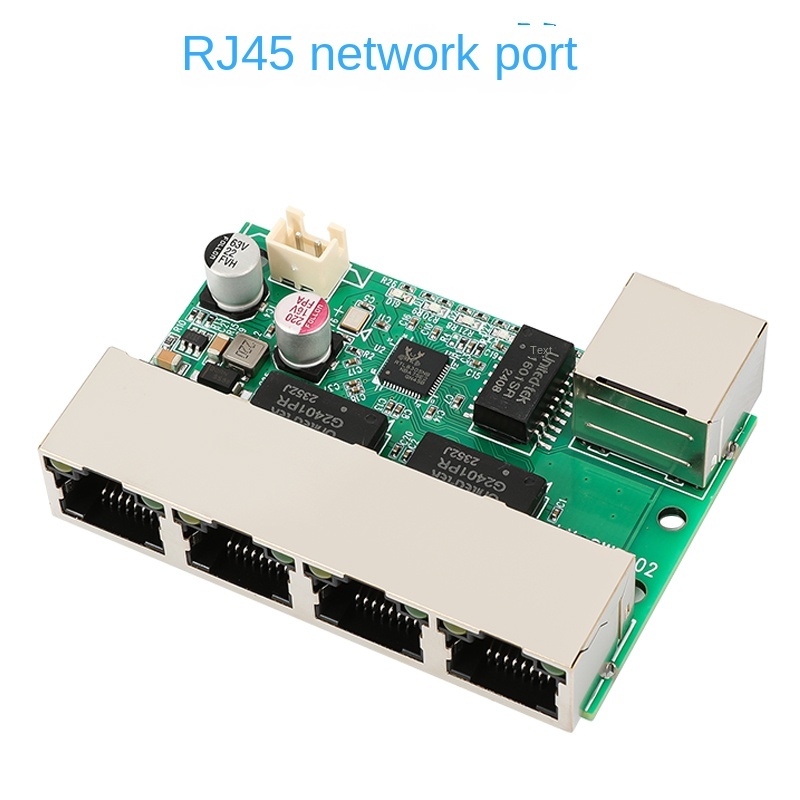

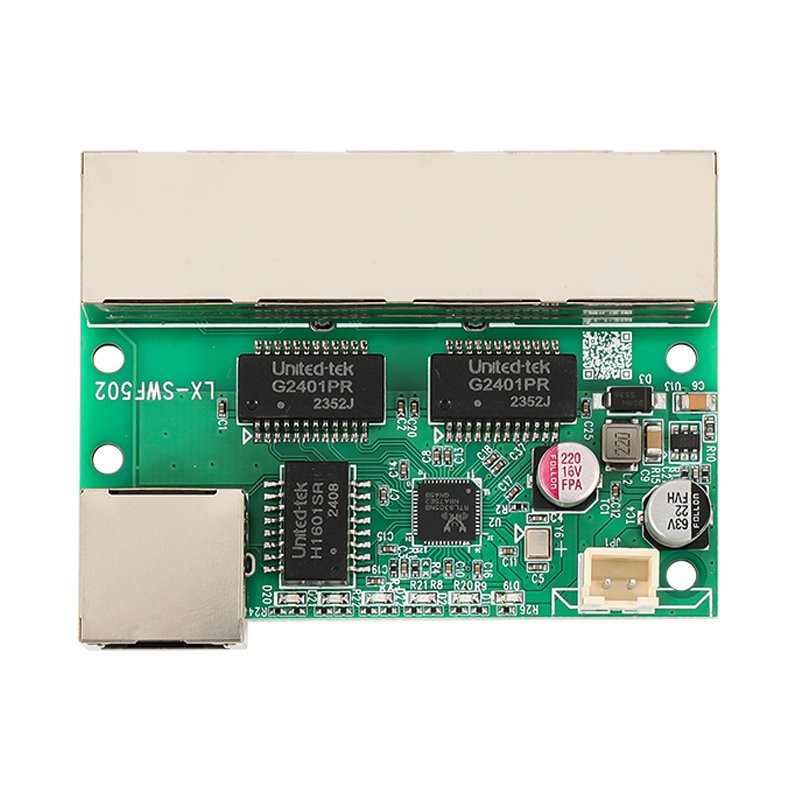

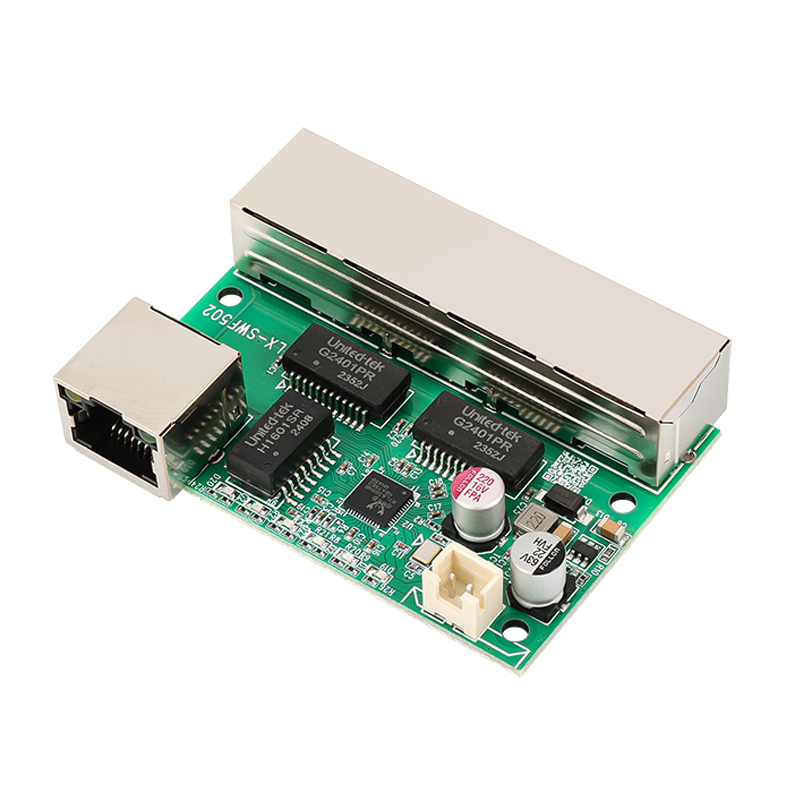

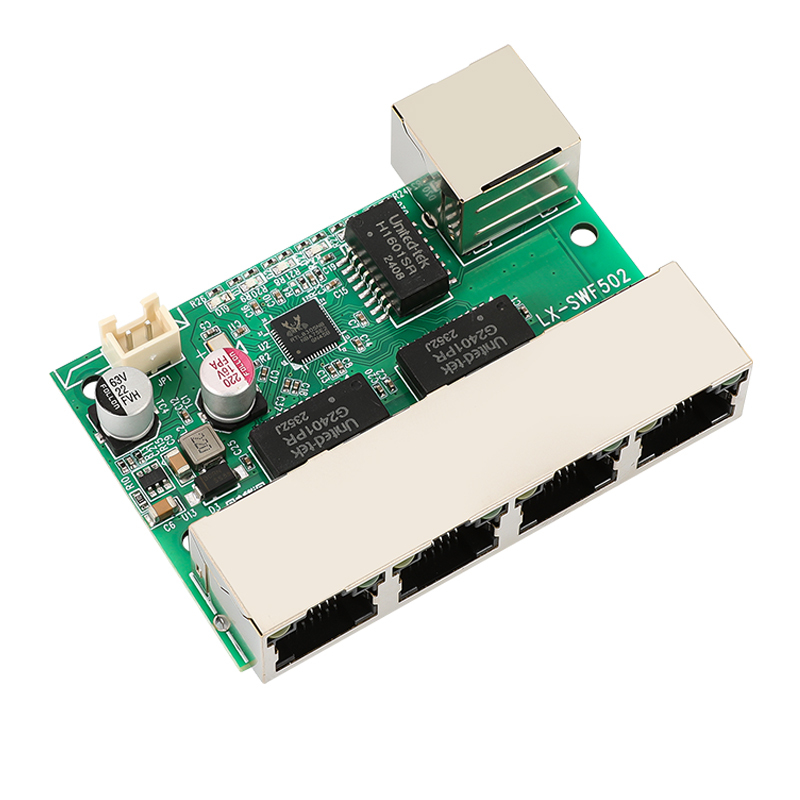

Industrial-Grade 5-Port Gigabit Switch Module

Core Architecture and Technological Breakthroughs
Dual-Form-Factor Interface Design

Industrial-Grade Performance Guarantees
✅ Network Compatibility:

• Full-duplex mode: IEEE 802.3x flow control (throughput ≥99.8%)
• Half-duplex mode: Back Pressure flow control (collision retransmission delay <0.5μs)

✅ Extreme Environment Tolerance:

• Cold start at -40°C (GB/T 2423.1-2025) to continuous operation at 75°C (IEC 60068-2-14)
• Humidity 5%-95% non-condensing (alternating humidity test SJ/T 11608-2025)

✅ Energy Efficiency Management:

• Dynamic power consumption adjustment (≤3.5W), complying with SJ/T 11695-2025 Energy Efficiency Class III standard
• LED status indication system (three-color diagnostics for port/power/fault)

🏭 Three Industrial Scenario Solutions

1. Industrial IoT Edge Computing

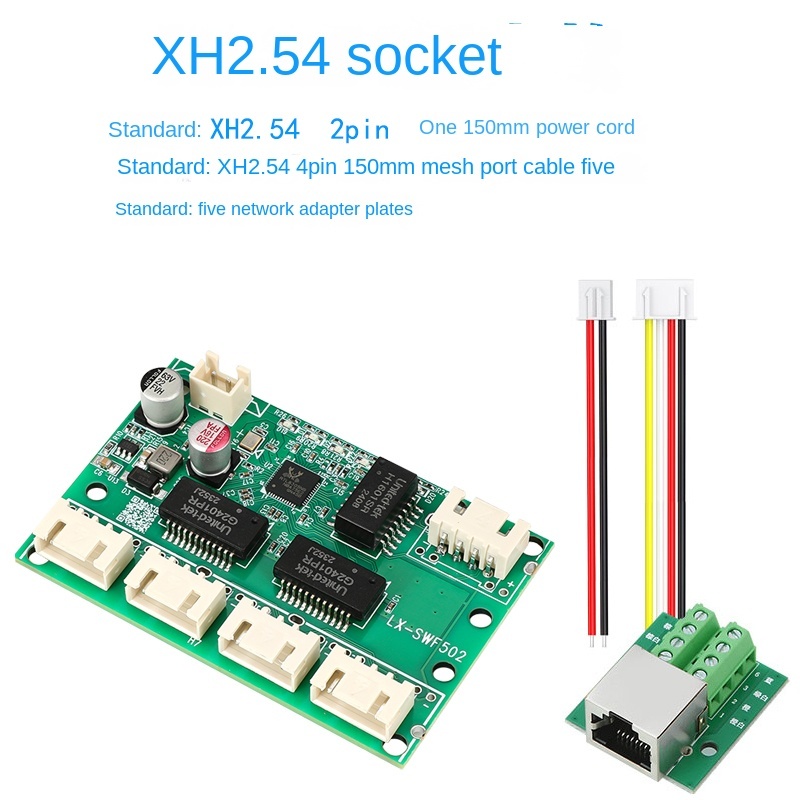

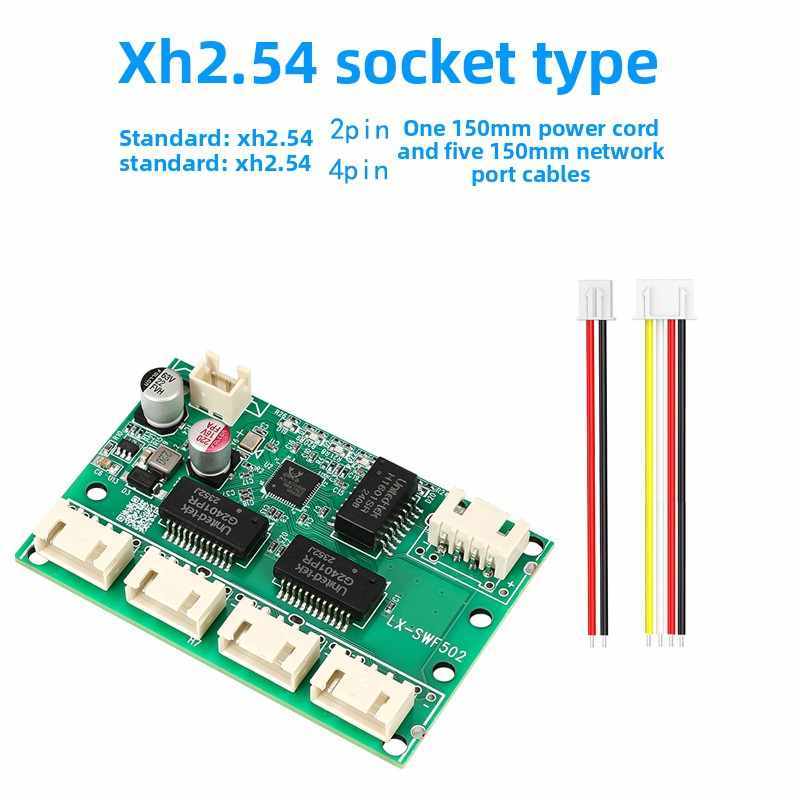

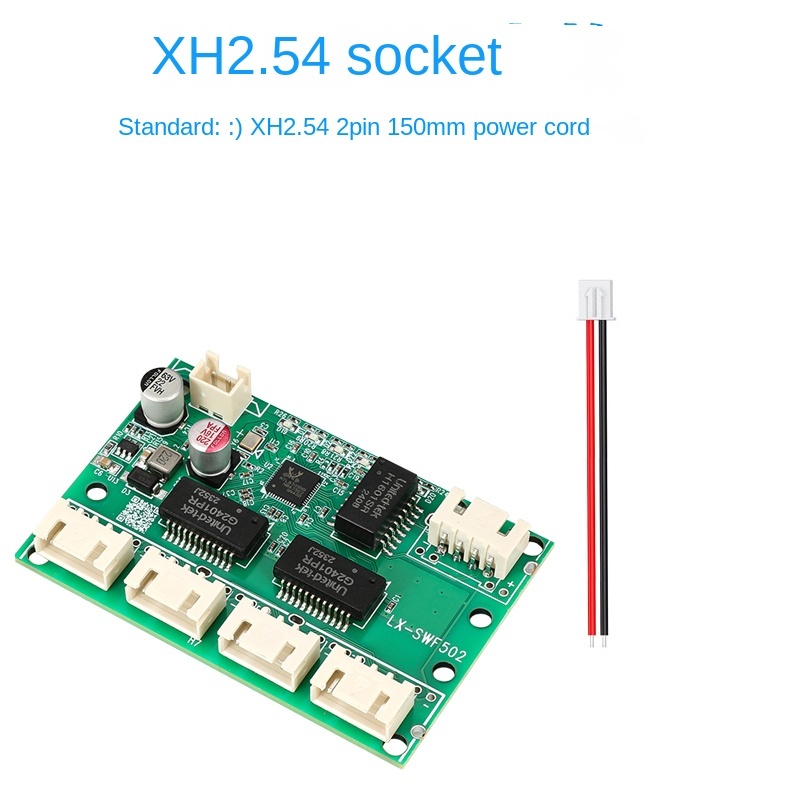

• The XH2.54mm version is directly soldered to PLC backplanes, forming the communication core of Modbus TCP gateways.
• The non-blocking architecture ensures data latency <1.5ms for 32-node RS485 sensors (tested per RFC 2544).

2. Smart Security Monitoring Networks

• The RJ45 version drives 4-channel 1080P IPC cameras (H.265 encoding), supporting ONVIF protocol plug-and-play.
• Full-duplex flow control eliminates multi-channel video stream congestion (compliant with GA/T 1400.3-2025 standard).

3. New Energy Station Communications

• The wide-temperature design adapts to -30°C photovoltaic inverter cabins (passed GB/T 34590 vehicle vibration test).
• The RJ45 interface establishes a DC 48V microgrid with conversion efficiency ≥95%.
•
