| Model |
LX-SG803-1 |
| Fixed Ports |
8 x 10/100/1000M Base-T PH2.0mm 8-pin socket ports (Data/Power) |
| Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3x |
| Port Characteristics |
10/100/1000MBase-T Auto-Negotiation, Full/Half Duplex, MD/MDI-X Auto Adaptation |
| Forwarding Mode |
Store-and-Forward (Full Wire Speed) |
| Backplane Bandwidth |
10Gbps (Non-Blocking) |
| Forwarding Rate |
Ethernet 10Mbps (Half Duplex), 20Mbps (Full Duplex), 10Mbps 14,880pps
Fast Ethernet 100Mbps (Half Duplex), 200Mbps (Full Duplex), 100Mbps: 148,800pps
Gigabit Ethernet 2000Mbps (Full Duplex), 1000Mbps: 1,488,000pps |
| Link Aggregation |
All ports can be used as UP-LINK ports |
| Packet Forwarding Rate @64byte |
4Mpps |
| MAC Address Table |
2K |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters) |
| 整机功耗 |
Standby Power Consumption: <3W, Full Load Power Consumption: <8W |
| LED Indicators |
Power Indicator: PWR (Green), Network Indicator: Link/Link/Act (Green) |
| Dimensions (L-W-H) |
68*70*10mm |
| Net/Gross Weight |
<30g/<32g |
| Working Environment |
|
| Operating Humidity |
10%-90%RH (Non-Condensing) |
| Operating Temperature |
-30°C-70°C |
| Storage Humidity |
10%-90%RH (Non-Condensing) |
| Storage Temperature |
-40°C-85°C |

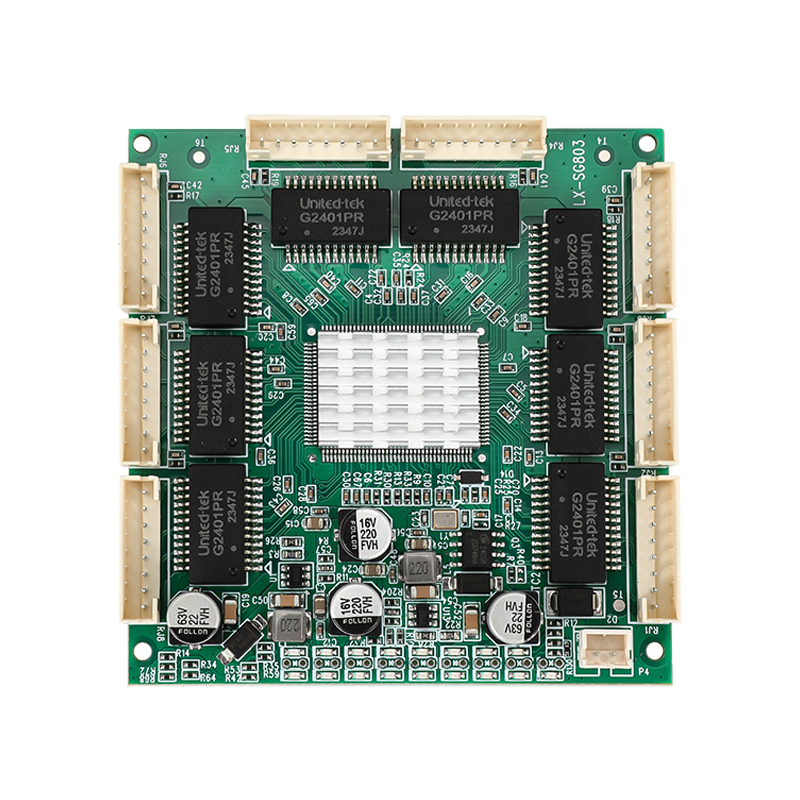

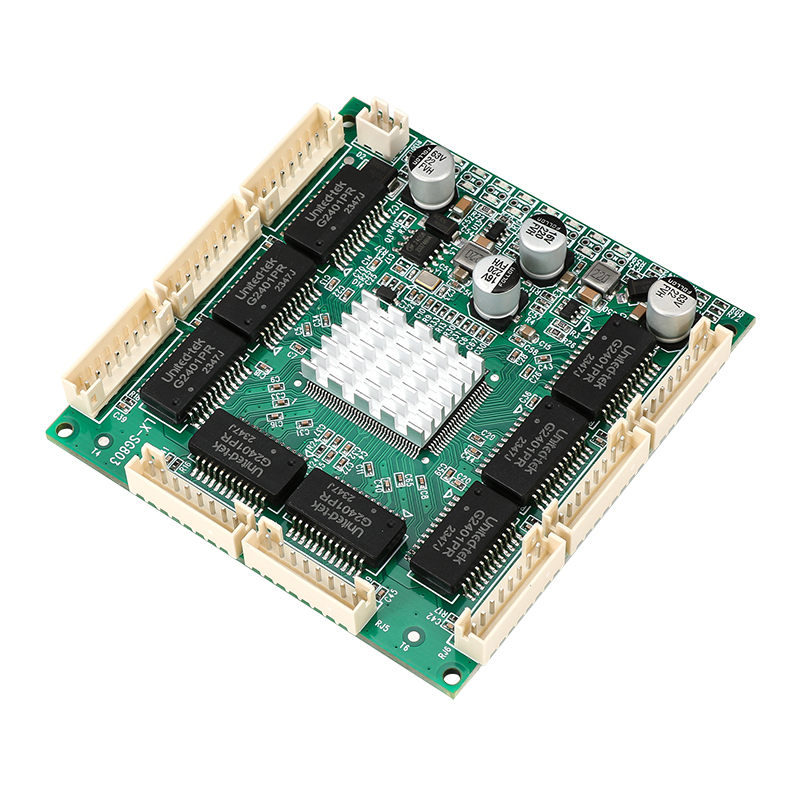

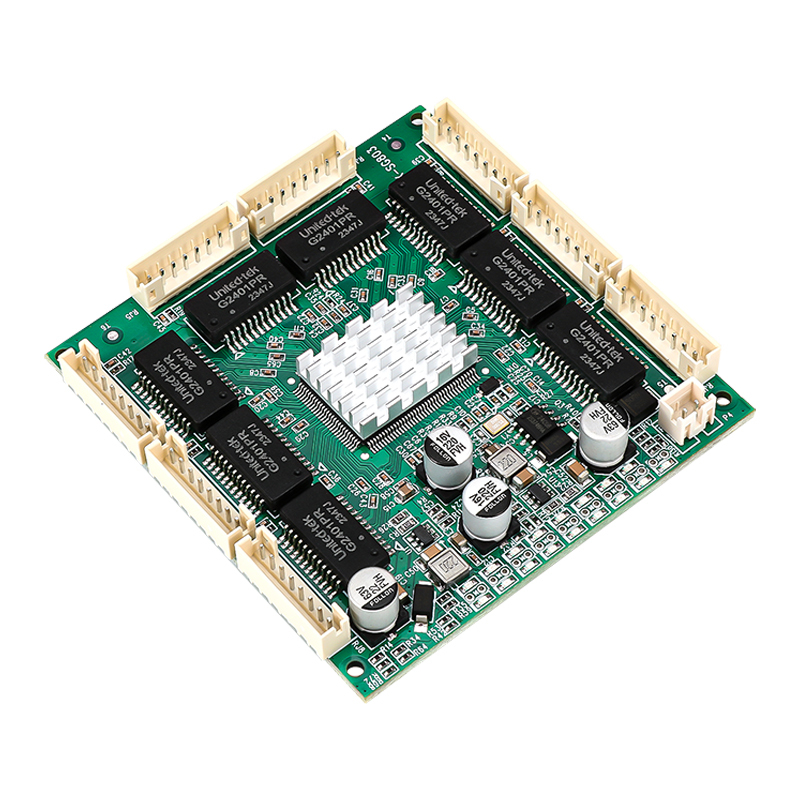

LX-SG803-1 8-Port Gigabit Ethernet Switch Module | Compact Unmanaged Solution for Versatile Industrial Connectivity
The LX-SG803-1 is a high-performance unmanaged 8-port Gigabit Ethernet switch module engineered for space-efficient industrial and commercial deployments. Featuring 8 fully adaptive Gigabit RJ45 ports, it delivers non-blocking wire-speed switching (16Gbps capacity) with auto-negotiation (10/100/1000Mbps) and auto-MDI/MDI-X crossover detection, ensuring seamless connectivity for IP cameras, PLCs, and edge devices.
Key Features:

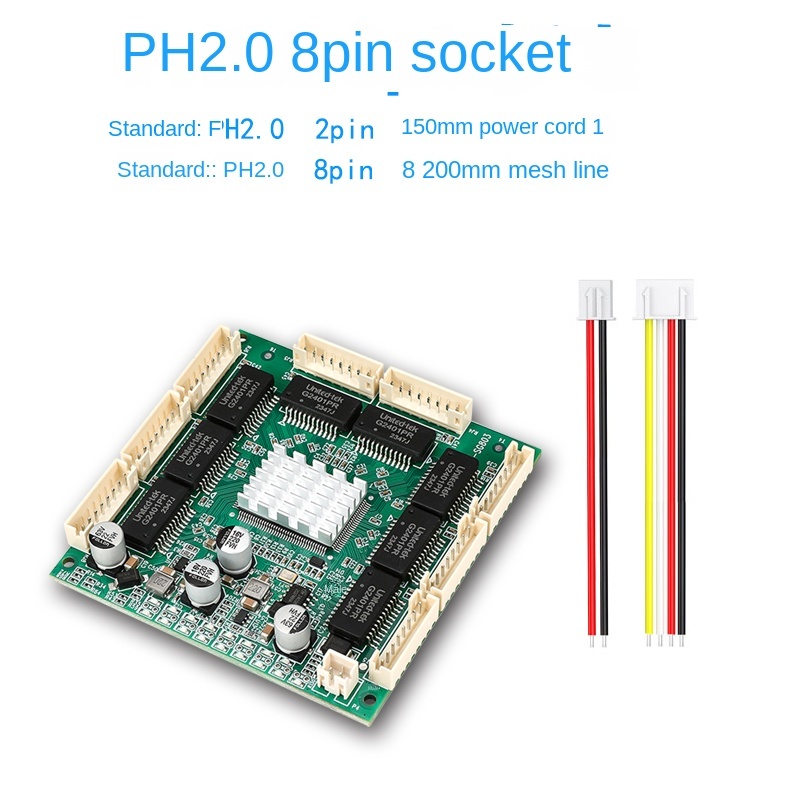

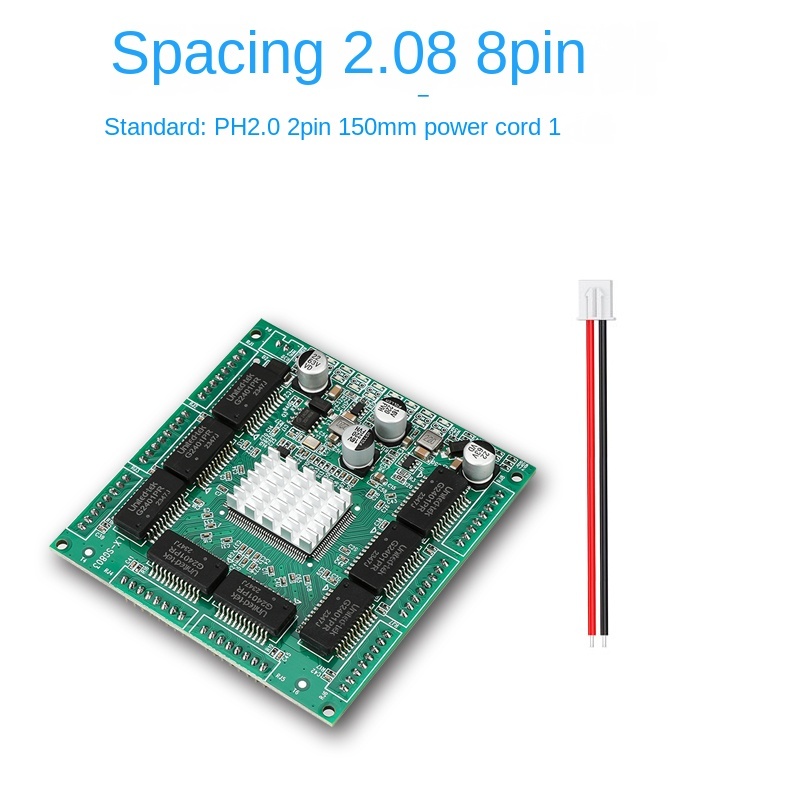

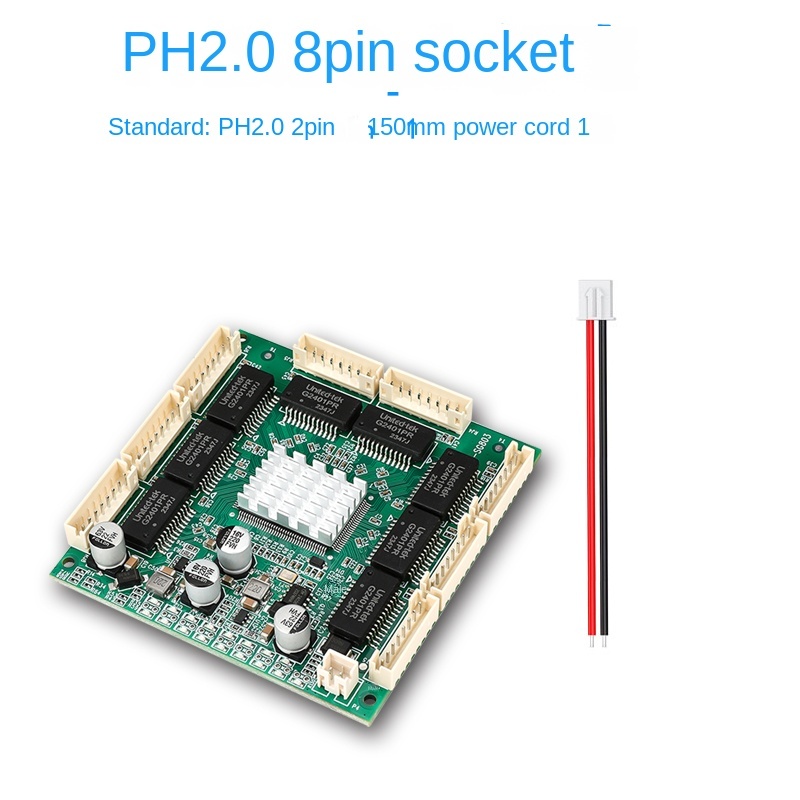

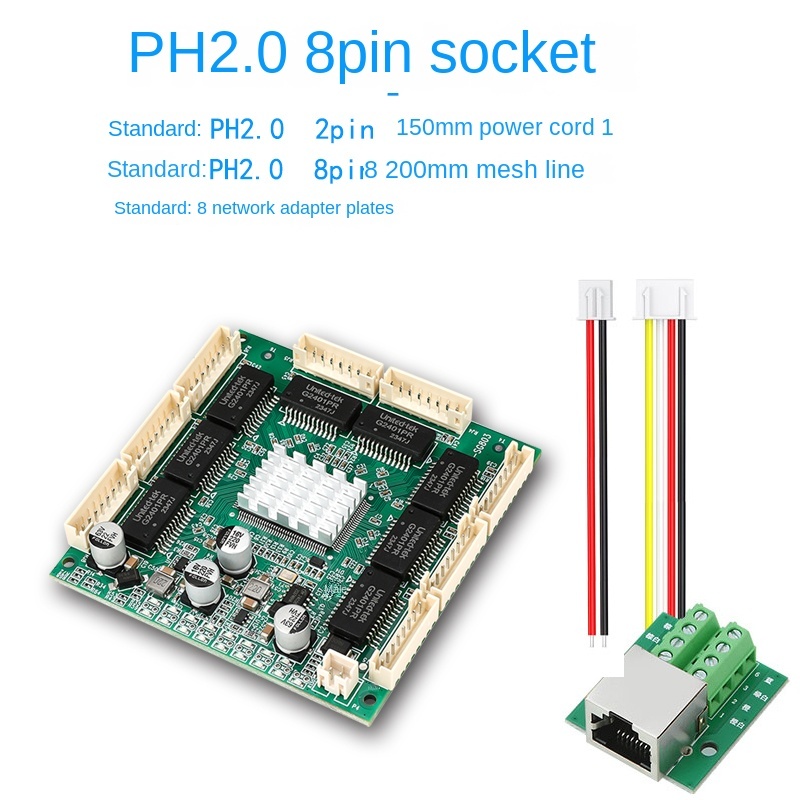

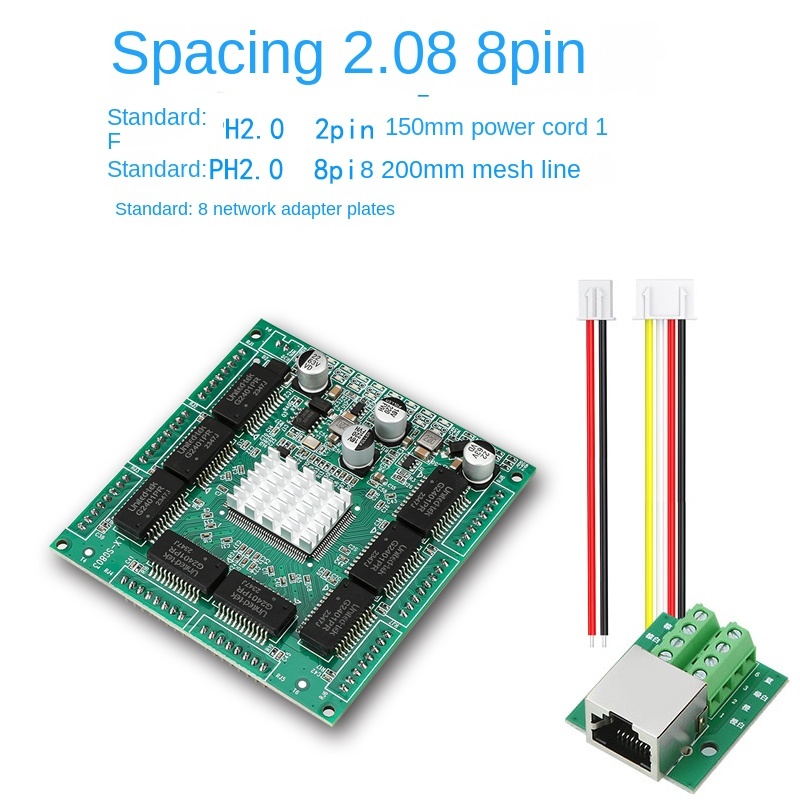

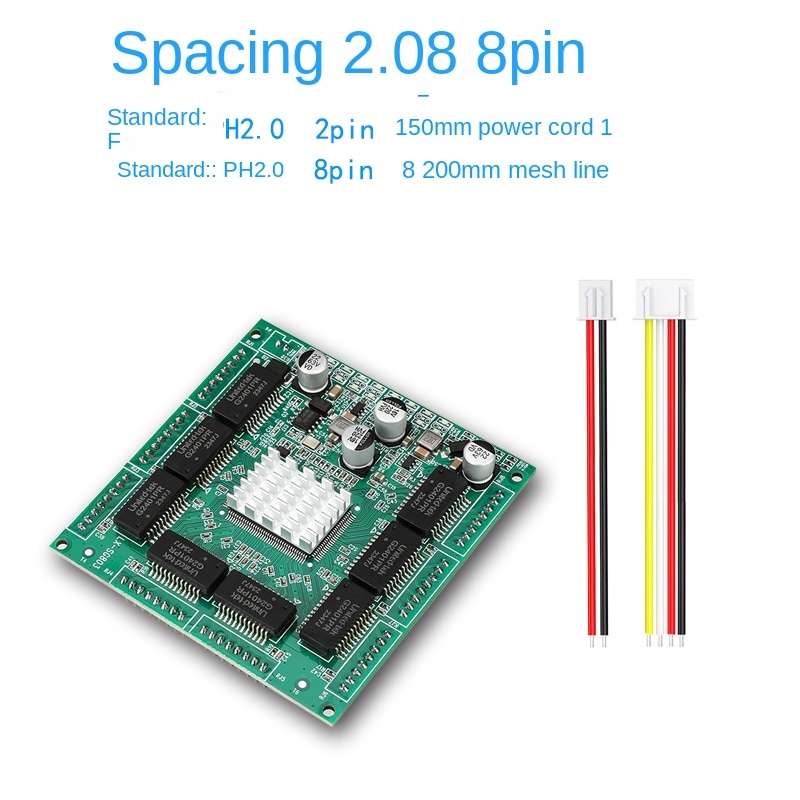

- Modular Flexibility: Available in PH2.0mm 8-pin socket or onboard header variants, allowing custom PCB integration. Users can define Ethernet interfaces (e.g., RJ45, SFP) via pin mapping to suit diverse applications.
- Rugged & Compact: Ultra-small form factor (50×30mm) with industrial-grade components, operating temperature range of -20°C to 70°C, and ESD/surge protection for harsh environments.
- Plug-and-Play Simplicity: Zero configuration required. Supports IEEE 802.3x flow control and store-and-forward switching for efficient data handling.
- Cost-Effective Design: Optional passive PoE support (via pin configuration) eliminates external power adapters, reducing deployment costs.
Applications:
- Industrial IoT: Connects CNC machines, robotic systems, and sensor networks in manufacturing.
- Smart Infrastructure: Powers access control, HVAC, and LED displays in buildings.
- Surveillance: Enables multi-camera Gigabit networks for high-resolution video streaming.
Technical Highlights:
- Ports: 8×Gigabit RJ45 (auto-sensing)
- Power: 5-36V DC input (2-pin header)
- Latency: <2μs (low-latency architecture)
- Mounting: Surface-mount or DIN-rail compatible (with bracket)
Ideal for OEMs and system integrators, the LX-SG803-1 combines reliability, adaptability, and affordability to streamline network deployment in industrial automation, smart cities, and embedded systems.
