| Product Model |
LX-IS4G2C
LX-IS4G2C-POE |
| Fixed Ports |
4 x 10/100/1000M Base-T electrical ports (Data/Power)
2 x 100/1000Mbps SC fiber interfaces |
| Network Protocols |
IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.1d Spanning Tree;
IEEE802.1q |
| Port Characteristics |
10/100/1000M Base-T auto-detection, full/half-duplex MDI/MDI-X auto-adaptation |
| Forwarding Mode |
Store-and-forward (full wire-speed) |
| Backplane Bandwidth |
10Gbps (unobstructed) |
| Packet Forwarding Rate@64byte |
1Mbit |
| MAC Address Table |
4K |
| Twisted-pair Transmission |
10BASE: Cat3,4,5 UTP(≤100 meter)
100BASE-T: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5 or later UTP(≤100 meter) |
| POE Ports |

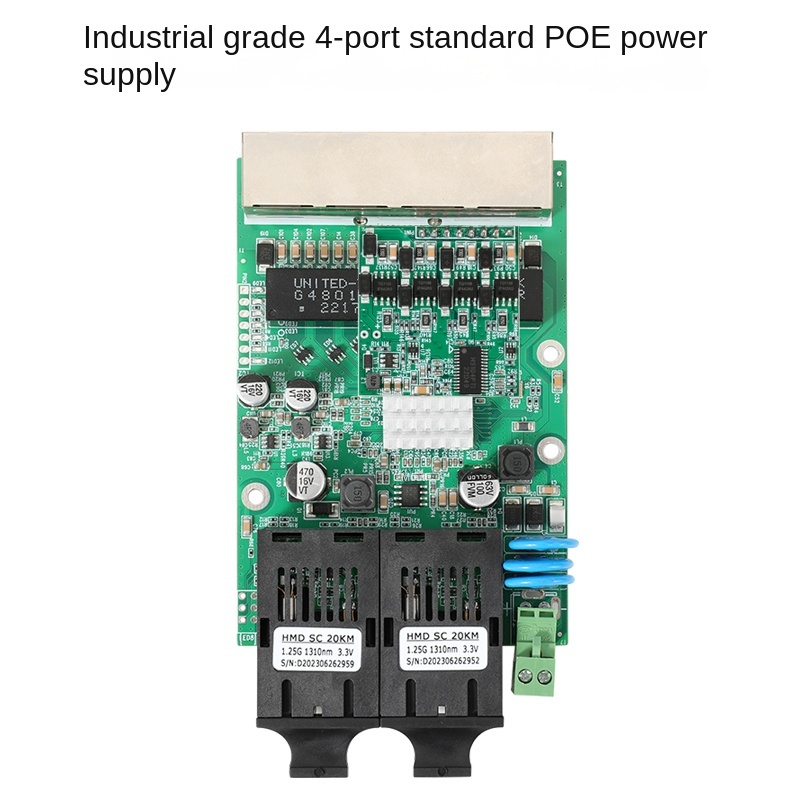

Ports 1-4 support IEEE802.3af/at standard PoE power supply |
| Power Supply Pin |
Supports 1/2(+), 3/6(-).4-core power supply |
| Whole Machine Power Consumption |
Standby power consumption: < 3W; Full-load power consumption: < 8W |
| LED Indicators |
Power indicator: PWR(green); Network indicator: Link,Link/Act (green) |
| Appearance Dimensions (L×W×H) |
70×105×16mm |
| Net Weight/Gross Weight |
< 88g / < 90g |
Working Environment
|
|
| Working Humidity |
10%-90%RH (non-condensing) |
| Working Temperature |
-40°C - 85°C |
| Storage Humidity |
10%-90%RH (non-condensing) |
| Storage Temperature |
-40°C - 85°C |

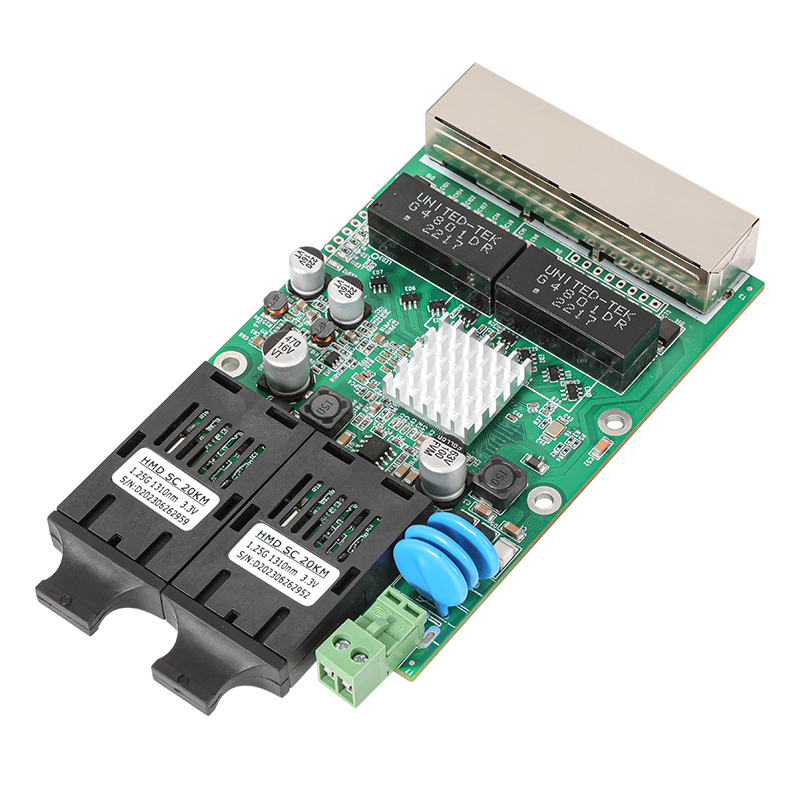

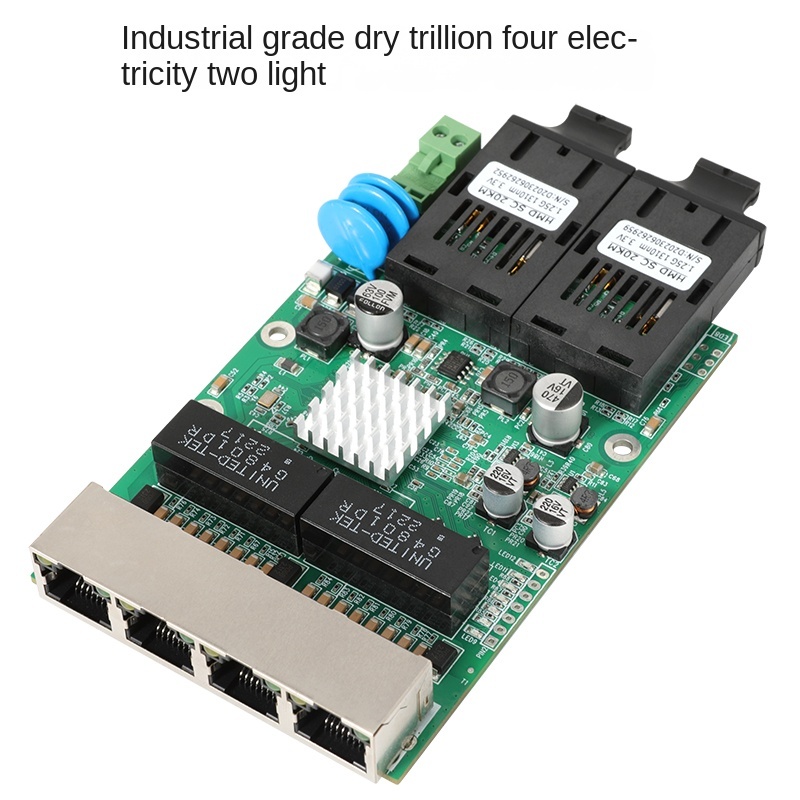

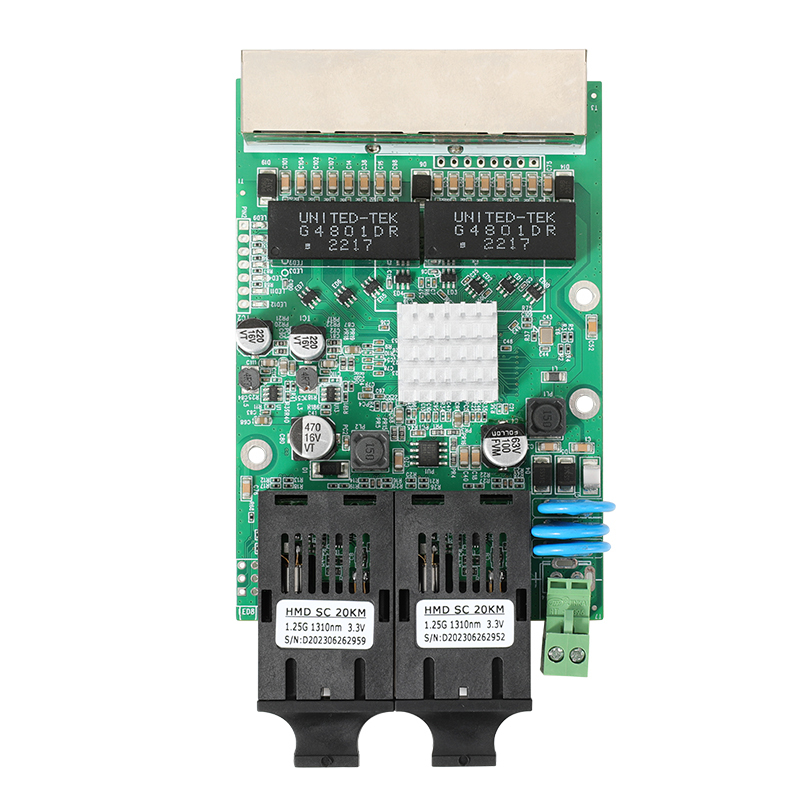

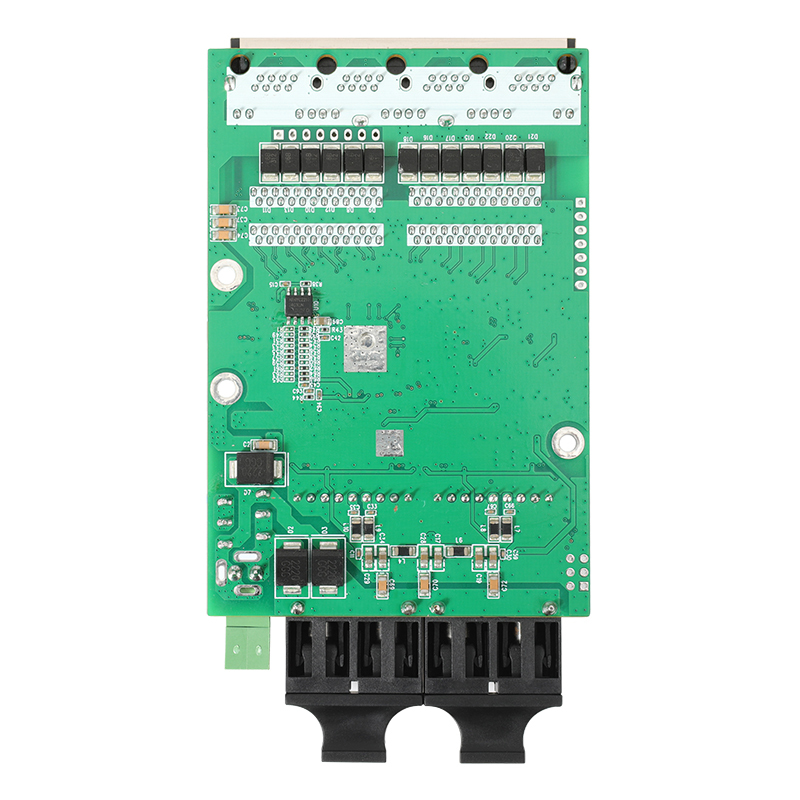

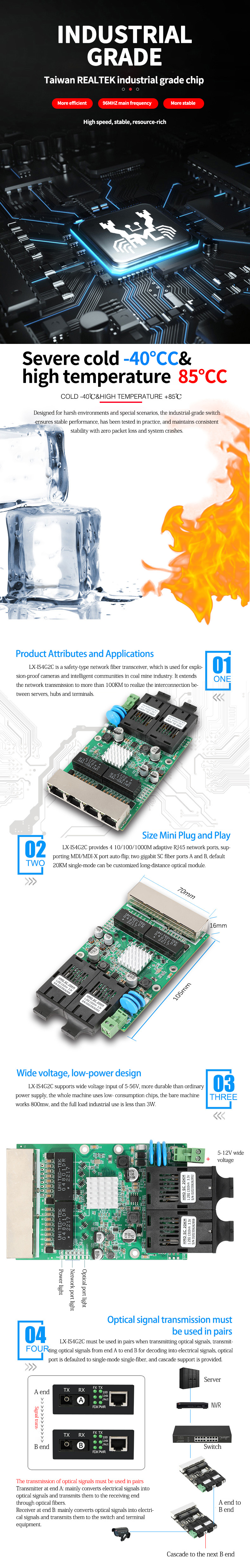

LX-IS0402C Industrial Gigabit 2-Optical 4-Electric Module
The LX-IS0402C is an industrial-grade Gigabit Ethernet module featuring 2 optical ports and 4 electric ports, designed for harsh environments. It supports 10/100/1000Base-T adaptive RJ45 interfaces and 1000Base-SX/LX single-mode single-fiber SC connectors, enabling seamless conversion between twisted-pair electrical signals and optical signals. With a compact form factor (70×105×16mm) and DIN-rail/wall-mount options, it operates reliably in temperatures ranging from -40°C to 85°C, consuming less than 5W.
Key Features:
- Dual-Media Flexibility: Auto-negotiates 10M/100M/1Gbps electrical signals and 1Gbps optical links.
- Extended Reach: Supports up to 20km transmission over single-mode fiber (1310nm/1550nm).
- Industrial Robustness: Complies with EMI/EMC standards (IEC 61000-6-2/4) and withstands 50V/m surge.
- Management: Optional Web/SNMP management for port monitoring and VLAN configuration.
Applications:
- Factory Automation: Connects PLCs, HMIs, and vision systems across long distances.
- Power Utilities: Enables reliable communication in substations and renewable energy farms.
- Transportation: Deploys in railway signaling and traffic control networks.
LX-IS4G2C Gigabit Single-Mode Single-Fiber Media Converter
The LX-IS4G2C is a Gigabit Ethernet media converter with 4 RJ45 ports and 2 SC 100/1000M adaptive optical ports, enabling bidirectional signal conversion between 10Base-T, 100Base-TX, and 1000Base-SX/LX. It supports WDM technology for bidirectional data transmission over a single fiber strand, reducing infrastructure costs.
Technical Specifications:
- Fiber Connectivity: SC connector, 1000Base-LX (10km) or 1000Base-SX (550m).
- Electrical Interfaces: 4×10/100/1000Base-T auto-MDIX ports.
- Power Budget: 12dB for optical links, 15.4W PoE+ support.
- Diagnostics: LED indicators for link status, activity, and duplex mode.
Use Cases:
- Campus Networks: Extends LAN coverage for buildings separated by long distances.
- Surveillance: Integrates IP cameras with NVR systems over fiber backbones.
- Smart City: Connects outdoor IoT devices to central control hubs.
Both modules prioritize reliability in extreme conditions, making them ideal for mission-critical industrial and infrastructure projects.
