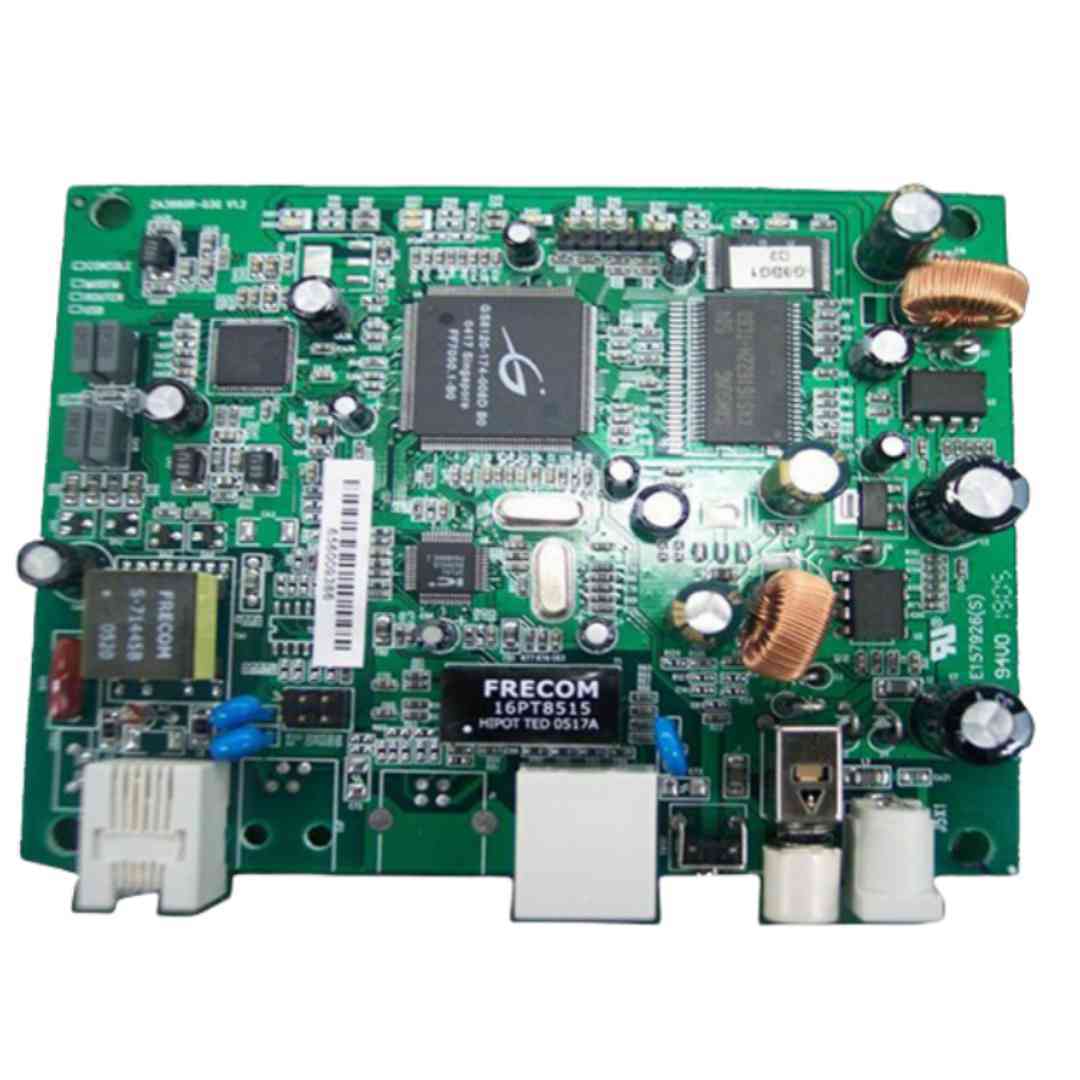

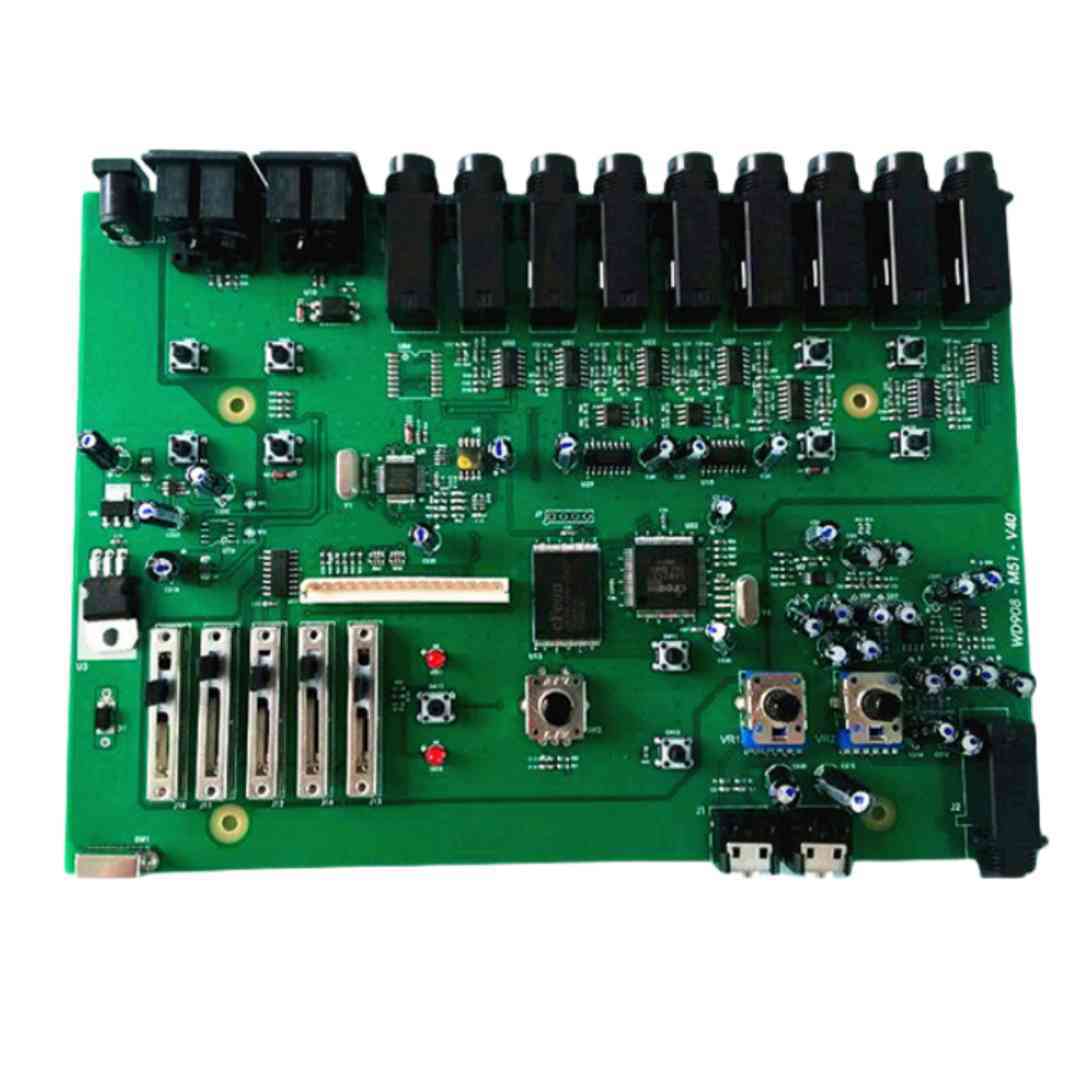

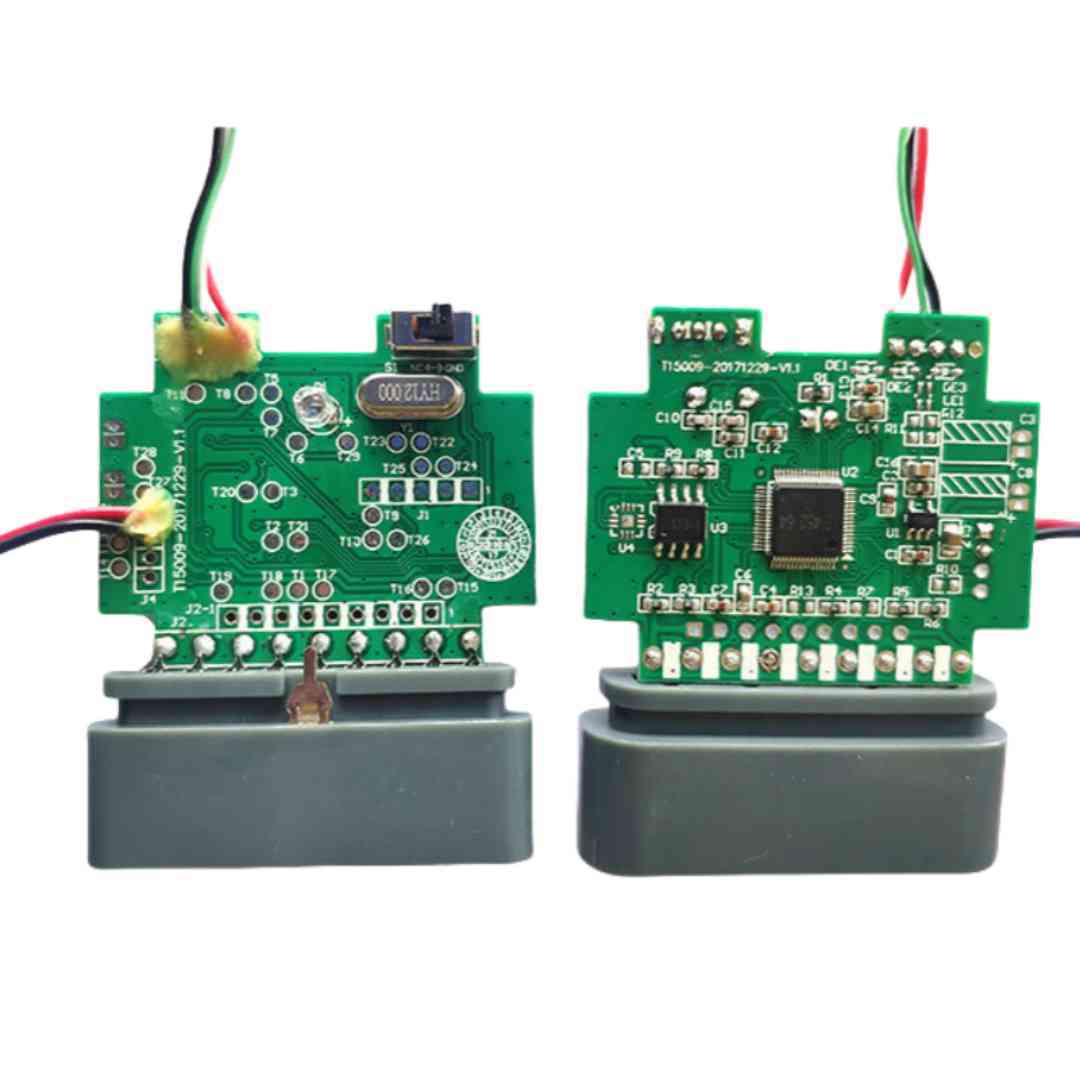

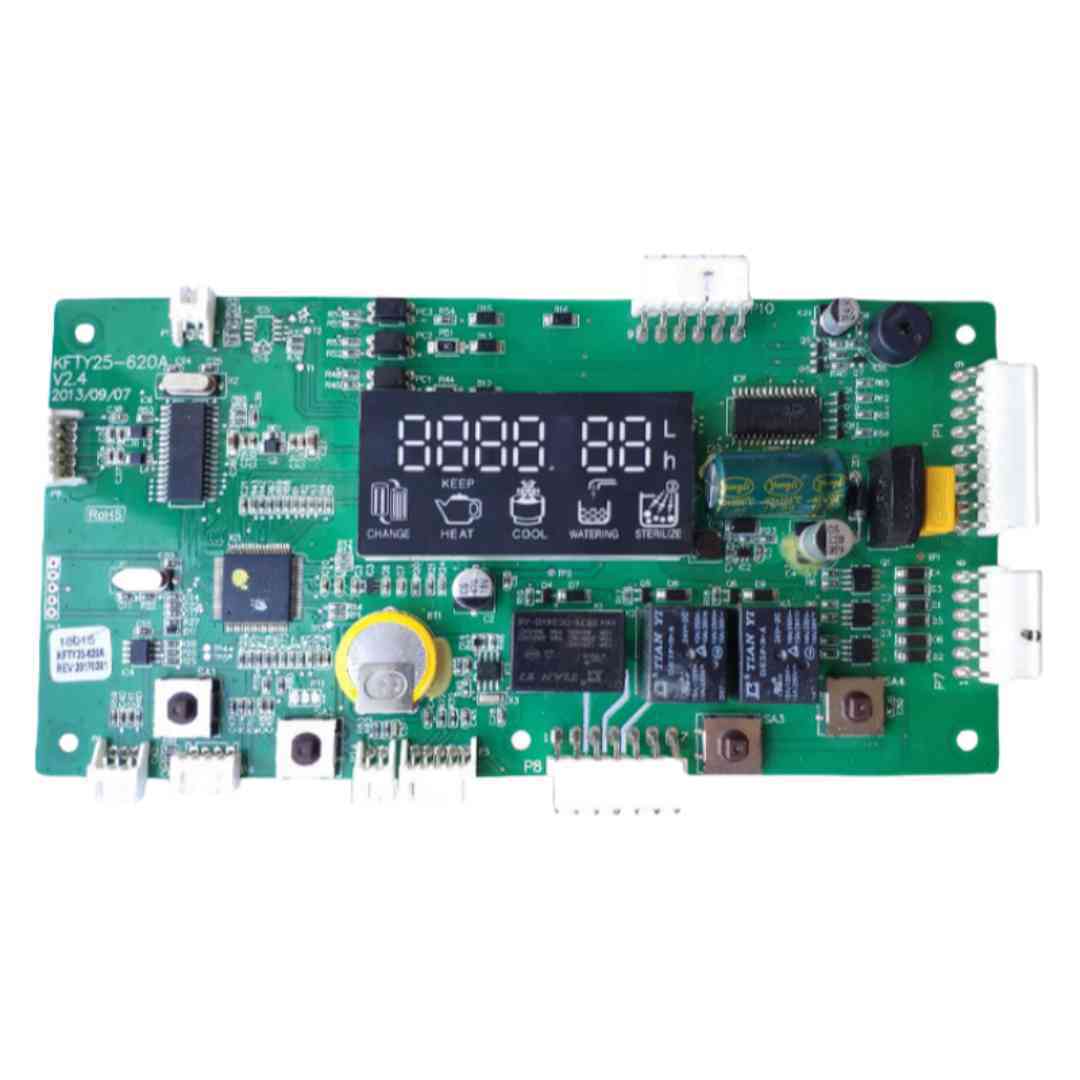

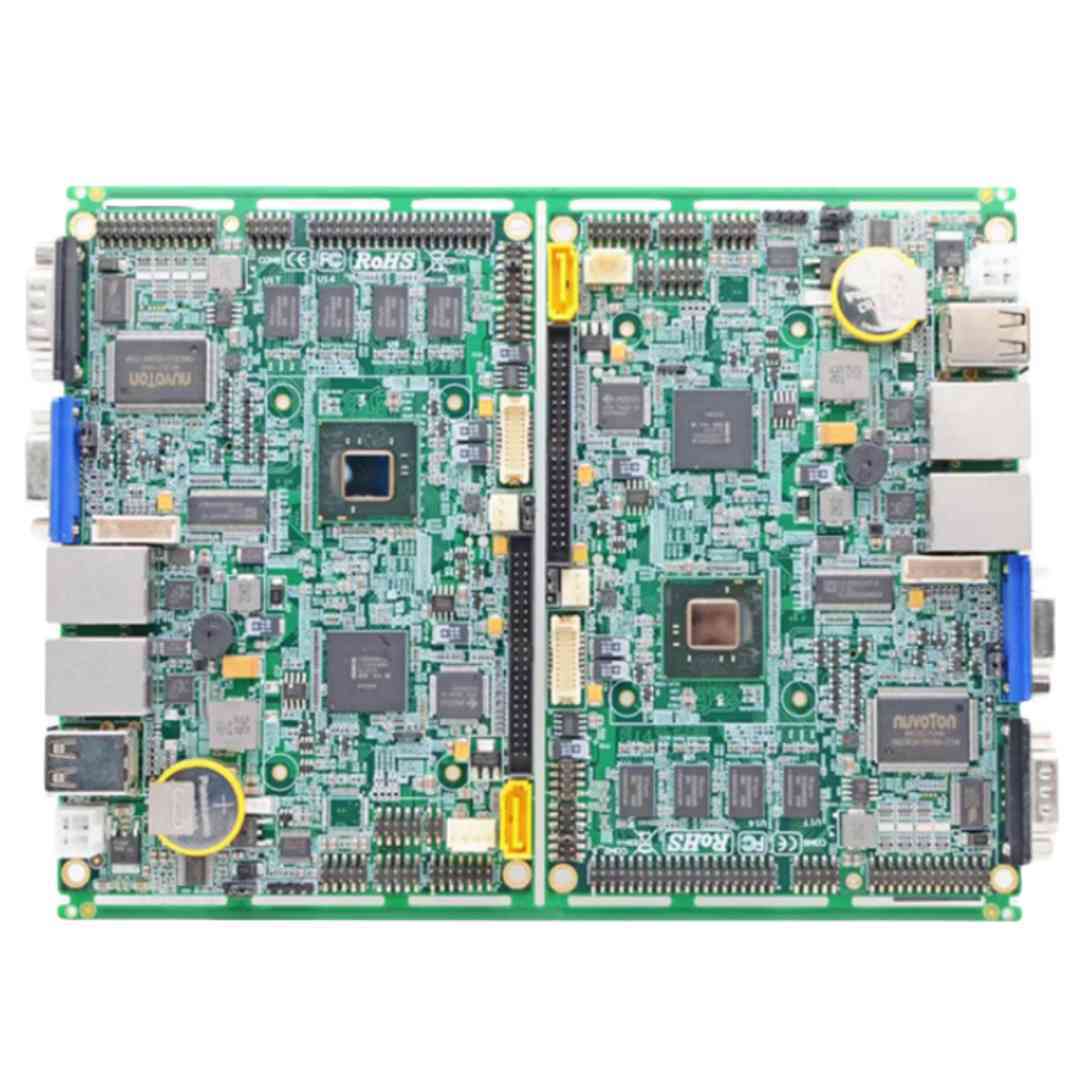

Lead-Free Quick Turn Service

Name: Lead-Free Quick Turn Service
Brand: FR4PCB.TECH
SKU: 48hr Lead-Free Quick Turn PCB | RoHS/REACH Certified | 0.2s SMT & 30-Layer HDI
Price: 580 USD
Availability: InStock

0.0 (0)

0 Sold

$580.00

FR4PCB.TECH provides rapid PCB services utilizing lead-free processes: delivering prototypes within 24 hours and achieving mass production in just 5 days, while ensuring 100% compliance with RoHS 3.0 and 245 REACH environmental standards. By employing nano-silver solder paste (SAC305+) and high-heat-resistant Tg180 substrates, we address the high-temperature challenges inherent in lead-free processes. 2025 data highlights: over ten high-speed SMT production lines (0.2 seconds per chip), a first-pass yield rate of 99.98%, and military-grade IPC-A-610 Class 3 certification, enabling us to reduce overall costs by 30% for 6G/EV/medical clients.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

1. Breakthroughs in Lead-Free Process Technology

High-Temperature Soldering Solution:
Utilizes SAC307 solder paste (melting point: 217°C) paired with nitrogen reflow soldering (O₂ concentration compliant with REACH Annex XVII).

Certification Compliance Flow:

	graph LR
	A[Lead-Free Process] --> C[IPC-A-610 Class 3]
	A --> D[IEC 61249-2-21]
	C --> E[AS9100D Aerospace]
	C --> F[ISO 13485 Medical]

Extreme Environment Testing:

HALT Testing: -65°C to +175°C for 1,000 cycles (50% beyond IPC-9701A standards).
Aging Test: 85°C/85%RH for 1,000 hours, with insulation resistance >10¹²Ω (meeting medical device requirements).

4. Industry-Specific Solutions

Electric Vehicle Power Electronics:

Production of ASIL-D-rated controllers supporting 800V SiC modules (thermal conductivity: 4.2W/mK).
Delivery of 2.1 million units in 2025 for BYD/Tesla supply chain orders.

6G Millimeter-Wave Devices:

Fabrication of 77GHz AiP antenna boards with a dielectric constant tolerance of ±0.02 (Rogers RO3003™ material).
Insertion loss <0.3dB at 120GHz (2025 6G white paper benchmark).

Implantable Medical Devices:

Biocompatible rigid-flex PCBs certified to ISO 10993-5.
Brain-computer interface PCBs with microvias ≤30μm (2025 Neuralink collaboration project).

5. Cost Optimization Model

Dynamic BOM System:

Direct API integration with TI/Infineon, covering 98% of lead-free material requirements.
Material shortage alerts reduce procurement costs by 25% (2025 EMS report).
