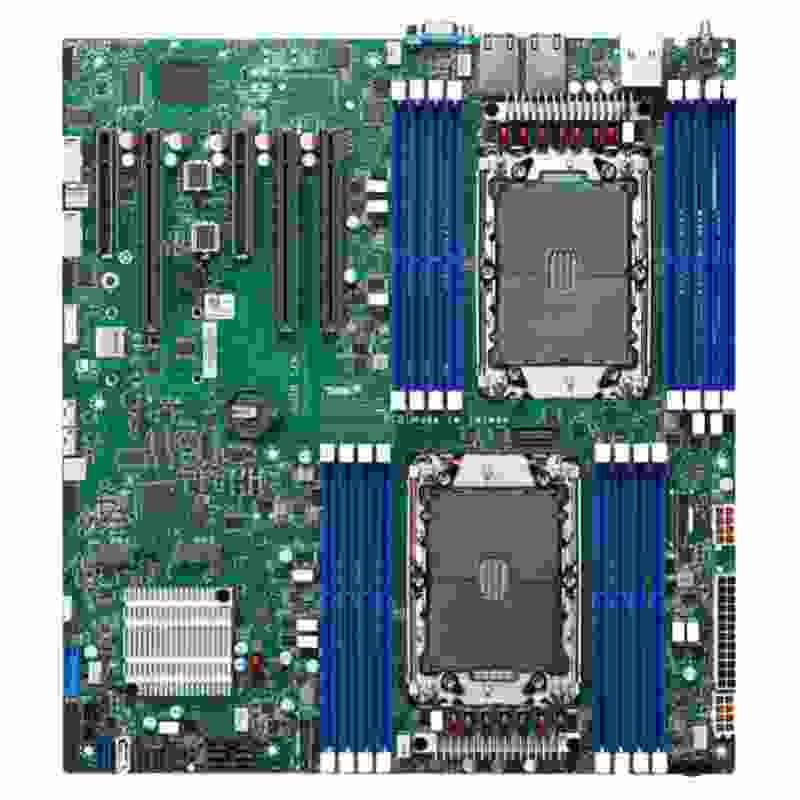

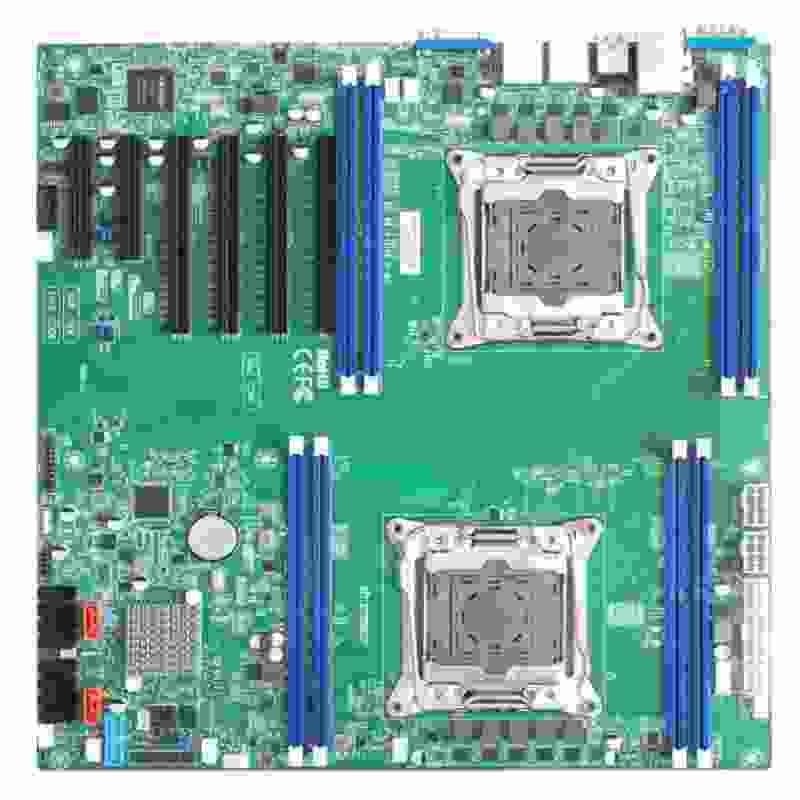

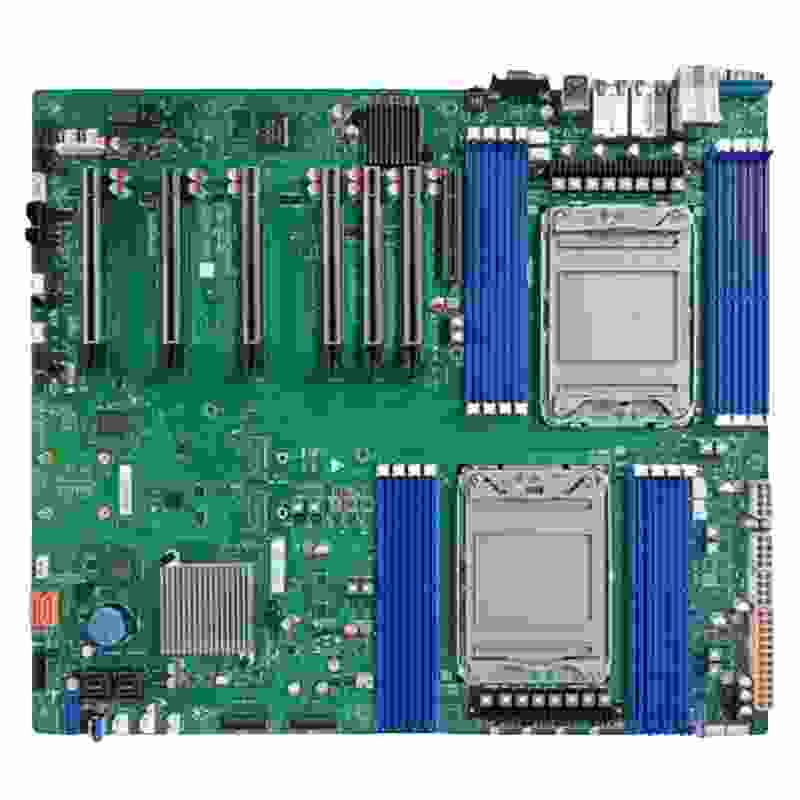

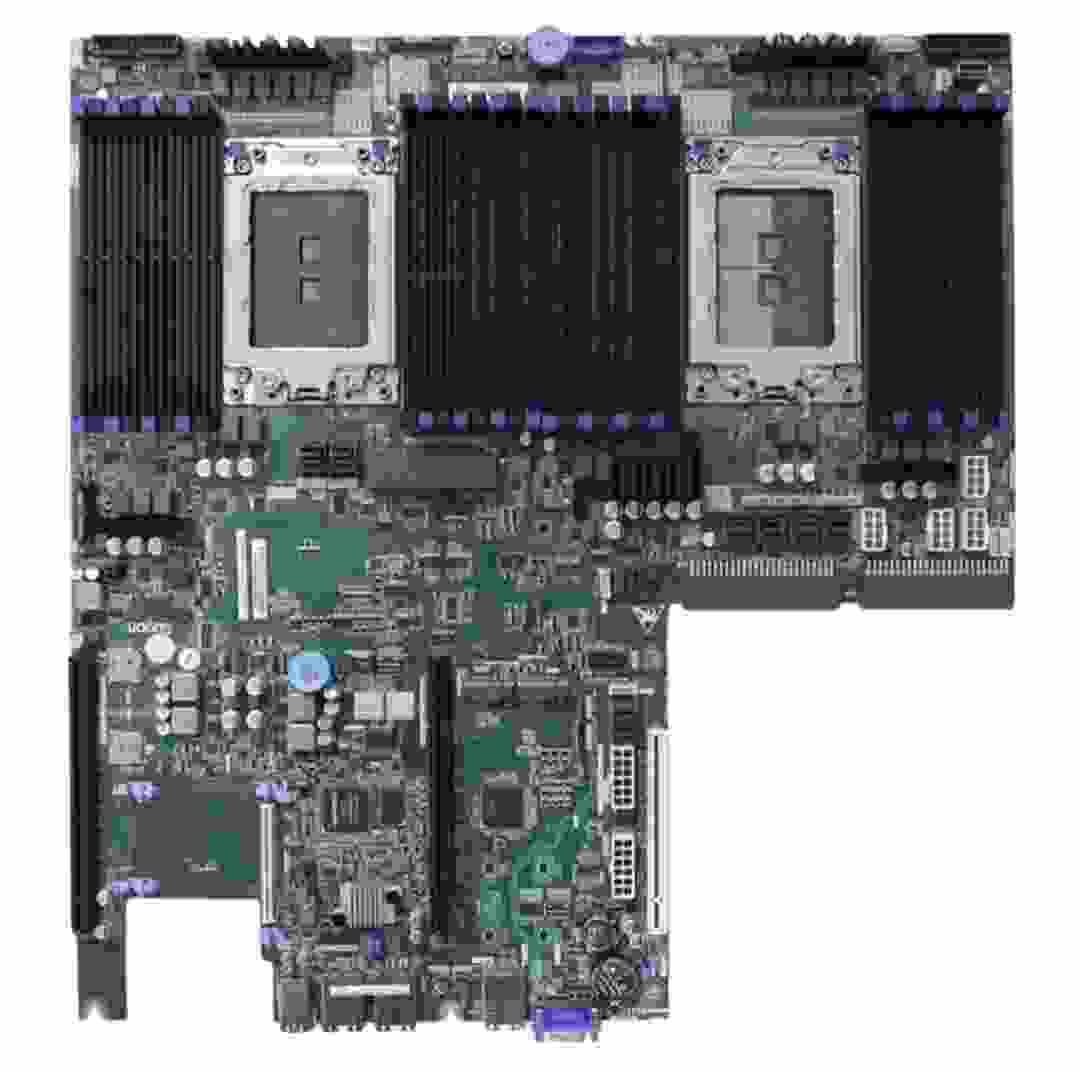

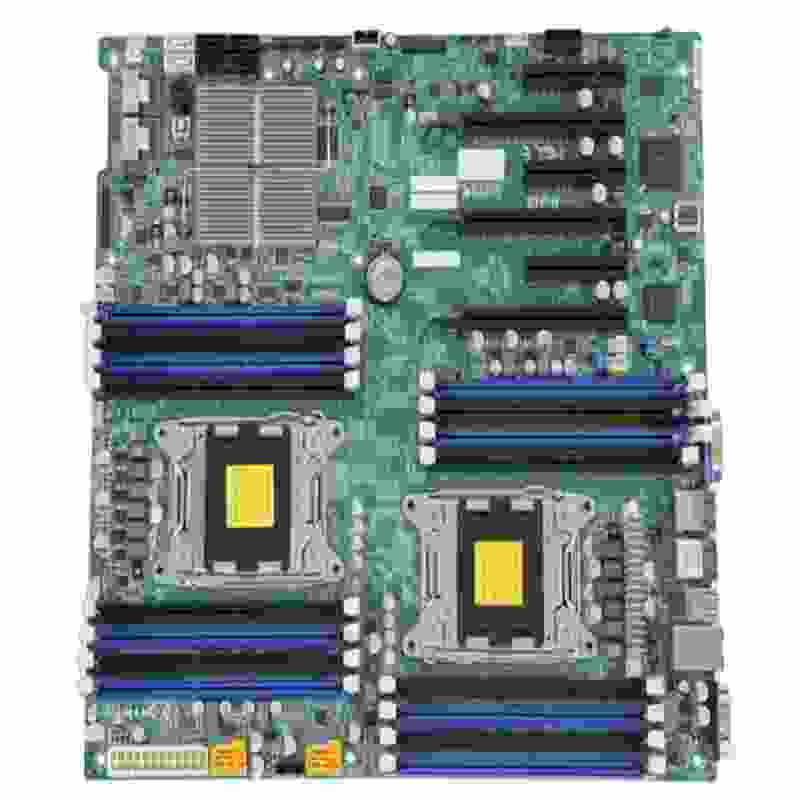

Liquid-cooled server PCB assembly

🔧 Detailed Technical Description

1. Thermal & Power Management

• Liquid-Cooled Microchannel Design: Integrates 304 stainless steel microchannel cold plates (0.5mm channel width, 0.3mm fin pitch) with electroless nickel immersion gold (ENIG) surface treatment (2–5μm thickness, corrosion resistance per ASTM B733). Coolant flow rate up to 15L/min (ΔT <5°C across PCB) with <0.5MPa pressure drop (CFD-optimized manifold design).
• High-Current Power Distribution: 12-layer HDI stack-up (2oz copper on power layers) with 1000A-rated busbars (0.2mm thick, 99.9% purity copper) and polyimide stiffeners (Tg=260°C). Impedance-controlled 50Ω differential pairs (±8% tolerance) for PCIe 5.0 (32GT/s) and 100Ω single-ended traces (USB4 signaling).
• Dynamic Voltage Regulation: 4-phase digital buck converter (98% efficiency @12V→1.8V, 200A/phase) with MLCC+polymer capacitor hybrid filtering (100μF total capacitance, ESR<1mΩ). Supports 12V/24V/48V DC input (reverse polarity protection, 120V surge tolerance) and <1mVpp output ripple (Intel VR13.1 compliance).

2. Environmental & Mechanical Reliability

• IP67 Coolant Sealing: Perfluoroelastomer (FFKM) O-rings (Shore A 70, compression set <5% after 100k cycles) with laser-welded stainless steel flanges (leak rate <1×10⁻⁹ mbar·L/s). Passes IEC 60529 immersion tests (1m depth, 72 hours) and ASTM D1149 ozone resistance (50pphm, 168 hours).
• Vibration & Shock Resistance: Underfill encapsulation (CTE=22ppm/°C) for BGA packages (voiding rate <3%) and stainless steel standoffs (M3 thread, torque retention >5N·m after 100 thermal cycles). Complies with IEC 60068-2-64 vibration (5–2000Hz @10g RMS) and MIL-STD-810G shock (50g, 11ms half-sine pulse).
• Thermal Cycling Stability: High-Tg FR4 substrate (Tg=180°C, Td=350°C) with 288μm prepreg thickness (Dk=4.2, Df=0.009). Passes JESD22-A104 thermal shock (-55°C to +125°C, 1000 cycles) with <0.1% pad lift-off (X-ray inspection).

3. Manufacturing & Quality Control

• Advanced PCB Fabrication: 12-layer HDI via-in-pad design (0.3mm laser-drilled microvias, 0.08mm annular ring) with sequential build-up (SBU) process and black oxide surface finish (Ra<0.2μm). Impedance controlled via TDR testing (±10% tolerance on 50Ω traces).
• Precision SMT Assembly: 03015 component placement (±0.03mm accuracy, IPC Class 2) with 12-zone reflow oven (peak temperature: 260°C±1°C). 100% 3D AOI inspection (03015 component detection) and 5D X-ray solder joint analysis (<0.5% voiding rate for QFN packages).
• Rigorous Testing Protocols: HALT testing (-65°C to +150°C thermal cycling, 500 cycles) and HTRB (2,000 hours @125°C). Achieves >99.98% first-pass yield and 15-year MTBF (calculated via Telcordia SR-332).
