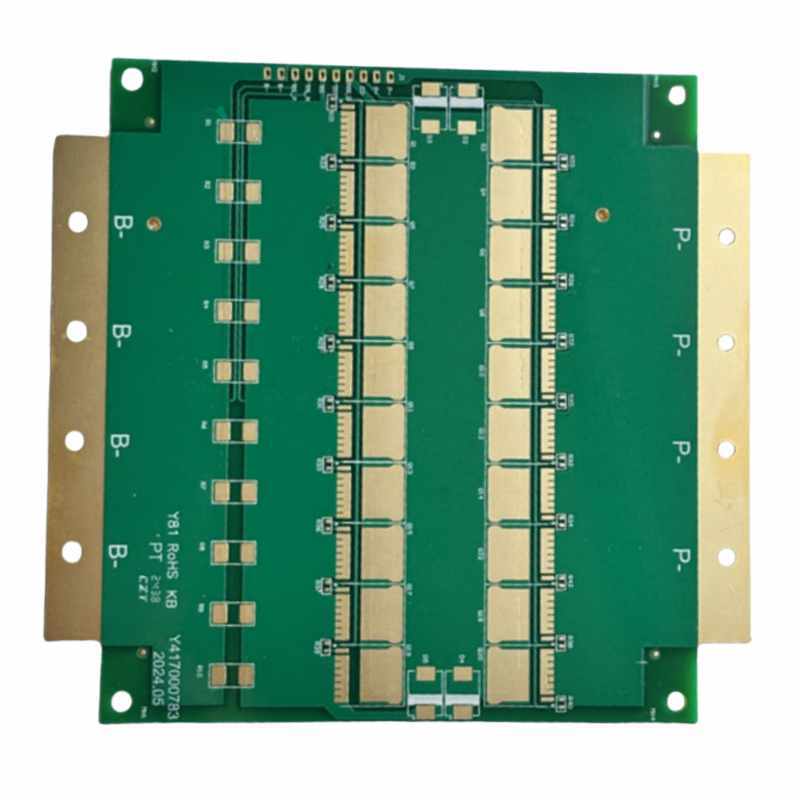

In power electronics and high-performance applications, managing heat and handling high currents efficiently are crucial for ensuring system reliability and longevity. Our double-sided copper substrate PCBs with embedded copper blocks are specifically designed to address these challenges. These PCBs feature a robust copper substrate on both sides, providing an excellent thermal pathway for heat dissipation. The embedded copper blocks further enhance this capability by acting as localized heat sinks, drawing heat away from high-power components and distributing it across the substrate more effectively.
This design not only improves thermal management but also increases the PCB's current-carrying capacity. The thick copper layers and embedded blocks offer a larger cross-sectional area for current flow, reducing electrical resistance and minimizing power losses. This makes them ideal for applications that require high power density and efficient energy utilization.
Moreover, the double-sided layout provides flexibility in component placement and circuit design, enabling more compact and integrated solutions. Our manufacturing process ensures precise alignment and bonding of the copper substrate and embedded blocks, resulting in a structurally sound and electrically reliable PCB.
Industry Applications:
- Power Supplies: Used in high-wattage power converters, battery chargers, and uninterruptible power supplies (UPS) where efficient heat dissipation is critical.
- LED Lighting: Support high-power LED drivers and arrays, ensuring stable operation and extending the lifespan of LED components.
- Motor Drives: Enable reliable control of electric motors in industrial automation, robotics, and electric vehicles by handling high currents and managing heat effectively.
For high-quality double-sided copper substrate PCBs with embedded copper blocks, contact us at
