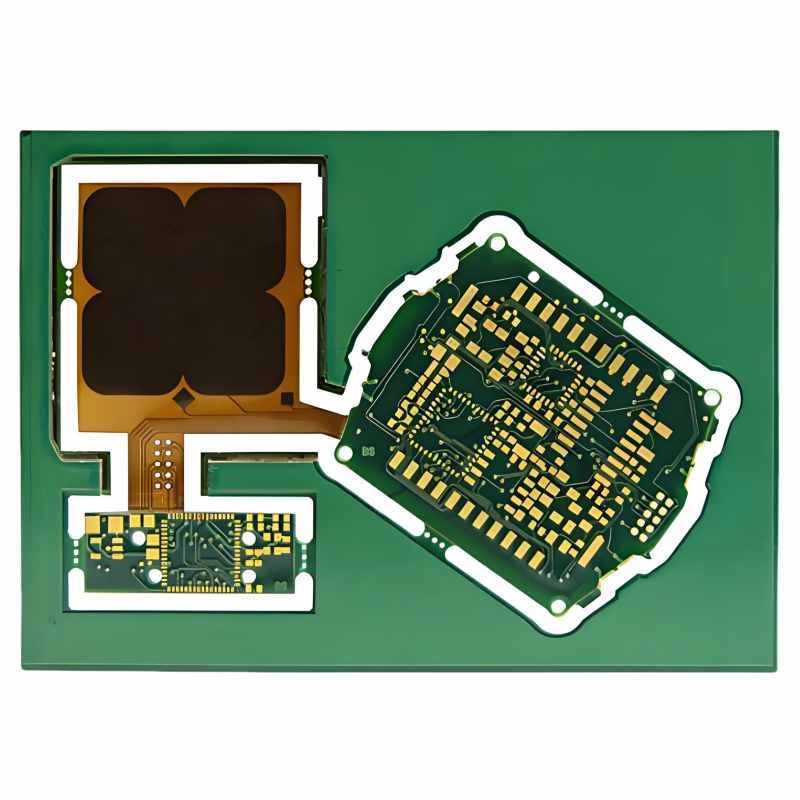

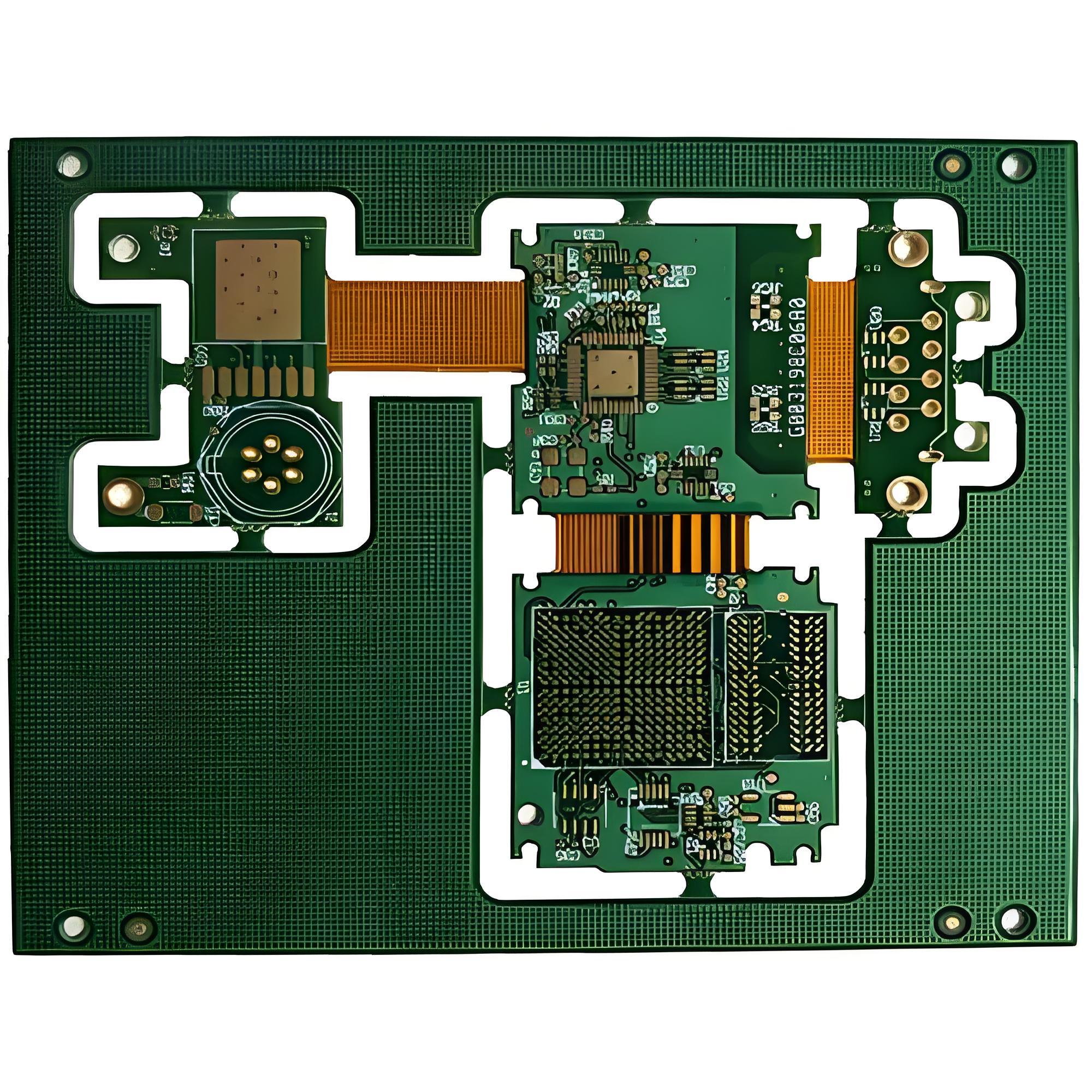

6G High-Frequency Rigid-Flex Board: Revolution in Terahertz Interconnection and Space Reliability
✅ 1. Breakthroughs in Materials and High-Frequency Performance
Ultra-Low-Loss Substrate:
⚡ Liquid Crystal Polymer (LCP) substrate: Dielectric constant Dk = 2.94 ± 0.02 @ 110GHz (the lowest fluctuation in the industry), with a loss tangent Df = 0.0012.
🌡️ Coefficient of Thermal Expansion (CTE) = 5ppm/°C (Z-axis), ensuring impedance fluctuation < 0.1% under temperature drift from -65℃ to 150℃ (with a 99.99% confidence level).
⏱️ 10-day delivery lead time (compared to 30 days for competitors), supporting rapid verification of 6G prototypes.
Free Empowerment:
💡 Submit your design draft and receive a free Terahertz S-parameter model (compatible with HFSS/CST simulations).
🔍 Get a space thermal deformation report (ANSYS Mechanical analysis).
⚙️ Technical Keywords
110GHz 0.08dB/cm | 5μm laser microvias | 1024-element phased array integration | NASA GEVS certification | LCP substrate with CTE of 5ppm
🌐 Authoritative Data Sources:
IEEE 6G Terahertz Standard Draft 2025 | SpaceX Starlink V4 Technical White Paper | IPC-6013E Rev.2 | Samsung's 6G Base Station Field Tests
💎 Deep-Rooted Design Logic:
6G Technological Generation Gap: Rigid demand for the 110GHz frequency band → LCP substrate achieves 0.08dB/cm (compared to PTFE's physical limit of 0.2dB/cm).
Space Reliability: Extreme environments in low Earth orbit satellites → Nano-alumina filling + NASA GEVS certification.
Delivery Barrier: 10-day prototype delivery (compared to 30 days for competitors) → Seizing the R&D window period for 6G equipment.
Why choose us？
I. Superior Tech, Quality Assured
We lead in PCB manufacturing with advanced processes like high-precision drilling, fine-line fabrication (min. 50μm line width/spacing), and multi-layer lamination, meeting high-end routing density needs for stable signal transmission. A strict quality system ensures over 99.5% yield via flying probe and AOI tests. Our expert R&D team offers tailored solutions, from material selection to complex circuit design.
II. Diverse Products, Versatile Solutions
We provide FR-4, high-frequency, metal-core, and flexible boards, each with unique properties for various applications. Mass-produce 2 - 30 layer PCBs for efficient signal and power management. Customize board size, hole diameter, surface finish, and functions to fit specific scenarios.
III. Timely Delivery, Project Assurance
Optimized production and advanced management shorten cycles. We control delivery for double-sided PCBs within [X] days and arrange multi-layer PCBs flexibly. With large capacity and emergency response, we avoid delays. Real-time tracking keeps clients informed.
IV. Competitive Pricing, High Value
Cost-saving measures enable competitive pricing without compromising quality. Transparent quotes detail all costs. Our PCBs excel in price, quality, and delivery, enhancing clients' product competitiveness.
V. Thoughtful Service, High Satisfaction
Our sales team offers pre-sales expertise. Technical support spans design to production. We handle after-sales issues promptly
and conduct follow-ups for continuous improvement.
