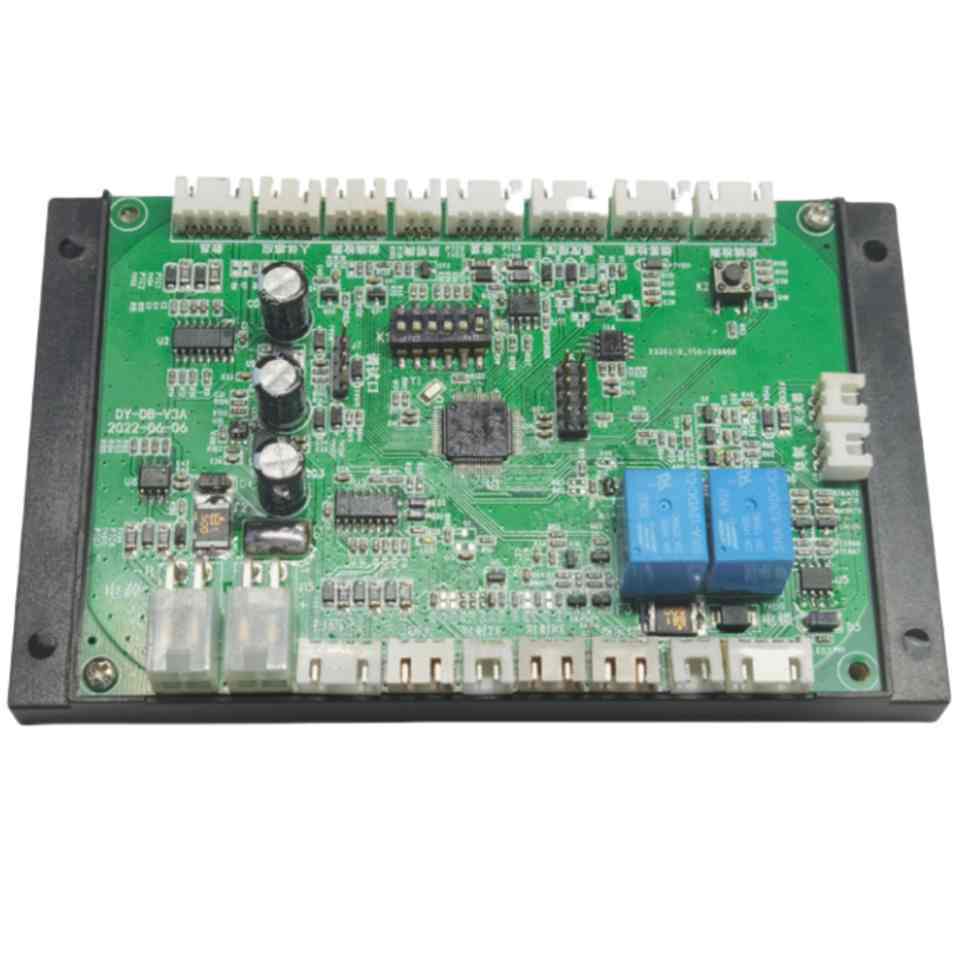

Technical Analysis of PCB Manufacturing and Assembly (PCBA) for Modular Programmable Controllers
This analysis focuses on professional techniques for PCBA of modular programmable controllers (e.g., PLCs, PACs), integrating industrial automation requirements with cutting-edge processes. Keywords are naturally incorporated into the text.
I. Core PCB Requirements for Modular Architecture
Modular programmable controllers need to achieve functional expandability and industrial environmental robustness through PCBs:
- Backplane High-speed Interconnection: Utilize impedance-controlled differential pairs (100Ω ± 5%) to support PCIe Gen3/Ethernet buses, with data transmission rates ≥ 8Gbps.
- Hot-swap Circuit Design: Integrate hot-swap controllers (e.g., TI TPS2491) at power interfaces to limit inrush current ≤ 5A, preventing damage during module hot-swapping.
- EMC Partitioning and Isolation: Design separate grounds for digital, analog, and power regions, with isolation slot widths ≥ 2mm to reduce high-frequency noise coupling.
II. Innovations in Key PCB Manufacturing Processes
- High-Density Interconnect (HDI) Technology
- Every Layer Interconnect (ELIC): Stack 12 or more PCB layers with laser blind vias (diameter ≤ 0.1mm) to achieve the shortest routing paths between I/O modules and the main controller.
- Embedded Passive Components: Integrate thin-film capacitors/resistors (precision ± 0.1%) within inner layers, reducing surface-mount devices by 30% and enhancing signal integrity.
- Specialty Material Applications
- High-Thermal-Conductivity Substrates: Use metal-clad copper boards (e.g., aluminum substrates with thermal conductivity ≥ 8W/mK) and locally embed heat dissipation copper blocks (dimensional tolerance ± 0.05mm).
- High-Frequency-Adaptive Materials: Employ low-loss dielectrics (e.g., Rogers RO4350B™, Df ≤ 0.0037) to ensure ADC sampling accuracy ≥ 16bit for analog acquisition modules.
- Surface Finishes and Soldering Enhancements
| Process |
Technical Parameters |
| Electroless Nickel/Electroless Palladium/Immersion Gold (ENEPIG) |
Ni 3-5μm / Pd 0.05μm / Au 0.03μm, withstands ≥ 500 mating cycles |
| Vacuum Reflow Soldering |
Oxygen content < 50ppm, BGA void rate ≤ 5% (X-ray inspection compliant) |
| Underfill Adhesive |
Epoxy resin with CTE matching the chip, withstands drop shock > 50G |
III. Industrial-Grade Reliability Design Strategies
- Environmental Adaptability Design
- Wide-Temperature Component Selection: Use main control FPGAs (e.g., Xilinx Artix-7) that support operation from -40℃ to 100℃ and comply with the AEC-Q100 standard.
- Conformal Coating Reinforcement: Apply Parylene C nano-coatings (thickness 12-15μm) that pass 96h salt spray and 85℃/85%RH dual-85 tests.
- Mechanical Stress Protection
- Board-Level Reinforcement Structures: Install stainless steel card slots along PCB edges to withstand 15Grms random vibration (IEC 60068-2-64).
- Connector Redundancy Design: Use high-speed backplane connectors with dual-contact spring pins for > 10,000 mating cycles.
IV. Functional Safety and Intelligent Diagnostics
- Safety Isolation Circuits
- Digital Input Channels: Integrate dual-channel optocoupler isolation (creepage distance > 8mm) certified by UL 508.
- Analog Output Modules: Use isolated Σ-Δ ADCs (e.g., ADI ADuM7701) with a common-mode rejection ratio > 120dB.
- Predictive Maintenance Design
- Embedded Temperature/Current Sensors (I2C Interface): Upload real-time health data via the OPC UA protocol.
- AI Algorithm Analysis: Analyze solder joint thermal cycle fatigue to predict potential failures (accuracy > 95%).
V. Advanced Manufacturing and Testing Processes
| Process |
Core Technologies |
| SMT Placement |
High-precision placement of 0201 components (CPK ≥ 1.67), with 100% coverage of 3D SPI solder paste inspection. |
| Selective Soldering |
Nitrogen-protected soldering (oxygen content < 100ppm), with through-hole solder fill > 75%. |
| Automated Testing |
Boundary scan (JTAG 1149.1) for open/short circuit diagnosis, with functional test coverage > 98%. |
| Burn-in Screening |
72h high-temperature dynamic burn-in (85℃ full-load operation), with early failure rate < 100PPM. |
VI. Future Technology Integration Directions
- Heterogeneous Integration: Use silicon interposers to achieve 3D packaging of CPUs + FPGAs + security chips, reducing power consumption by 40%.
- Additive Manufacturing Applications: Directly print silver nanowires on ceramic substrates, shortening high-frequency signal paths by 50%.
- Digital Twin Quality Inspection: Generate virtual models based on PCB design files and use AI to compare with actual X-ray inspection images (defect recognition rate 99.2%).
Conclusion
The PCBA of modular programmable controllers serves as the "nerve center" of industrial control systems. Its manufacturing requires the integration of three pillars: HDI precision processing, materials science, and functional safety design. By pushing the limits of routing density with ELIC processes, ensuring long-term contact reliability with ENEPIG surface finishes, and implementing predictive maintenance circuits for lifecycle management, it meets the requirements of ISO 13849 PL e safety certification and over 10 years of maintenance-free operation. As Industry 5.0 progresses, flexible hybrid electronics (FHE) and embedded AI diagnostics will become the technological vanguards for the next generation of modular controller PCBAs.
