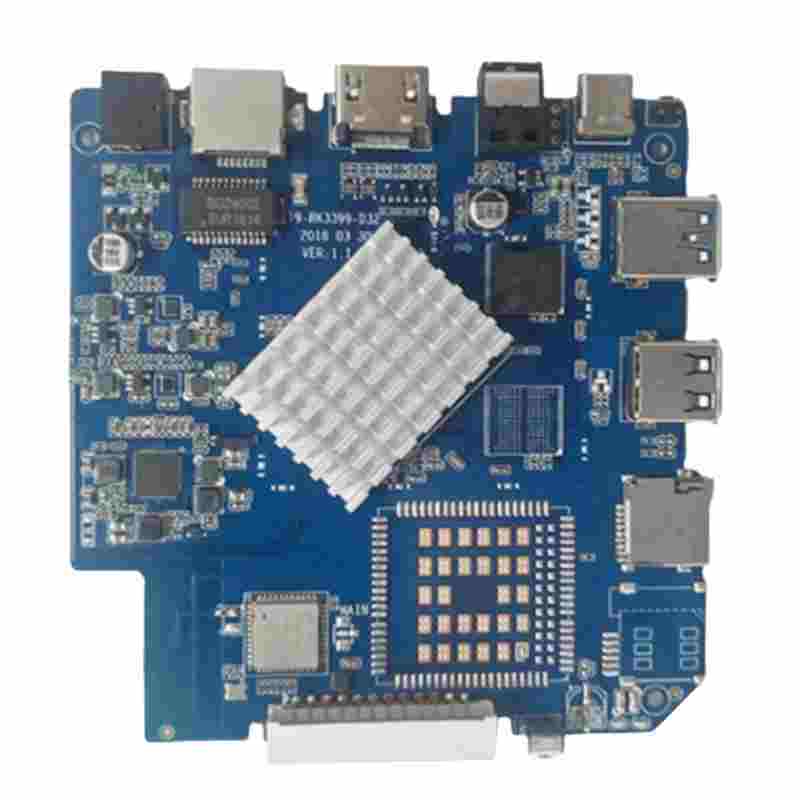

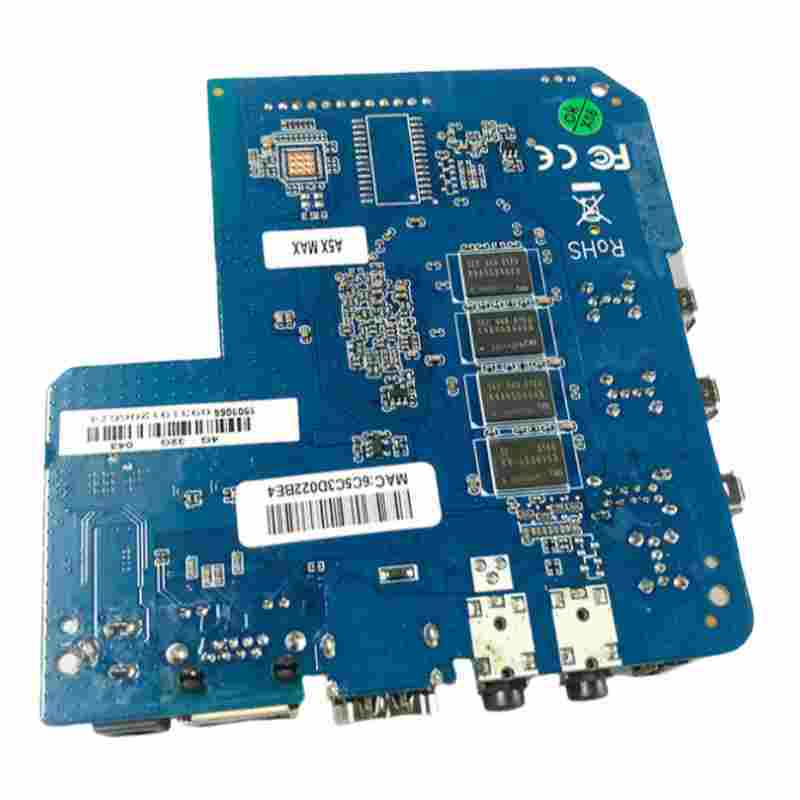

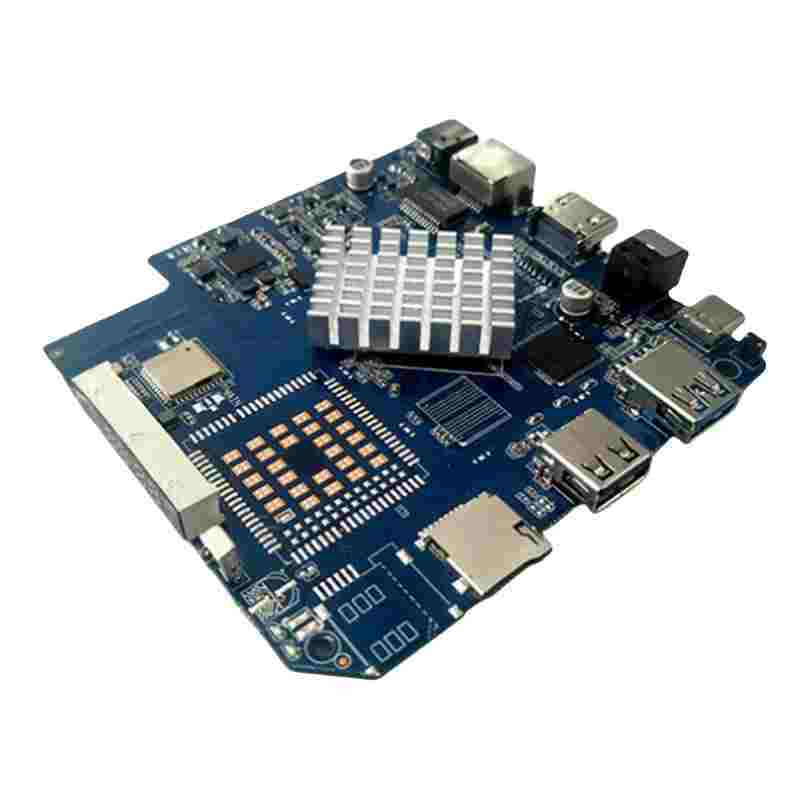

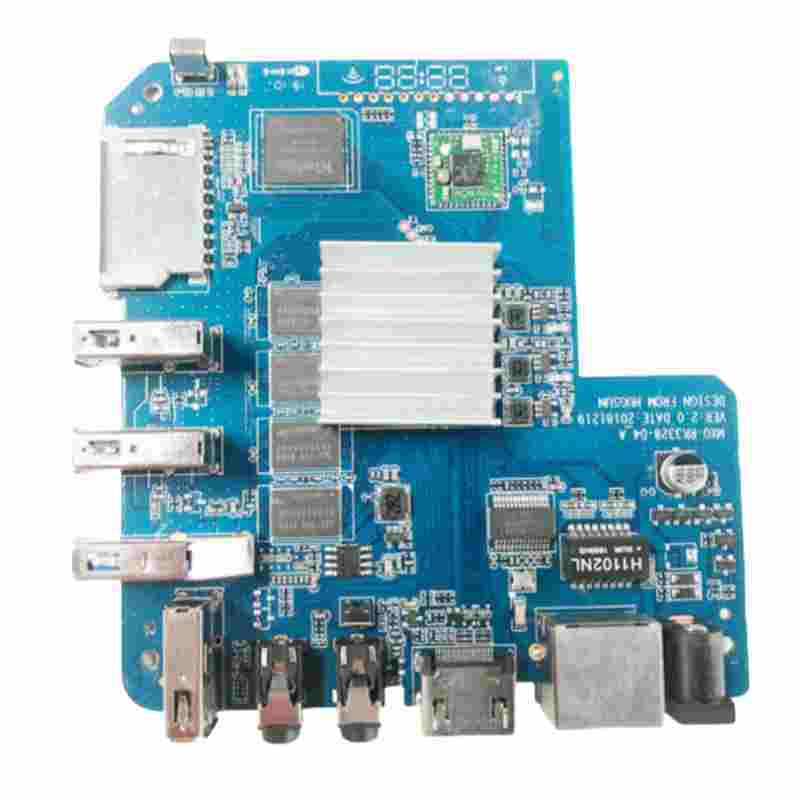

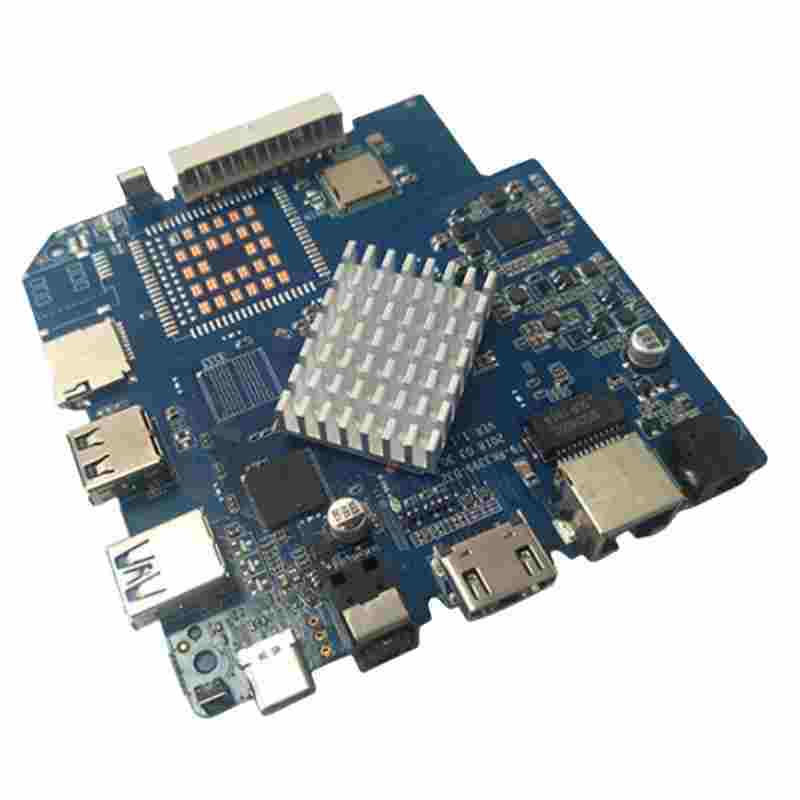

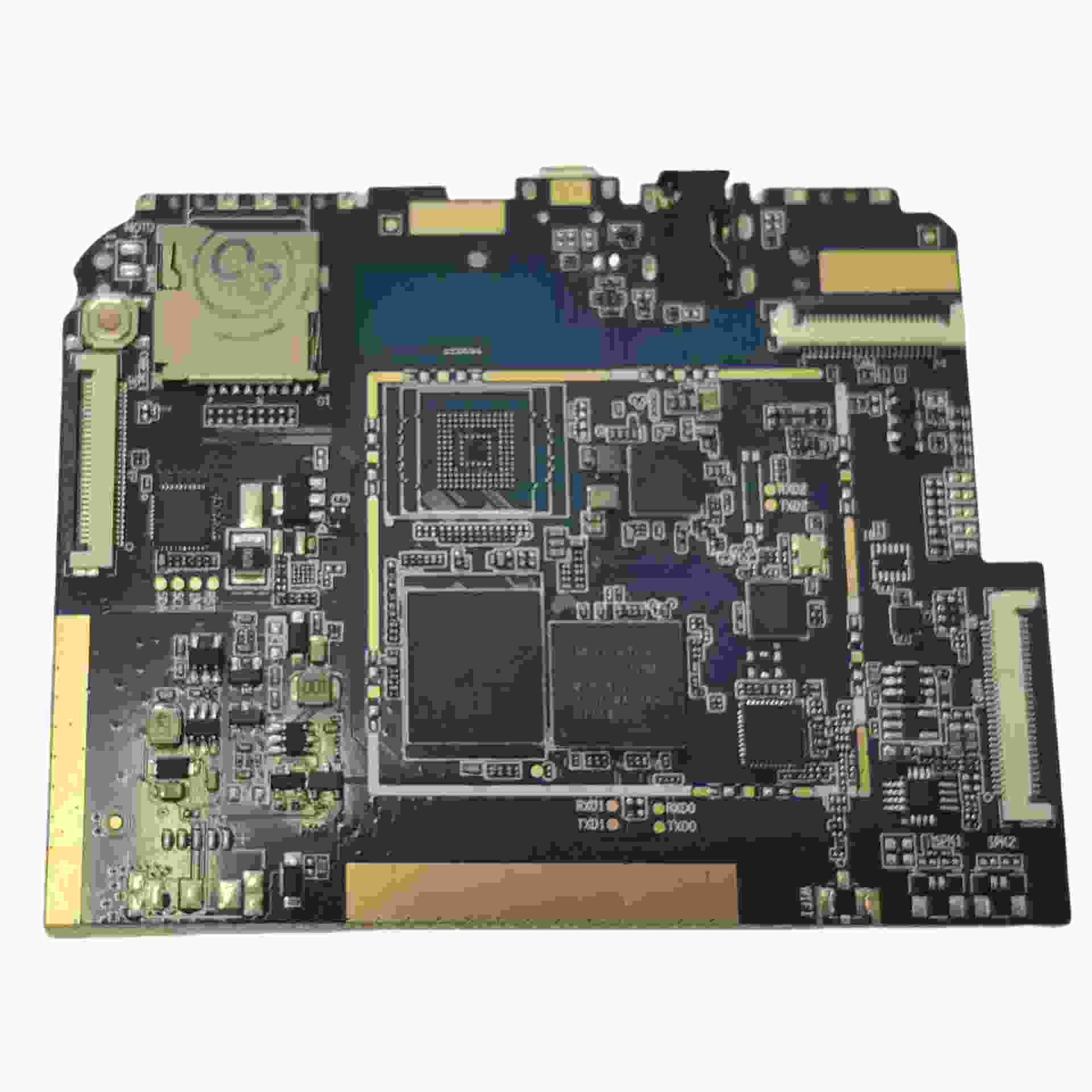

Network TV box/set-top box PCB assembly service

Detailed Explanation of Network Set-Top Box PCB Assembly Technology

1. Core Hardware Architecture
   Main Control Solutions:

• Flagship: Amlogic S928X (4×A76@2.4GHz + Mali-G52 MC6, 8K@60fps)
• Mainstream: Rockchip RK3566 (4×A55@1.8GHz, 4K@60fps AV1 decoding)
• Cost-effective: Allwinner H616 (4×A53@1.5GHz, HDR10+ support)
  Key Interfaces:
• HDMI 2.1 (48Gbps, supports VRR/ALLM)
• Dual-band Wi-Fi 6 (AX3000) + Gigabit PHY (RTL8211F)

2. PCB Process Standards
   | Parameter | Technical Specification | Implementation Solution |
   | Board Material Type | High-TG170 FR4 (Tg ≥170℃) | Panasonic M6/Taigang EM-825 |
   | Signal Layer Count | 6-8 layer HDI | Laser drilling (hole diameter 0.1mm) |
   | Impedance Control | 100Ω differential (±7%) | Polar SI9000 simulation |
3. Production Testing Process
   SMT Process:

• 0402 component placement (accuracy ±0.025mm)
• Lead-free soldering (SnAg3.0Cu0.5, peak temperature 245℃±5℃)
  Functional Testing:
• 4K video stress test (HEVC 100Mbps stream continuous playback for 24h)
• Network throughput test (iperf3 bidirectional ≥900Mbps)

4. Reliability Data
   Environmental Adaptability:

• 85℃/85%RH high-temperature and high-humidity test (500h, 100% functional integrity)
• -20℃~70℃ temperature shock (200 cycles, no BGA solder joint cracking)
  Lifespan Verification:
• 7×24h continuous operation (MTBF >50,000 hours)

5. Industry Technology Trends

• Advanced Packaging: SiP integration of DRAM+Flash (40% volume reduction)
• AI Acceleration: NPU integration (2TOPS computing power for content recommendation)
• Green Manufacturing: Halogen-free board materials (compliant with IEC 61249-2-21)
