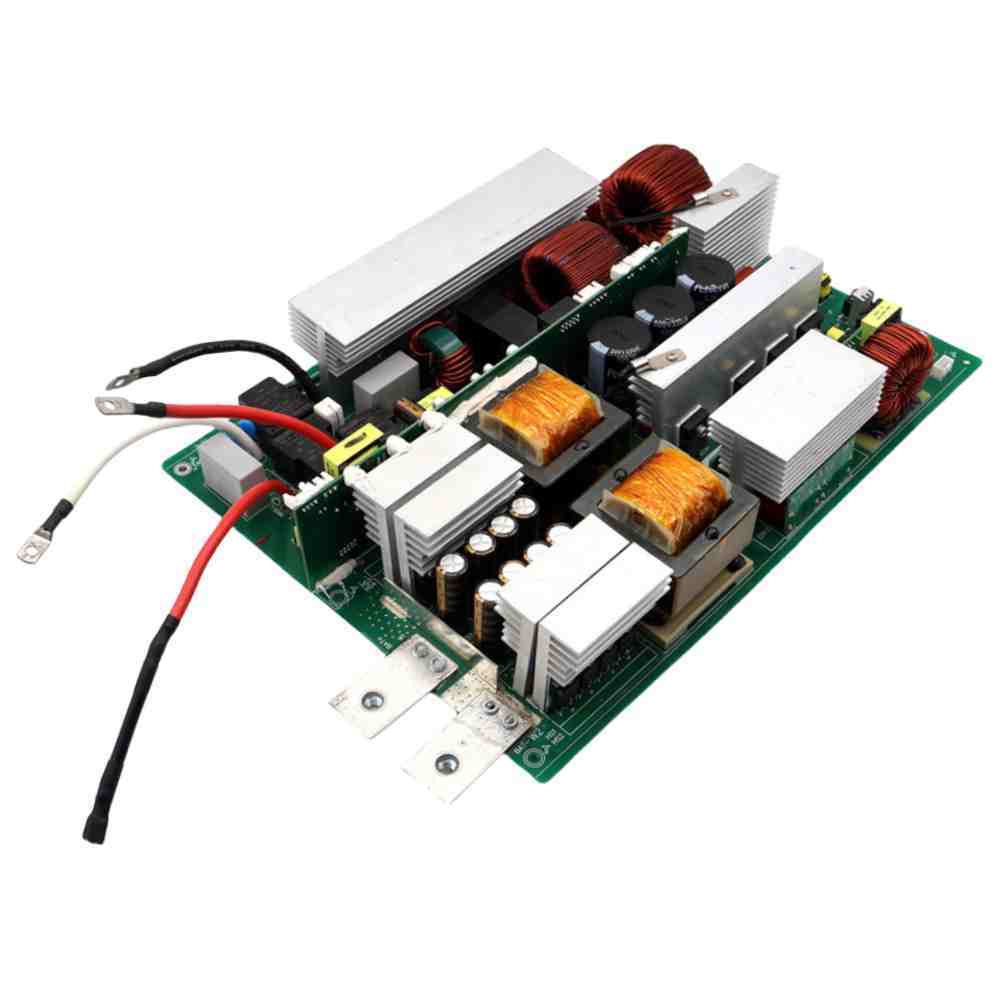

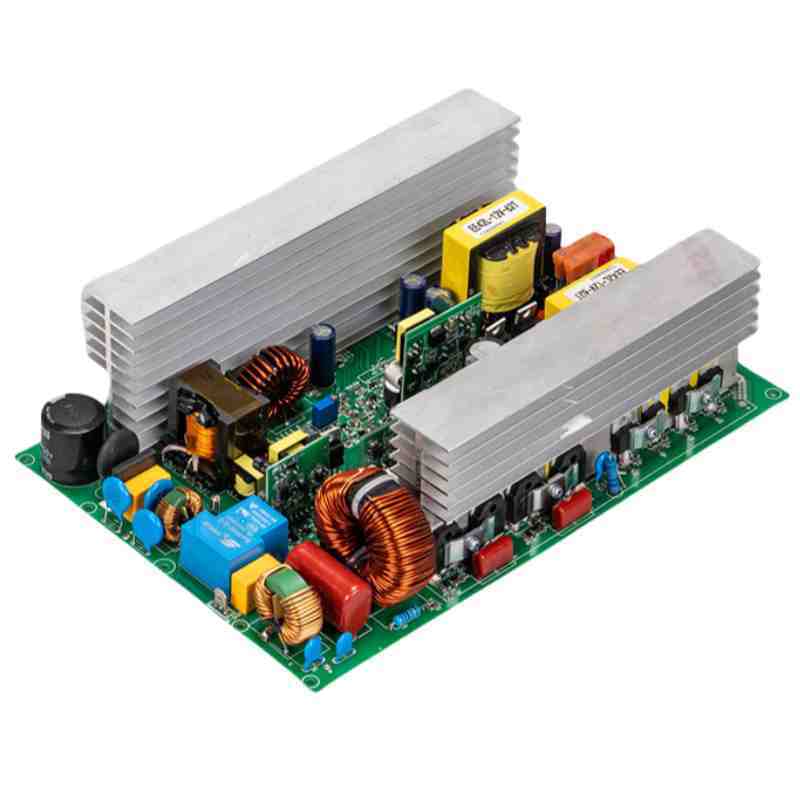

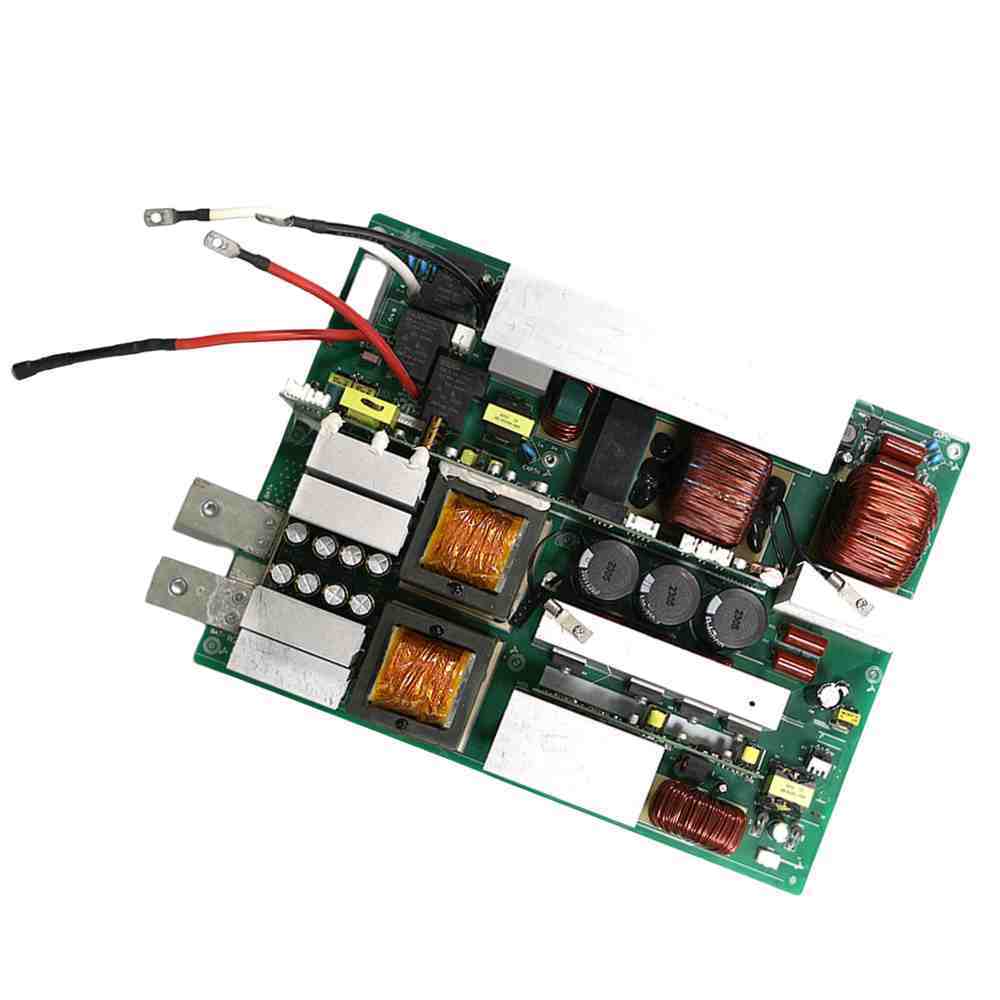

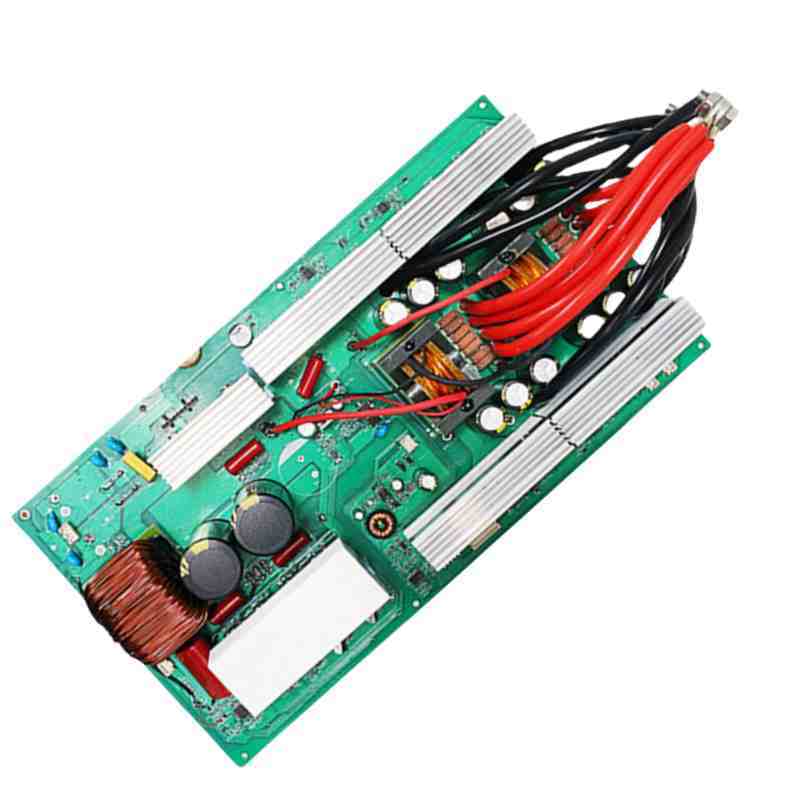

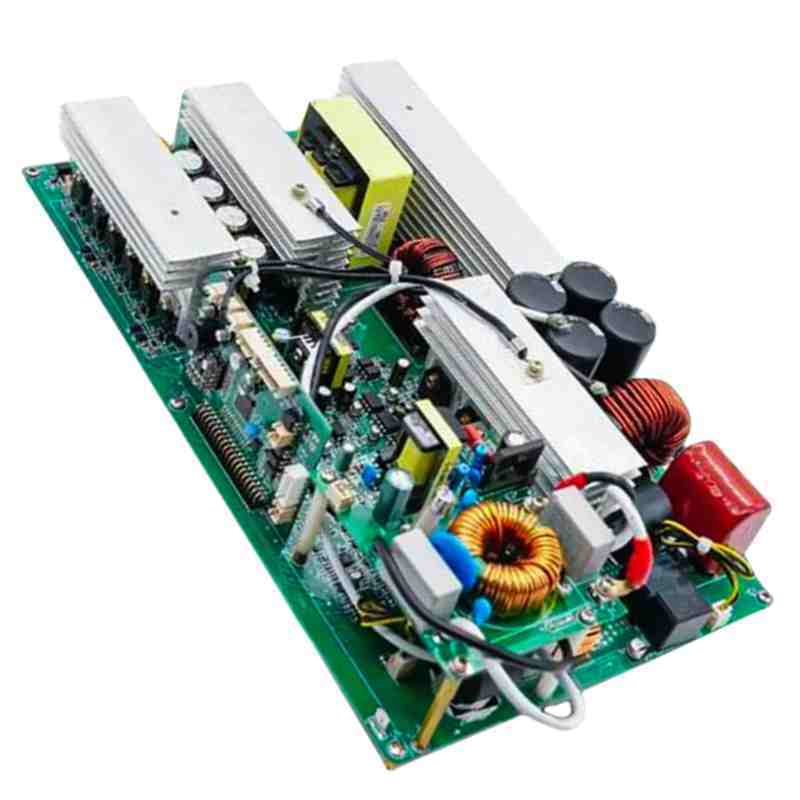

Solar Inverter PCB Assembly: Optimized for High-Efficiency Power Conversion
Our 2-layer 3Oz copper PCBs are engineered to minimize losses in solar inverter applications, achieving <50mΩ trace resistance for DC busbars and 98% peak efficiency in 5kW–50kW systems. The 3Oz copper thickness reduces I²R losses by 30% compared to standard 1Oz boards, enabling cooler operation (ΔT <15°C) in ambient temperatures up to 50°C, critical for rooftop installations in desert regions.
Electrical Performance & Safety
- 600V DC Isolation: Double-sided slot isolation and 2.5mm creepage distances meet IEC 62109-1 requirements for residential/commercial inverters.
- Low-Inductance Layout: Optimized component placement and staggered via arrays reduce parasitic inductance to <5nH, minimizing switching losses in SiC MOSFET-based H-bridge topologies.
- Surge Protection: Integrated 1500V MOV (Metal Oxide Varistor) arrays and 10kA/10μs lightning surge tolerance ensure compliance with IEC 61000-4-5.
Thermal & Environmental Robustness
- IP67 Conformal Coating: Parylene-C coating provides 20-year UV resistance and salt-fog protection for coastal installations.
- Thermal Via Arrays: 200+ 0.3mm vias/cm² under IGBT modules reduce thermal resistance to 2°C/W, maintaining junction temperatures below 125°C at full load.
- Operating Range: -40°C to +85°C storage, -20°C to +60°C continuous operation, validated via HALT (Highly Accelerated Life Testing).
Manufacturing & Compliance
- 7-Day Turnaround: From DFM review to assembly for 100–10,000 unit orders, using SMT lines rated for 0201–QFN packages.
- Automated Optical Inspection (AOI): 99.97% defect detection for solder joints and ±0.05mm placement accuracy on 0.4mm pitch BGAs.
- Certifications: UL 1741, IEC 62109-1/2, CE, RoHS.
Ideal For:
- Residential string inverters (3kW–10kW)
- Commercial central inverters (25kW–50kW)
- Off-grid hybrid inverters with battery storage
