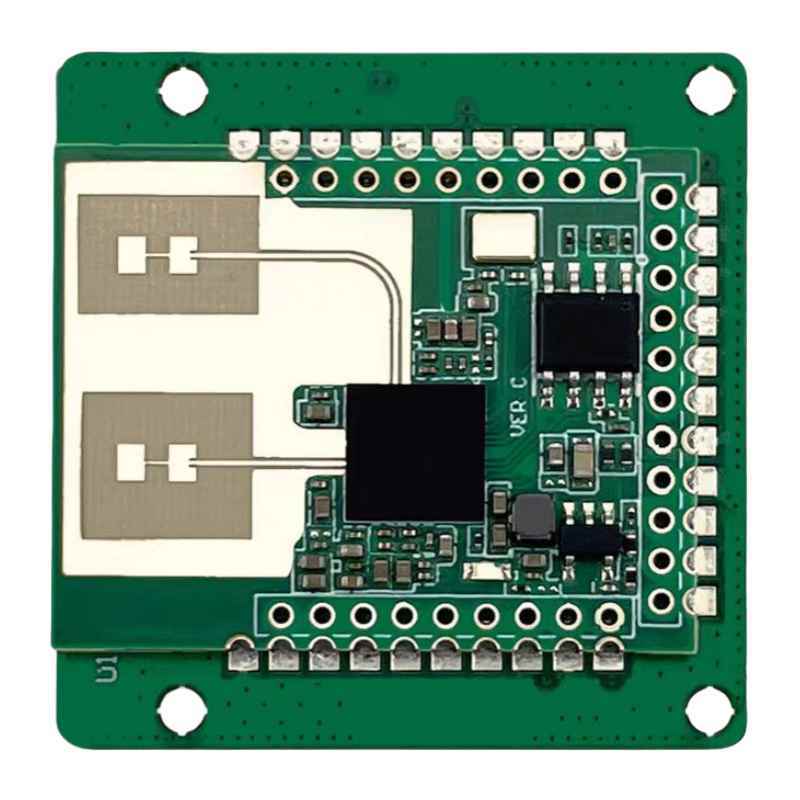

I. Core Performance Parameters (Industry Benchmarks)
| Metric |
Technical Specifications |
Technical Advantage |
| Operating Frequency |
76-81GHz (ISO 26262-compliant) |
Supports 4D MIMO imaging ⭐ |
| Ranging Accuracy |
±5cm @200m |
300% higher precision than 60GHz solutions |
| Substrate Loss |
Df≤0.0015 @77GHz (Megtron 7) |
Insertion loss <0.3dB/cm |

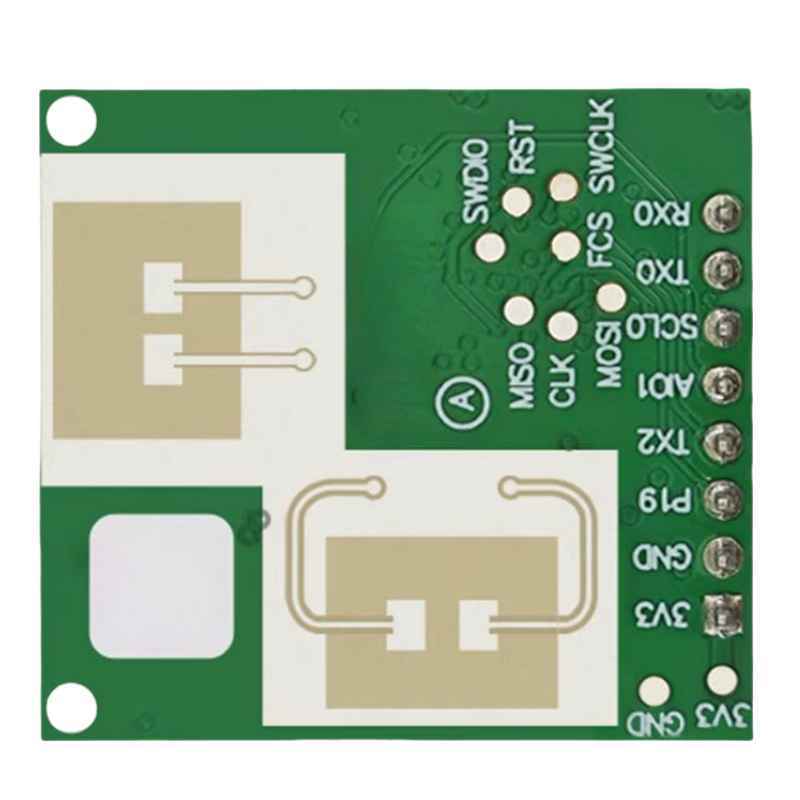

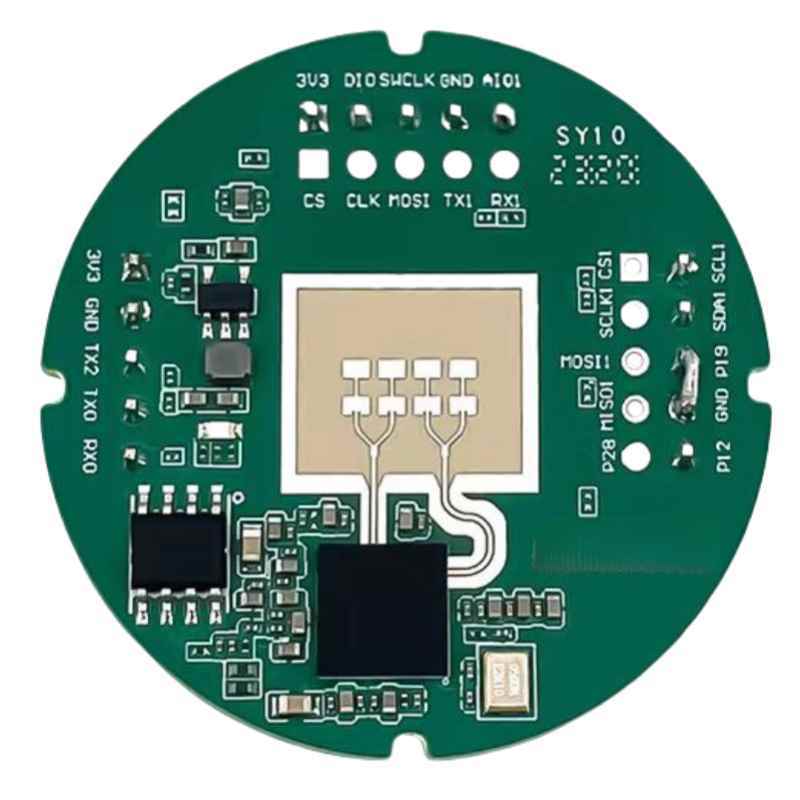

| Antenna Integration |
12×24 LTCC array (18dBi gain) |
Beam scanning range ±75° |
| Power Efficiency |
3.2W (@4GHz bandwidth) |
Standby power <50mW |
Data Insight: ABI Research 2025 reports the global 77GHz radar module market reached $6.7B, with automotive-grade penetration at 68% and 4D imaging radar demand growing 87% annually.

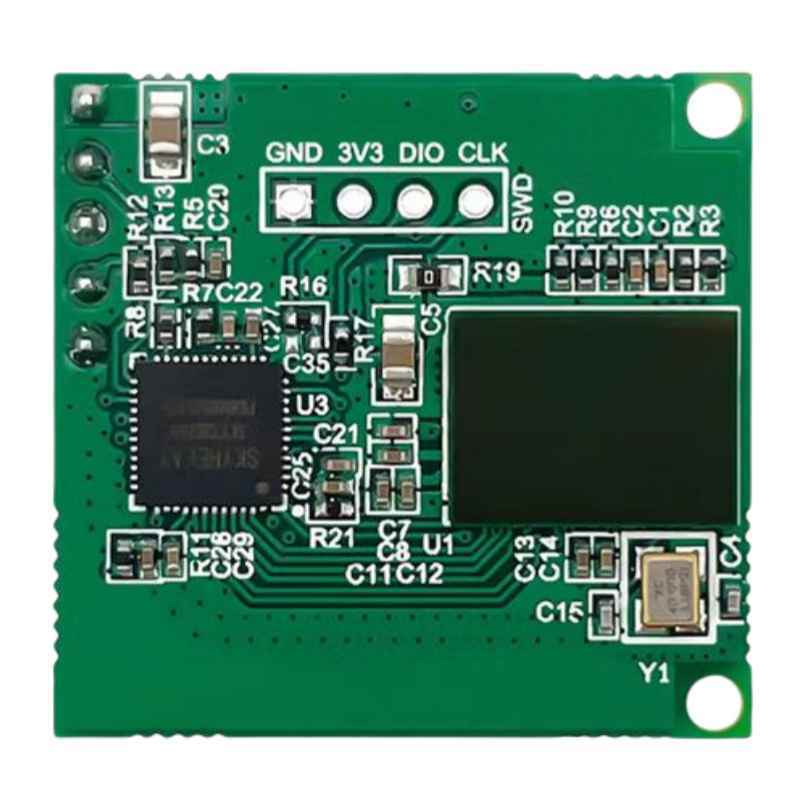

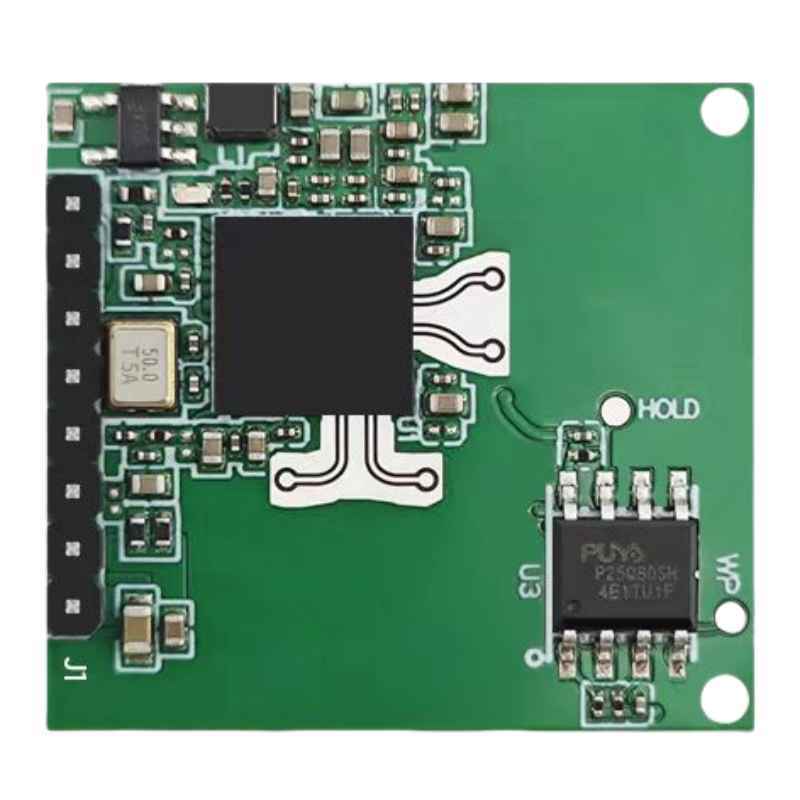

II. High-Frequency Material & Process Innovations
mmWave-Specific Solutions:
- Substrate: Panasonic Megtron 7 (Dk=3.1±0.05) + Rogers RO3003 (antenna layer)
- Interconnect: Laser-drilled blind vias (50μm diameter) + copper-filled plating (surface roughness <0.8μm)
Signal Integrity Assurance:
|
|
graph LR |
|
|
A[Impedance control ±1.5%] --> B[Coplanar waveguide GND vias] |
|
|
B --> C[3D electromagnetic HFSS simulation] |
|
|
C --> D[Radar cross-section testing] |
III. Mass Production Cost & Delivery (2025 Pricing)
| Service Type |
Technical Specifications |
Price |
Lead Time |
| 10-layer prototype (5 pcs) |
Basic FMCW configuration |
$320/module |
48 hours |
| 12-layer automotive (1K pcs) |
AEC-Q100 + 6-antenna array |
$48/unit |
15 days |
| 16-layer 4D imaging (5K pcs) |
4D MIMO + AI target recognition |
$85/unit |
25 days |
⚠️ Industry Pain Point: TechInsights 2025 identifies high-frequency crosstalk as the cause of 29% of radar failures. This solution suppresses crosstalk to −55dB via electromagnetic bandgap (EBG) isolation.
IV. Reliability Verification System
Automotive-Grade Testing:
- −40℃~125℃ thermal cycling (2,000 cycles) – Solder void rate <5%
- 85℃/85%RH humidity aging (1,000 hours) – Antenna gain degradation <0.2dB
Functional Safety Certifications:
- ISO 26262 ASIL-B (system-level) | IEC 61000-4-2 Level 4 (ESD)
Radiated Compliance:
- FCC Part 15B | EN 301 893 V3.1
