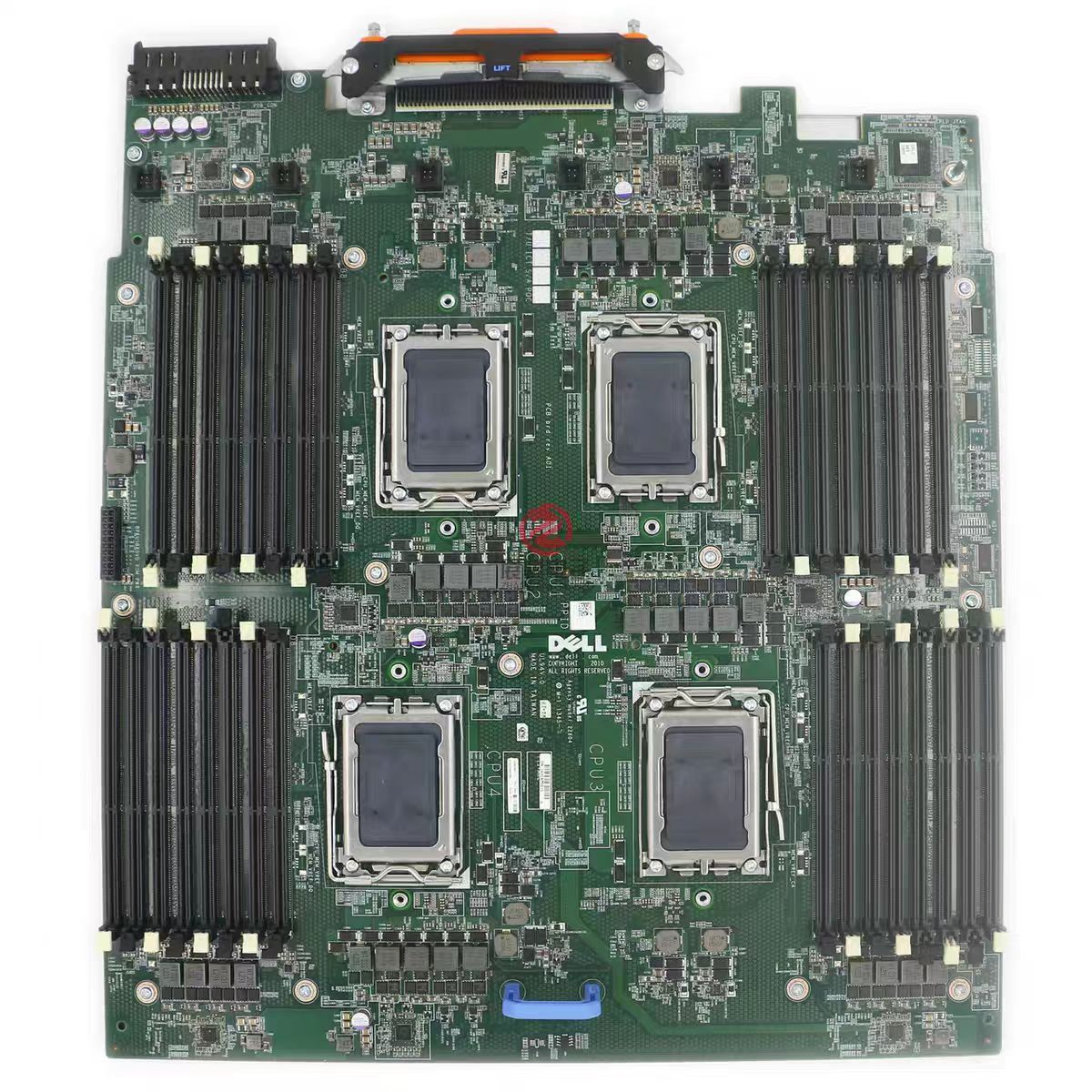

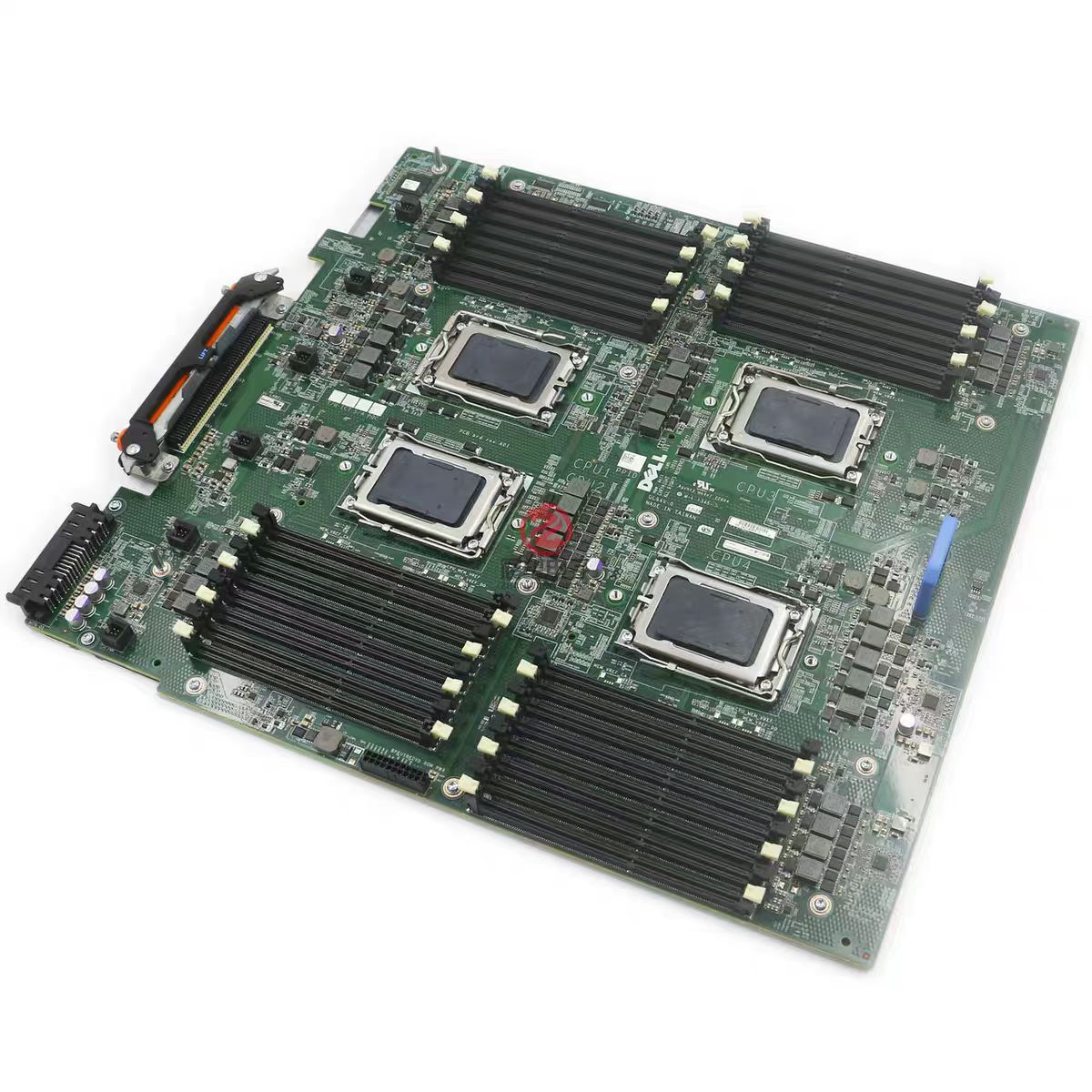

Quad-socket server PCB assembly

Detailed Technical Description

1. High-Density PCB Architecture

• 12-Layer HDI Stack-Up: Built with Panasonic Megtron 6 (Dk=3.6, Df=0.002 @10GHz) and 0.3mm BGA pitch (0.15mm pad diameter) for 4x AMD EPYC 9004 (64-core, 380W TDP) or Intel Xeon Scalable (56-core, 350W TDP) support.
• Microvia Interconnects: Laser-drilled 0.05mm microvias (aspect ratio 1:1) in 8+4 stack-up enable 12TB/s UPI 3.0 bandwidth (48GT/s per link) between sockets with <5ps skew.
• Thermal Management: Embedded copper coin (2mm thickness) beneath each CPU socket reduces junction-to-board (ΘJB) resistance to 0.8°C/W. Supports forced-air cooling (600CFM @70kPa) or direct liquid cooling (30°C ΔT @1.2kW/socket).

2. Advanced SMT Assembly Process

• 01005 Component Placement: ASM SIPLACE TX (0.01mm placement accuracy) handles 01005 passives (0201 footprint) and 0.3mm pitch QFN packages with <0.5% void rate (validated by Keysight i3070 X-ray).
• High-Temperature Soldering: Sn96.5Ag3Cu0.5 (SAC305) solder paste (melting point: 217°C) with 5-zone reflow (peak 260°C) ensures IPC-A-610 Class 3 compliance for -55°C to +155°C operation.
• 7D AOI Inspection: Koh Young KYZEN (01005 detection) checks solder paste thickness (±2μm), component alignment (±0.02mm), and coplanarity (<0.05mm) at 12,000 points/min.

3. Signal Integrity & Power Delivery

• PCIe 5.0 Routing: 16GT/s per lane with 0.1mm trace width/spacing and pre-emphasis tuning (3.5dB de-emphasis) achieves <10ps jitter over 1m length (validated by Tektronix DSA8300).
• 12-Phase VRM Design: TI TPS53679 controllers drive Infineon OptiMOS 7 MOSFETs (RDS(on)=0.5mΩ) for 94% efficiency at 1.8V/1000A per socket. Decoupling capacitors (0402 X7R, 10μF/25V) reduce PDN impedance to <1mΩ @100MHz.
• Backplane Connector: Samtec Flyover QSF-D-12 (120Gbps/lane) with 0.8mm pitch and beryllium copper contacts supports 10,000 mating cycles (MIL-STD-810G Method 2019).

4. Reliability & Compliance

• HALT Testing: -40°C to +85°C thermal cycling (1000 cycles), 100G shock (MIL-STD-883K Method 2002), and 95% RH @65°C humidity (IPC-TM-650 2.6.3.2) ensure MTBF >500,000 hours (Telcordia SR-332 Issue 5).
• Failure Analysis: SEM/EDS cross-sectioning identifies intermetallic compound (IMC) growth (<1μm after 1000h aging) and HALT-induced cracks (CTE mismatch <3ppm/°C).
• Certifications: ISO 9001:2015 (quality), IPC-6012E Class 3 (PCB), and AS9100D (aerospace-grade traceability) for HPC, AI training, and 5G core network deployments.
