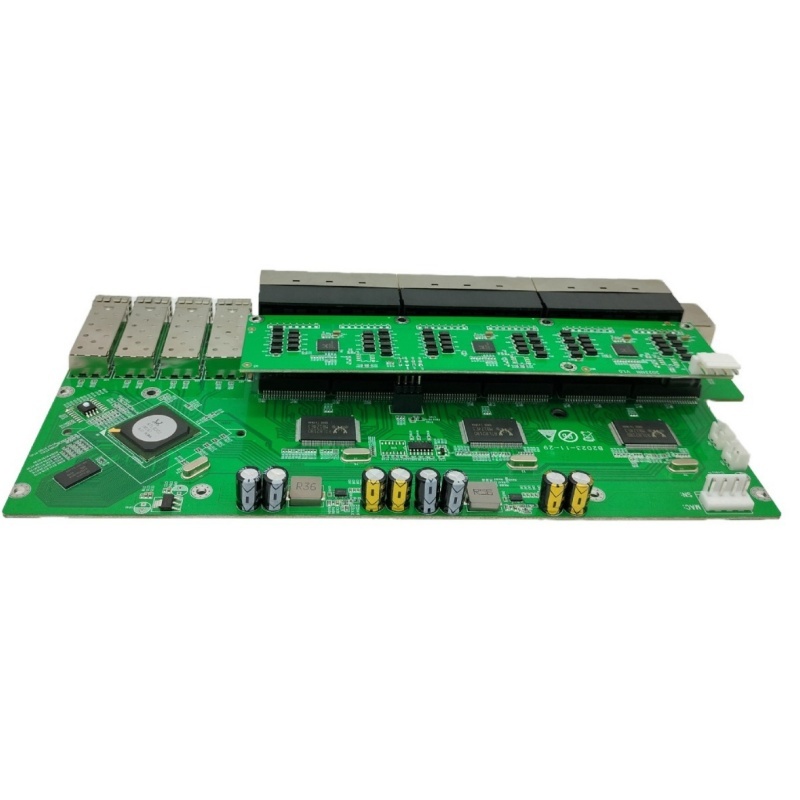

Real-time industrial Ethernet switches PCB manufacturing and assembly

I. Core PCB Manufacturing Processes and Material Innovation

The high-reliability PCB manufacturing for real-time industrial Ethernet switches necessitates breakthroughs in the following technical aspects:

Special Substrate Selection

• Utilize high-frequency laminates (such as Isola FR408HR and Panasonic Megtron 6) to ensure signal integrity at 10Gbps+ and reduce dielectric loss (Df ≤ 0.005).
• Employ high-Tg materials (Tg ≥ 170℃) to withstand the high temperatures of lead-free soldering processes and prevent copper foil delamination.

Precision Stack-up Design

• Implement designs for 8-layer and above HDI boards, achieving high-density routing through blind and buried via technologies (laser-drilled hole diameters ≤ 0.1mm) and shortening critical signal paths.
• Impedance control: Maintain a tolerance of ±5% for differential pairs at 100Ω (e.g., for USB3.0 and SGMII interfaces), using simulation software (HyperLynx) to pre-adjust the routing topology.

Surface Treatment Processes

• Electroless Nickel Immersion Gold (ENIG): Apply a thickness of 3-5μm for Ni and 0.05-0.1μm for Au to ensure solder joint strength and corrosion resistance.
• Organic Solderability Preservatives (OSP): Suitable for high-speed signal pads to reduce signal attenuation.

II. Key Technological Breakthroughs in Assembly

(1) High-precision Placement Processes

• 01005 Micro-component Placement: Utilize vacuum nozzles and vision alignment systems (with a precision of ±15μm) to meet the miniaturization requirements of peripheral circuits for PHY chips.
• Flip-Chip Process: For main control BGAs with a solder ball pitch of 0.4mm, step stencils (with a thickness of 0.08-0.12mm) are required to control the solder paste volume.

(2) Enhanced Soldering Reliability

• Nitrogen-protected Reflow Soldering: Maintain an oxygen content of <500ppm to reduce solder joint oxidation, with a void rate of ≤5% (compliant with IPC-A-610 Class 3 standards).
• Selective Wave Soldering: For through-hole connectors (such as M12 interfaces), maintain a solder temperature of 260±5℃ for 3-5s.

(3) Conformal Coating and Structural Reinforcement

• Nano-coating Conformal Coating (compliant with IPC-CC-830B): Apply a coating thickness of 25-75μm and pass a 96h salt spray test.
• Thermal Silicone Gel Filling: Inject at the bottom of FPGA/PHY chips to improve thermal fatigue life by more than three times.

III. Quality Verification and Industrial-grade Testing

IV. Integration of Cutting-edge Industry Technologies

• Embedded Passive Components: Integrate capacitors/resistors within the PCB inner layers (with a tolerance of ±0.1%) to reduce surface-mount points and enhance signal speed.
• Copper Pillar Interconnects: Replace traditional BGAs, increasing interconnect density by 40% and reducing thermal resistance by 25%.
• AI-driven AOI Inspection: Identify cold solder joints/tombstone defects based on deep learning algorithms (with a false positive rate of <0.01%).

Conclusion

The manufacturing of PCBAs for real-time industrial Ethernet switches represents a fusion of precision electronic processes and materials science innovation. From high-frequency substrate selection to micron-level placement precision, from protocol-level testing to extreme environment verification, every aspect must adhere to zero-defect standards (IPC Class 3) to meet the stringent requirements of microsecond-level real-time performance and a ten-year service life in scenarios such as intelligent manufacturing and energy power. In the future, with the popularization of heterogeneous integration and intelligent inspection technologies, industrial switch PCBAs will further evolve towards ultra-high density, ultra-low power consumption, and functional safety integration.
