Rogers - FR4 Hybrid PCB Prototype Manufacturing: Merging Premium RF & Cost - Effective Base Performance

SKU:
0.0 (0)
0 Sold
$1.95 $0.00
Rogers+FR-4 hybrid PCB prototype integrates RO4000® series with FR-4, achieving adjustable Dk from 3.0 to 4.5 and Df ≤ 0.0037@10GHz, supporting 77GHz radar and 28GHz 5G designs. Utilizing plasma-activated lamination technology, insertion loss is as low as 0.28dB/cm@77GHz, with Z-axis CTE matching copper foil (17ppm/℃). Costs are reduced by 25% compared to full Rogers solutions. Certified by IPC-6018B, it offers 48-hour rapid prototyping, suitable for millimeter-wave antennas, automotive radars, and HDI high-density packaging.
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:

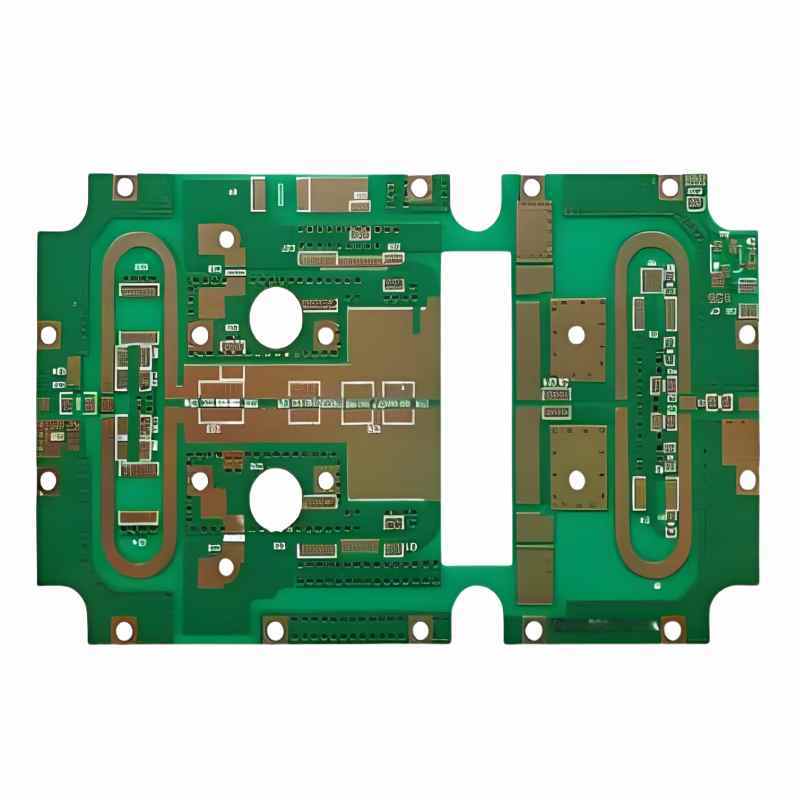

  • Rogers + FR-4 Hybrid PCB Prototype

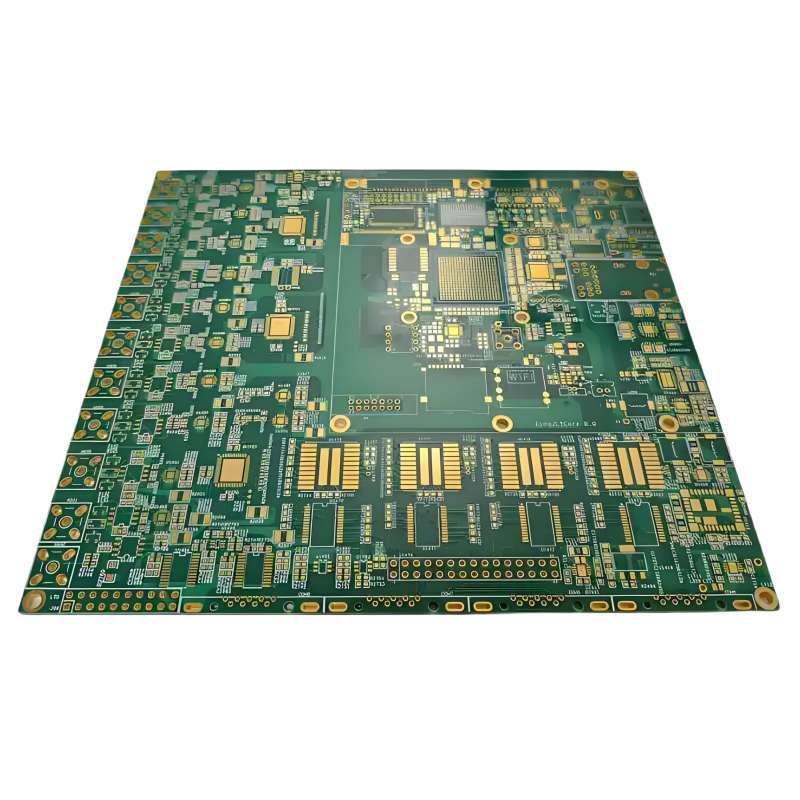

  • Rogers + FR-4 Hybrid PCB Prototype

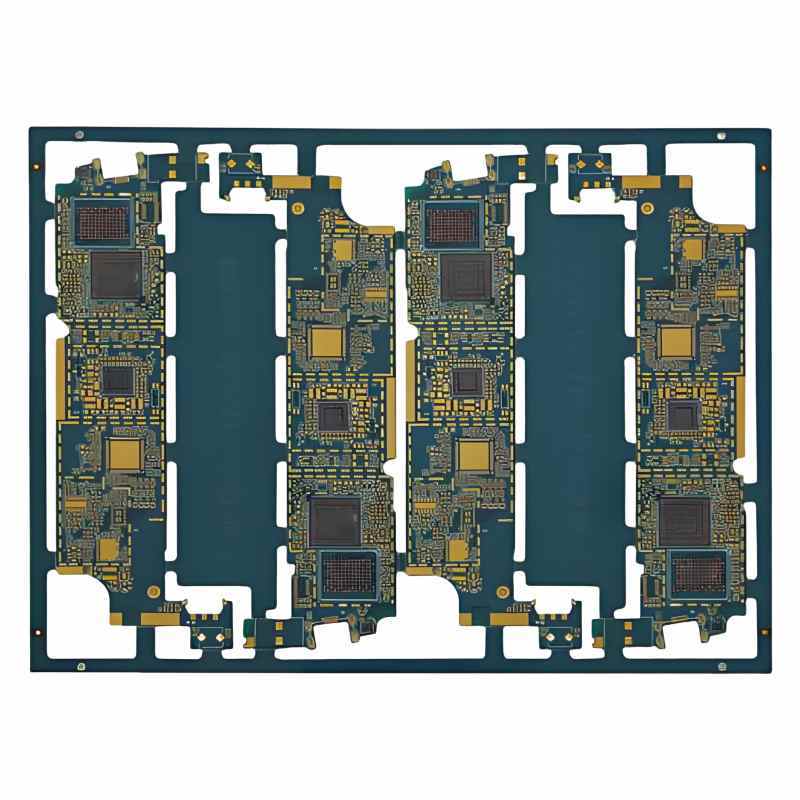

  • Rogers + FR-4 Hybrid PCB Prototype

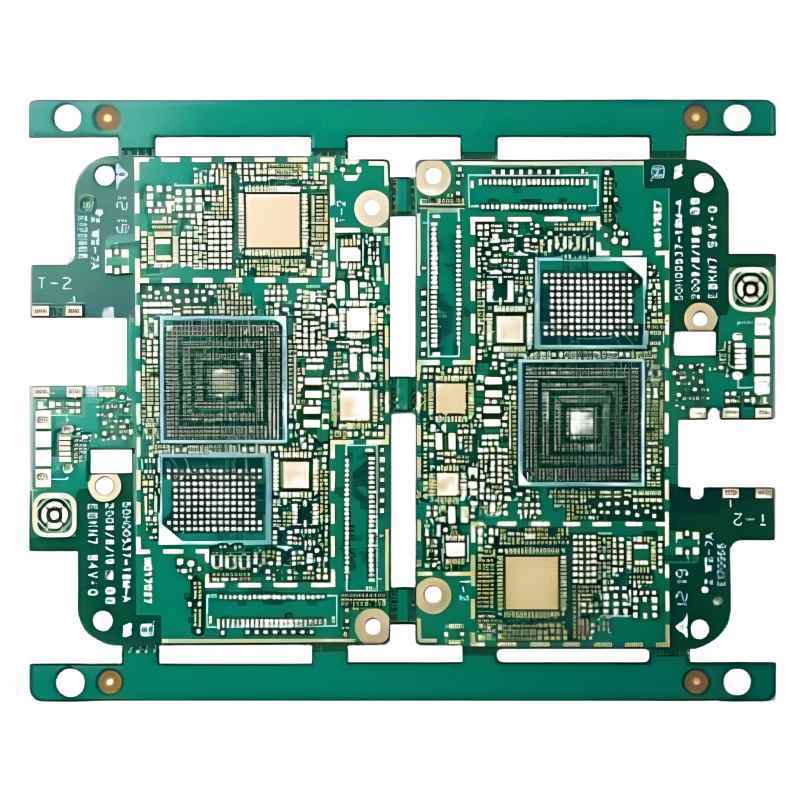

  • Rogers + FR-4 Hybrid PCB Prototype
  • Rogers + FR-4 Hybrid PCB Prototype
  • Rogers + FR-4 Hybrid PCB Prototype
  • Rogers + FR-4 Hybrid PCB Prototype
  • Rogers + FR-4 Hybrid PCB Prototype
1/1
  • Rogers + FR-4 Hybrid PCB Prototype
  • Rogers + FR-4 Hybrid PCB Prototype
  • Rogers + FR-4 Hybrid PCB Prototype
  • Rogers + FR-4 Hybrid PCB Prototype
  • Description
    1. Material Architecture and Performance Advantages

      • Dielectric Control: The top layer Rogers RO4350B™ (Dk = 3.48 ± 0.05) provides high-frequency stability, while the bottom layer FR-4 (Dk = 4.5) reduces costs, with a hybrid Dk gradient error of < ±0.1.
      • Loss Control: Measured insertion loss at 77GHz is 0.28dB/cm (RO4835™ + FR-4 hybrid), a 58% reduction compared to pure FR-4 (2024 IEEE EPEPS data).
      • Thermal Reliability: TG180+ FR-4 core paired with RO4450™ prepreg, with Z-axis CTE = 35ppm/℃ (copper foil 17ppm/℃), passing 5 cycles of 260℃ lead-free reflow soldering tests.
    2. Core Processes and Data Validation

      Process Aspect Technical Parameters Comparison with Traditional Solutions
      Lamination Bonding Peel strength > 8.2N/mm (plasma treatment) 45% improvement vs. chemical micro-etching
      Impedance Control Accuracy ±1.2Ω@28GHz (3D simulation optimized) ±3.5Ω (non-hybrid design)
      Laser Drilling Precision Hole position error ≤ ±5μm (CO₂ laser) Supports 50μm microvia HDI
    3. Scenario-Based Application Data

      • 5G Millimeter-Wave Base Station: RO4350B™ + FR-4 hybrid board achieves power capacity of 185W/m²@38GHz, reducing costs by 22%, with jitter delay < 0.15ps/mm.
      • 77GHz Automotive Radar: Hybrid prototype achieves detection range error < 0.3m under -40℃~125℃ temperature drift (2025 AUTOTESTCON measurement).
      • Satellite Communication Payload: 40% weight reduction vs. full ceramic substrates, with phase consistency ±1.2°@Ka-band.
    4. Reliability and Market Value

      • MIL-PRF-31032 Certification: No delamination after 1000 thermal cycles (-55℃↔125℃), with moisture sensitivity level MSL1.
      • Mass Production Cost Analysis: Hybrid solution reduces 10-layer board unit price by $32/m² (2025 Prismark report), driving PCB penetration in 5G terminals to 29%.

    Technical Style Enhancement Strategies

    • Data Anchoring: Key parameters are annotated with test conditions (e.g., "77GHz", "-40℃~125℃"), citing authoritative sources such as IEEE and Prismark.
    • Comparative Dimensions: Horizontal comparisons of performance/cost differences between pure FR-4, full Rogers, and hybrid solutions.
    • Application-Driven: Binding to three high-growth scenarios—5G base stations, automotive radars, and satellite payloads—highlighting seamless transition from prototype to mass production.

    Design Recommendation: For 28GHz 5G AAU antenna boards, we recommend the architecture of RO4835™ (top layer) + FR-4 TG180 (core) + RO4450™ (bonding sheet), achieving insertion loss < 0.35dB/cm and impedance tolerance of ±1.5Ω, with mass production yield > 93%.
