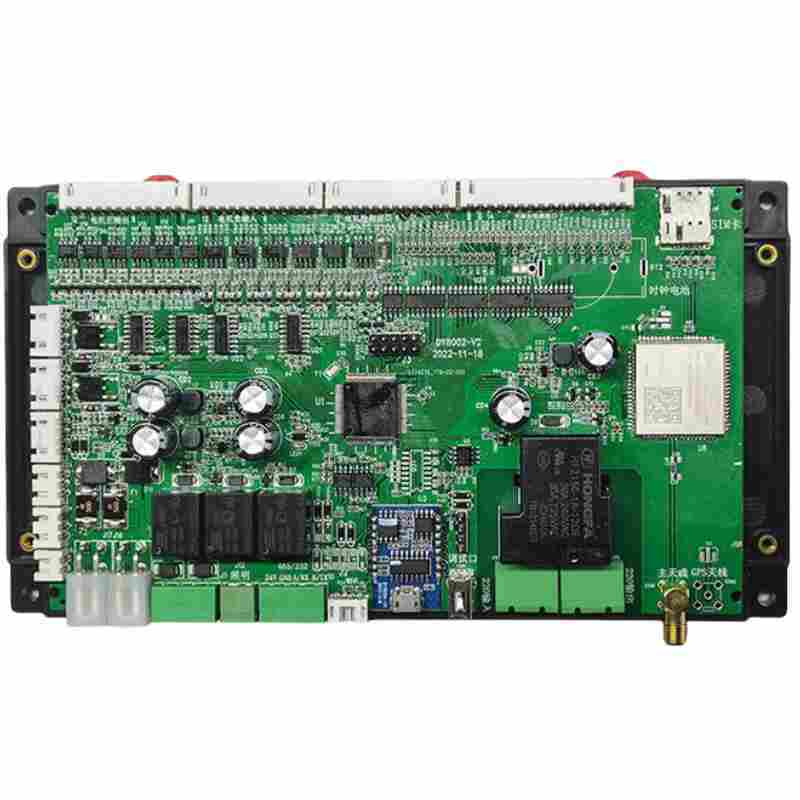

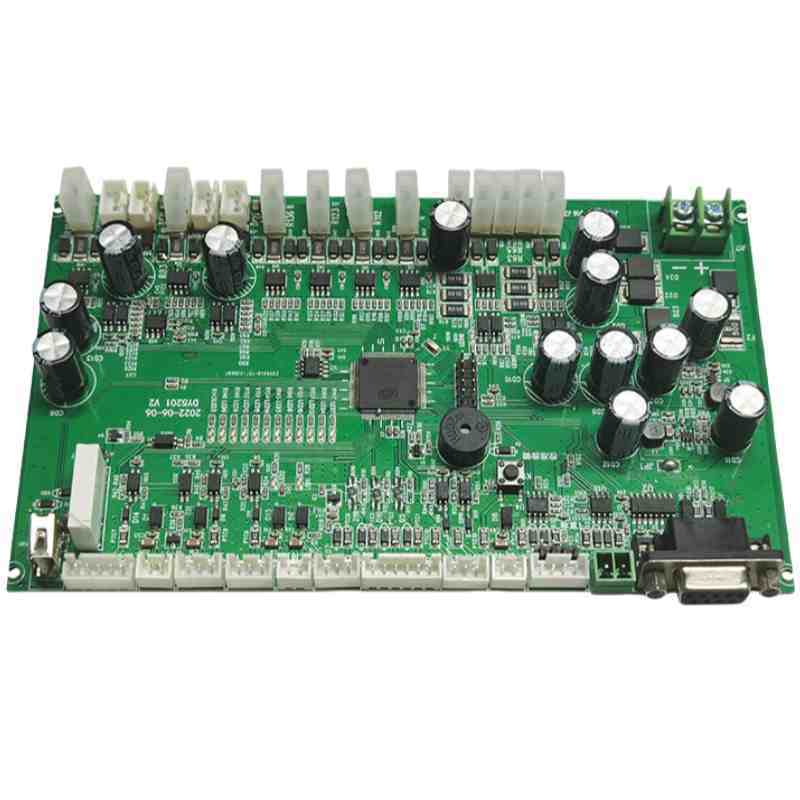

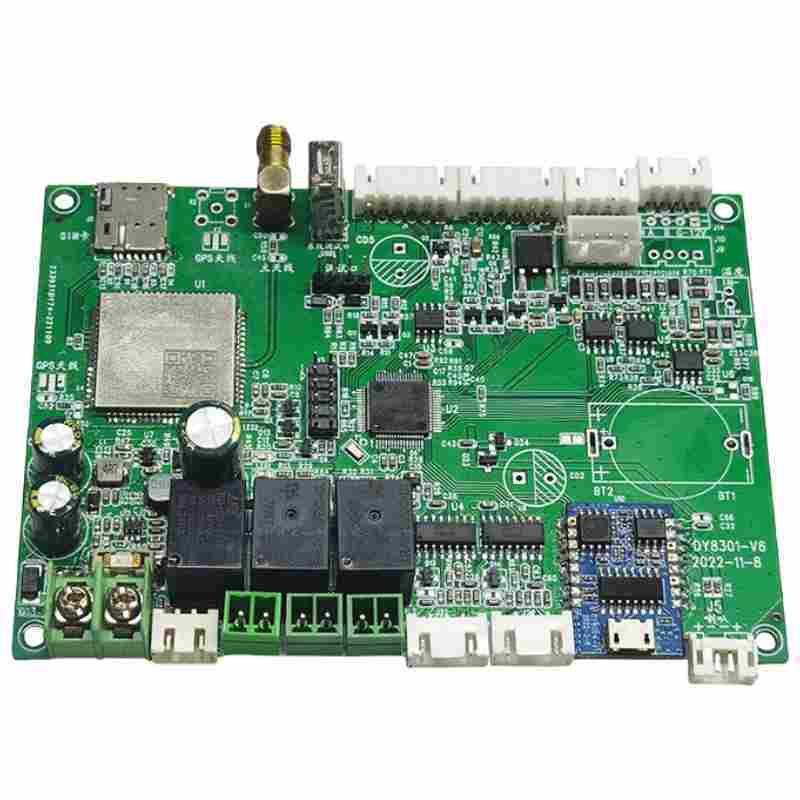

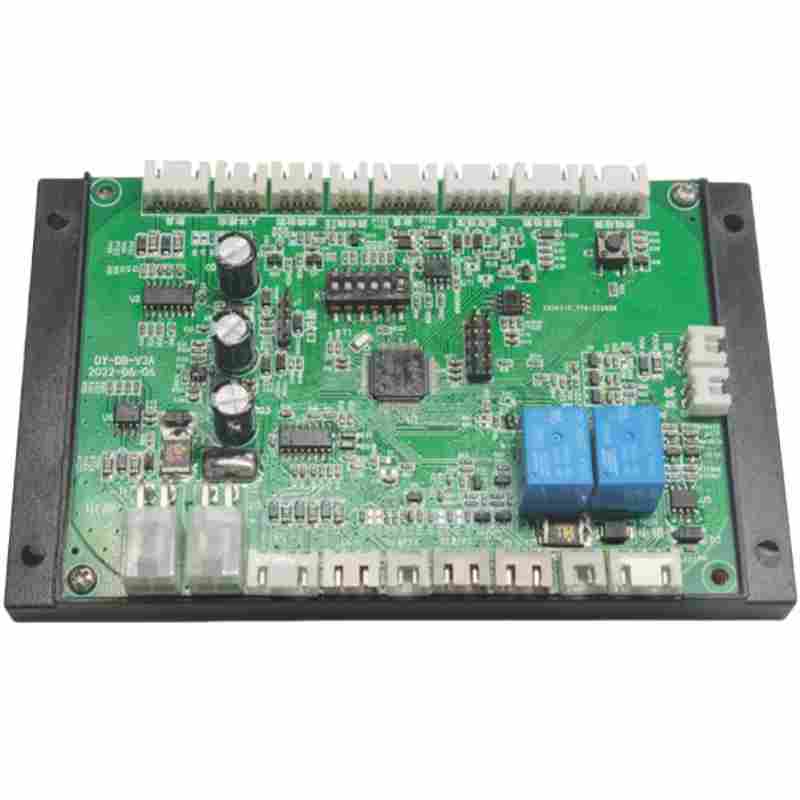

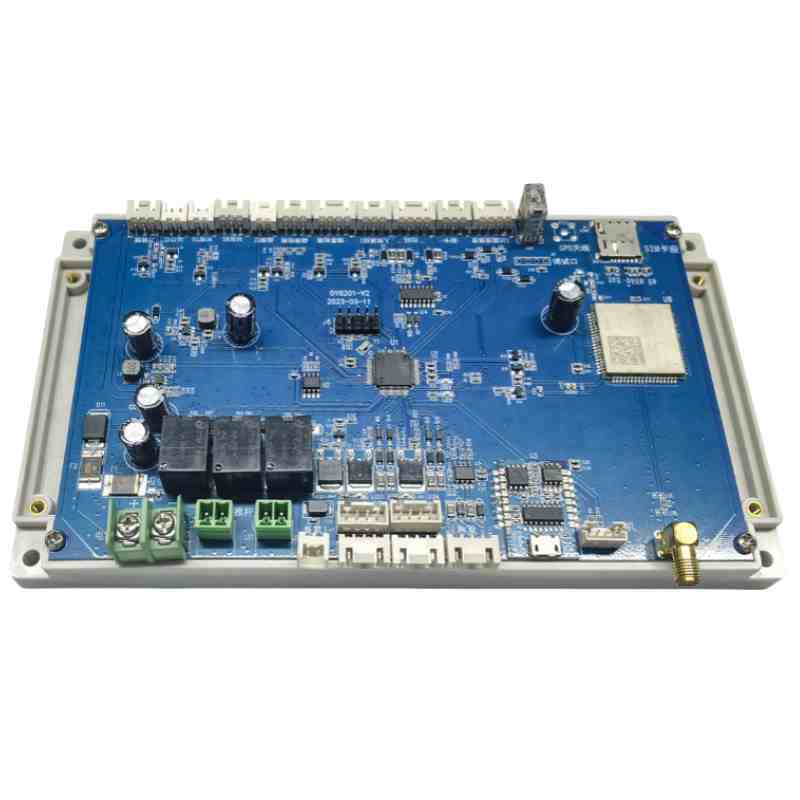

Smart Waste Sorting PCB Assembly: Ultra-Precise, Low-Maintenance AI Sorting for Industrial Recycling
Our end-to-end PCB assembly service delivers high-reliability smart waste sorting systems with 99.2% AI-powered detection accuracy using multi-modal sensor fusion (1.3MP RGB+NIR camera, 16-channel capacitive array, and 940nm IR reflectance). The 6-layer HDI PCB integrates STM32H747 dual-core MCU (480MHz, 2MB RAM) + Google Edge TPU (4TOPS NPU) for real-time classification (<300ms) of 20+ waste types (PET, LDPE, aluminum, cardboard) at 98% recall rate under 10,000lux sunlight or low-light (5lux) conditions.
Ultra-Rugged & Low-Power Design
- IP69K Sealing: Hermetic epoxy potting and 316L stainless steel enclosure withstand 1450psi high-pressure washdown and corrosive environments (pH 2–12).
- 10-Year Battery Life: Energy-harvesting design (solar+ER34615 LiSOCl₂) with AI-driven power gating reduces average consumption to 8μW, enabling decade-long operation without replacement.
Advanced AI Calibration
- Self-Learning Model: On-device federated learning updates detection parameters weekly via NB-IoT, improving accuracy by 1.2% per month without cloud dependency.
- Thermal Stability: AI-compensated NIR sensors maintain ±0.5% reflectance accuracy across -30°C to +70°C, eliminating false positives in cold storage or desert deployments.
Manufacturing & Compliance
- 5-Day Rapid Prototyping: Includes DFM review, AOI/X-Ray inspection, and HALT testing (-30°C~+70°C, 50g shock).
- Certifications: ISO 9001:2015, IPC-6012 Class 3, ATEX Zone 2, FCC/CE/IC, WEEE/RoHS.
Ideal For:
- Municipal recycling centers (auto-sorting >100 tons/day)
- Food processing waste (contaminant detection in organic streams)
- Construction site debris (concrete/wood/metal separation)
Contact: info@fr4pcb.tech | Use code SORTAI2025 for 15% off first smart sorting PCB assembly order.
