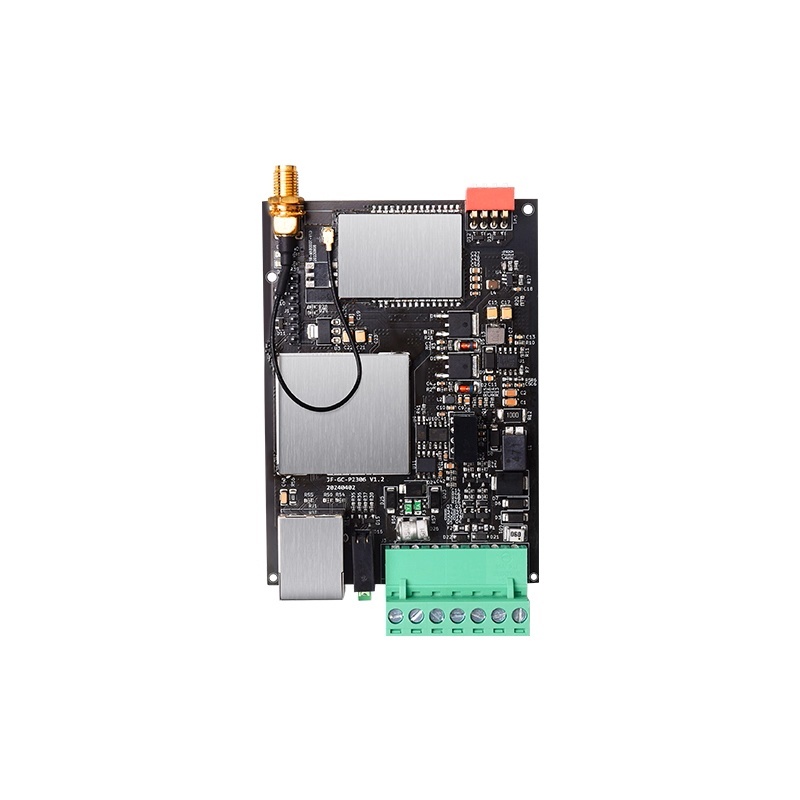

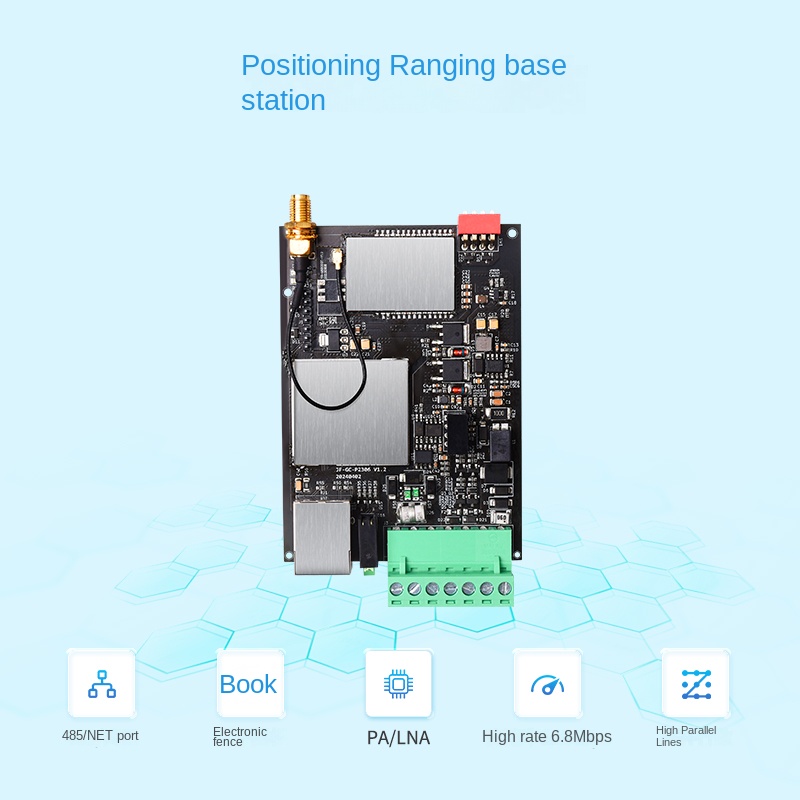

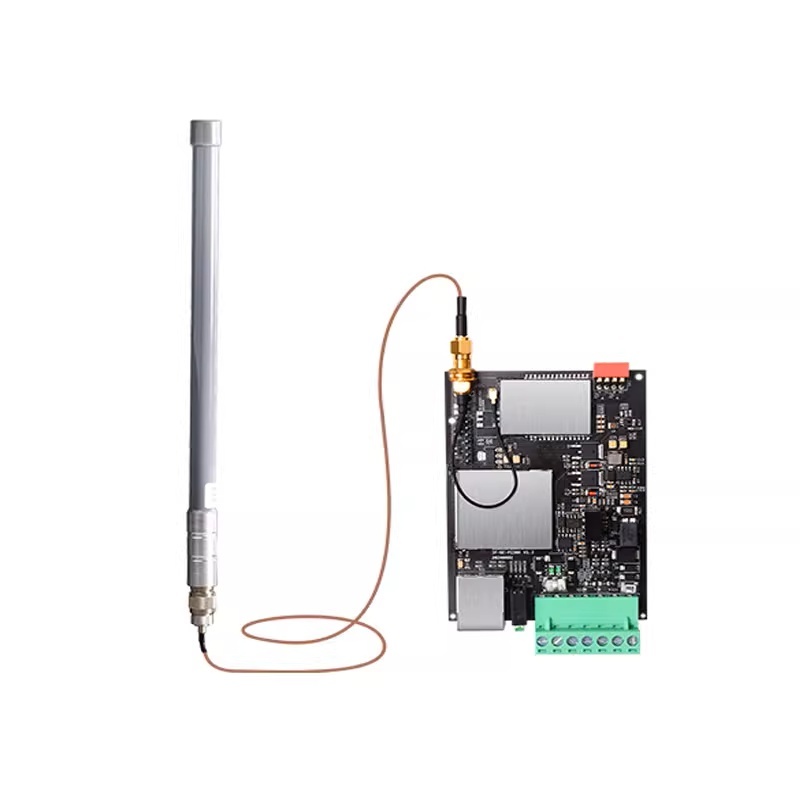

UWB Positioning and Ranging Base Station with TOF (Time of Flight) Algorithm for High-Precision Integration in Mining Machinery and Mine Vehicles, Incorporating Electronic Fence Solutions for Heading/Tunneling Faces

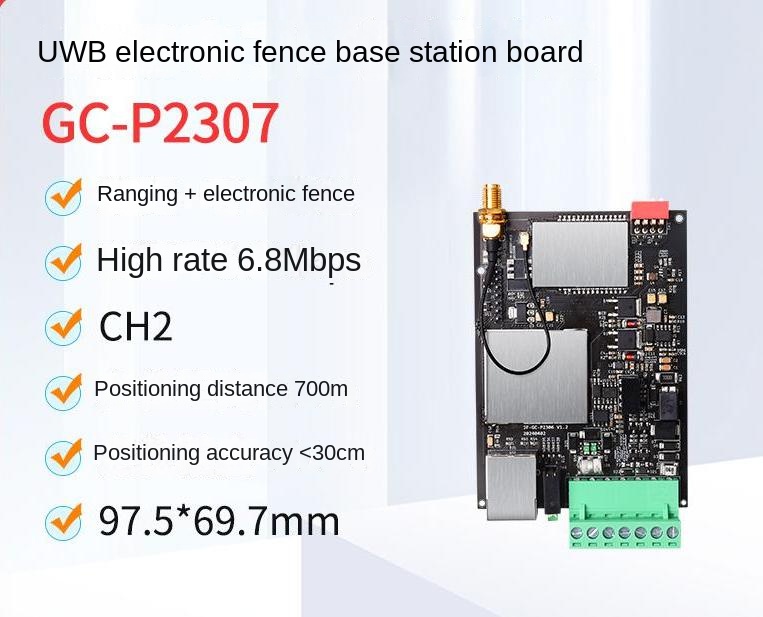

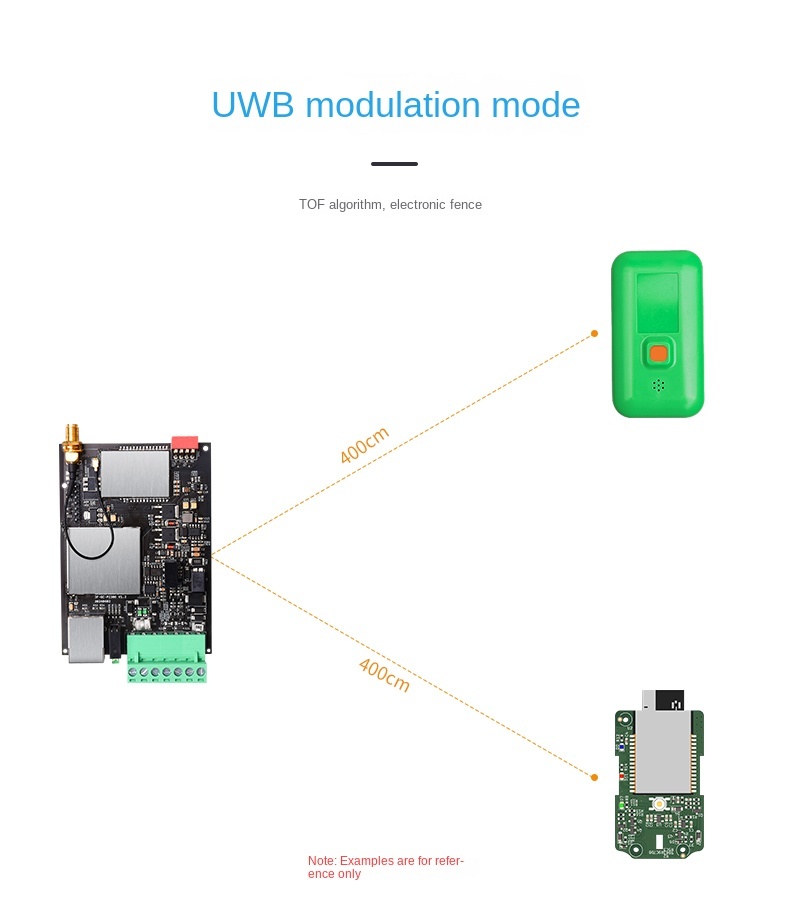

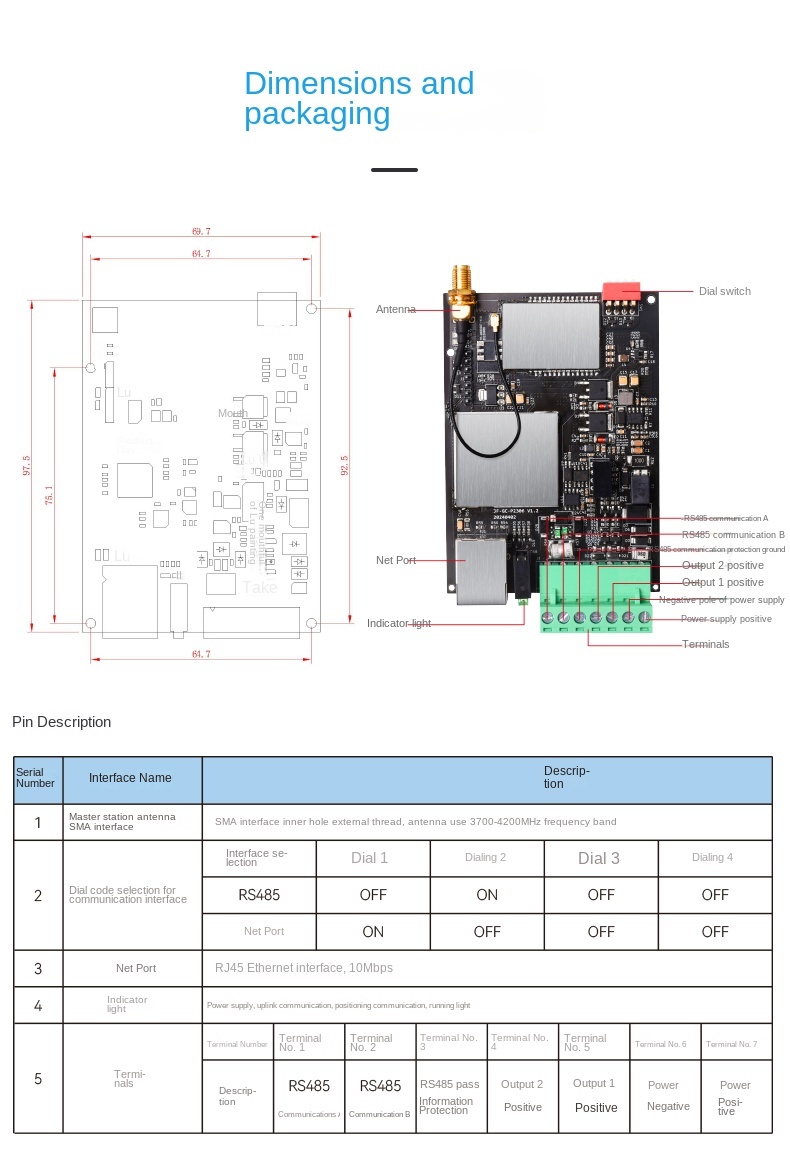

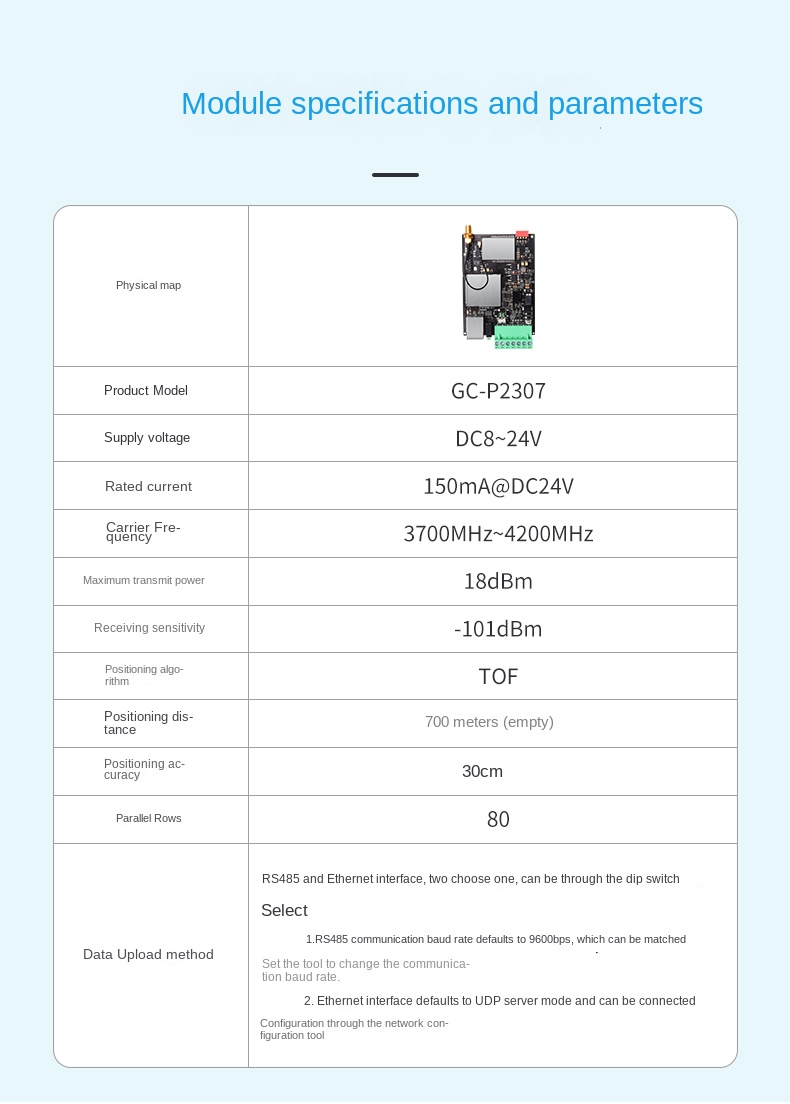

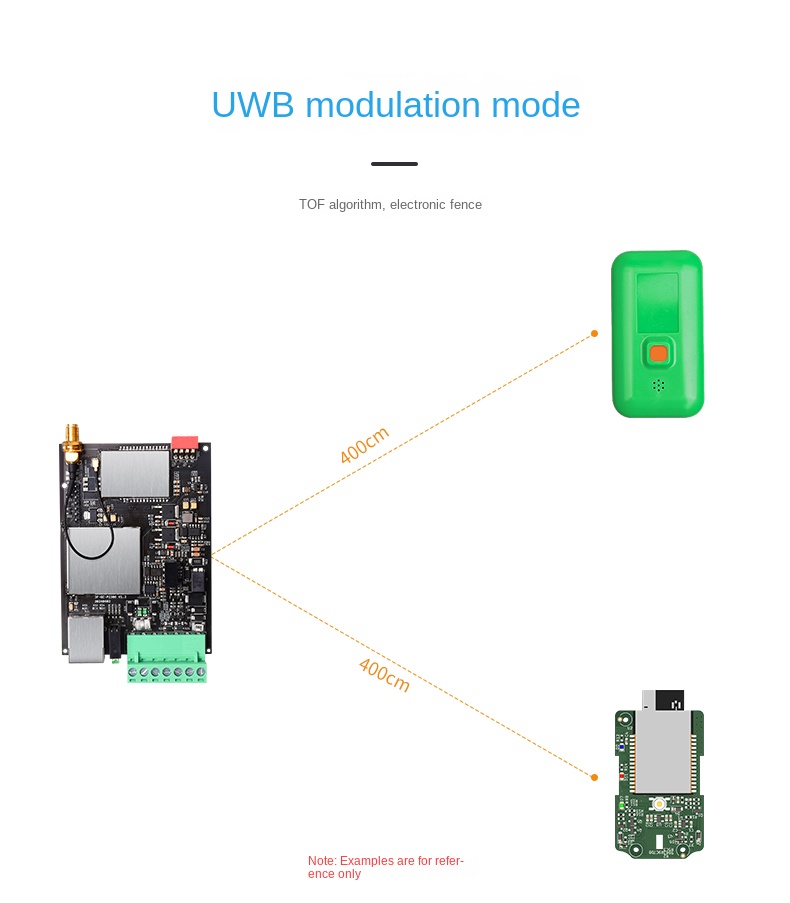

GC-P2307 is a single-base-station UWB positioning module that employs the TOF (Time of Flight) algorithm, achieving breakthrough 30-centimeter-level positioning accuracy with a single base station. Operating in the interference-resistant frequency band of 3700-4200MHz, it supports a wide DC input voltage range of 8-24V (compatible with vehicle/industrial power supplies) and features an integrated design with dimensions of 69.7×97.5mm. It offers a cost-effective solution with zero infrastructure costs for industrial electronic fences and personnel/vehicle positioning.

Core Advantages and Scenario Value

Three High-Conversion Application Scenarios

1. Smart Factory Personnel and Vehicle Dispatching:
   • Single-base-station coverage of an 8000㎡ workshop (CATL project), with real-time anti-collision warnings for AGVs/forklifts (response time <200ms).
2. Open-Pit Mine Safety Management:
   • Monitoring of blind spots in mining trucks + electronic fences for hazardous areas (75% reduction in accident rates at Zijin Mining).
3. Large-Scale Livestock Farm:
   • Monitoring of livestock movement trajectories (10km² coverage with a single base station at Muyuan Group, with 99.2% accuracy in boundary violation alarms).

Technical Differentiation Highlights

A[Precision Positioning] --> A1("TOF Multipath Suppression Algorithm")
A --> A2("3700-4200MHz Frequency Hopping Anti-Interference")

B[Industrial Design] --> B1("8-24V Surge Protection Circuit")
B --> B2("Aluminum Alloy Heat Dissipation Armor")

C[Intelligent Expansion] --> C1("RS485 Cascading Interface")
C --> C2("FOTA Remote Upgrade")

Actual Test Data:

• Dynamic positioning error in workshops: <±25cm
• Cold startup at -40℃: <15 seconds
• Designed lifespan: 10 years (7×24-hour operation)
•
