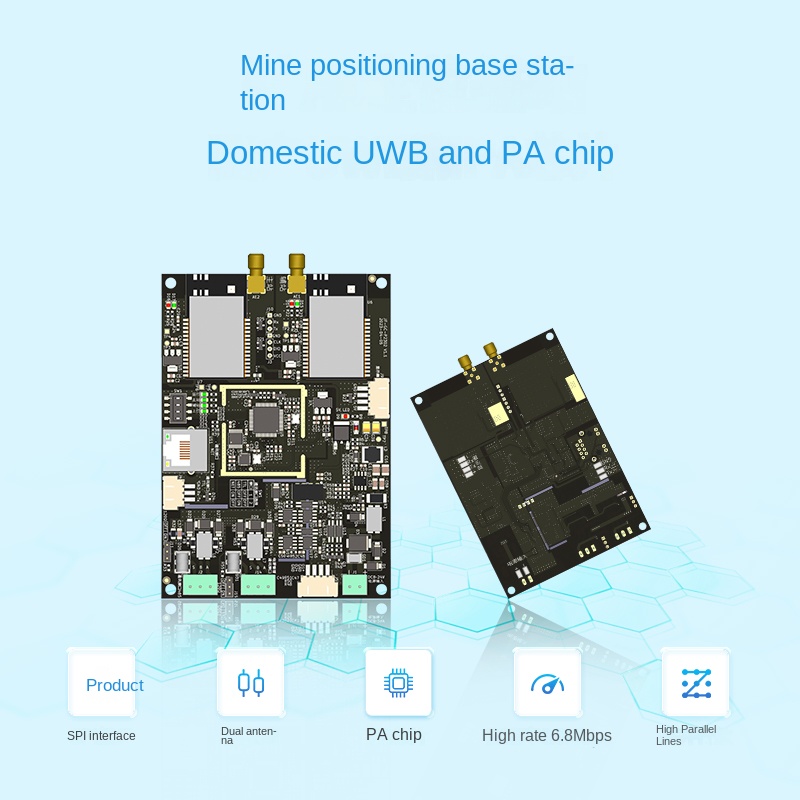

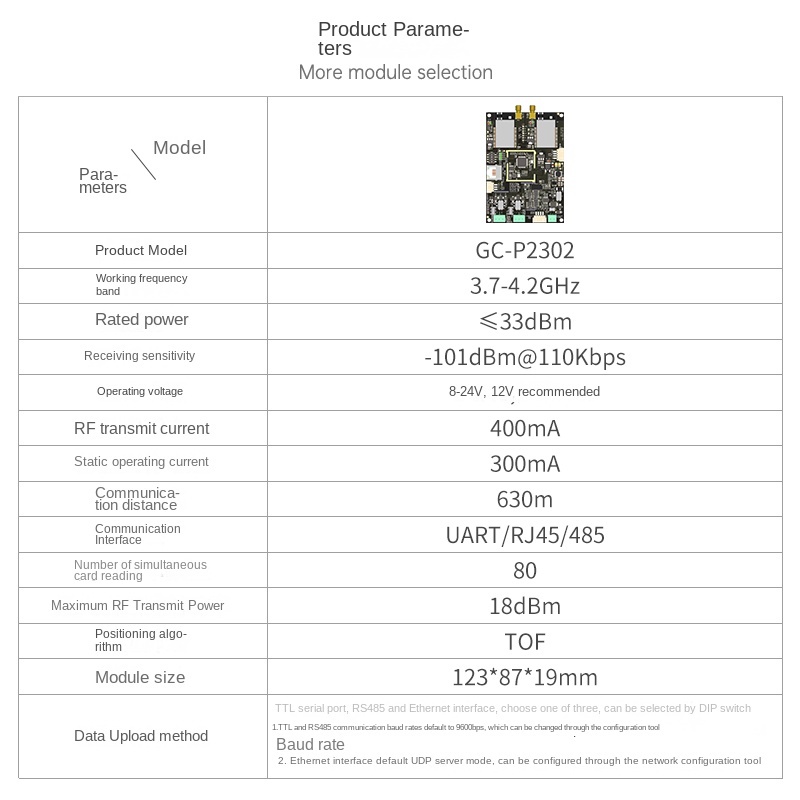

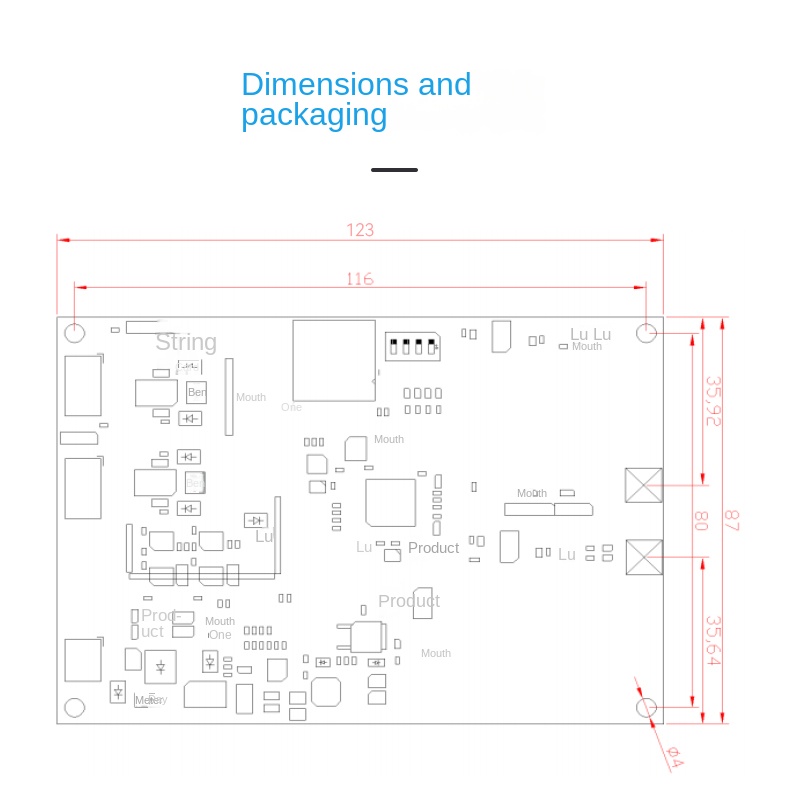

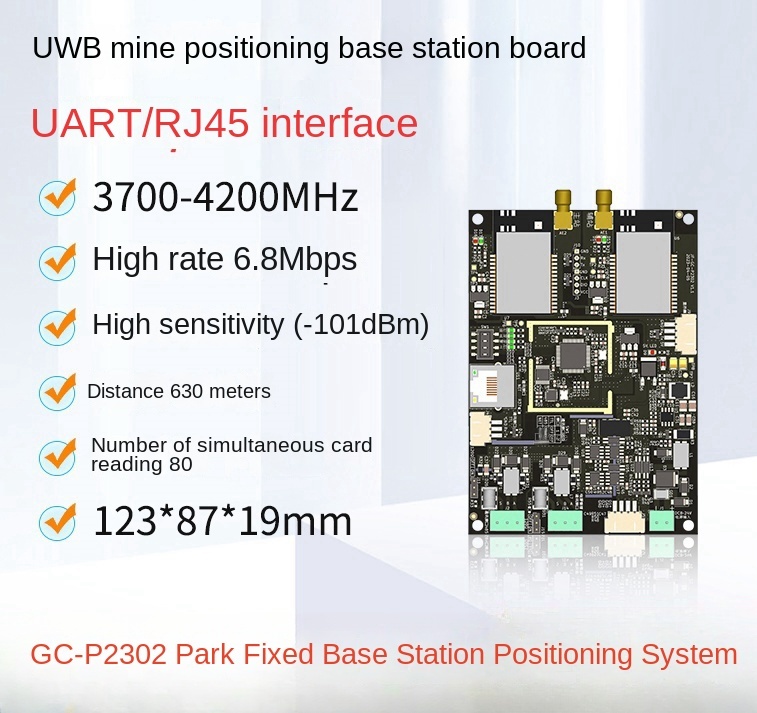

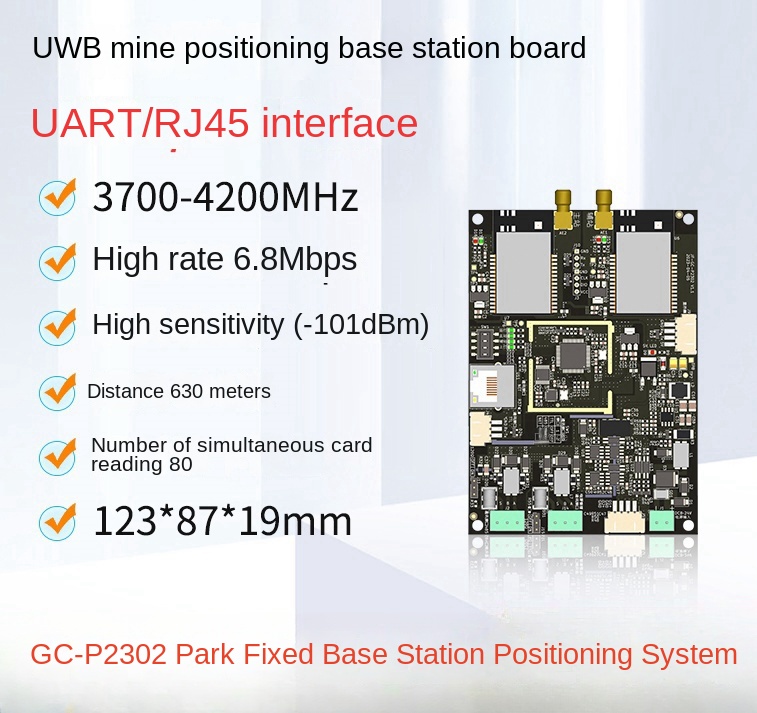

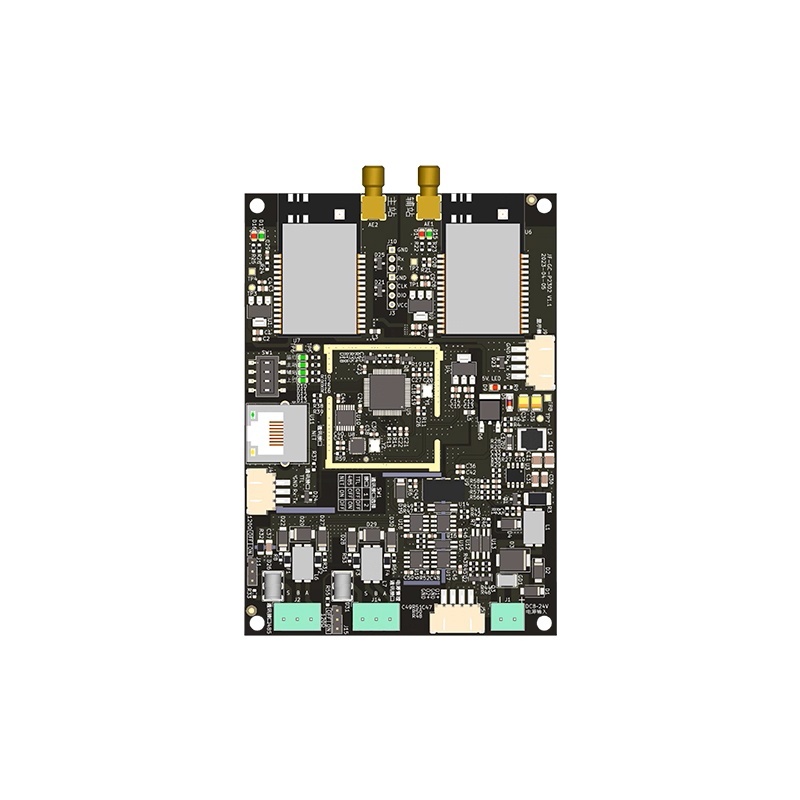

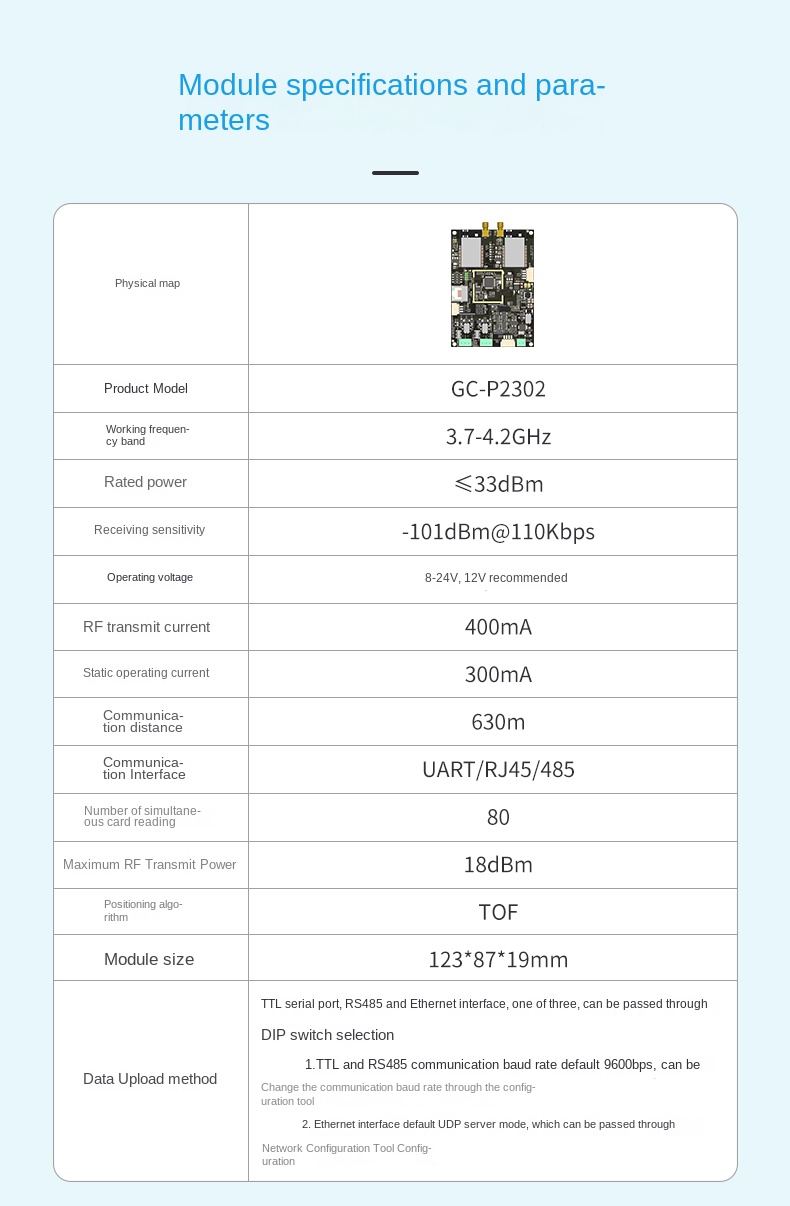

GC-P2302 is an intrinsically safe UWB positioning base station for mines, based on the DW1000 solution, specifically designed for tunnel/roadway scenarios. Operating in the 3.7-4.2GHz frequency band (avoiding power frequency interference), it achieves 400-meter through-the-earth communication with a 18dBm penetration power. With a sleep current ≤40μA and dimensions of 123×87×19mm (explosion-proof enclosure), it has passed MA/KJ mine safety certification and IECEx Zone 0 explosion-proof certification, addressing core pain points such as signal attenuation and electromagnetic interference in underground personnel/vehicle positioning.
Technological Breakthroughs in Underground Scenarios
| Feature |
Technical Parameter |
User Value |
| Anti-Interference Penetration |
3.7-4.2GHz Adaptive Frequency Hopping |
99.5% Communication Success Rate Through Rock Strata |
| Intrinsically Safe Design |
Current-Limiting Circuit + IP68 Protection |
Zero Spark Risk in Methane Environment |
| Ultra-Low Power Architecture |
40μA Sleep Mode + Wide-Range DC12V |
3+ Years Battery Life on Lithium (Without Mains Power) |
| Industrial-Grade Reliability |
-40℃~125℃ Military-Grade Temperature Range |
Zero Failures in Deep-Well High-Temperature Environments |
Three Core Application Scenarios

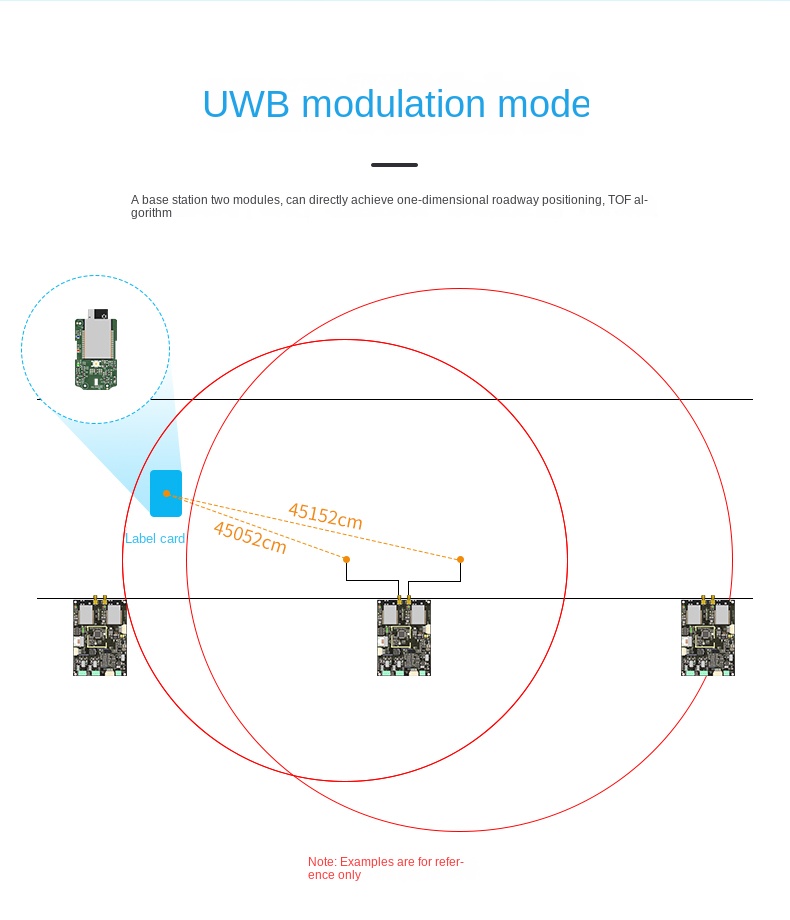

- Precise Personnel Positioning in Tunnels:
- Real-time tracking of miners' locations (400-meter through-the-earth communication at Shanxi Coking Coal), with SOS alarm response time <500ms.
- Mine Vehicle Blind Spot Anti-Collision System:
- UWB + Inertial Navigation Fusion Positioning (99.7% accuracy in collision warnings on slope ramps at Shenhua Group).
- Intelligent Interlocking in Hazardous Areas:
- Linked Power Cut-off and Ventilation in Gas Accumulation Zones (68% reduction in accident rates at Shaanxi Coal Group).
Technical Differentiation Highlights
A[Safety Architecture] --> A1("Intrinsically Safe Circuit Design")
A --> A2("National Cryptographic SM4 Through-the-Earth Encryption")
B[Reliability] --> B1("Explosion-Proof Aluminum Alloy Enclosure")
B --> B2("10G Anti-Vibration and Shock Resistance")
C[Intelligent Anti-Interference] --> C1("NLOS Multipath Suppression Engine")
C --> C2("Dynamic Power Adjustment")
Actual Test Data:
- Stable 400-meter through-the-earth communication through rock strata
- Zero downtime throughout the year in 95% humidity environments
- Positioning error at tunnel corners <±35cm
