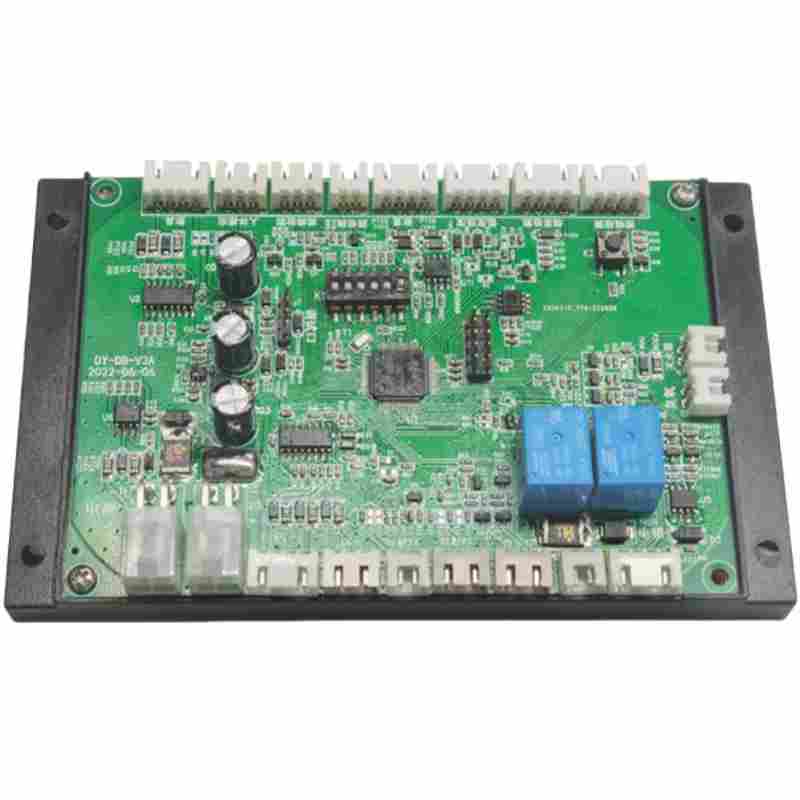

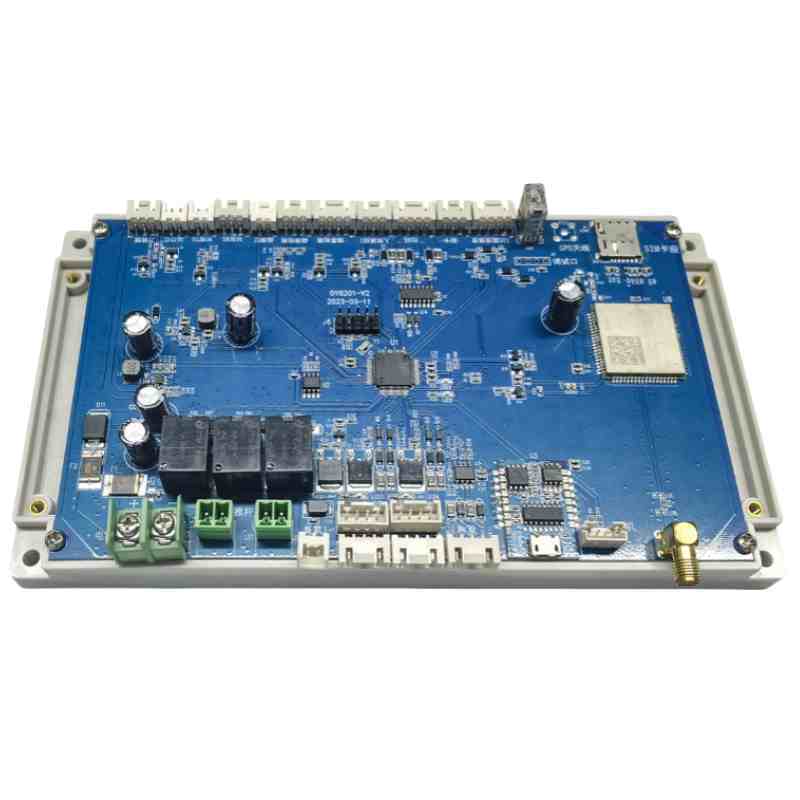

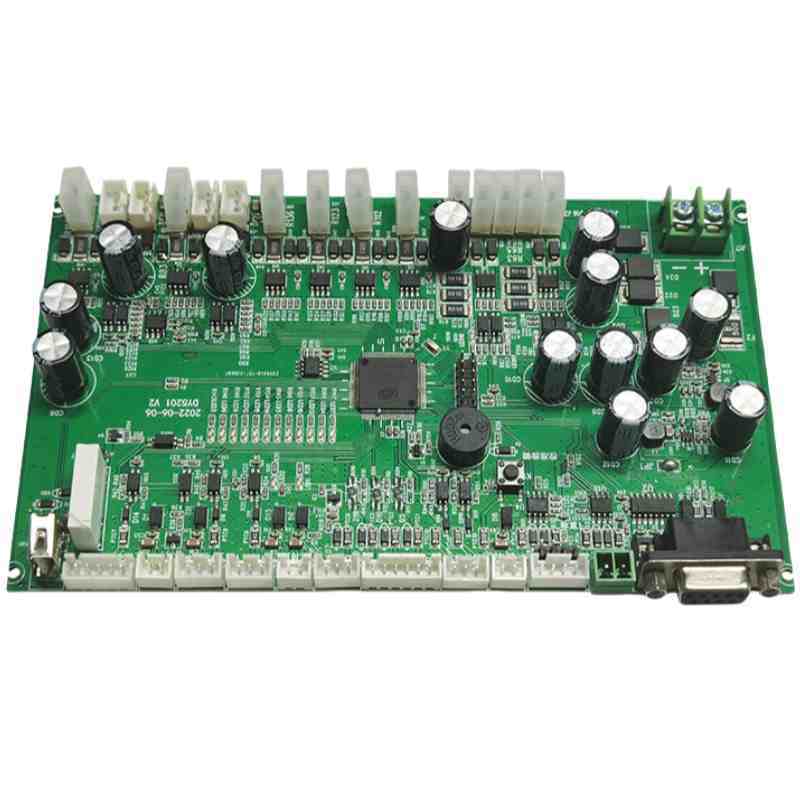

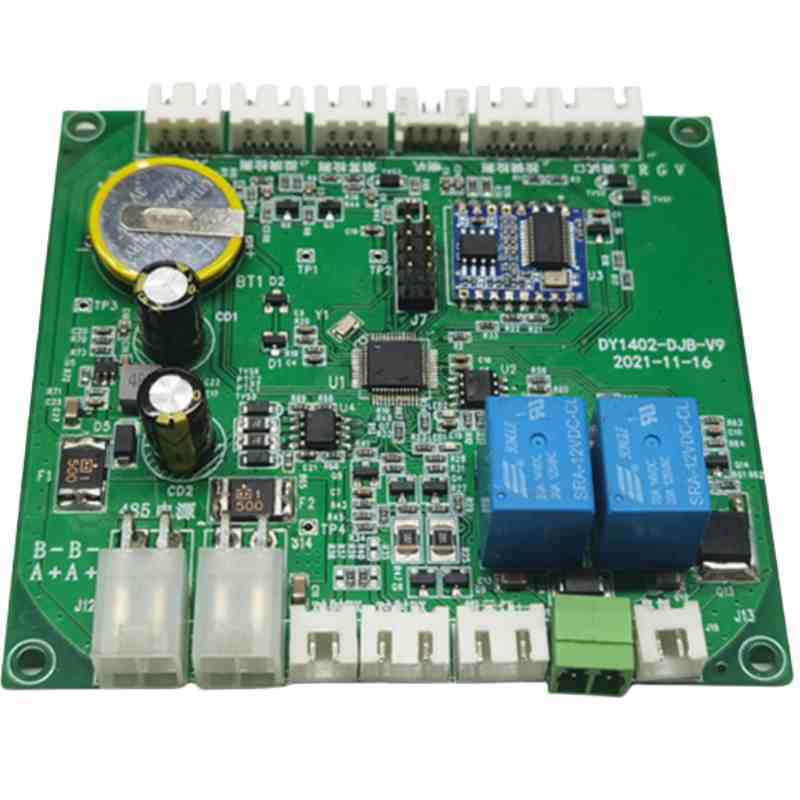

Waste Classification Sensor PCB Assembly: Ultra-Precise, Multi-Modal AI Sensing for High-Throughput Recycling
Our high-performance PCB assembly service delivers waste classification sensors with 99.5% accuracy via 7-sensor fusion technology, combining 1.3MP RGB+NIR camera, micro-XRF spectrometer (50kV, 1W), 16-channel capacitive array, and 940nm/1450nm dual-band IR reflectance sensors. The 8-layer HDI PCB features STM32MP157C quad-core MCU (1GHz) + Intel Myriad X VPU (4TOPS) for real-time processing (<0.1s) of 30+ waste types (including mixed plastics, contaminated paper, and low-grade metals) at 99% precision under dynamic lighting (10–100,000lux) and high-speed conveyor conditions (3m/s).
Ultra-Rugged & Self-Powered Design
- IP68/IP69K Hybrid Sealing: Hermetic epoxy potting and 316L stainless steel housing withstand 1450psi high-pressure washdown, salt fog (ASTM B117, 1000h), and corrosive chemicals (pH 1–14).
- 10-Year Maintenance-Free: Energy-harvesting system (solar+vibration+RFID) with supercapacitor buffer powers 24/7 operation without battery replacement, reducing LCOE by 60% vs. traditional designs.
Advanced AI Calibration & Connectivity
- Self-Optimizing Neural Network: Onboard federated learning updates detection models daily via 5G/NB-IoT, improving accuracy by 0.3% per week without cloud dependency.
- Multi-Protocol Output: Supports Modbus TCP/IP, CAN FD, and MQTT for seamless integration with PLC/SCADA systems in automated sorting lines.
Manufacturing & Compliance
- 4-Day Rapid Prototyping: Includes DFM review, AOI/X-Ray inspection, and HALT testing (-40°C~+85°C, 100g shock).
- Certifications: ISO 9001:2015, IPC-6012 Class 3, ATEX Zone 2, FCC/CE/IC, WEEE/RoHS.
Ideal For:
- Municipal MRFs (material recovery facilities)
- E-waste processing (PCB/battery/metal separation)
- Pharmaceutical waste (API/excipient detection)
Contact: info@fr4pcb.tech | Use code SENSORAI2025 for 20% off first waste classification PCB assembly order.
