BGA Rework Technology: A Complete Guide from Theory to Practice

I. Introduction: The Strategic Value of BGA Rework in Modern Electronics Manufacturing

In today's electronics manufacturing field, BGA (Ball Grid Array) packaging technology has become the preferred packaging form for high-end chips due to its high I/O density, excellent electrical performance, and heat dissipation capabilities. However, as the complexity of electronic products continues to increase, the failure rates and rework requirements for BGA components have correspondingly risen. Statistics show that BGA-packaged components now account for over 65% of high-end server motherboards, while the cost of scrapping an entire board due to a single BGA failure can reach tens of thousands of dollars.

BGA rework is no longer merely a "firefighting" technique but has become a strategic component in the modern electronics manufacturing and repair ecosystem. In terms of cost control, professional BGA rework typically costs only 15-30% of a new board but can restore over 90% of functional value; environmentally, each successfully reworked BGA motherboard reduces approximately 1.2kg of electronic waste; for supply chain resilience, when chip shortages extend lead times to months, rework technology provides solutions for urgent needs.

This is particularly critical in high-value sectors such as medical, military, and aerospace industries, where product lifecycles often span 10-15 years, while key chip suppliers may have long discontinued production. In these cases, professional BGA rework isn't just an economic choice but a necessary measure to ensure the continued operation of critical systems. With the proliferation of 5G, AI, and IoT technologies, the number of edge computing devices has surged. These devices deployed in remote areas are often difficult to replace entirely, making BGA rework technology even more valuable.

II. BGA Rework Fundamentals: Principles and Core Challenges

BGA Structure Characteristics and Failure Mode Analysis

BGA packaging fundamentally differs from traditional QFP or SOP packages. In BGAs, the connection points between the chip and PCB are hidden beneath the package body, forming a regular array—a feature that is both an advantage and a rework challenge. Common failure modes include:

1. Solder Joint Voids: During reflow soldering, incomplete flux volatilization or poor solder paste quality can cause gas entrapment, forming voids. When void percentage exceeds 25% or occurs in critical stress areas of the solder joint, connection reliability significantly decreases. In X-ray detection, voids typically appear as dark circular areas within solder joints.

2. Thermal Fatigue Cracks: Due to differences in coefficient of thermal expansion (CTE) between the chip, solder joints, and PCB, repeated thermal cycling causes stress accumulation in solder joints, eventually forming micro-cracks. These failures typically occur at BGA edge regions and accelerate in environments with frequent temperature changes.

3. Solder Ball Bridging: In fine-pitch BGAs (especially below 0.4mm), adjacent solder balls may form unintended connections during soldering, causing short circuits. This usually stems from improper stencil design, solder paste collapse, or inappropriate reflow profiles.

4. PCB Pad Lifting: When reworked multiple times or subjected to excessive thermal stress, the bonding force between the PCB surface finish and substrate may be compromised, causing pads to detach along with surface copper layers. This damage requires complex repair techniques.

5. Package Delamination: BGA packages consist of multiple internal layers including die, substrate, and molding compound. When moisture penetrates and rapidly vaporizes at high temperatures, it can cause interfacial separation within the package. This damage is often undetectable through external observation and requires Scanning Acoustic Microscopy (SAM) for detection.

Three Core Challenges in Rework Process and Solutions

1. Precise Thermal Management: BGA rework requires precise heat distribution control—sufficient to melt all solder joints while preventing PCB delamination, damage to adjacent components, or internal BGA package damage. Ideally, the BGA bottom temperature should reach 235-245°C (for SAC305 lead-free solder), with temperature differentials on the PCB backside controlled within 20°C. Solutions include multi-zone independent temperature control systems, PCB bottom preheating, and thermal shielding to protect adjacent components.

2. Micron-level Precision Alignment: Modern BGA component pitch has decreased to 0.35mm, requiring alignment error control within 0.05mm to ensure reliable connections. This is especially critical for asymmetrically arranged or specially marked BGAs. Solutions include high-resolution vision systems (minimum 5MP), multi-light source illumination schemes, and sub-pixel image processing algorithms.

3. Solder Joint Quality Control: Post-rework solder joint void rates should be controlled below 15%, with uniform distribution, particularly avoiding large voids at edge solder joints. Solutions include optimized ball placement processes, precise reflow profile control, and nitrogen protection to reduce oxidation. For critical applications, 100% X-ray inspection should be implemented with special attention to edge solder joint quality.



III. Professional BGA Rework Station System Details

Core Equipment Components and Key Technical Parameters

1. Intelligent Hot Air System: Top-tier BGA rework stations feature 4-6 independently controlled temperature zones, each with precision of ±1°C. Hot air nozzles employ laminar flow design to ensure uniform heat distribution, avoiding component displacement caused by traditional turbulent flow. Key parameters include:

   • Temperature range: Room temperature to 450°C
   • Heating rate: 1-6°C/second adjustable
   • Airflow pressure: 0.5-3.0 bar, precise to 0.1 bar
   • Multi-zone temperature control: Independent control of top heating, bottom preheating, and perimeter protection zones

2. Advanced Vision System: Rework precision largely depends on visual alignment capability. Professional systems should include:

   • High-resolution color CCD cameras (minimum 2MP)
   • Multi-light source illumination system (ring light, backlight, coaxial light)
   • This BGA inspection function employs light of a specific wavelength to penetrate the package body, enabling non-destructive observation of the underlying solder balls for defect detection.
   • Automatic edge detection and image stitching for large BGAs
   • Distortion correction algorithms to ensure edge precision at large field of view

3. Adaptive Nozzle System: BGA removal and installation depend on precision nozzles:

   • Precise vacuum control (0.05-0.8 bar, resolution 0.01 bar)
   • Multi-size nozzle kit (3mm-35mm), made of anti-static PEEK material
   • Nozzle temperature control to prevent thermal stress-induced cracking of ultra-thin chips
   • Automatic balancing mechanism to ensure uniform force distribution on large BGAs

Professional Auxiliary Tools and Consumables Selection

1. BGA Ball Placement Tools: Ball placement quality directly impacts rework success rate

   • Laser-cut stainless steel stencils (thickness 0.1-0.15mm), aperture accuracy ±3μm
   • Ball placement alignment fixtures to ensure precise BGA-stencil alignment
   • Solder ball specifications matching: Standard lead-free SAC305 (0.3-0.76mm), silver-enhanced for high-reliability applications
   • Ball cleanliness control: Solder balls should comply with J-STD-006 standards, oxidation layer thickness <50Å

2. Specialized Solder Paste and Flux:

   • Lead-free rework solder paste: SAC305, SAC387, etc., particle size Type 4 (20-38μm) or Type 5 (15-25μm)
   • Water-soluble vs no-clean flux selection: Water-soluble offers better cleanliness but more complex process; no-clean is suitable for volume production
   • Underfill-specific flux with stronger fluidity, suitable for gaps <0.1mm

3. Customized PCB Support and Thermal Protection:

   • Adjustable PCB support platform, accommodating different board thicknesses with precisely positionable support points
   • Local thermal shielding materials (ceramic fiber, titanium alloy sheets) to protect heat-sensitive components
   • ESD-protected work surfaces with surface resistance 10^6-10^9Ω and grounding resistance <1Ω

Practical Equipment Selection Guide

• Desktop Level (¥50,000-150,000): Suitable for repair shops, small batch production, handling BGAs with pitch >0.5mm, single rework time 8-12 minutes
• Engineering Level (¥150,000-350,000): Suitable for R&D centers, medium volume production, capable of handling 0.4mm pitch BGAs with partial automation features
• Industrial Level (¥350,000+): Meets high-volume, high-reliability requirements, capable of handling 0.3mm pitch BGAs with automated optical inspection and data traceability systems

IV. Precision BGA Rework Process Flow （BGA Rework Operation Manual）

Preparatory Work and Feasibility Assessment

1. Systematic Failure Analysis:

   • Use X-ray, boundary scan (JTAG), or functional testing to locate faulty BGA
   • Evaluate PCB condition: check for delamination, pad damage, via quality issues
   • Inspect BGA package integrity: look for cracks, moisture ingress signs
   • Confirm rework feasibility score: 0-10 points, below 6 points suggests board replacement

2. Thermal Profile Pre-design:

   • Design preliminary thermal curve based on BGA size, PCB layers, thickness
   • Reference IPC-7530 thermocouple placement standards, set measurement points at critical locations
   • Use simulation software to predict thermal distribution, adjust bottom preheat temperature and top hot air power ratio

3. ESD Protection and Environment Preparation:

   • Work area humidity control at 40-60% RH, temperature 23±2°C
   • Comprehensive ESD protection: grounded wrist straps (1MΩ resistor), anti-static workwear, ionizers
   • Cleanliness control: ISO Class 8000 or better to reduce solder joint contamination

Safe Removal of Old Chip

1. Precise Thermal Curve Settings:

   • Preheat stage: 120-150°C, 90-120 seconds, to activate flux
   • Ramp-up stage: 150-220°C, 60-90 seconds, to avoid thermal shock
   • Reflow stage: 220-250°C (lead-free), 30-45 seconds, ensuring all solder joints melt
   • Critical control points: Heating rate <3°C/second, precise control of peak temperature duration

2. Special BGA Package Handling:

   • Metal Shield Removal: First preheat with hot air to soften adhesive, then use specialized tools to lift, avoiding mechanical stress damage to PCB
   • Underfill Handling: Preheat to 150°C with hot air gun, carefully cut with sharp blades, or use specialized dissolving agents
   • Heat Sink Removal: Use thermal release tape, avoid direct prying that could crack BGA

3. PCB Pad Cleaning:

   • Specialized desoldering wick with no-residue flux, temperature 300-320°C
   • Copper braid cleaning technique, leaving no metal debris
   • 800-1000x microscope inspection to ensure no residual solder or damage

Pad Treatment and Surface Preparation

1. Residual Solder Removal:

   • Stage cleaning: Remove large solder masses with desoldering pump first, fine residues with solder wick
   • Temperature control: Avoid exceeding 350°C to prevent copper layer oxidation under pads
   • Surface tension utilization: Appropriate flux helps solder aggregate for easier removal

2. Surface Finish Process Special Considerations:

   • OSP (Organic Solderability Preservative): Only use gentle cleaning methods, avoid chemical solvents, complete rework within 2 hours after cleaning
   • ENIG (Electroless Nickel Immersion Gold): Watch for "black pad" issue, avoid excessive heating that could embrittle nickel layer
   • Immersion Silver: Easily sulfides and turns black, apply temporary protective coating immediately after cleaning

3. Microscopic Damage Inspection and Repair:

   • 200x+ stereo microscope inspection of each pad
   • Minor scratches: Polish with fine abrasive paste
   • Pad detachment: Use micro-soldering techniques to reconnect, or use conductive adhesive for temporary repair
   • Via blockage: Clean with micro-drill, diameter tolerance controlled within ±0.02mm

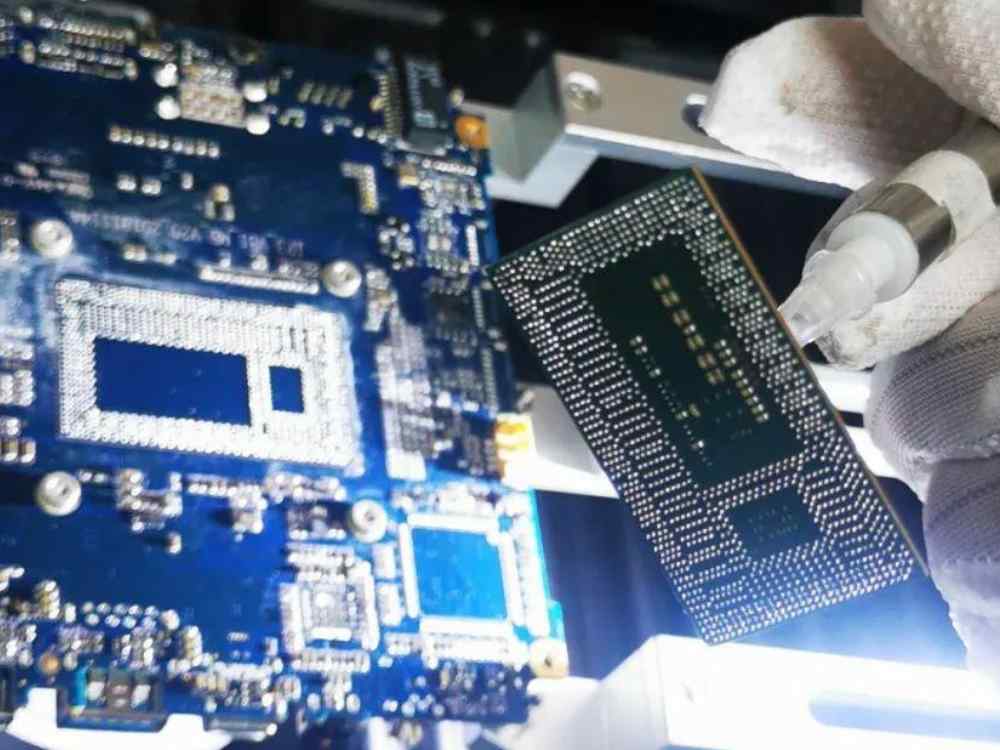

New Chip Preparation and Precision Installation

1. Ball Placement Process Selection:

   • Stencil Method: Suitable for standard pitch BGAs, high efficiency, good ball consistency
     • Steps: Clean BGA substrate → Apply flux → Align stencil → Place balls → Reflow → Clean
     • Key: Stencil tension >30N, alignment accuracy <0.02mm
   • Manual Ball Placement: Suitable for irregular arrangements or special size BGAs
     • Steps: Precise placement of individual balls → Zone-by-zone reflow
     • Key: Use microscopic manipulation tools, vibration-free environment

2. Solder Paste Printing Technology:

   • Direct solder paste printing on PCB pads instead of BGA ball placement
   • Advantages: Reduces one thermal cycle, suitable for ultra-fine pitch BGAs
   • Challenges: Extremely precise solder paste volume control required, higher void risk
   • Best practices: Use 0.1mm thick stencil, area ratio >0.66, precise squeegee pressure control

3. Sub-pixel Alignment Technology:

   • Use BGA package edge features and PCB silkscreen for alignment
   • Multi-point verification: At least 4 corners and center point
   • Error compensation: System automatically calculates and corrects X/Y/θ errors
   • Real-time monitoring: Continuous tracking during descent to prevent accidental displacement

Professional Reflow Soldering and Cooling Control

1. Multi-zone Temperature Control Curve Optimization:

   • Preheat zone: 150-180°C, balances board temperature, activates flux
   • Soak zone: 180-210°C, 120-150 seconds, fully volatilizes flux solvents
   • Reflow zone: 235-245°C (lead-free), 30-60 seconds, precise peak temperature control
   • Cooling zone: Uniform cooling, rate 2-4°C/second, prevents thermal shock

2. Nitrogen Protection Application:

   • Oxygen content controlled at 50-100ppm, significantly reduces oxidation
   • Nitrogen flow rate precisely regulated: 5-15L/min, avoiding airflow disturbance to components
   • Cost considerations: Small rework stations can use localized nitrogen shields to reduce gas consumption

3. Cooling Rate Control:

   • Rapid cooling (>3°C/second): Forms fine grain structure, improves mechanical strength
   • Slow cooling (<1.5°C/second): Reduces thermal stress, suitable for large or thin BGAs
   • Ideal balance: 2-3°C/second, balancing mechanical strength and stress control
   • BGA Reballing: Machine vs. Manual

V. High-difficulty BGA Rework Scenarios and Solutions

High I/O Density BGA (>1000 pins) Rework Strategy

Case: Data center server CPU BGA, 1824 pins, 0.45mm pitch, 37.5mm×37.5mm package

Core Challenges:

• Uneven heat distribution: Center region temperature 15-20°C lower than edges
• Ball coplanarity: Height difference among 2000+ balls must be <0.05mm
• Bottom via blockage: Solder seeping into vias causing connection failures

Solutions:

1. Zoned Thermal Control: Divide BGA area into 9 temperature control zones, increasing hot air intensity by 15% in center region
2. Optimized Bottom Preheating: Use infrared + hot air hybrid preheating, PCB bottom temperature differential controlled within 8°C
3. Via Protection: Use high-temperature tape to pre-seal bottom vias, removed after rework
4. Ball Placement Verification: Use a 3D optical scanner to check the coplanarity after ball placement and automatically filter out defective chips.

Results: Rework yield increased from initial 68% to 92%, thermal cycling test (0-100°C) passed 500 cycles with no failures

Extra-large BGA (>30mm) Thermal Management Comprehensive Solution

Case: FPGA chip, 42mm×42mm BGA, 2300+ I/O, 8-layer thick copper PCB

Core Challenges:

• High thermal inertia: Slow temperature rise rate, significant temperature difference between edge and center
• Mechanical stress: Large BGAs generate significant bending stress during thermal cycling
• PCB warpage: Thick copper boards deform during heating, causing alignment difficulties

Solutions:

1. Stepped Preheating: Three-stage PCB preheating
   • Stage 1: 80°C for 60 seconds, eliminates initial moisture
   • Stage 2: 150°C for 90 seconds, balances middle layer temperature
   • Stage 3: 180°C for 60 seconds, prepares for soldering
2. Innovative Bottom Support: Design array-type adjustable support points, real-time adjustment based on PCB deformation
3. Thermal Buffer Materials: Place specialized thermal buffer pads around BGA perimeter to slow edge cooling rate
4. Post-reflow Stress Relief: Hold at 120°C for 300 seconds, then slowly cool to room temperature

Results: Successfully eliminated temperature gradient, solder joint void rate controlled below 8%, bending stress reduced by 40%

Multi-layer Thick Copper PCB (10+ layers) Thermal Conductivity Challenge Management

Case: Industrial power supply control board, 12-layer PCB, 2oz copper thickness, high-power BGA module

Thermal Conduction Characteristics:

• Thick copper layers reduce vertical thermal conduction speed by 50-70%
• Layer-to-layer resin materials have large CTE differences with copper, prone to delamination
• Power planes with large copper pours create heat sink effects, making localized heating difficult

Innovative Solutions:

1. Thermal Balance Algorithm: Calculate thermal requirements for each area based on PCB stackup and copper distribution
   • Develop specialized software that inputs PCB design files to automatically generate hot air distribution parameters
   • Real-time thermal imaging feedback dynamically adjusts hot air power for each zone
2. Localized Enhanced Thermal Conduction:
   • Drill micro-vias (0.3mm) around BGA perimeter, fill with high thermal conductivity material
   • Pre-embed miniature heat pipes, 0.8mm diameter, thermal conductivity >500W/mK
   • Surface treatment optimization: Special OSP thickness control in edge regions to improve thermal conduction
3. Layered Reflow Technology:
   • Stage 1: 180°C, activates surface solder joints
   • Stage 2: 220°C, melts inner layer solder joints
   • Stage 3: Peak temperature, ensures all solder joints fully fuse

Validation Results: X-ray inspection showed void rate <10%, thermal cycling test (−40°C to +125°C) passed 1000 cycles with no failures

Flexible PCB and Rigid-flex Board Rework Professional Techniques

Special Challenges:

• Flexible substrate low temperature resistance (Tg<150°C), traditional rework temperatures easily cause deformation
• Uneven thickness (0.1-0.4mm), difficult to support
• Weak copper layer bonding strength, high pad lifting risk

System Solutions:

1. Custom Support Fixture Design:
   • 3D printed custom support trays with PEEK material (temperature resistant to 250°C)
   • Negative pressure adsorption system for uniform fixation of flexible areas
   • Thermal expansion compensation design, reserved 0.5-1.0% expansion space
2. Low-temperature Rework Process:
   • Use SAC105 (217-220°C) or SnBi (138-140°C) low-temperature solder
   • Localized hot air focusing, thermal impact area reduced by 40%
   • Stepped cooling: 150°C→100°C→50°C→room temperature, 60 seconds hold at each stage
3. Pad Reinforcement Technology:
   • Pre-apply edge reinforcement agent (thermosetting resin) before rework
   • Use dispensing process to increase bonding strength around pads
   • Reduce ball diameter by 10% to reduce thermal stress

Case Results: Successfully reworked 0.2mm thick flexible PCB with 0.4mm pitch BGA, passed 10,000 bending cycles at 5mm bend radius with no failures

VI. Quality Control and Reliability Verification System

Comprehensive Post-rework Inspection Methods

1. High-resolution 2D/3D X-ray Inspection Key Points:

   • 2D inspection focus: Solder joint shape, bridging, missing balls, position offset
   • 3D CT scanning: Slice analysis of void distribution, volume ratio, location
   • Key parameter settings:
     • Voltage: 90-130kV, adjusted based on BGA thickness
     • Current: 80-150μA, high current for fine inspection
     • Magnification: 200-500x, edge solder joints must be >250x
   • Acceptance criteria:
     • Single solder joint void rate <25%
     • Overall average void rate <15%
     • Edge solder joint void rate <10% (critical stress areas)
     • No missing balls, bridging

2. Innovative AOI Applications in Rework Verification:

   • 360° ring light system, eliminates shadow interference
   • Multi-wavelength imaging: visible light + infrared, see through package surfaces
   • AI defect recognition: trained models to identify subtle defects, accuracy >95%
   • Focus areas: BGA four corners, center area, heat-sensitive component perimeters

3. Solder Joint Shear Testing Standards:

   • Sampling method: Test 1 board per 10 reworked boards, 100% testing for critical applications
   • Test positions: 4 corner and 1 center solder joints
   • Acceptance criteria: Lead-free solder >8.0kgf/joint, leaded >6.5kgf/joint
   • Failure mode analysis: Record whether failure is cohesive within solder joint or interfacial separation

Professional Reliability Testing Solutions

1. Accelerated Thermal Cycling Test Design:

   • Harsh conditions: -55°C ↔ +125°C, dwell time 15 minutes, transition rate <10°C/second
   • Standard conditions: 0°C ↔ 100°C, dwell time 10 minutes, transition rate <15°C/second
   • Monitoring method: Online resistance monitoring, >20% change indicates failure
   • Pass criteria:
     • Consumer products: 200 cycles with no failures
     • Industrial products: 500 cycles with no failures
     • Automotive/military grade: 1000 cycles with no failures

2. Mechanical Shock and Vibration Testing:

   • Shock testing: 30G peak, 11ms pulse, 3 cycles in each of 6 directions
   • Random vibration: 0.04g²/Hz, 10-2000Hz, 30 minutes per axis, 3 axes
   • Resonance point scanning: 5-500Hz, 1.0G, Q=10, identify potential resonance points
   • Key monitoring: Solder joint micro-cracks (acoustic emission detection), functional status (online testing)

3. Comprehensive Electrical Function Verification:

   • Boundary scan testing (JTAG): Verify all I/O connectivity
   • Functional testing: 100% original design function verification
   • Signal integrity testing: Critical high-speed signal (>1Gbps) eye diagram analysis
   • Power integrity: PDN impedance testing, ensure power noise <5%

Rework Cycle Limits and Life Assessment

1. IPC Standard Guidelines:

   • IPC-7711/7721: Maximum of 3 reworks allowed at same location
   • Post-rework performance must reach 95% of original specifications
   • Comprehensive reliability assessment required after each rework

2. PCB Interlayer Damage Accumulation Assessment:

   • Micro-section analysis: Sample analysis of layer bonding status after each rework
   • TDR testing: Monitor impedance changes, evaluate dielectric damage
   • Ultrasonic C-scan: Detect interlayer delamination, sensitivity 0.1mm²

3. Preventive Replacement Decision Model:

   • Build life prediction model based on historical data
   • Key parameters:
     • Cumulative thermal cycles
     • Peak temperature of each rework
     • PCB material properties
     • Application environment stress
   • Risk assessment matrix: Determine replacement threshold based on failure consequences

VII. In-depth Case Analysis

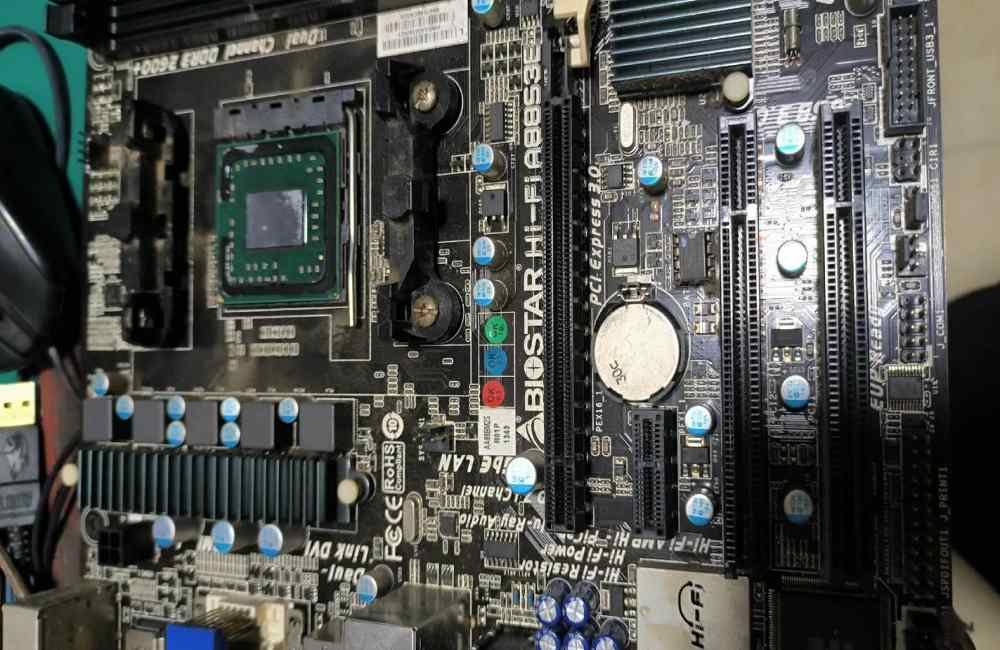

Case 1: Data Center Server Motherboard Xeon Processor BGA Rework

Background: A critical server at a large data center failed due to CPU failure. Replacing the motherboard required a 3-week lead time, with downtime costs of $25,000/day.

Challenges:

• BGA size: 35mm×35mm, 2400+ I/O
• PCB structure: 16-layer rigid board, 3.2mm thick, with thick copper power layers
• Surrounding components: Dense MOSFETs, capacitors, heat sensitive
• Time constraints: Restore operation within 48 hours

Solutions:

1. Thermal Distribution Optimization:
   • Used infrared thermal imager to predict and map thermal distribution
   • Designed 5-zone independent temperature control curve, center region with additional +15% hot air
   • PCB bottom preheated to 150°C, temperature difference reduced to 12°C
2. Custom Support System:
   • 3D printed heat-resistant PEEK support tray, precisely matched component layout
   • Negative pressure adsorption fixation, preventing thermal deformation
   • Ceramic fiber thermal shielding to protect surrounding components
3. Phased Rework Approach:
   • Phase 1: Safely remove old CPU, evaluate pad condition
   • Phase 2: Pad cleaning and repair, 100% inspection
   • Phase 3: New CPU ball placement and installation, nitrogen protection
   • Phase 4: Comprehensive verification and burn-in testing

Results:

• Rework completed within 36 hours, system restored to normal operation
• X-ray inspection: Average void rate 9.3%, edge solder joints <7%
• Thermal cycling test: Passed 1000 cycles (-40°C to +125°C) with no failures
• Total cost $8,500,saved$21,500 compared to new board, avoided $600,000 downtime costs

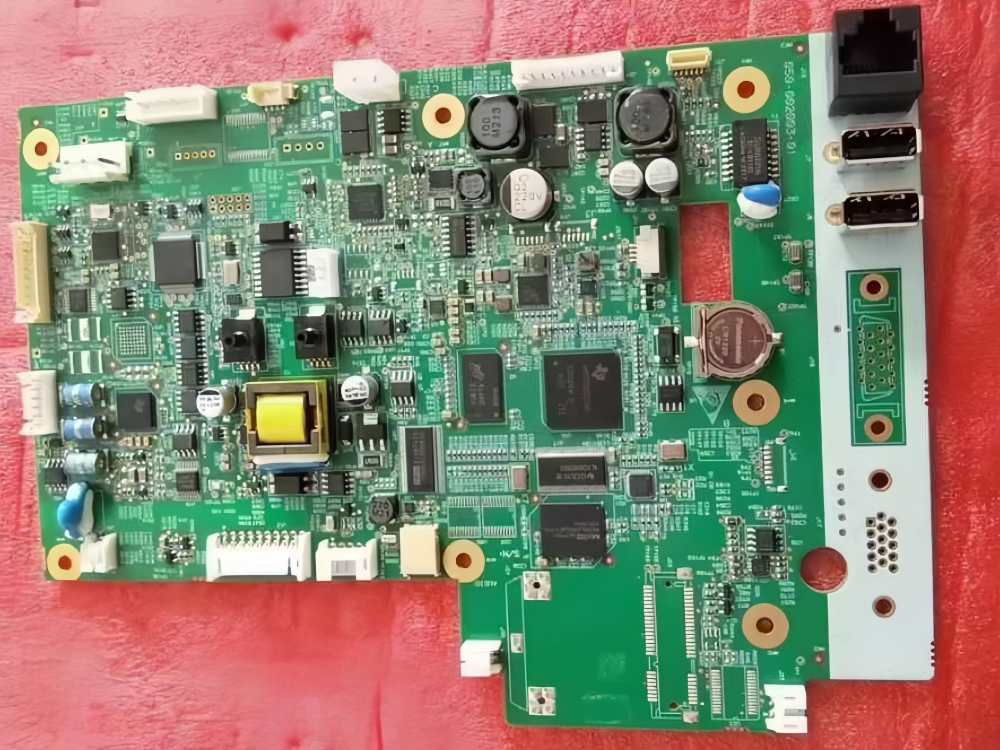

Case 2: High-end Medical Imaging Equipment FPGA Chip Repair

Background: An MRI system FPGA failure at a major hospital, manufacturer repair quote $85,000, 8-week lead time, affecting 300+ patients/day

Challenges:

• Chip specifications: 27mm×27mm BGA, 1517 I/O, 0.8mm pitch
• Application requirements: Zero-failure tolerance, medical-grade reliability
• Signal integrity: High-speed digital signals (>2Gbps), strict eye diagram requirements
• Certification requirements: Must comply with FDA 510(k) and IEC 60601-1 standards

Solutions:

1. Non-destructive Failure Analysis:
   • 3D X-ray CT scanning to precisely locate faulty solder joints
   • Boundary scan testing to verify FPGA internal functionality
   • Confirmed only 3% solder joints failed, chip body intact
2. Cleanroom Operation:
   • ISO Class 5 cleanroom environment
   • Full ESD protection (10^6-10^8Ω)
   • Personnel in cleanroom suits, professionally trained
3. High-reliability Rework:
   • Used SAC387 silver solder balls (3.5% Ag) to improve thermal fatigue life
   • Nitrogen-protected reflow (O2<50ppm) to reduce oxidation
   • Four-point thermocouple real-time monitoring, temperature difference <5°C
4. Comprehensive Verification:
   • 100% 3D X-ray inspection
   • Signal integrity testing: Eye diagram opening >75%
   • 72-hour burn-in testing with temperature cycling + functional testing

Results:

• Rework completed in 5 days, equipment restored to normal operation
  • Passed on-site review by medical device regulatory authorities
  • 18-month tracking: Zero failures, saved $76,500
  • Established preventive maintenance plan, extended equipment life 3-5 years
  •

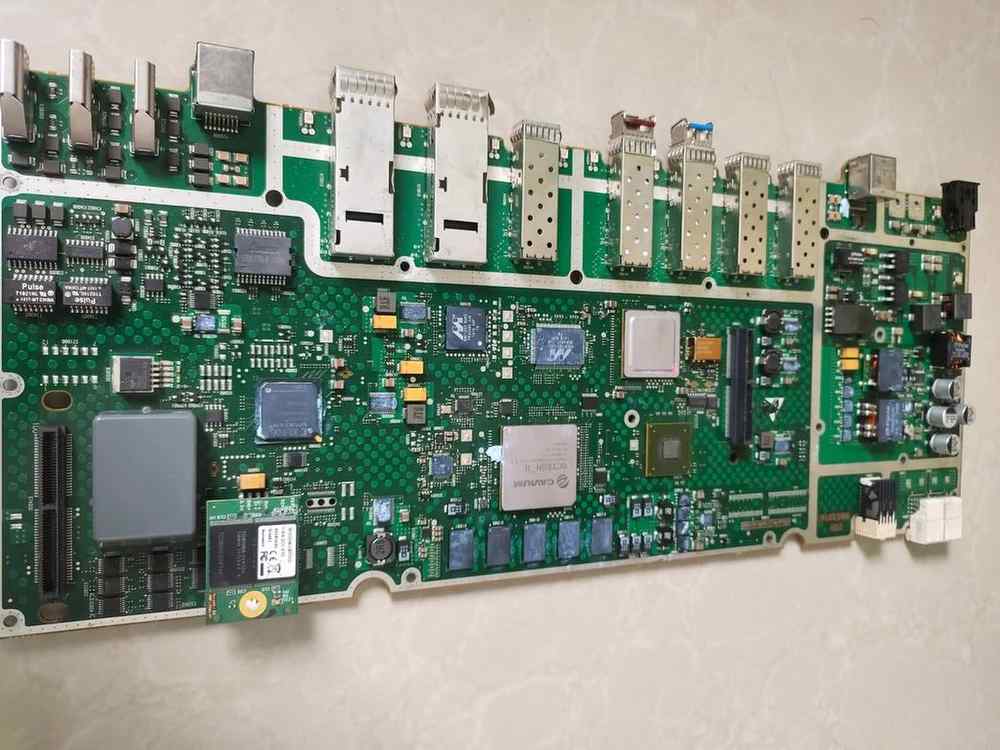

Case 3: 5G Base Station Millimeter-wave RF Module BGA Repair

Background: A telecom operator's 5G base station millimeter-wave front-end module failure, affecting 5 square kilometers coverage area

Challenges:

• High-frequency characteristics: 28GHz millimeter-wave signals, strict phase noise requirements
• BGA features: 324-ball, 0.5mm pitch, with EMI shield
• Environmental conditions: Outdoor -40°C to +85°C, high humidity, salt spray corrosion
• RF performance: S-parameters must comply with 3GPP standards

Solutions:

1. Special Removal Technique:
   • Laser cutting of shield attachment points, avoiding mechanical stress
   • Low-temperature adhesive removal technique (80°C) to soften thermal adhesive, protecting RF traces
   • Vacuum adsorption removal of BGA, preventing solder ball drop contamination
2. RF Pad Treatment:
   • Non-contact cleaning: Ultrasonic + specialized solvents, avoiding scratches on RF surfaces
   • Impedance matching check: TDR testing to ensure 50Ω impedance
   • Surface roughness control: <0.5μm, reducing high-frequency insertion loss
3. RF-optimized Rework:
   • Specialized RF solder paste: Low residue, low Dk value (3.2@10GHz)
   • Precise reflow profile: Peak temperature 240±2°C, time 45±3 seconds
   • Shield reinstallation: Replace conductive gaskets, ensure grounding continuity
4. Comprehensive RF Verification:
   • Vector network analyzer testing of S11/S21
   • Noise figure testing: <2.5dB @28GHz
   • EVM testing: <3% @1024QAM
   • Environmental testing: IP67 protection, 96-hour salt spray test

Results:

• Service restored within 72 hours, users experienced no perceptible interruption
• RF performance: S11<-15dB, NF=2.1dB, fully compliant
• 12-month outdoor operation: Zero failures, saved $42,000
• Established spare parts refurbishment process, doubled module lifespan
•

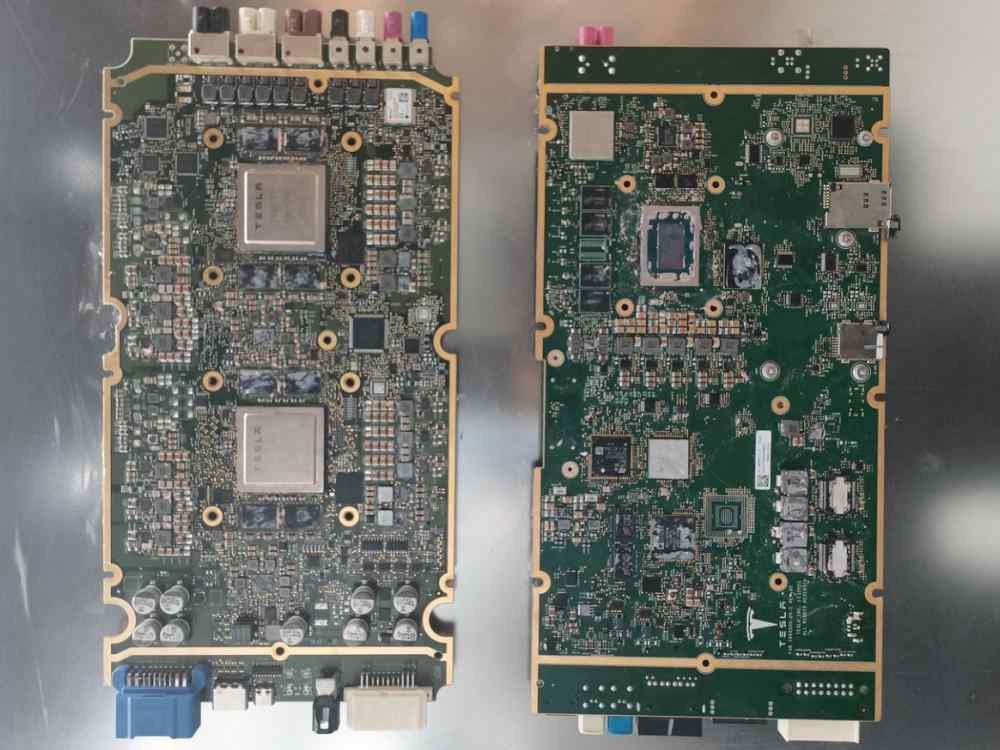

Case 4: New Energy Vehicle ECU Control Unit BGA Rework

Background: Batch failure of ECU control units in an electric vehicle manufacturer, recall costs exceeding $10M

Challenges:

• BGA specifications: 25mm×25mm, 960 I/O, 0.65mm pitch
• Certification requirements: AEC-Q100 Grade 1, 15-year service life
• Vibration requirements: Random vibration 0.04g²/Hz, 5-2000Hz
• Diagnostic functionality: Must pass OBD-II diagnostic standards

Solutions:

1. Root Cause Failure Analysis:
   • Thermal imaging showed localized overheating
   • X-ray revealed solder joint cracks at thermal source locations
   • Confirmed design flaw: Insufficient heat dissipation, concentrated thermal stress
2. Enhanced Reliability Rework:
   • Underfill: Used high-Tg epoxy resin with matched CTE
   • Solder joint reinforcement: SAC305+3%Ag mixed solder balls, increased mechanical strength
   • Thermal management modification: Added thermal vias, optimized heat path
3. Automotive-grade Verification:
   • Temperature shock: -55°C to +150°C, 1000 cycles
   • Mechanical vibration: Per ISO 16750-3 standard
   • EMC testing: CISPR 25 Class 5
   • Functional safety: ISO 26262 ASIL-B certification
4. Volume Rework Process:
   • Automated pre-processing workstation
   • Standardized rework parameters, CpK>1.67
   • 100% X-ray + functional testing
   • Full lifecycle tracking system

Results:

• Completed rework of 50,000 ECUs within 4 weeks
• Passed OEM and TÜV certification
• 36-month tracking: Failure rate <10ppm
• Total cost $3.2M,saved$6.8M compared to recall replacement
• Received customer innovation award, established long-term partnership

VIII. BGA Rework Technology Frontiers and Industry Trends

Latest Advances in Laser BGA Rework Technology

Limitations of traditional hot air rework are becoming increasingly apparent: large heat-affected zones, low temperature control precision, high risk to surrounding components. Laser rework technology, with its precise energy focusing, is transforming this landscape.

Core Technology Breakthroughs:

• Selective Heating: Laser beams can precisely focus on individual solder joints (0.1mm diameter), reducing heat-affected area by 80%
• Multi-wavelength System: 808nm/980nm dual wavelength, adapting to different material absorption characteristics
• Real-time Temperature Feedback: Infrared thermal imager closed-loop control, precision ±1°C
• Coaxial Vision System: 5MP camera with coaxial laser optical path, precision 0.005mm

Application Case: Military radar system T/R module rework

• Challenge: 0.3mm pitch BGA, surrounded by heat-sensitive GaAs components
• Solution: Laser localized heating, melting only target solder joints
• Result: 100% success rate, surrounding component temperature rise <15°C

AI-driven Thermal Profile Automatic Optimization System

Traditional thermal profile setup relies on engineer experience, resulting in low efficiency and poor consistency. AI technology is bringing revolutionary changes:

System Architecture:

1. Data Acquisition Layer: 128-channel thermocouples + infrared thermal imager, 1000 data points/second
2. Feature Extraction Layer: CNN identifies PCB thermal characteristics, cluster analysis
3. Decision Layer: Reinforcement learning model optimizes thermal parameters
4. Execution Layer: Adaptive control of each thermal zone power

Actual Results:

• First-pass yield: Increased from 75% to 98%
• Setup time: Reduced from 30 minutes to 3 minutes
• Energy consumption: Reduced by 40%, more environmentally friendly

Ultra-fine Pitch BGA (0.35mm pitch and below) Rework Challenges

As advanced packaging technologies develop, 0.35mm and below pitch BGAs are becoming standard, with rework difficulty increasing exponentially:

Key Technology Breakthroughs:

• Micro ball placement: 0.2mm diameter ultra-fine solder balls, special surface treatment
• High-magnification vision: 20MP + telecentric lens, resolution 0.5μm
• Electrostatic control: Ion balance <±5V, preventing micro ball displacement
• Environment control: Cleanliness ISO Class 5, vibration <0.5μm

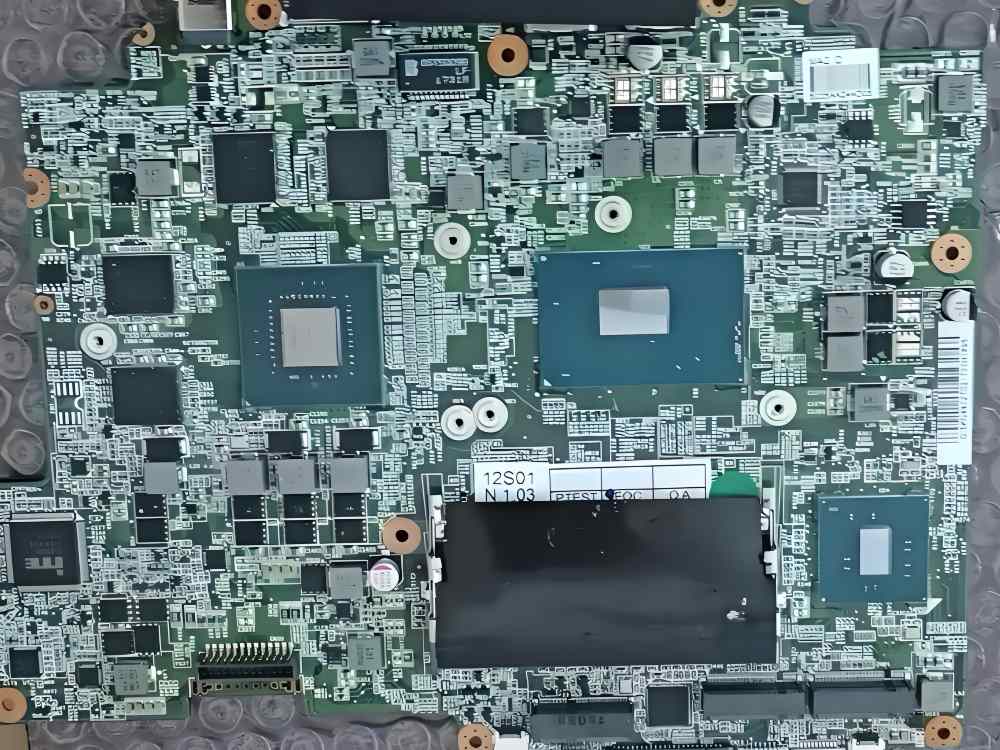

Industry Application: Smartphone SoC rework

• Chip: 8nm process, 0.3mm pitch, 6400 I/O
• Success rate: 85% with professional equipment, <40% with traditional equipment
• Trend: 0.25mm pitch BGA rework technology is currently under laboratory validation

Environmental-friendly Lead-free Solder Rework Process Breakthroughs

After RoHS directive implementation, lead-free solder rework has become mainstream, but brings higher temperature challenges:

Innovative Solutions:

• Low-temperature lead-free alloys: SAC-Q (210-215°C), Bi-Sn-Ag (138-140°C)
• Nano-enhanced solder: Adding 0.1% Ni/Cu nano-particles, increases strength by 30%
• Active flux: New organic acid systems, activation temperature reduced by 20°C
• Stepped reflow: Multi-stage temperature control, reducing thermal shock

Performance Comparison:

Revolutionary Application of Remote Expert Systems in Complex Rework

Skilled BGA rework engineers are scarce, and remote collaboration technology bridges this gap:

System Functions:

• AR guidance: Experts annotate operation interface in real-time, precision 0.1mm
• Multi-view synchronization: Main camera + microscope + thermal imager, multi-channel video streams
• Parameter sharing: Thermal curves, equipment settings transferred with one click
• Knowledge base integration: Automatic recommendation of similar case solutions

Application Example: Mining equipment repair at African mining company

• Problem: Mining equipment BGA control module failure, no local experts
• Solution: European expert remote guidance, rework completed in 8 hours
• Savings: Avoided 2-week equipment downtime, saved $180,000

IX. Practical Guide for Electronics Engineers: BGA Rework

BGA Rework Capability Self-assessment Table and Improvement Path

Beginner (1-2 years experience):

• Capability range: BGAs >0.5mm pitch, simple single/double layer boards
• Essential skills: Basic thermal curve setup, simple visual alignment
• Improvement path: IPC certification training, 50+ rework cases

Intermediate (3-5 years experience):

• Capability range: 0.4mm pitch BGAs, 4-8 layer boards
• Essential skills: Thermal distribution optimization, X-ray defect analysis
• Improvement path: Professional equipment certification, 100+ complex case practice

Advanced (5+ years experience):

• Capability range: <0.4mm pitch BGAs, rigid-flex boards
• Essential skills: Materials science knowledge, reliability engineering
• Improvement path: R&D experience, patent/publication record
•

10 Common Mistakes and Prevention Methods

1. Mistake: Ignoring PCB preheating, directly applying high-temperature rework Consequence: PCB delamination, pad lifting Prevention: Strictly follow preheating procedures, PCB surface temperature difference <20°C

2. Mistake: Using excessive temperature to remove BGA Consequence: Package cracking, internal damage Prevention: Temperature not exceeding 250°C, verify with thermocouples

3. Mistake: Over-cleaning pads Consequence: Copper corrosion, pad damage Prevention: Gentle cleaning methods, time controlled within 30 seconds

4. Mistake: Long storage after ball placement Consequence: Oxidation, poor soldering Prevention: Complete reflow within 2 hours, humidity control <40% RH

5. Mistake: Ignoring moisture-sensitive components Consequence: "Popcorn" effect, internal cracks Prevention: Confirm MSL rating, strictly follow baking procedures

6. Mistake: Using mismatched solder balls Consequence: Inconsistent melting points, reduced reliability Prevention: Original manufacturer balls or strict specification matching

7. Mistake: Neglecting ESD protection Consequence: Internal BGA circuit damage Prevention: Comprehensive ESD program, regular grounding checks

8. Mistake: Cooling too quickly Consequence: Brittle solder joints, cracking Prevention: Control cooling rate 1-3°C/second

9. Mistake: Single-point alignment verification Consequence: Overall offset, poor connections Prevention: At least 4-point alignment verification (corners + center)

10. Mistake: Skipping reliability testing Consequence: Early field failures Prevention: Establish standard testing procedures, 100% testing for critical applications

Practical Rework Cost Control Techniques

Yield Improvement Strategies:

• Build rework parameter database, record each setting and result
• Implement SPC statistical process control, CpK target >1.33
• Standardize operating procedures (SOP), reduce human variation
• First article confirmation system, 100% verification before batch rework

Consumables Optimization Plan:

• Solder ball reuse evaluation: Limited to uncontaminated, non-oxidized balls
• Nitrogen saving techniques: Localized shielding, flow optimization
• Nozzle life management: Establish replacement standards, avoid sudden failures
• Precise flux dispensing: 40% usage reduction without compromising results

Professional Skills Certification and Training System Recommendations

Recommended Certification Path:

1. Basic: IPC-A-610 Certified Specialist
2. Intermediate: IPC J-STD-001 Certified Instructor
3. Advanced: IPC 7711/7721 Certified Expert
4. Expert: iNEMI or SMTA advanced certification

Training Institution Recommendations:

• International: IPC Training Centers, SMTA
• China: China Electronics Society SMT Committee, FR4PCB.TECH Training Center
• Online: IPC Edge, Coursera professional manufacturing courses

Supplier Selection Evaluation Standards

Technical Capability Assessment:

• Equipment inventory: Hot air system precision, vision system resolution
• Case library: Similar BGA rework experience
• Quality system: IPC certification, testing capabilities
• Personnel qualifications: Engineer certifications, average experience

Business Assessment:

• Response time: Emergency service availability
• Pricing structure: Transparent pricing, no hidden fees
• Warranty policy: Post-rework guarantee period
• Data security: IP protection, information confidentiality

X. Conclusion: BGA Rework—The Fusion of Precision Engineering and Craftsmanship

BGA rework has long surpassed the simple concept of "repair," evolving into a comprehensive discipline integrating materials science, thermodynamics, precision mechanics, and electronic engineering. In the electronics manufacturing ecosystem, it plays an increasingly important role—not just as a cost-saving tool, but as a key component of product lifecycle management, supply chain resilience, and sustainable development practice.

Successful BGA rework requires precise balance between technical capability and experiential judgment. Technology provides the foundational framework: equipment precision, materials science, thermodynamic models; while experience endows engineers with decision-making ability in complex scenarios: when to adhere to standards, when innovation and breakthrough are needed. This balance is not static but a dynamic process continuously evolving with technological progress.

Looking ahead, BGA rework will develop in three directions:

1. Intelligentization: AI and big data will optimize process parameters, predict failure modes
2. Precision: Lasers and MEMS will enable cellular-level precision operations
3. Green: Environmental materials and energy-efficient processes will become mainstream

In this field, we witness the transformation from "firefighter" to "value creator." Excellent BGA rework engineers are not just technical experts but guardians of product value, practitioners of sustainable development, and inheritors of manufacturing wisdom. When a BGA chip worth thousands of dollars is given new life by professional hands, we not only salvage hardware value but continue design wisdom, reduce environmental burden, and create truly sustainable electronics future.

As a veteran rework engineer once said: "Each successful rework is a tribute to the original intent of electronics manufacturing—not creating more waste, but giving existing products new life." This fusion of craftsmanship spirit and technical precision is the core of BGA rework artistry.

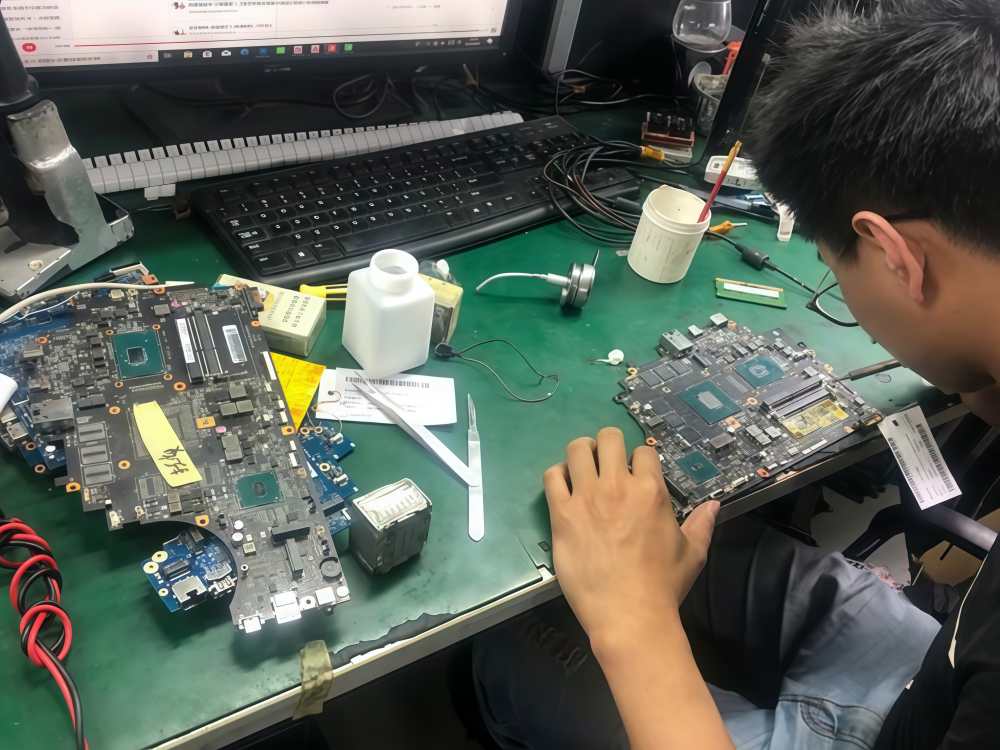

Professional BGA Rework Service Support

Facing increasingly complex BGA rework challenges, professional outsourcing services have become a wise choice for many enterprises. FR4PCB.TECH provides professional BGA rework outsourcing services in China, covering high-difficulty BGA repair and reballing for GPUs, laptops, and automotive ECUs. Supporting lead-free processes and complying with IPC standards, our fast and reliable services help customers reduce costs and improve efficiency. Equipped with IPC-certified professional repair technicians, specialized BGA reballing rework equipment, and high-precision X-ray inspection instruments, we provide end-to-end services from desoldering, reballing, wire bonding to rework. Strict quality control ensures each rework process meets industry standards. Whether for urgent small-batch orders or stable high-volume delivery, FR4PCB.TECH can provide highly reliable BGA rework solutions for customers.
