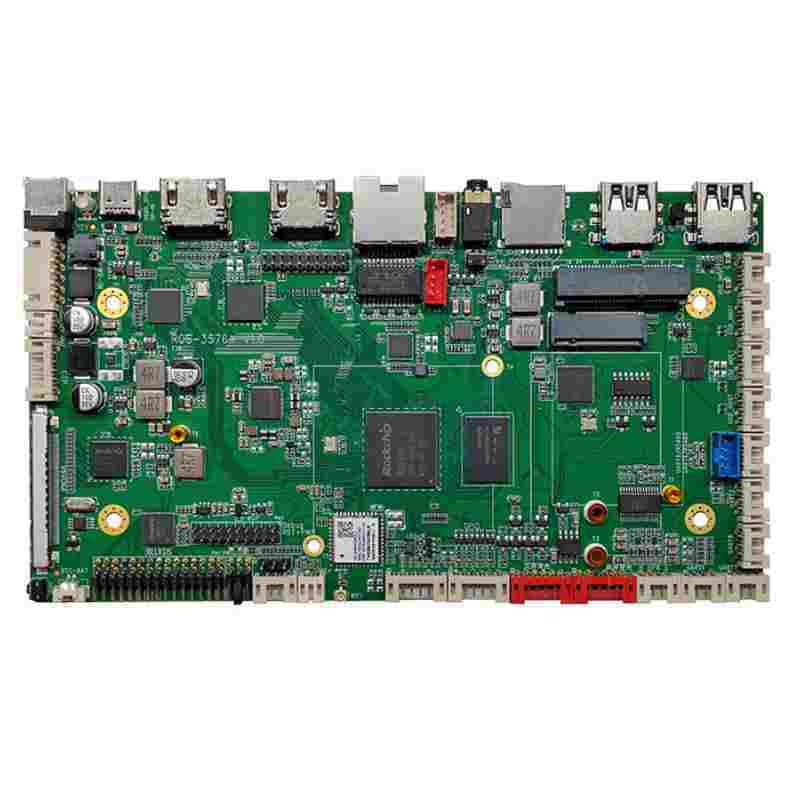

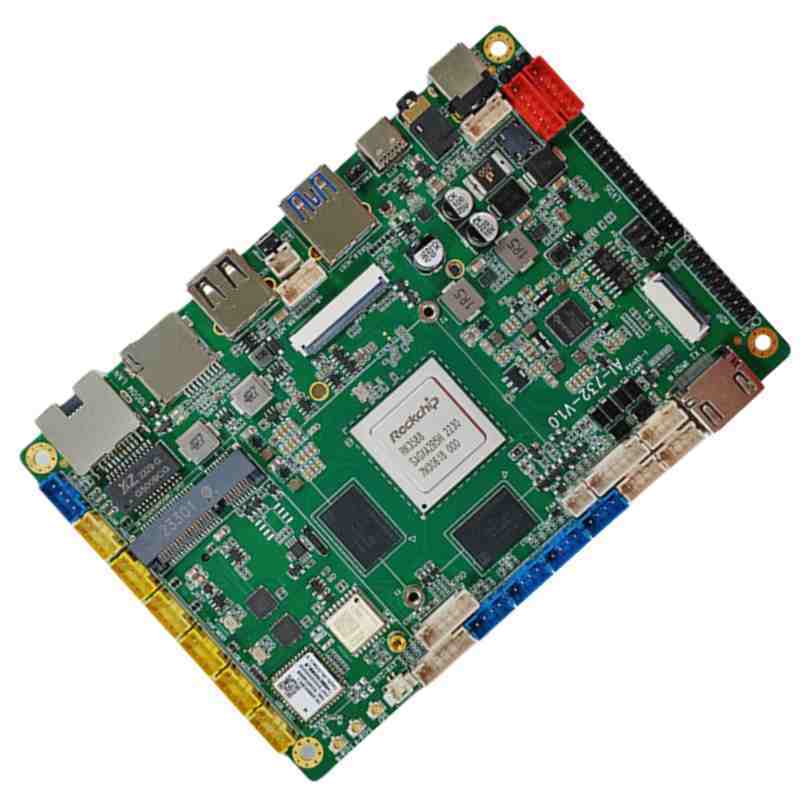

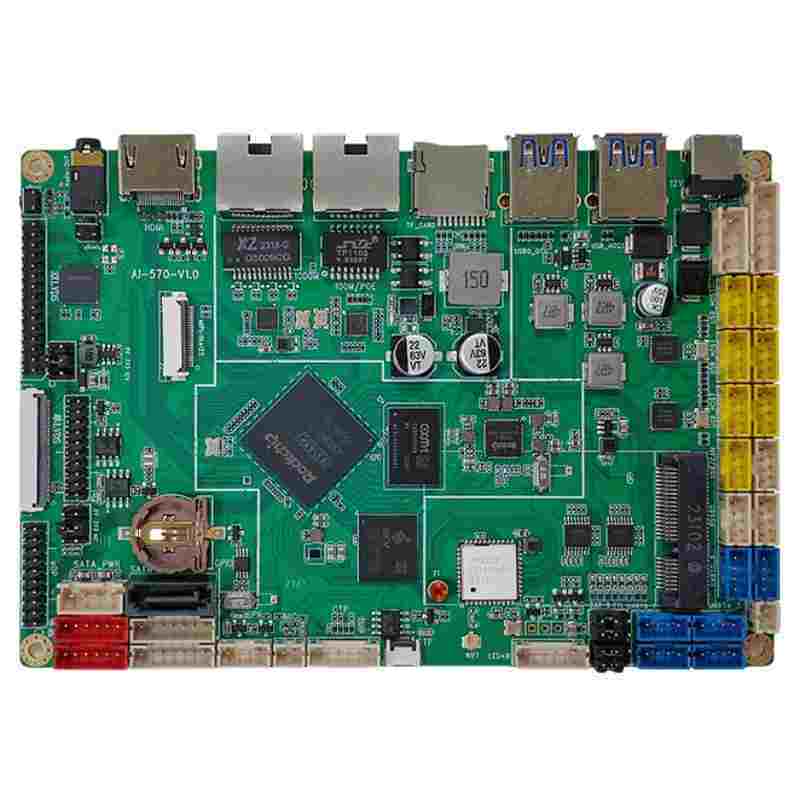

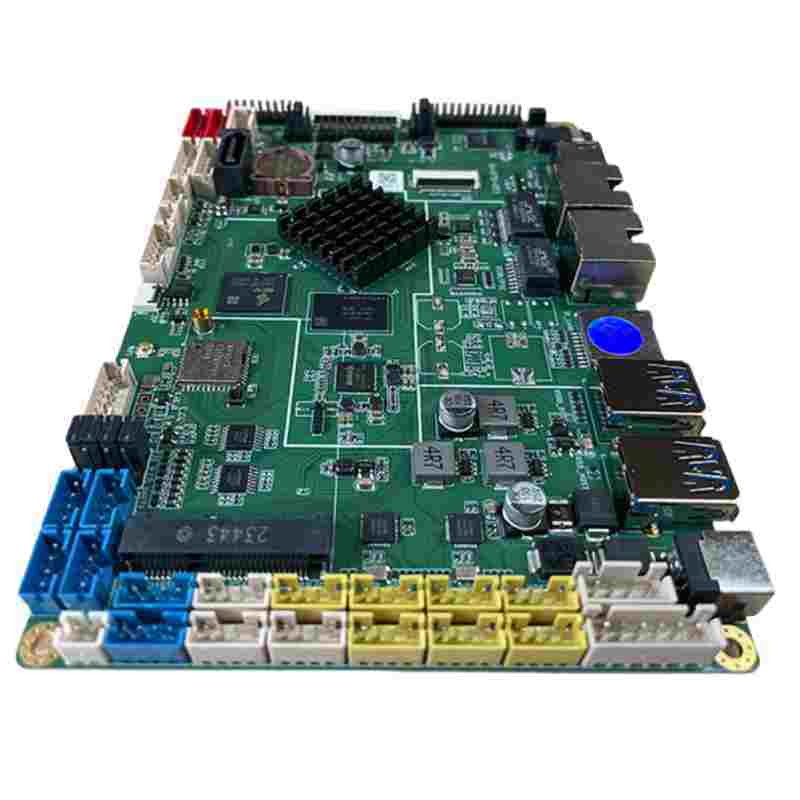

Edge AI PCB assembly

0.0 (0)

0 Sold

$0.02

Optimized for low-latency AI inference, our 6-layer HDI PCB assemblies feature 256 TOPS AI acceleration (NVIDIA Jetson Orin NX), 5G sub-6GHz connectivity, and <1ms signal integrity for edge vision systems. MIL-STD-810G validated for -40°C to +85°C with <0.3% failure rate over 50,000 hours.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Edge AI PCB Assembly: High-Speed, Low-Power Design for Real-Time Machine Learning
Our 6-layer HDI PCB assemblies are engineered for edge AI applications requiring 256 TOPS (NVIDIA Jetson Orin NX) or 128 TOPS (Xilinx ZU7EV) performance, 5G sub-6GHz/Wi-Fi 6E connectivity, and -40°C to +85°C operation. The 0.3mm pitch BGA routing and laser-drilled microvias (<40μm) enable 8,000+ I/O connections in a 150mm x 120mm form factor, reducing power consumption by 30% versus standard 8-layer boards.

AI Performance & Signal Integrity

256 TOPS AI Acceleration: PCIe Gen4 x8 (64GT/s) and LPDDR5X (7500MT/s) ensure <1ms latency for 4K video object detection (YOLOv8, 120fps).
5G Sub-6GHz Optimization: Phase-array antenna integration with beamforming achieves 1.2Gbps throughput at <5ms latency (3GPP Release 16).
Thermal Management: Embedded copper coins and thermal via arrays reduce AI processor junction temperatures by 25°C under full load (45W TDP).

Environmental & Reliability

MIL-STD-810G Compliance: Thermal shock (-55°C to +125°C), salt fog (ASTM B117), and humidity (85% RH, 85°C) tested for 10+ years outdoor durability.
EMI/EMC Shielding: 3D-printed metal enclosure integration reduces radiated emissions by 25dBμV/m (CISPR 32 Class A).

Manufacturing & Compliance

5-Day Rapid Prototyping: From DFM review to 20-unit sample build, including X-Ray/AOI inspection and functional testing (AI model inference, 5G link validation).
Certifications: ISO 13485 (Medical AI), IPC-6012 Class 3, FCC Part 90/15, CE, RoHS.
