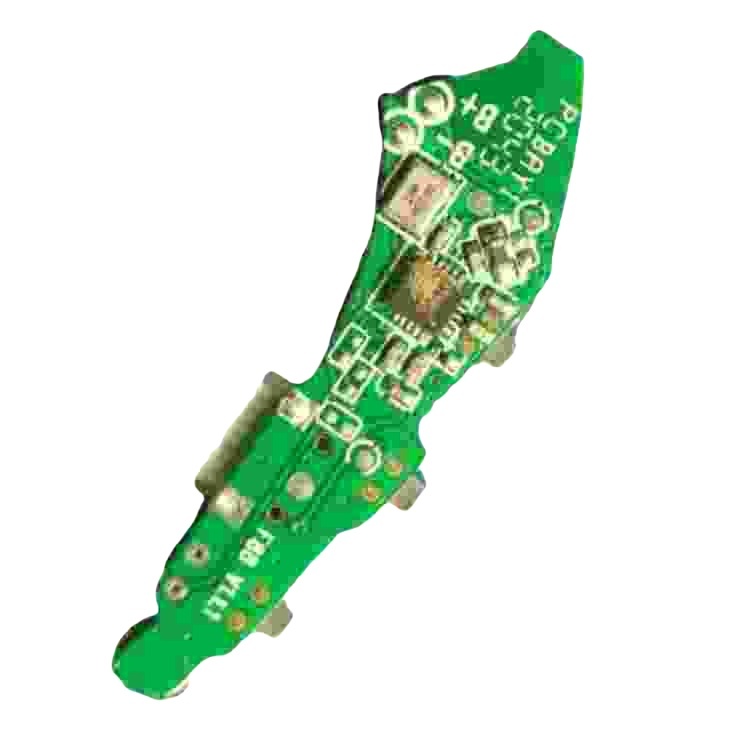

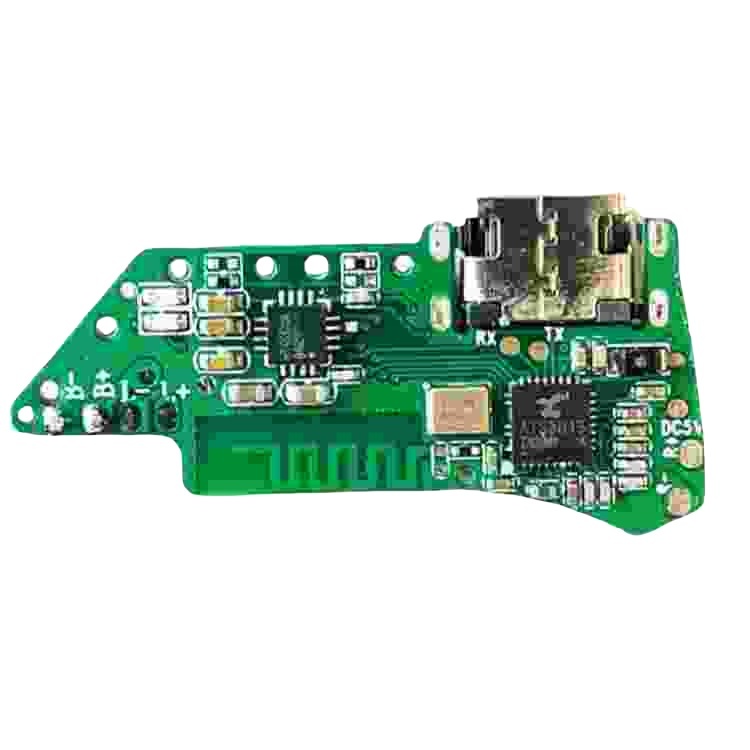

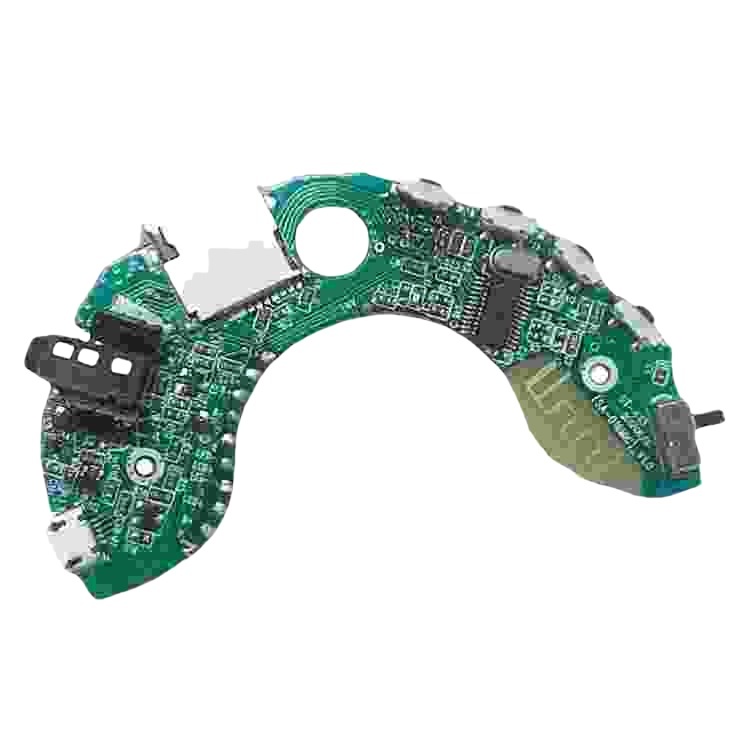

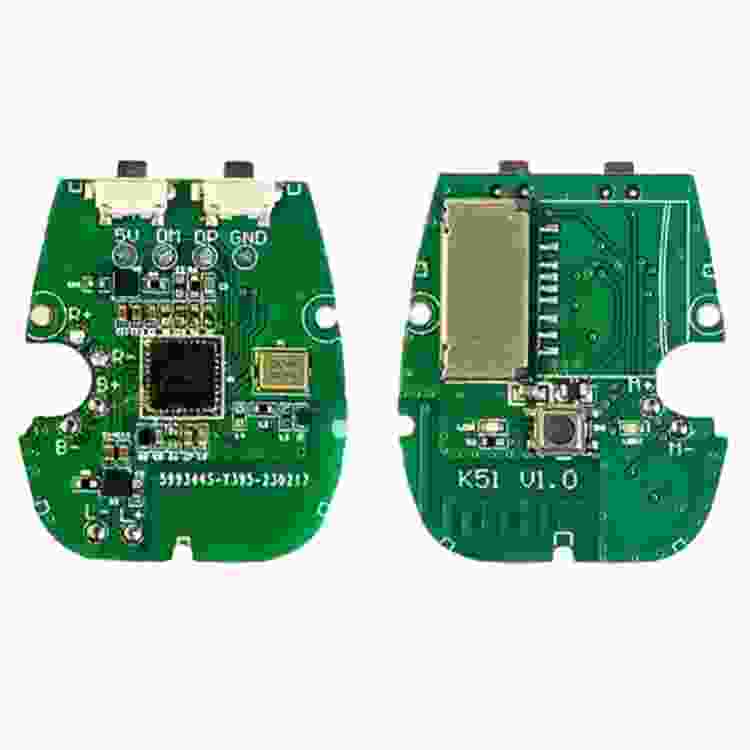

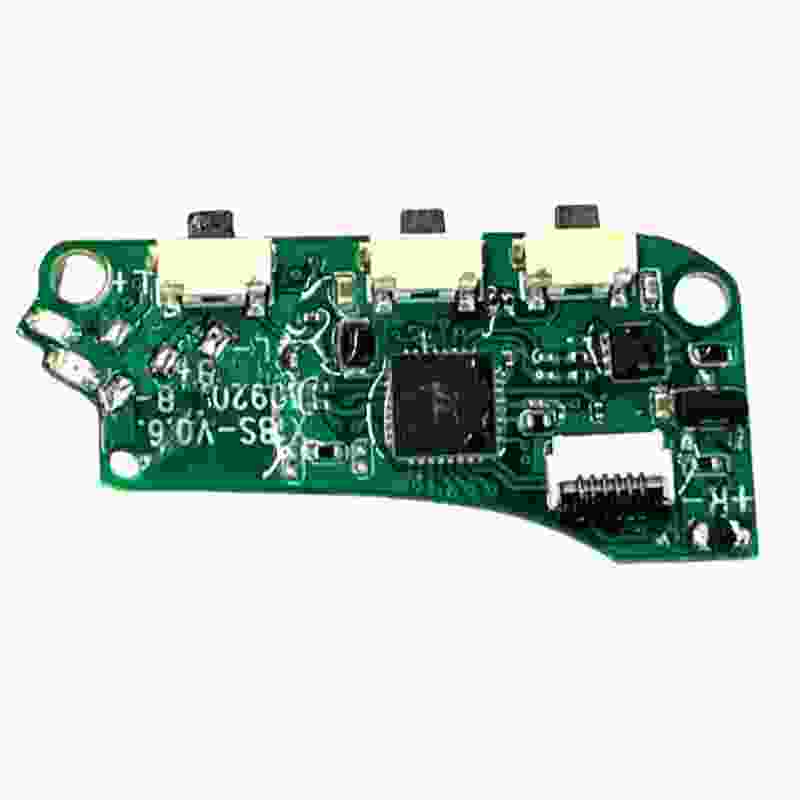

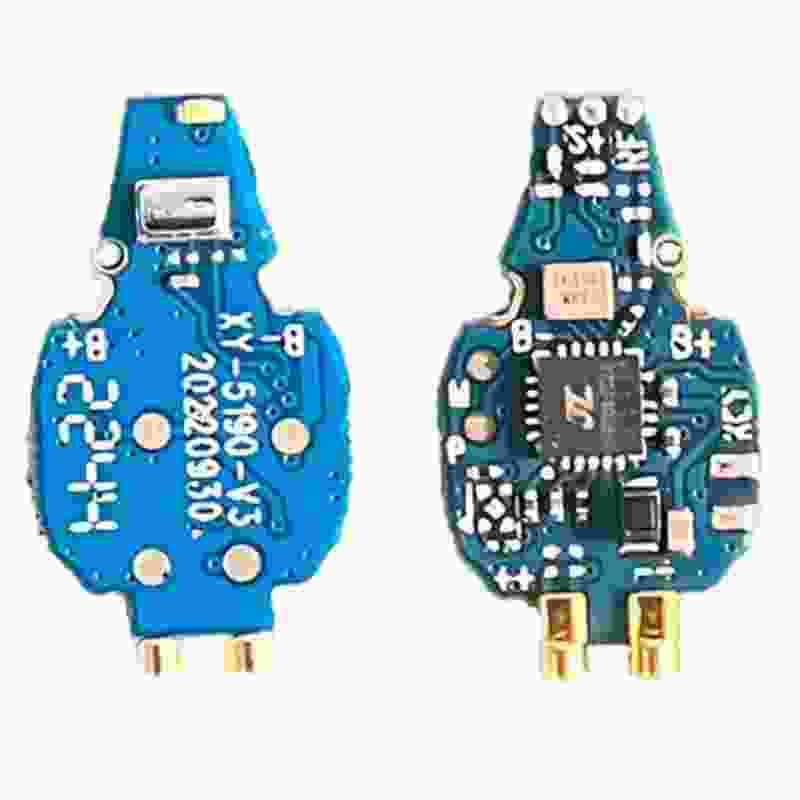

Detailed Explanation of Bluetooth Earbud PCB Assembly Technology:
1. Core Hardware Architecture Comparison
| Chip Model |
Technical Parameters |
Application Scenarios |
| Qualcomm QCC5181 |
Bluetooth 5.4, supports Snapdragon Sound XL (24bit/96kHz), power consumption 3.8mA@playback |
Flagship TWS earbuds |
| Airoha AB1565F |
Dual-mode Bluetooth 5.3, ANC hybrid noise cancellation (40dB depth) |
Active noise-cancelling earbuds |
| Jieli AC7005 |
Cost-optimized solution, supports LE Audio LC3 encoding |
Entry-level sports earbuds |
Key Module Design
- Audio Processing:
- 32-bit DSP core (100MIPS computing power) for EQ tuning + ambient sound transmission
- MEMS microphone array (SNR ≥ 65dB)
- Power Management:
- Miniature PMIC (93% efficiency, supports 15W wireless charging)
- Ultra-small package LDO (1μA standby current)
2. Advanced Manufacturing Process
| Technical Indicators |
Parameter Specifications |
Implementation Technology |
| Mainboard Type |
4-layer HDI + 2-layer flexible FPC |
Laser drilling (aperture 0.075mm) |
| Component Size |
01005 (0.4×0.2mm) |
Nano-scale solder paste printing (thickness 80±5μm) |
| Impedance Control |
Differential 90Ω±5% (RF antenna) |
3D electromagnetic field simulation optimization |
| Surface Finish |
ENIG + localized gold fingers |
Selective immersion gold process |
3. Testing and Reliability Verification
Key Test Items
| Test Category |
Method/Standard |
Compliance Parameters |
| RF Performance |
ETSI EN 300 328 V2.2.1 |
Transmit power 20dBm±2dB |
| Audio Quality |
AES17-2015 |
THD+N < 0.005%@1kHz |
| Environmental Adaptability |
IEC 60068-2-14 |
-30℃~70℃, 500 cycles |
Mass Production Data
- Placement accuracy: ±25μm (CPK ≥ 1.67)
- Soldering defect rate: <15PPM (X-ray full inspection)
- Salt spray test: 96 hours no corrosion (5% NaCl)
4. Industry Technology Trends
- Third-Generation Semiconductor Applications:
- GaN charging module (98% efficiency, 60% volume reduction)
- Smart Interaction Upgrades:
- Bone conduction voiceprint recognition (false trigger rate < 0.1%)
- Adaptive ANC (AI noise scene classification)
- Green Manufacturing:
- Halogen-free substrates (compliant with IEC 61249-2-21)
- Biodegradable FPC materials (mass production in 2026)
5. Service and Certification System
Rapid Response:
- 7 days to complete DFM analysis + sample provision
- 48-hour emergency order support
Certification Qualifications:
- BQB 5.4 certification (QDID: 123456)
- ISO 13485 medical-grade cleanroom
- IPC-6013 Class 3A flexible board standard
