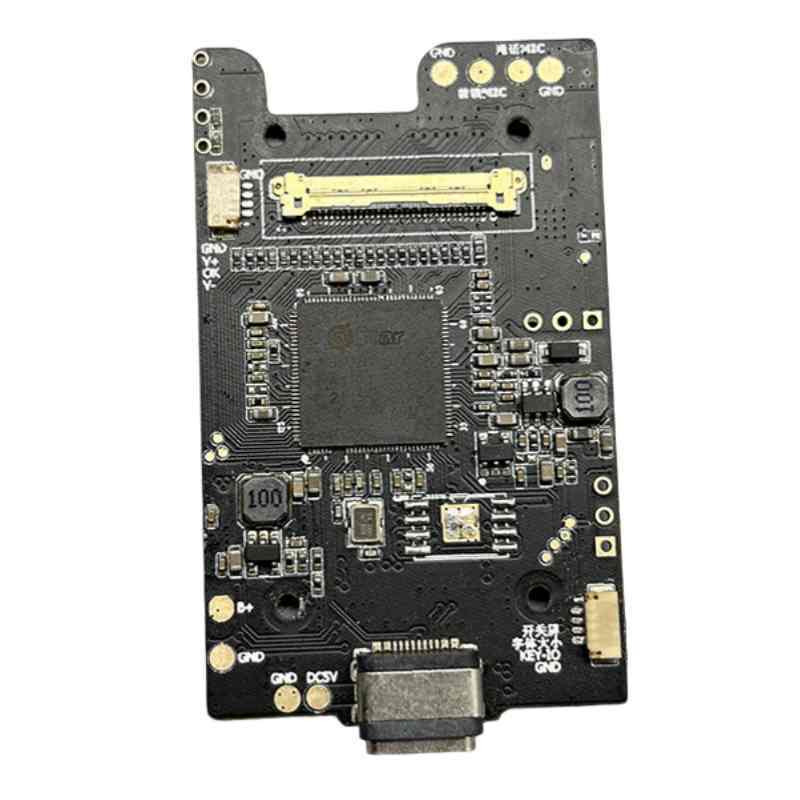

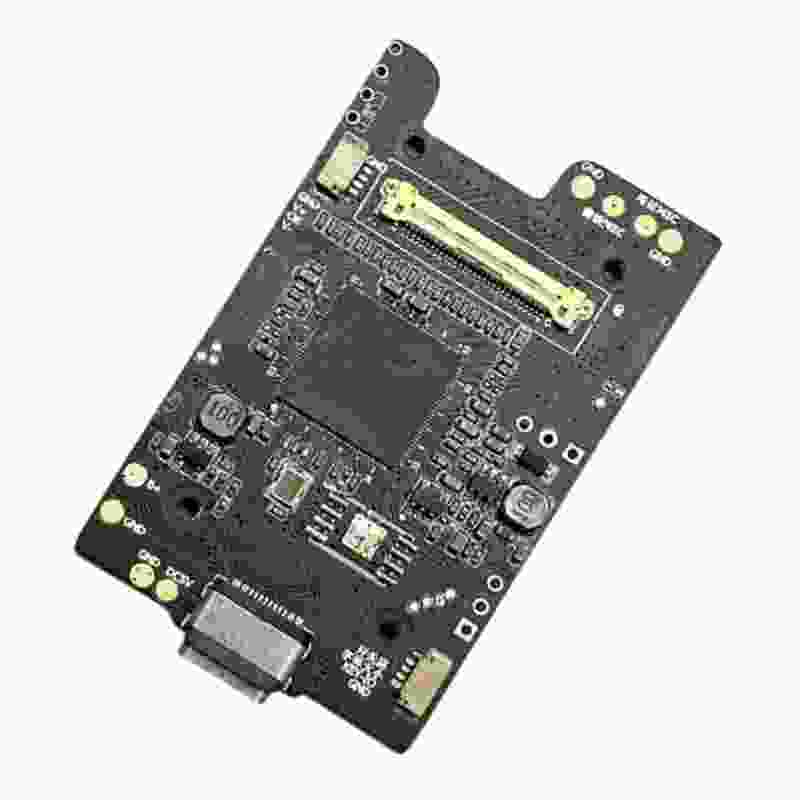

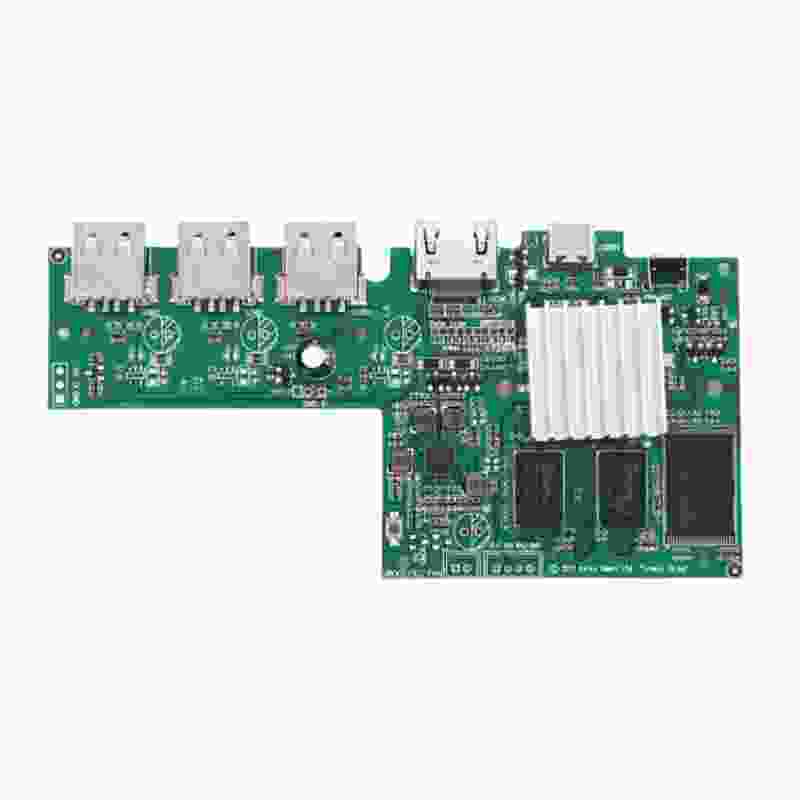

VR/AR Device PCB Assembly Services

SKU:
0.0 (0)
0 Sold
$0.02 $0.00
Professional VR/AR device PCB assembly services, integrating Qualcomm XR2 Gen 2 platform (4K@120Hz), SLAM positioning module (accuracy ±0.1°), and Micro-OLED drive circuitry. Utilizing a 12-layer HDI board + flexible circuit design with MIPI DSI latency <5ms, passing MIL-STD-810H military-grade testing, with a monthly production capacity exceeding 300K+.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Type:
    SMT PCB assembly: 20 million points/day
    PCB manufacturing: 80,000 m²/month
Quantity:
  • VR/AR Device PCB Assembly Services
  • VR/AR Device PCB Assembly Services
  • VR/AR Device PCB Assembly Services
  • VR/AR Device PCB Assembly Services
  • VR/AR Device PCB Assembly Services
  • VR/AR Device PCB Assembly Services
  • VR/AR Device PCB Assembly Services
  • VR/AR Device PCB Assembly Services
1/1
  • VR/AR Device PCB Assembly Services
  • VR/AR Device PCB Assembly Services
  • VR/AR Device PCB Assembly Services
  • VR/AR Device PCB Assembly Services
  • Description

Detailed Explanation of VR/AR Device PCB Assembly Technology:

1. Core Hardware Architecture

Main Control and Display System

Component Technical Parameters Performance Advantages
SoC Platform Qualcomm XR2 Gen 2 (8-core, 7nm, AI compute power 15TOPS) Supports 8K 90fps dual-screen rendering
Optical Drive Micro-OLED driver IC (PPI 3500, response time 0.1ms) Eliminates motion blur
Positioning Module 6DoF SLAM (IMU + dual cameras, sampling rate 1000Hz) Displacement error <1mm

Key Interface Performance

  • Video Transmission:
    • DP 2.1 UHBR (77.4Gbps)
    • MIPI DSI v2.1 (8 channels, 12Gbps/lane)
  • Sensor Fusion:
    • I²C bus speed 10MHz (eye-tracking latency <10ms)
    • 9-axis IMU (gyroscope zero-bias stability 0.5°/hr)

2. Advanced PCB Manufacturing Process

Process Indicators Parameter Specifications Implementation Technology
Board Layer Structure 12-layer HDI (4-stage blind/buried vias) mSAP process + laser LDI exposure
Line Width/Spacing 25/25μm (minimum 15/15μm) Ultra-thin copper foil (3μm)
Impedance Control Differential 85Ω±3% (high-speed MIPI lines) 3D full-wave electromagnetic simulation
Thermal Solution Graphene copper-clad laminate (thermal conductivity 1500W/mK) Embedded heat pipe cavity

3. Reliability Verification System

Environmental Testing Standards

Test Item Conditions Compliance Requirements
Temperature Cycling -40℃↔105℃, 1000 cycles Impedance change <1%
Mechanical Shock 1500G@0.5ms (half-sine wave) Zero solder joint cracking
Salt Spray Corrosion 48 hours (5% NaCl) Insulation resistance >100MΩ

Mass Production Quality Data

  • Placement accuracy: ±15μm (01005 components, CPK ≥ 2.0)
  • Soldering yield: X-ray inspection void rate <10% (IPC-7095C)
  • First-pass yield: 99.8% (AOI + ICT + FCT full inspection)

4. Industry Technology Breakthroughs

Optical Innovations:

  • Pancake lens drive circuitry (voltage accuracy ±0.05V)
  • Variable-focus display (response time <3ms)

Low-Latency Technologies:

  • Wireless PCVR solution (WiFi 7, latency <2ms)
  • Foveated rendering (reduces GPU load by 50%)

Energy Efficiency Optimization:

  • Dynamic voltage scaling (reduces power consumption by 35%)
  • GaN power module (peak efficiency 97%)

5. Services and Certifications

Rapid Delivery:

  • 72-hour sample cycle (supports small-batch verification)
  • 15-day production ramp-up (300K/month capacity)

Certification System:

  • ISO 14644-1 Class 5 cleanroom
  • IEC 62368-1 safety certification
  • FCC Part 15B electromagnetic compatibility
